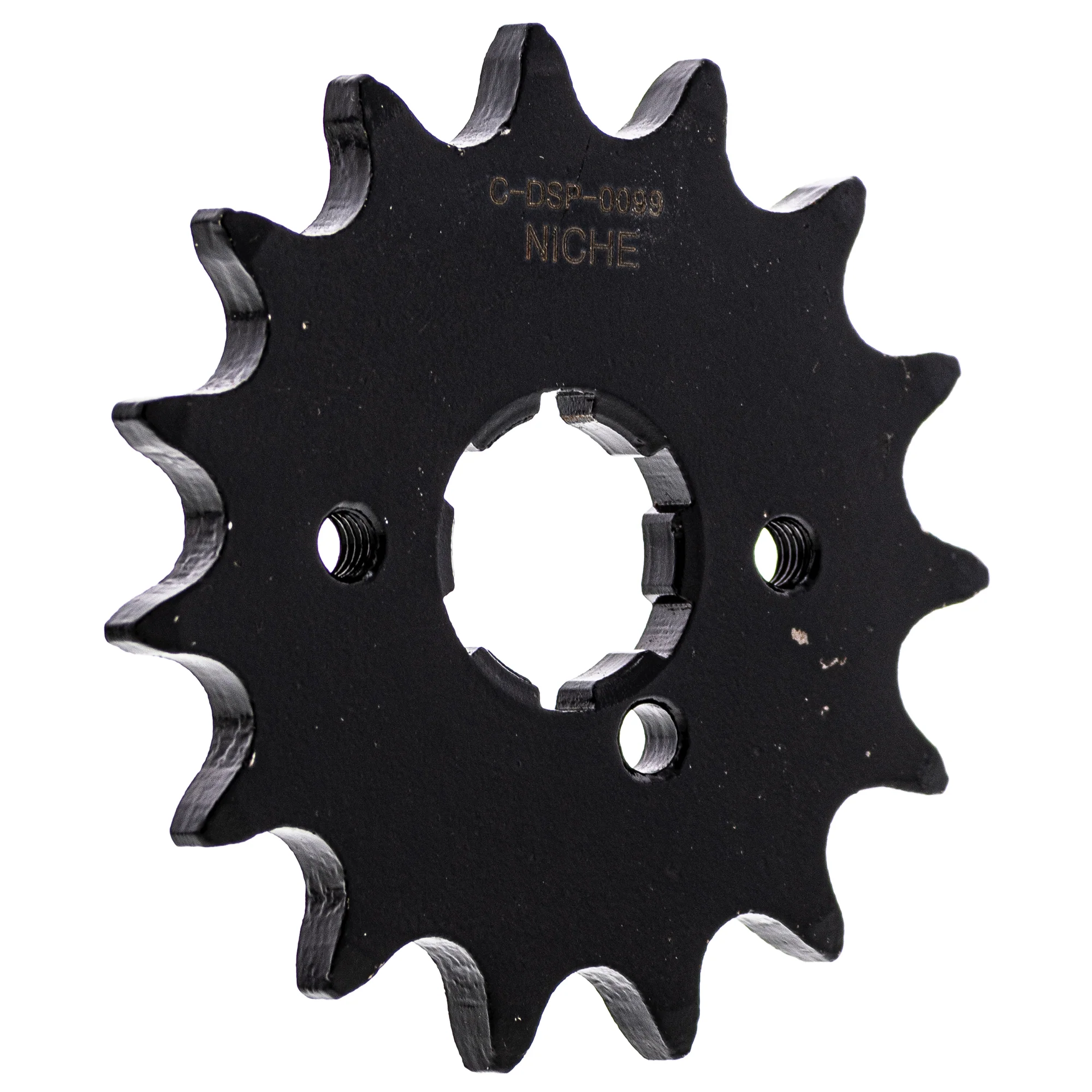

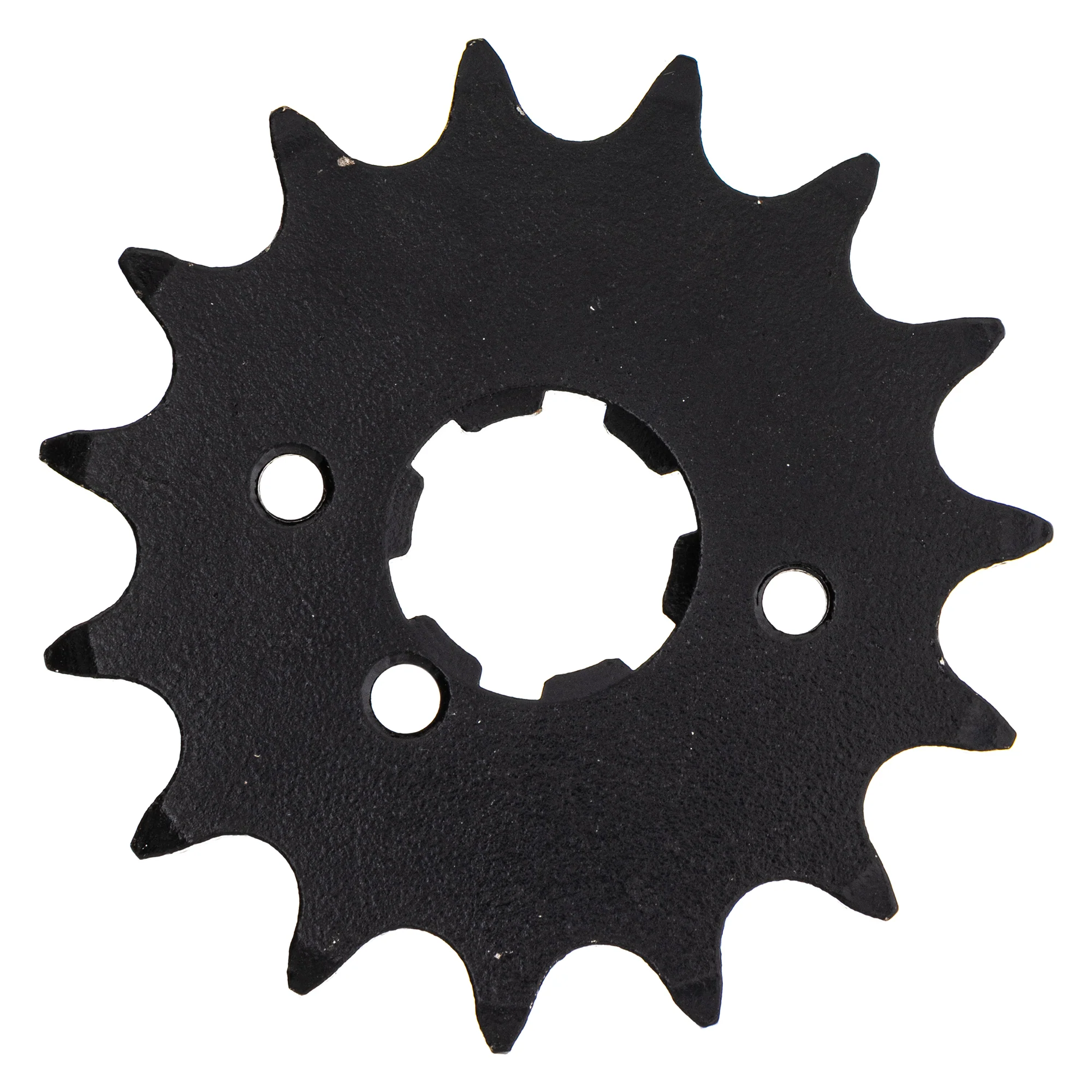

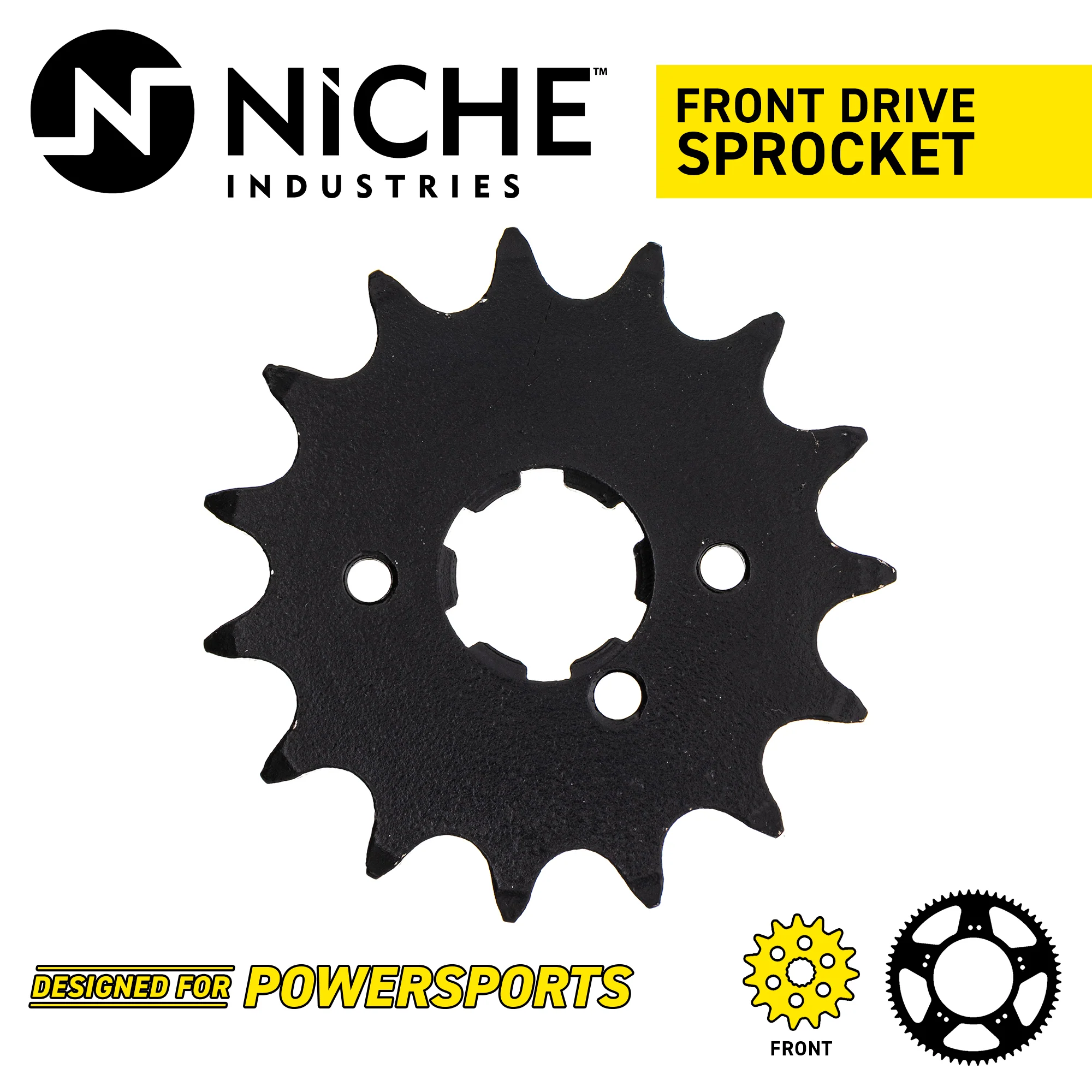

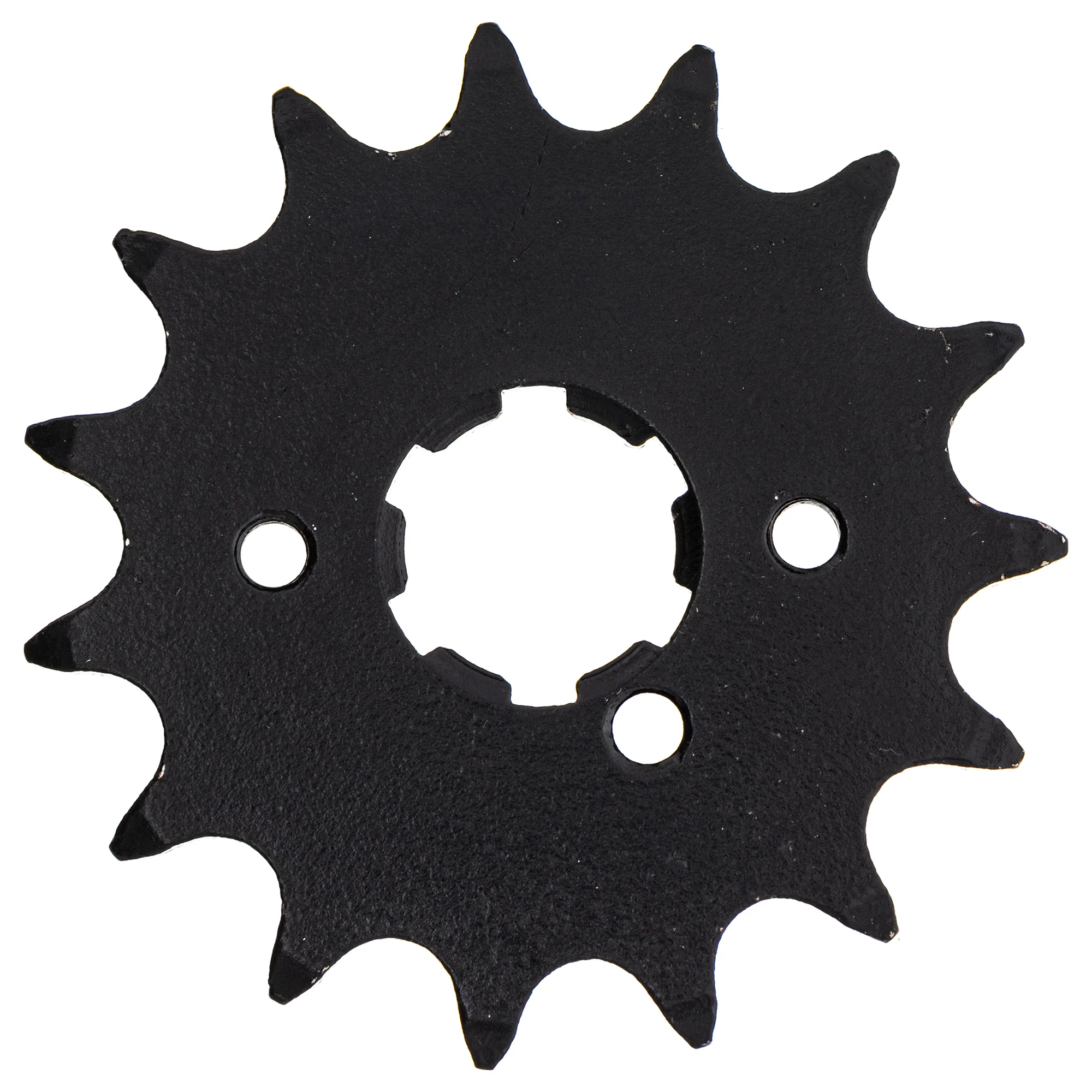

519-CDS2211P Front Drive Sprocket Product Info:

• Pitch 520, Teeth 15; Sprocket Material Consists of SAE 1023 structural carbon steel; Surface Finish Sandblasting; Surface Treatment Electrophoresis
• Hub Inner Diameter 21mm; Hub 2 (ID) 25mm; Distance Between Mounting Holes (ID) 42mm

Direct Replacement for the Following OEM Part Numbers:

93834-15078-00, 93834-15076-00, 93834-15075-00, 23X-17461-50-00, 13144-069

Compatible with the Following Vehicles:

Yamaha YZ490: 1982-1990
Yamaha YZ465: 1980-1981
Yamaha YZ400: 1976-1979
Yamaha YZ250WR: 1989-1990
Yamaha YZ250: 1976-1998
Yamaha XT250: 1980-1983
Yamaha WR500Z: 1992-1993
Yamaha WR250Z: 1991-1997
Yamaha WR250: 1991-1997
Yamaha TT250: 1980-1982
Yamaha IT490: 1983-1984
Yamaha IT465: 1981-1982
Yamaha IT425: 1980
Yamaha IT400: 1977-1979
Yamaha IT250: 1977-1983
Kawasaki KZ250 LTD: 1980
Kawasaki KZ250 CSR: 1981
Kawasaki KZ200: 1977-1979
Kawasaki KX500: 1987-2004
Kawasaki KX250: 1987-1998
Kawasaki KLX250: 1979-1980
Kawasaki KLR250: 1978
Kawasaki KL250: 1978-1981
Kawasaki KDX250: 1991-1994
