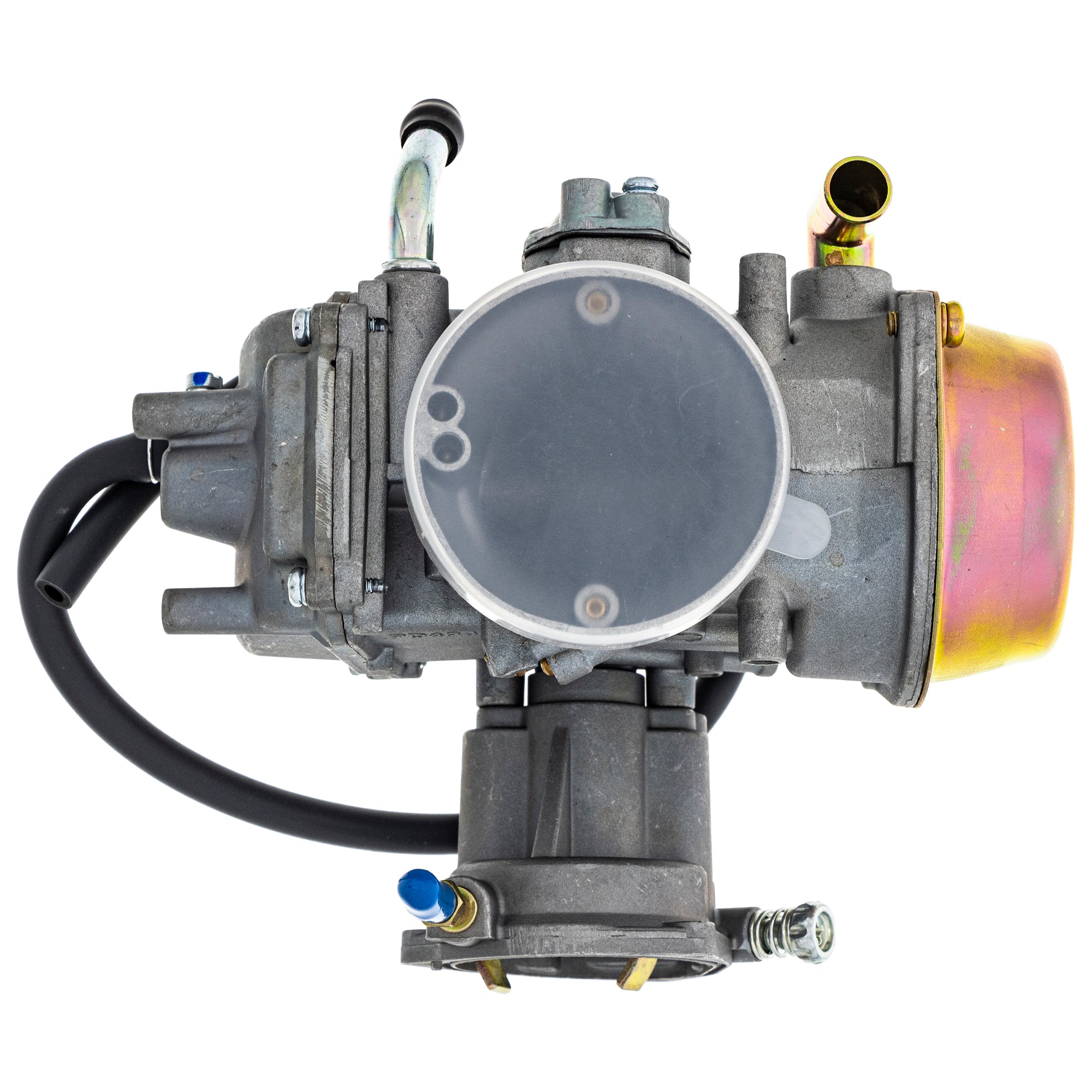

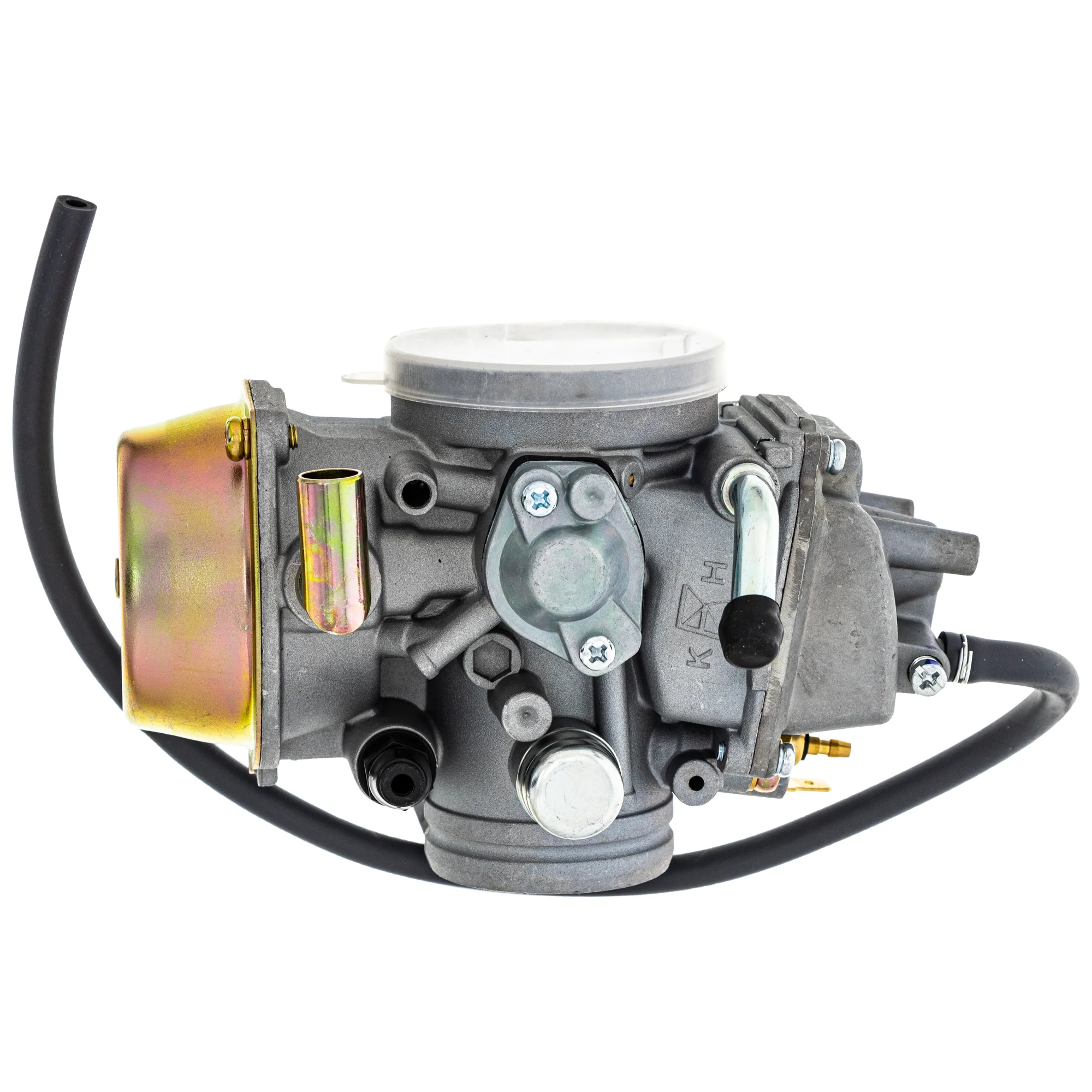

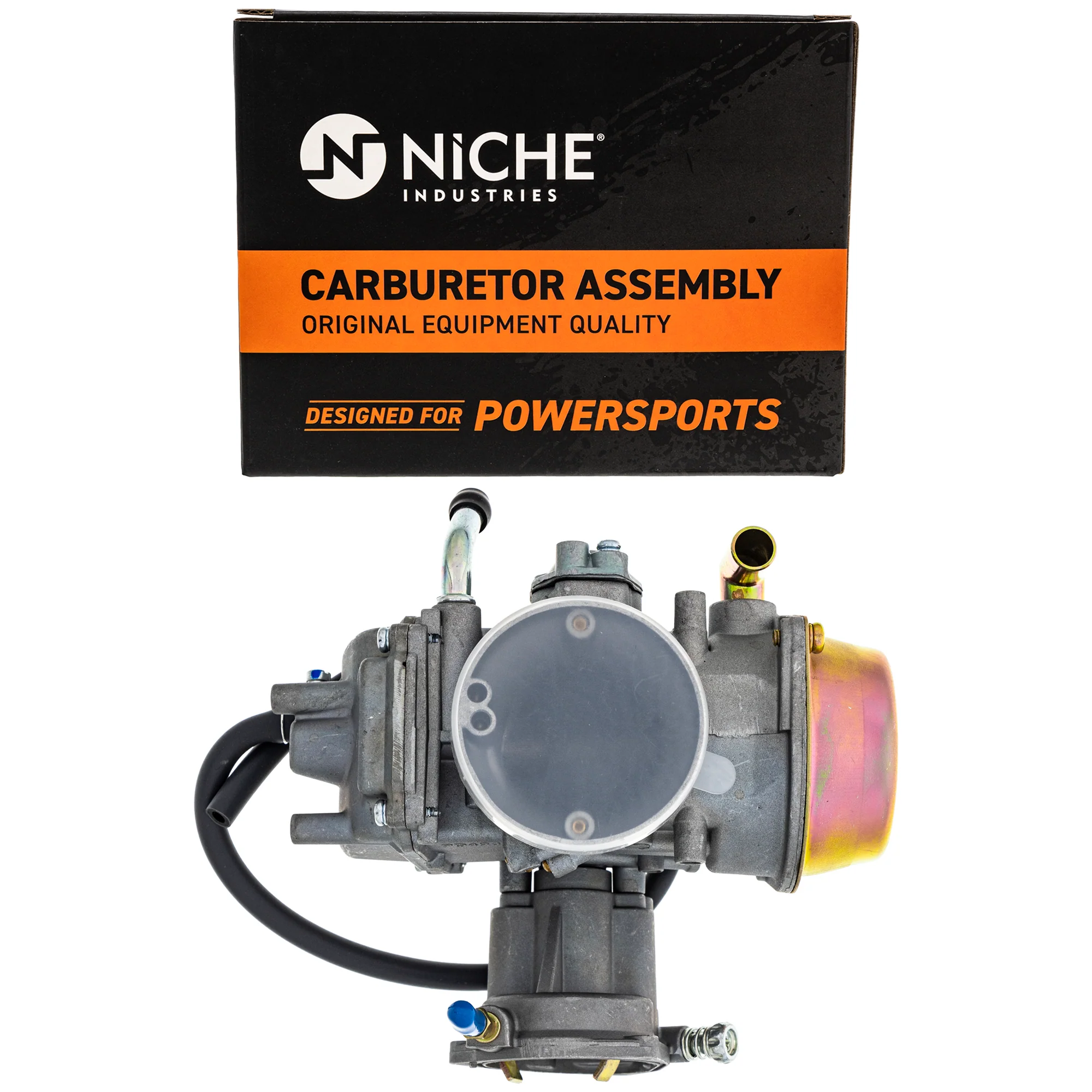

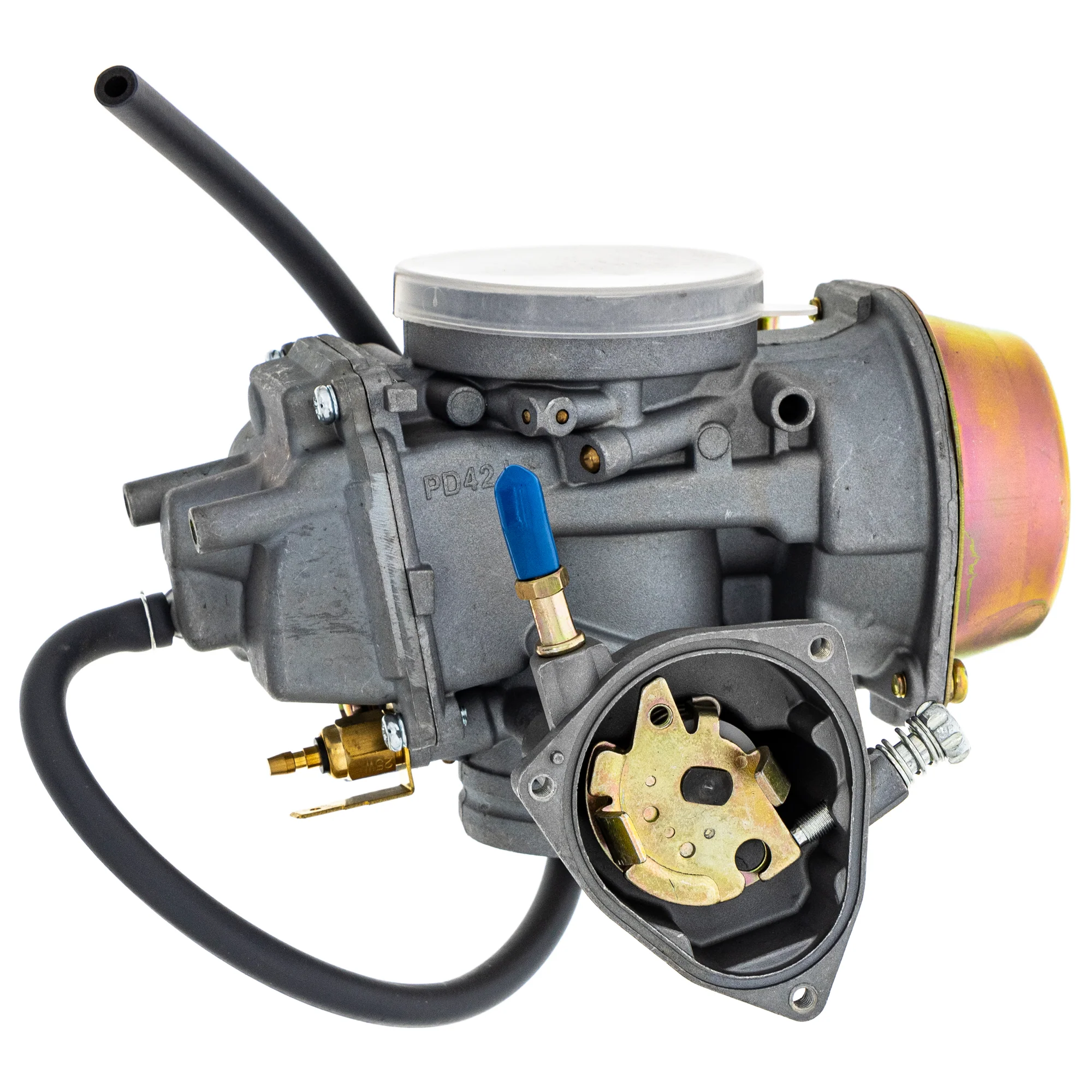

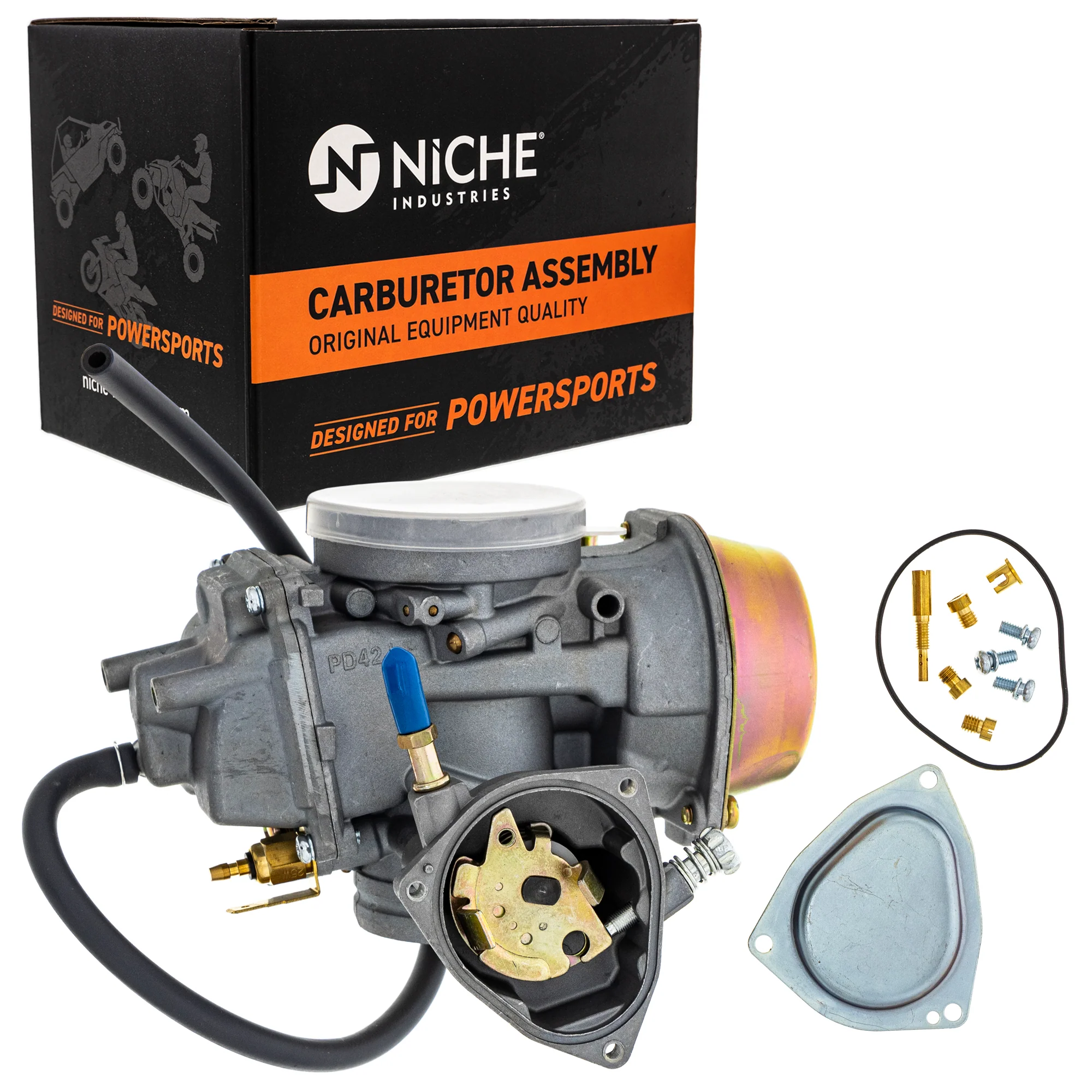

519-KCR2260B Carburetor Assembly Product Info:

• Main Jet Installed 158; Main Jet Spares #145; Pilot Jet Installed 65; Pilot Jet Spares #40; Air Jet Installed 70mm
• Input Port Size OD 48mm; Input Port Size ID 42mm; Output Port Size OD 62mm; Output Port Size ID 59.5mm
• Center Hole to Center Hole None; Choke is Automaticity; Bowl Heater Included? No

Direct Replacement for the Following OEM Part Numbers:

5UG-14901-10-00, 5UG-14901-00-00

Compatible with the Following Vehicles:

Yamaha Rhino 660 Sport Edition 4X4: 2007
Yamaha Rhino 660 Special Edition 4X4: 2006-2007
Yamaha Rhino 660 Hunter Exploring Edition 4X4: 2006
Yamaha Rhino 660 Hunter Edition 4X4: 2004-2007
Yamaha Rhino 660 Exploring Edition 4X4: 2006-2007
Yamaha Rhino 660 Ducks Unlimited Edition 4X4: 2007
Yamaha Rhino 660 4X4: 2004-2007
