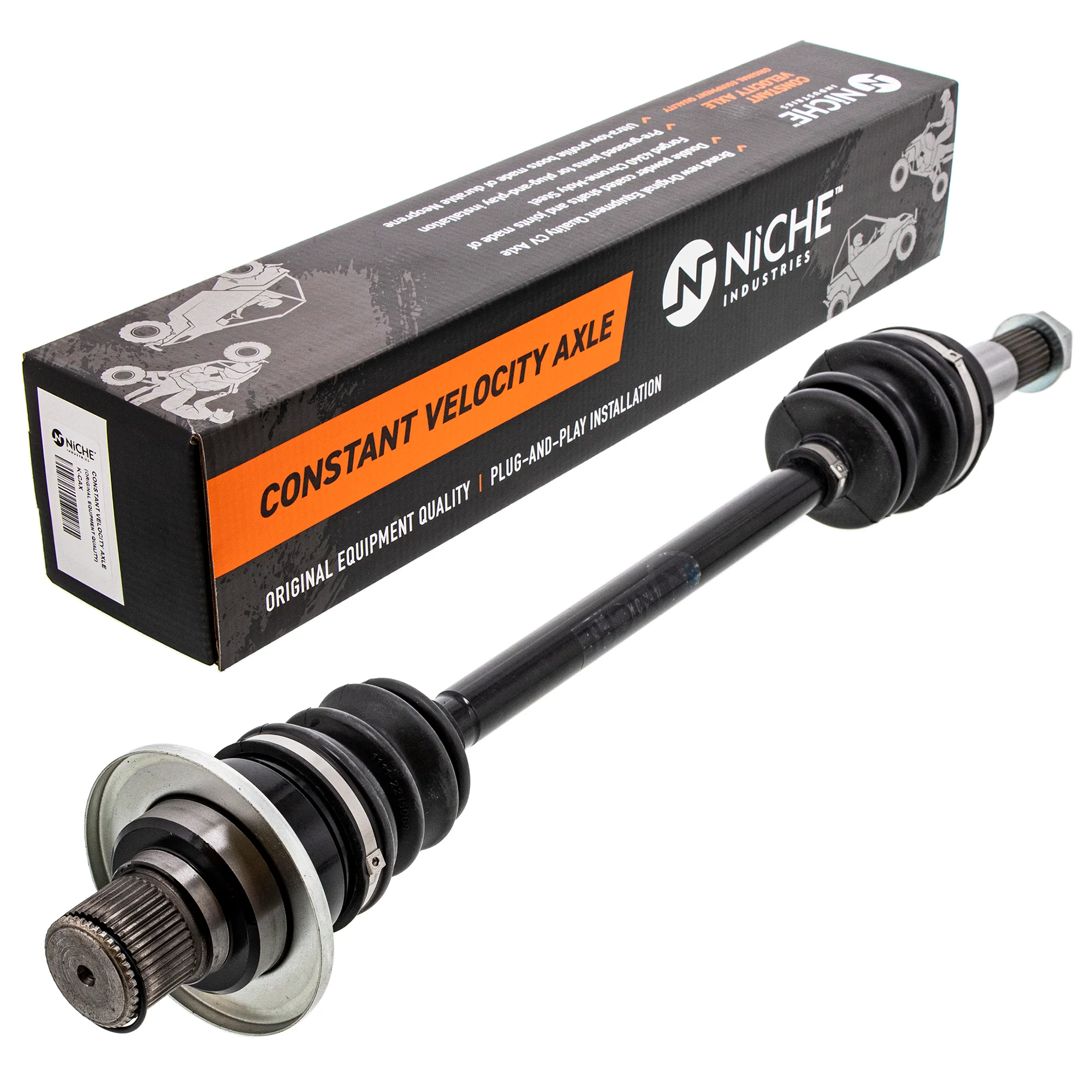

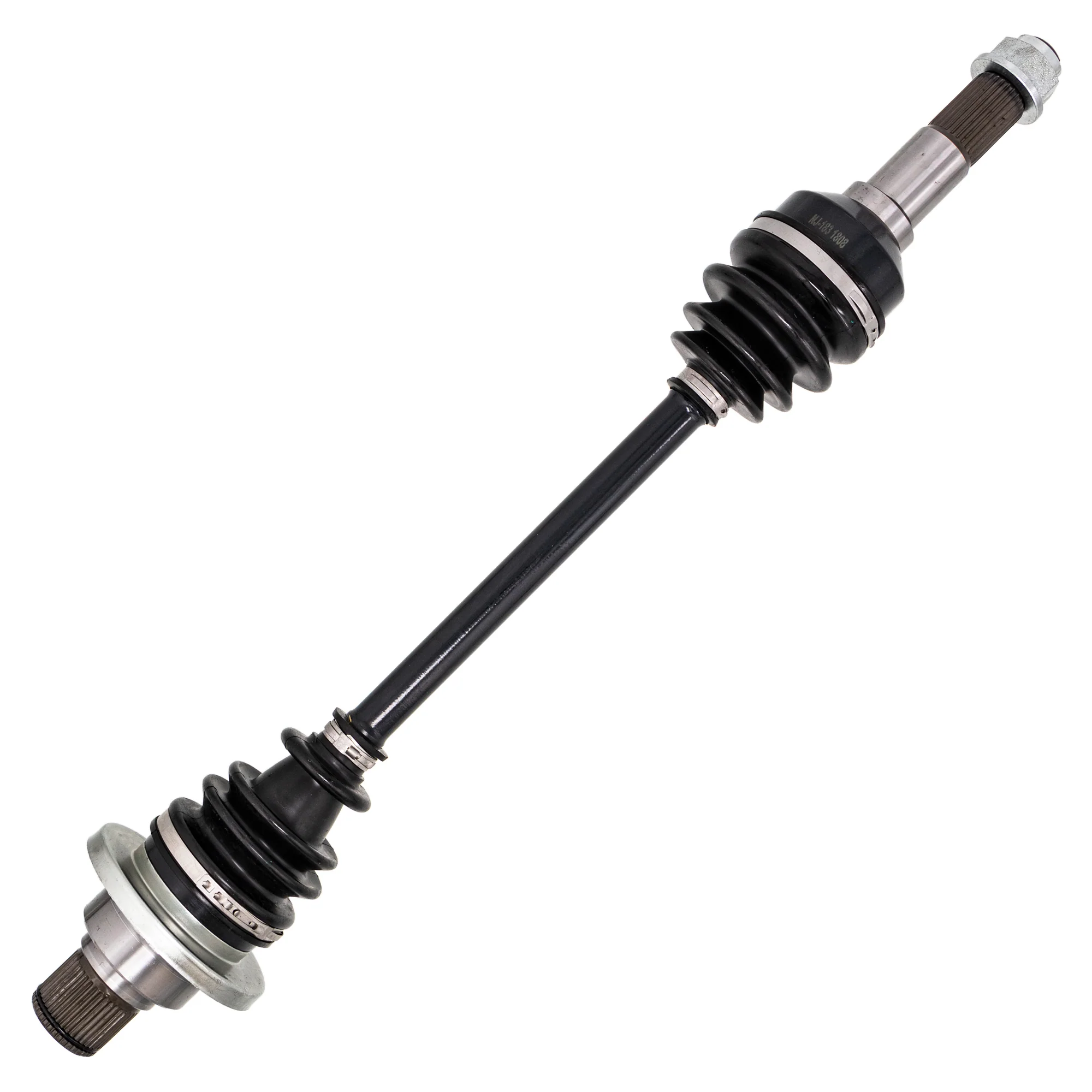

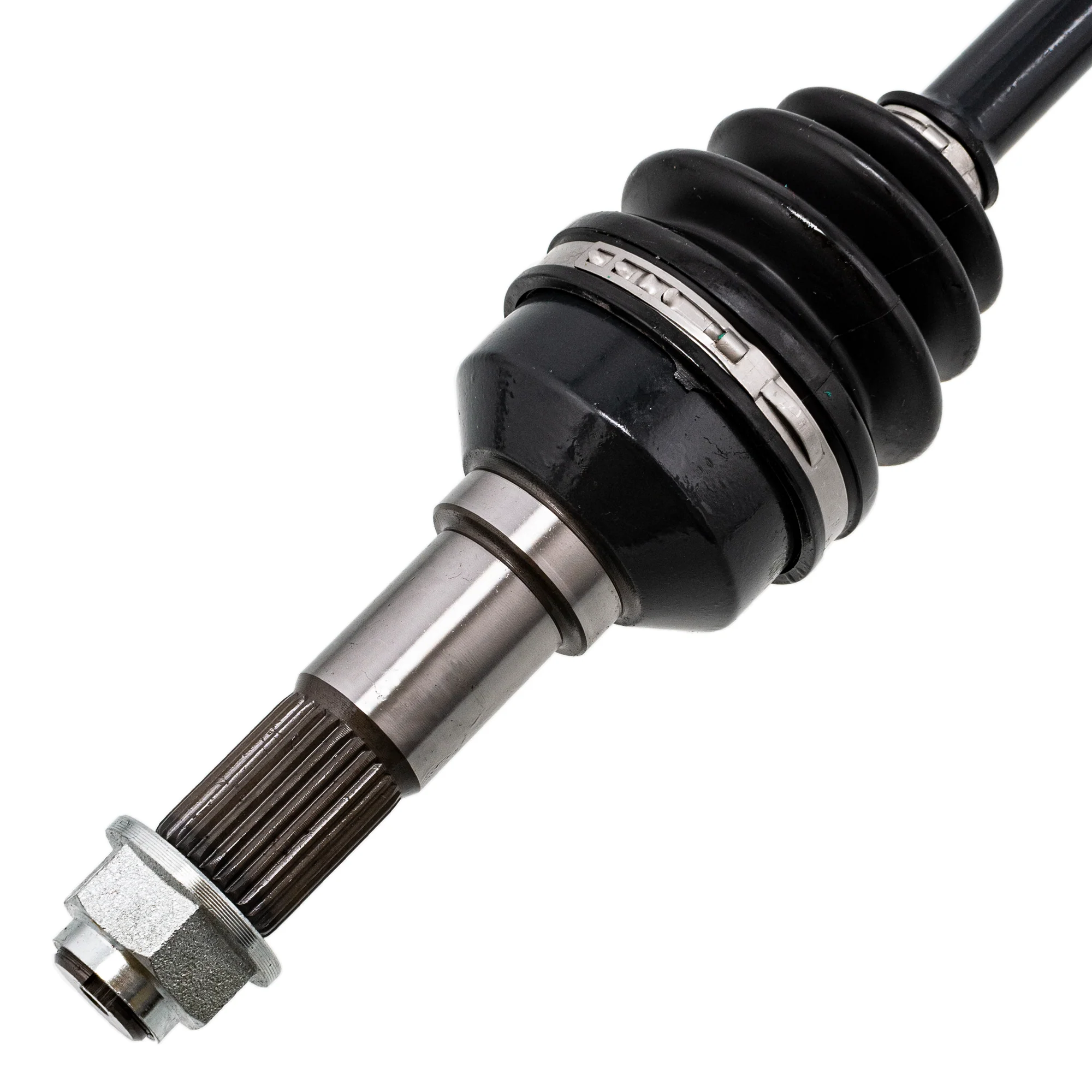

MK1001427 Rear Left & Right Axle Kit Product Info:

• Rear Left Compressed Length 23 1/8, Inboard Splines 39T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M24x2.0
• Rear Right Compressed Length 25 1/2, Inboard Splines 39T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M24x2.0

Included in This Kit:

(QTY 1) NICHE 519-KCA2270X Rear Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5B4-F531H-00-00

(QTY 1) NICHE 519-KCA2271X Rear Right Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5B4-F53B0-00-00

Compatible with the Following Vehicles:

Yamaha Rhino 700 Sport Edition FI 4X4: 2008-2013
Yamaha Rhino 700 Special Edition II FI 4X4: 2008
Yamaha Rhino 700 Special Edition FI 4X4: 2008-2013
Yamaha Rhino 700 Hunter Edition FI 4X4: 2008-2013
Yamaha Rhino 700 FI 4X4: 2008-2013
Yamaha Rhino 700 Ducks Unlimited Edition FI 4X4: 2008-2009
