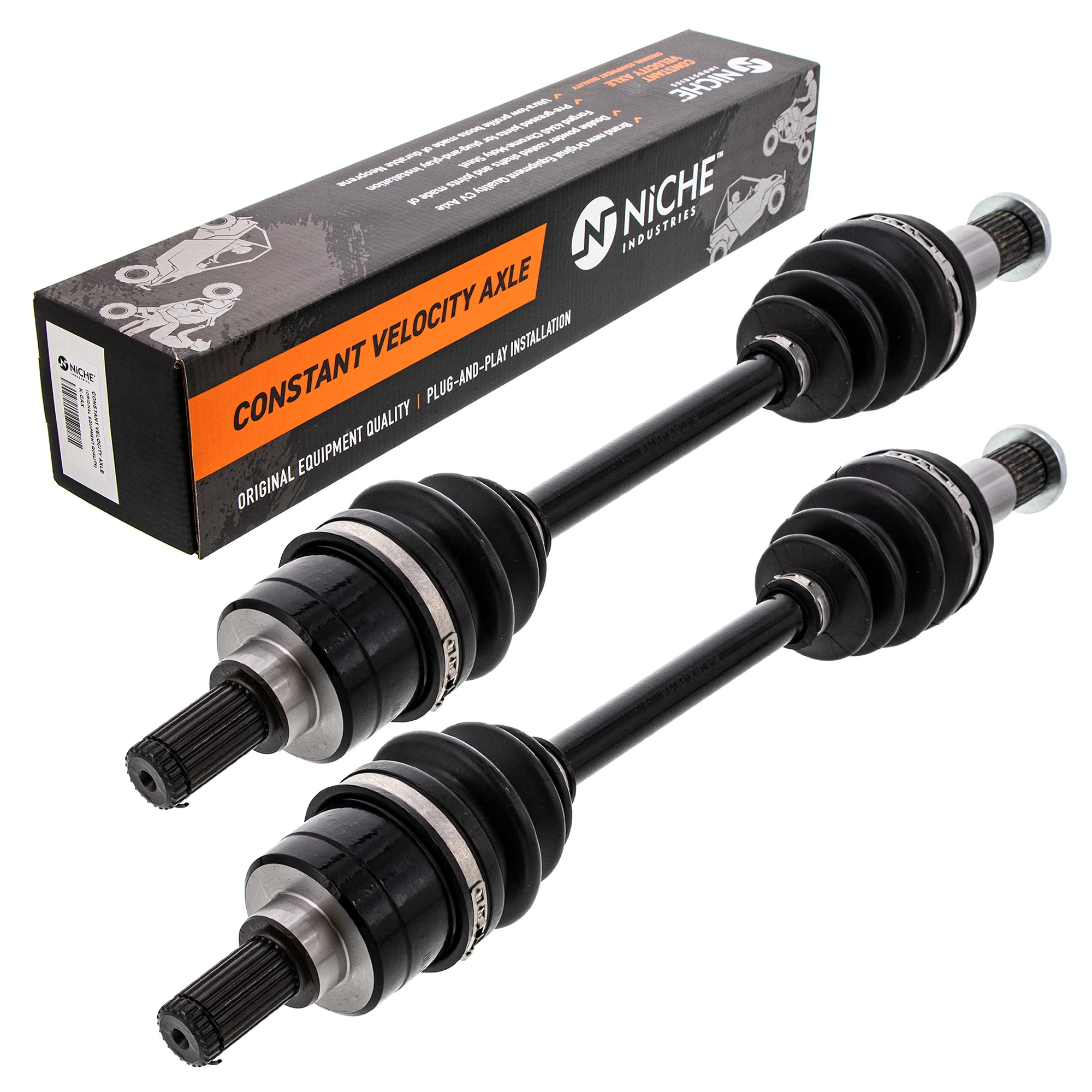

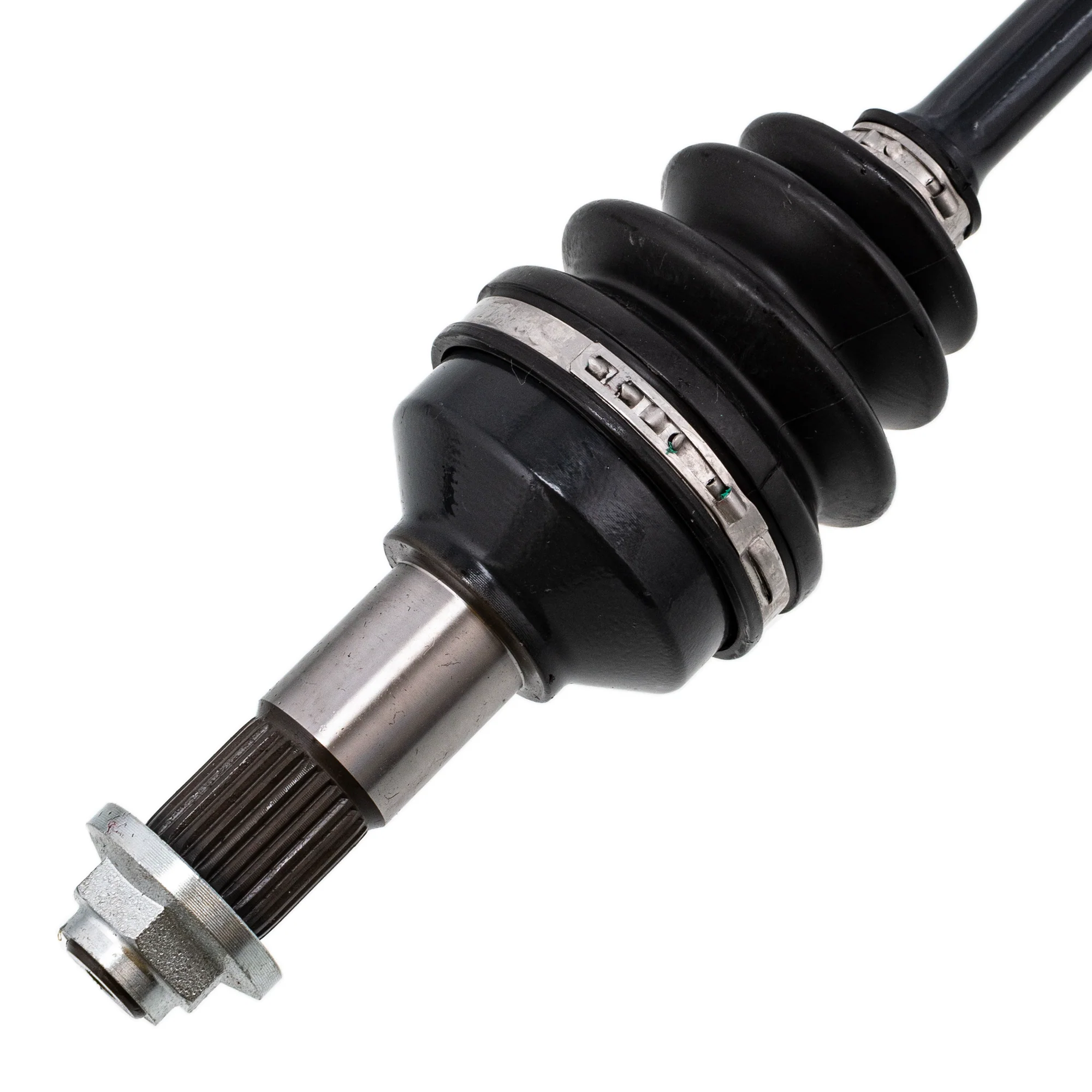

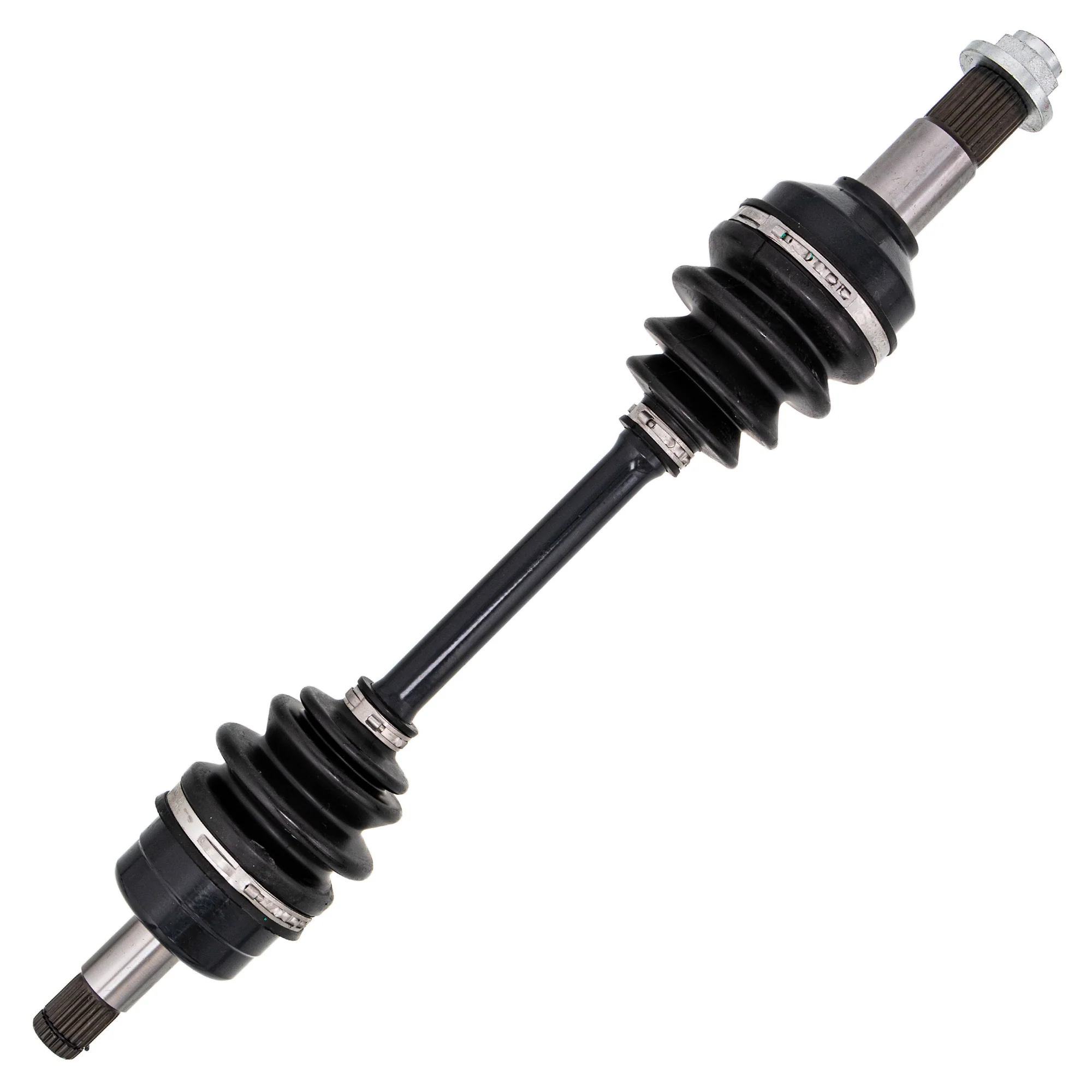

MK1001429 CV Axle Drive Shaft Set (Front & Rear) Product Info:

• Front Compressed Length 19 15/16, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 3/4, Thread Measurement M20X1.5
• Rear Compressed Length 20 13/16, Inboard Splines 23T, Inboard Spline Diameter 2 1/2, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 3/4, Thread Measurement M20X1.5

Included in This Kit:

(QTY 2) NICHE 519-KCA2235X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 28P-2510F-04-00

(QTY 2) NICHE 519-KCA2236X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 3B4-2530V-00-00, 28P-2530V-01-00

Compatible with the Following Vehicles:

Yamaha Grizzly 550 FI 4X4: 2009-2014
Yamaha Grizzly 550 FI EPS 4X4: 2009-2014
Yamaha Grizzly 550 Hunter Edition FI 4X4: 2009-2014
Yamaha Grizzly 550 Hunter Edition FI EPS 4X4: 2009-2014
Yamaha Grizzly 550 Special Edition FI EPS 4X4: 2009
Yamaha Grizzly 700 Ducks Unlimited Edition FI 4X4: 2009
Yamaha Grizzly 700 FI 4X4: 2009-2013
Yamaha Grizzly 700 FI EPS 4X4: 2009-2013
Yamaha Grizzly 700 Hunter Edition FI 4X4: 2009-2013
Yamaha Grizzly 700 Hunter Edition FI EPS 4X4: 2009-2013
Yamaha Grizzly 700 Special Edition FI EPS 4X4: 2009-2013
