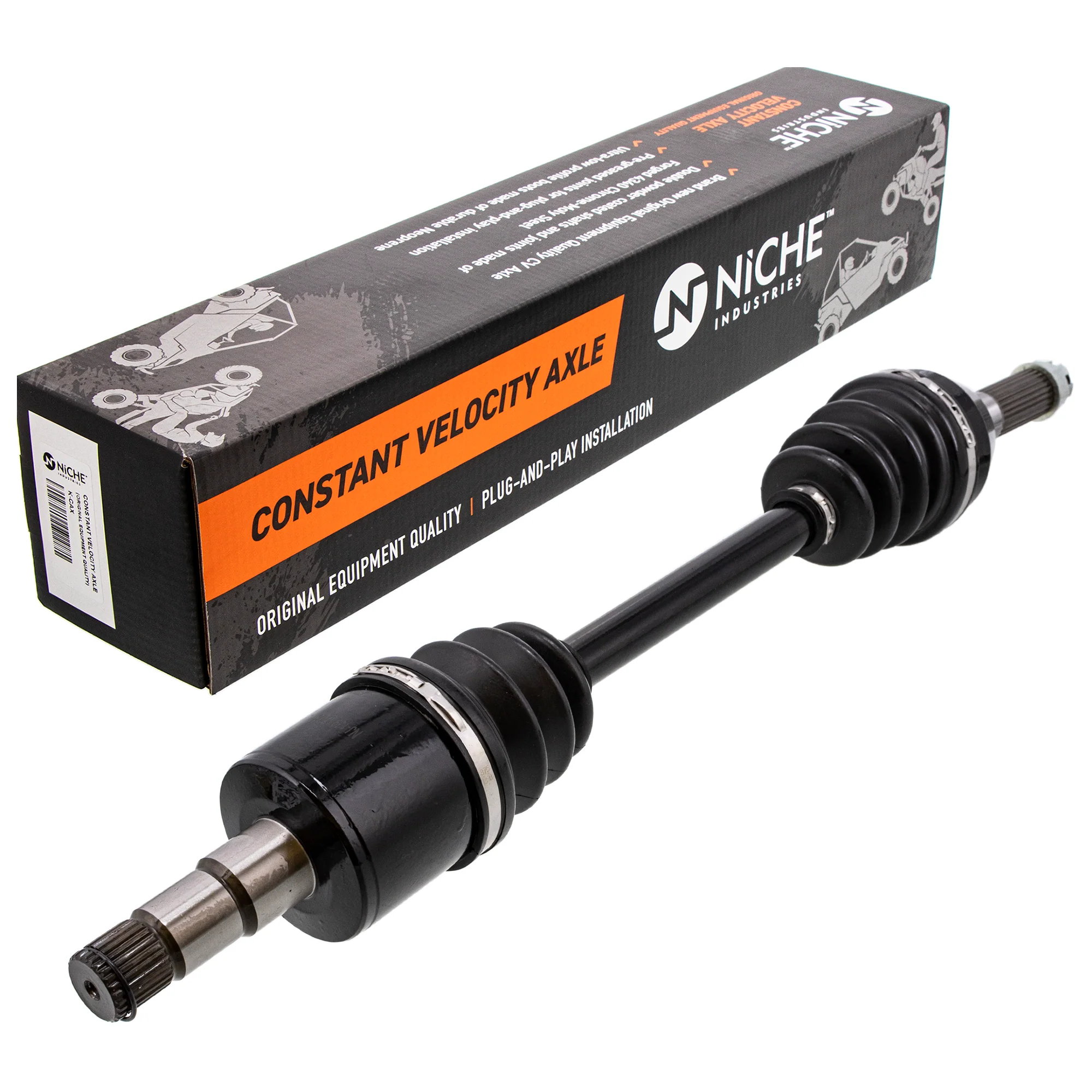

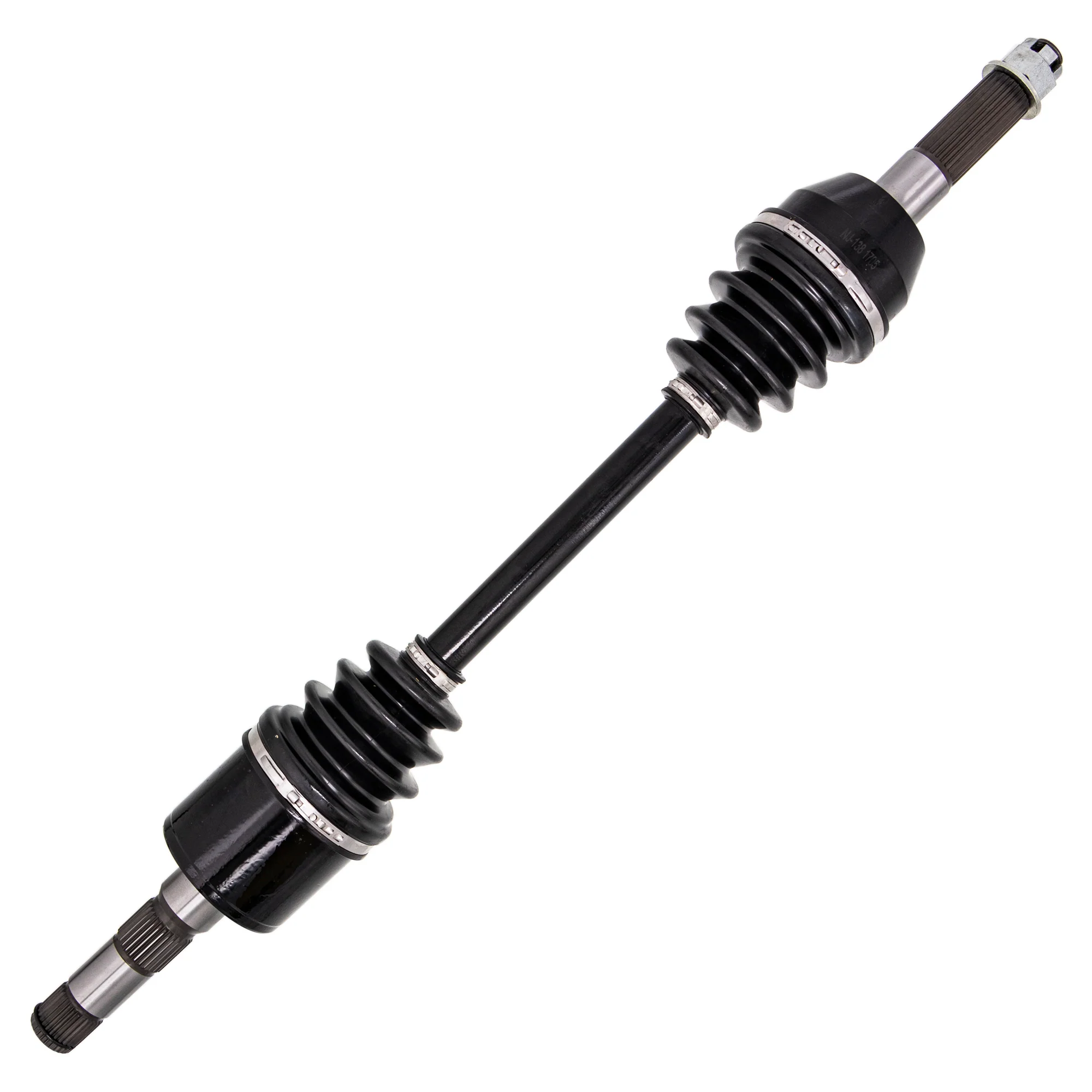

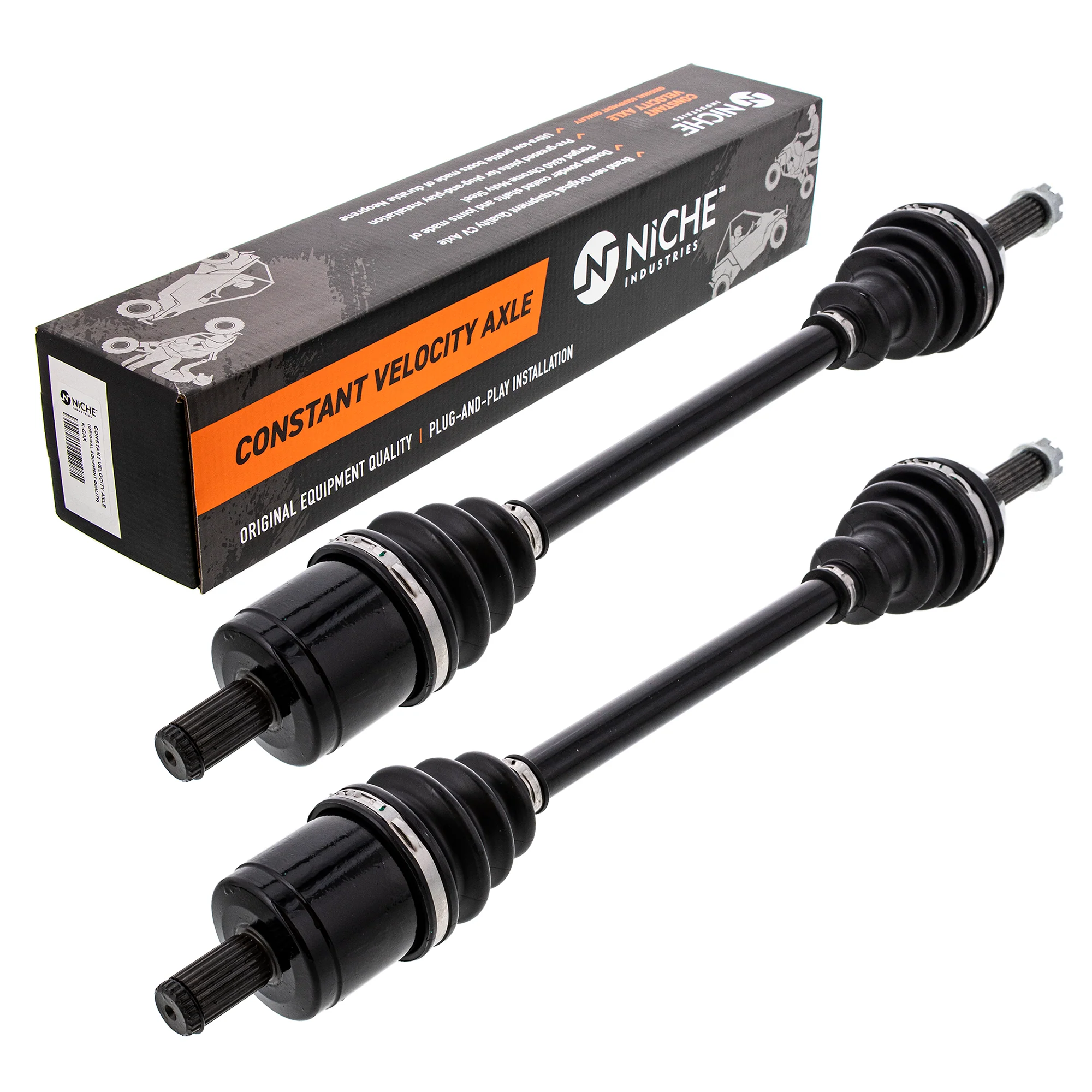

MK1001431 CV Axle Drive Shaft Set (Front & Rear) Product Info:

• Front Compressed Length 24 13/16, Inboard Splines 22T, Inboard Spline Diameter 2 3/4, Outboard Splines 20T, Outboard Spline Diameter 3, Shaft Diameter 15/16, Thread Measurement 5/8X16
• Rear Left Compressed Length 27 3/16, Inboard Splines 27T/29T, Inboard Spline Diameter 3 1/4, Outboard Splines 26T, Outboard Spline Diameter 3 3/16, Shaft Diameter 1, Thread Measurement M19X1.5
• Rear Right Compressed Length 26, Inboard Splines 27T, Inboard Spline Diameter 3 1/4, Outboard Splines 26T, Outboard Spline Diameter 3 3/16, Shaft Diameter 1, Thread Measurement M19X1.5

Included in This Kit:

(QTY 1) NICHE 519-KCA2239X Rear Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332284

(QTY 1) NICHE 519-KCA2230X Rear Right Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332285

(QTY 2) NICHE 519-KCA2244X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1380236, 1332467, 1332423

Compatible with the Following Vehicles:

Polaris Ranger XP 700: 2005-2007
Polaris Ranger 700 6X6: 2006
Polaris Ranger 500 EFI Limited: 2005
Polaris Ranger 500 EFI: 2005-2007
Polaris Ranger 500 2X4: 2005-2007
