MK1001438 Front & Rear CV Axle Kit Product Info:

• Front Compressed Length 21, Inboard Splines 22T, Inboard Spline Diameter 2 11/16, Outboard Splines 20T, Outboard Spline Diameter 3, Shaft Diameter 13/16, Thread Measurement 5/8x16
• Rear Compressed Length 22 3/16, Inboard Splines 28T, Inboard Spline Diameter 3 3/16, Outboard Splines 26T, Outboard Spline Diameter 3 3/16, Shaft Diameter 15/16, Thread Measurement M19X1.5

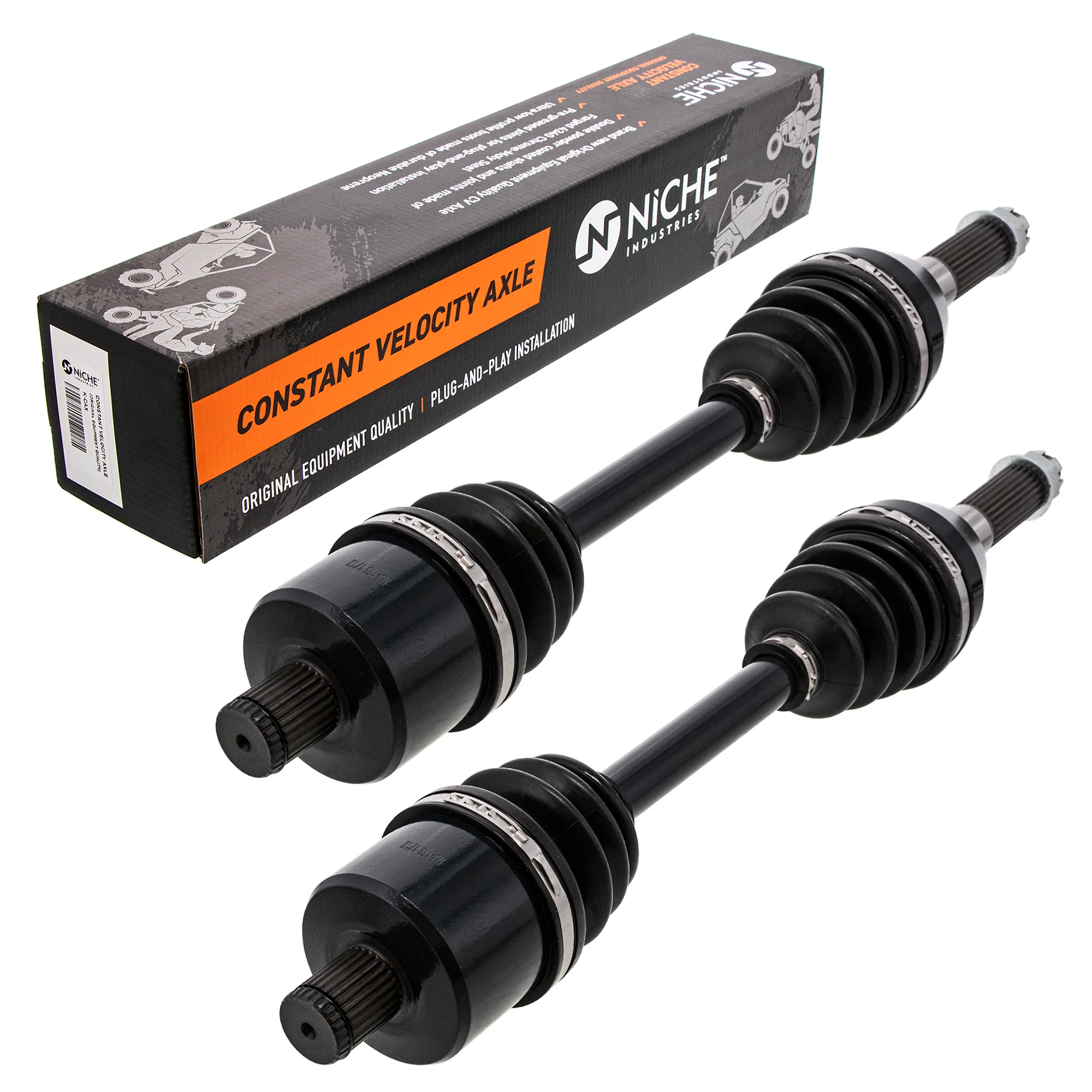

Included in This Kit:

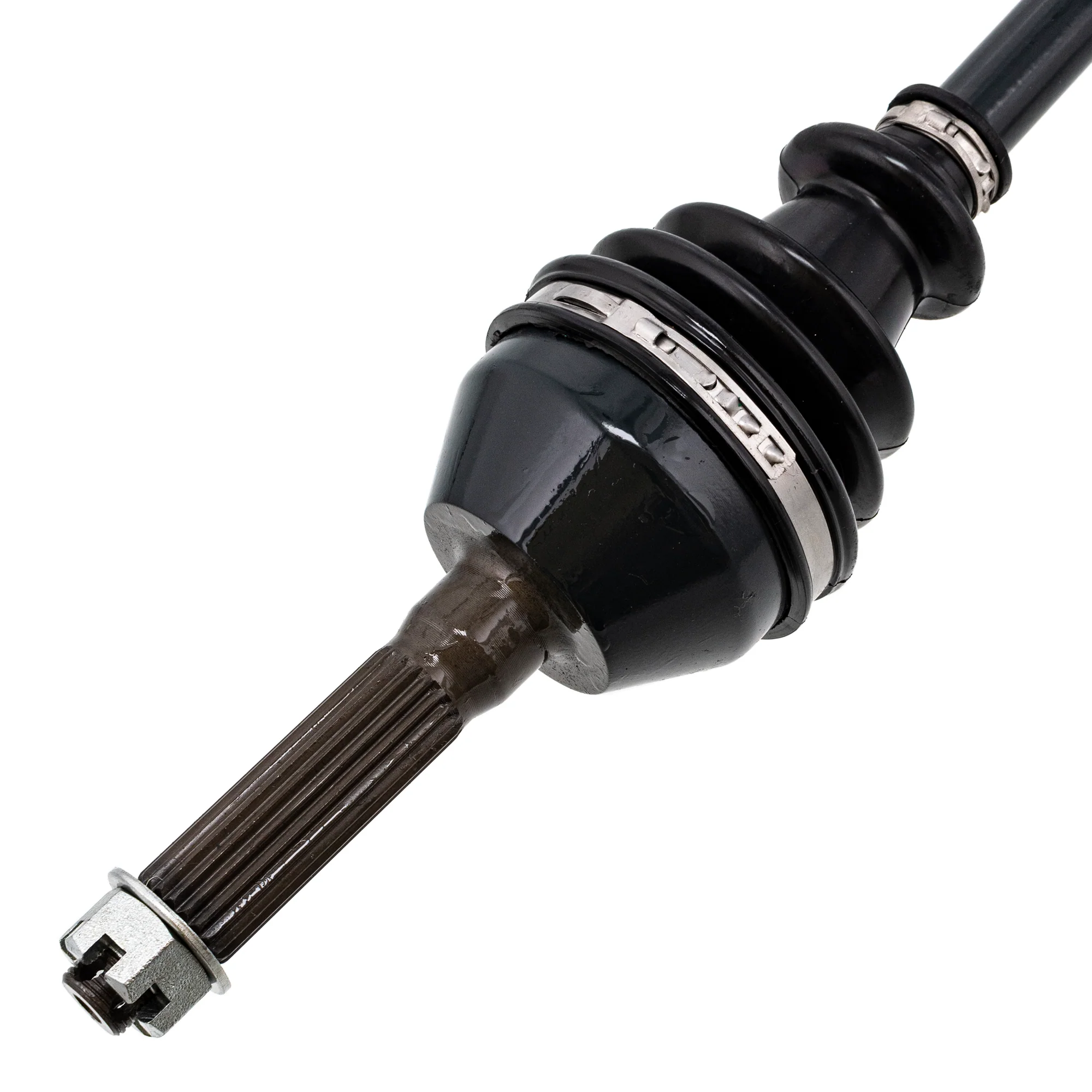

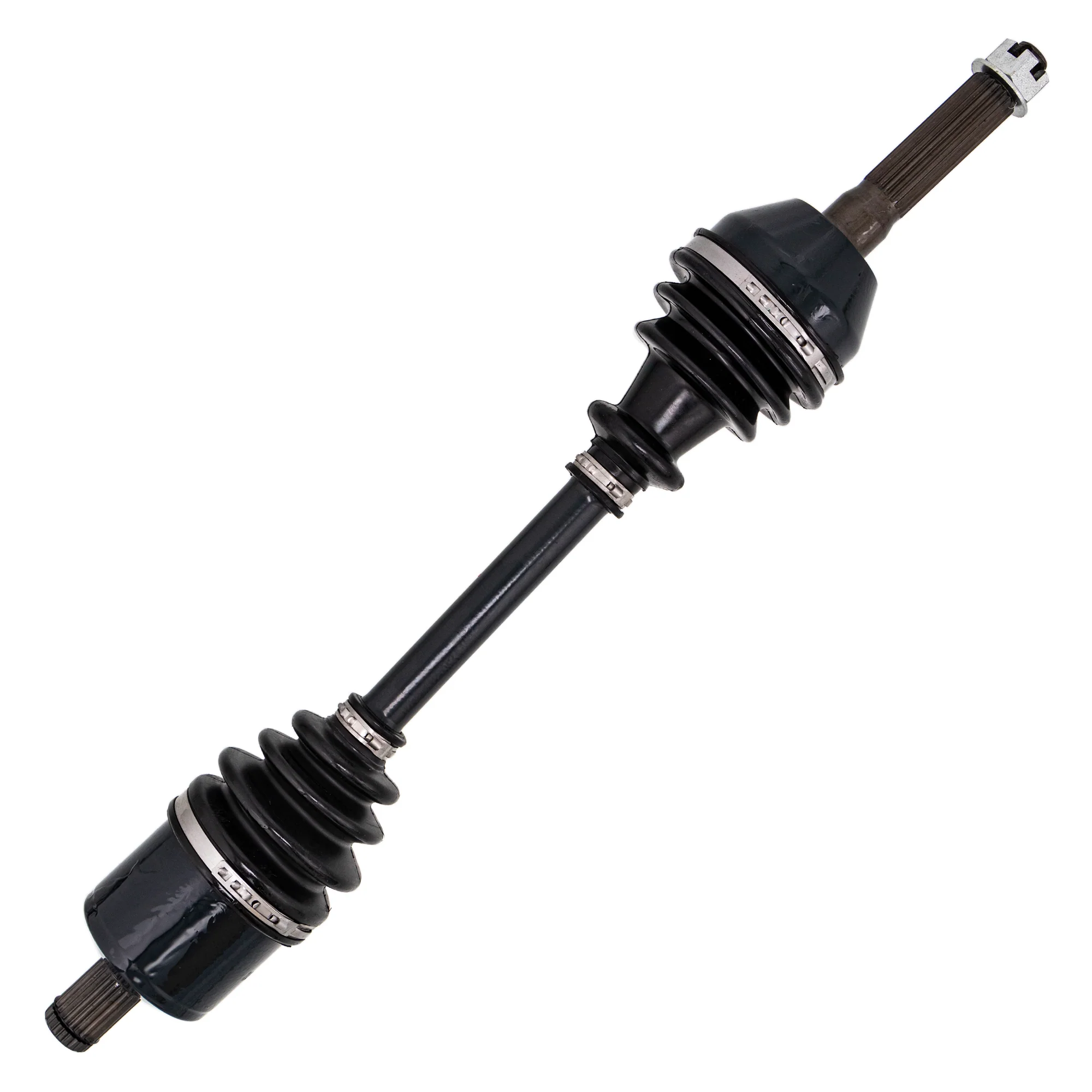

(QTY 2) NICHE 519-KCA2255X Front Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332881, 1332656, 1332501, 1332471

(QTY 2) NICHE 519-KCA2274X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1590435, 1590416, 1332655, 1332346

Compatible with the Following Vehicles:

Polaris Sportsman X2 800 Limited: 2007-2008
Polaris Sportsman X2 800: 2007-2009
Polaris Sportsman X2 700: 2008
Polaris Sportsman X2 500 Deluxe: 2007
Polaris Sportsman X2 500: 2007-2009
Polaris Sportsman Touring 800: 2008-2009
Polaris Sportsman Touring 500 HO: 2008-2010
Polaris Sportsman 500 HO: 2010
