MK1003009 Drive Sprocket Set Front & Rear Product Info:

• Pitch 520
• Kit includes 1 Front 13 tooth drive sprocket, and 1 Rear 40 tooth drive sprocket; Sprocket Material consists of SAE 1023 structural carbon steel
• Hub Inner Diameter 21mm; Hub 2 (ID) 25mm; Distance Between Mounting Holes (ID) 42mm; Hub Inner Diameter 134mm; Mounting Hole (ID) 10.5mm; Distance Between Mounting Holes (ID) 160mm

Included in This Kit:

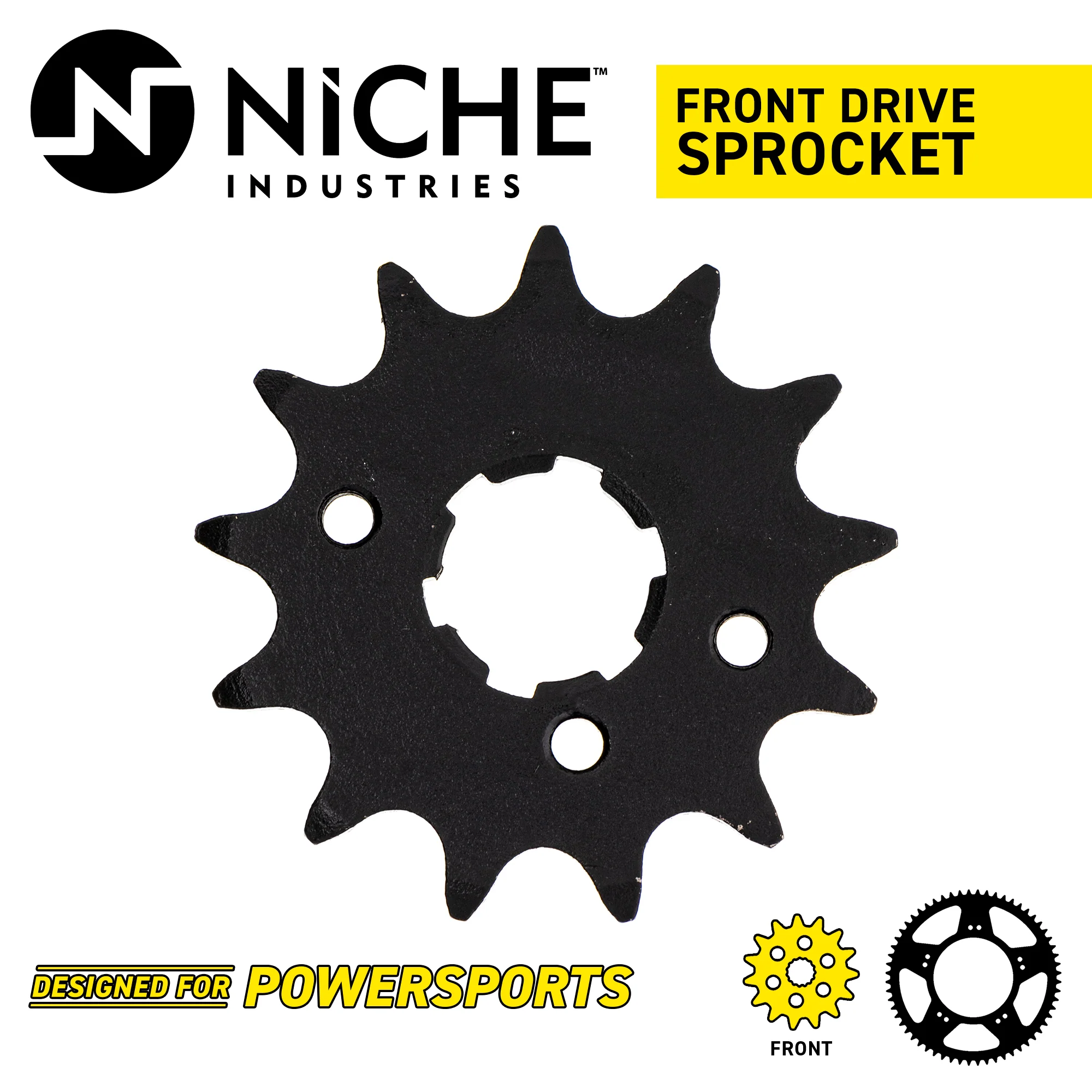

(QTY 1) NICHE 519-CDS2220P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 93834-13207-00, 93834-13206-00, 93834-13030-00, 23X-17461-30-00, 13144-1027

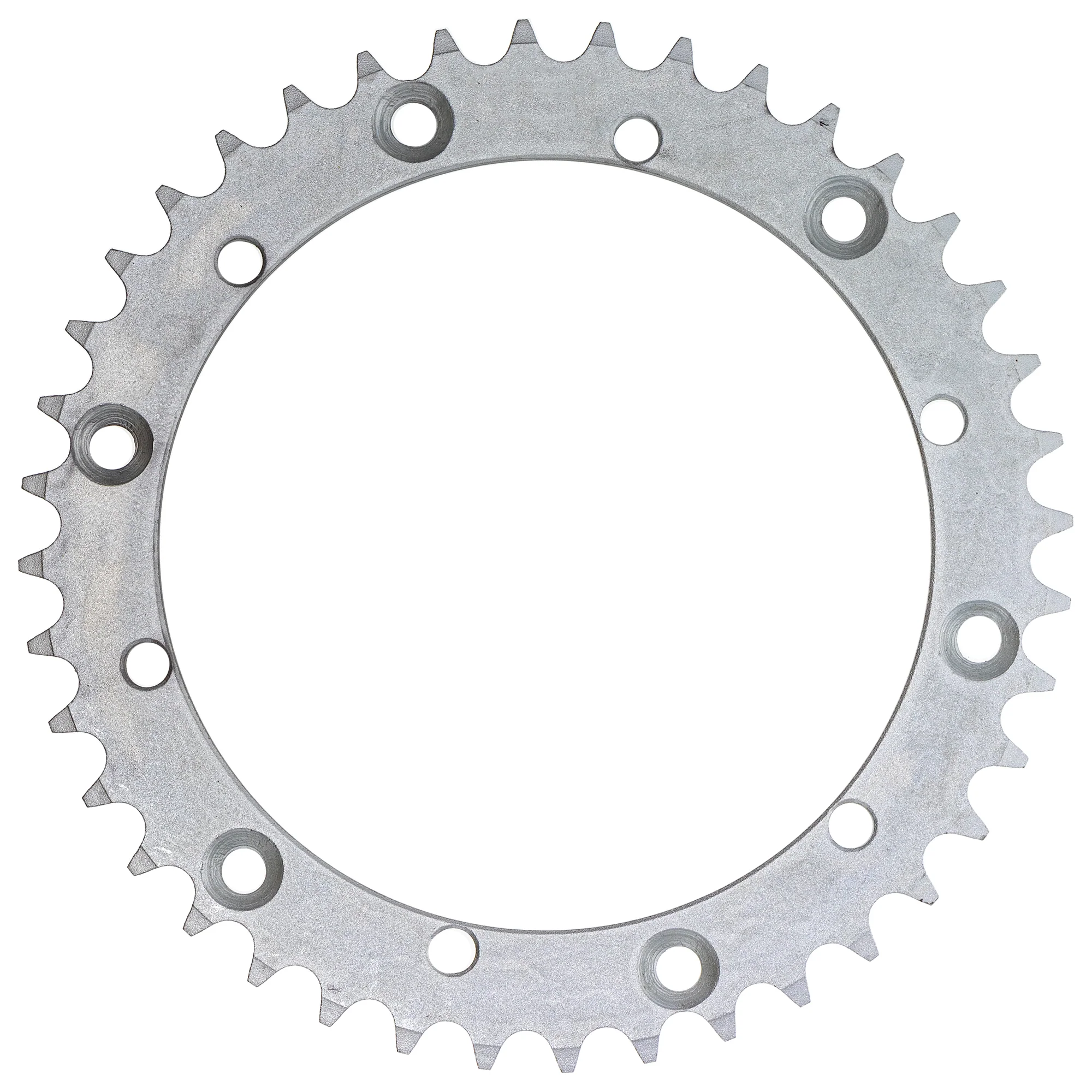

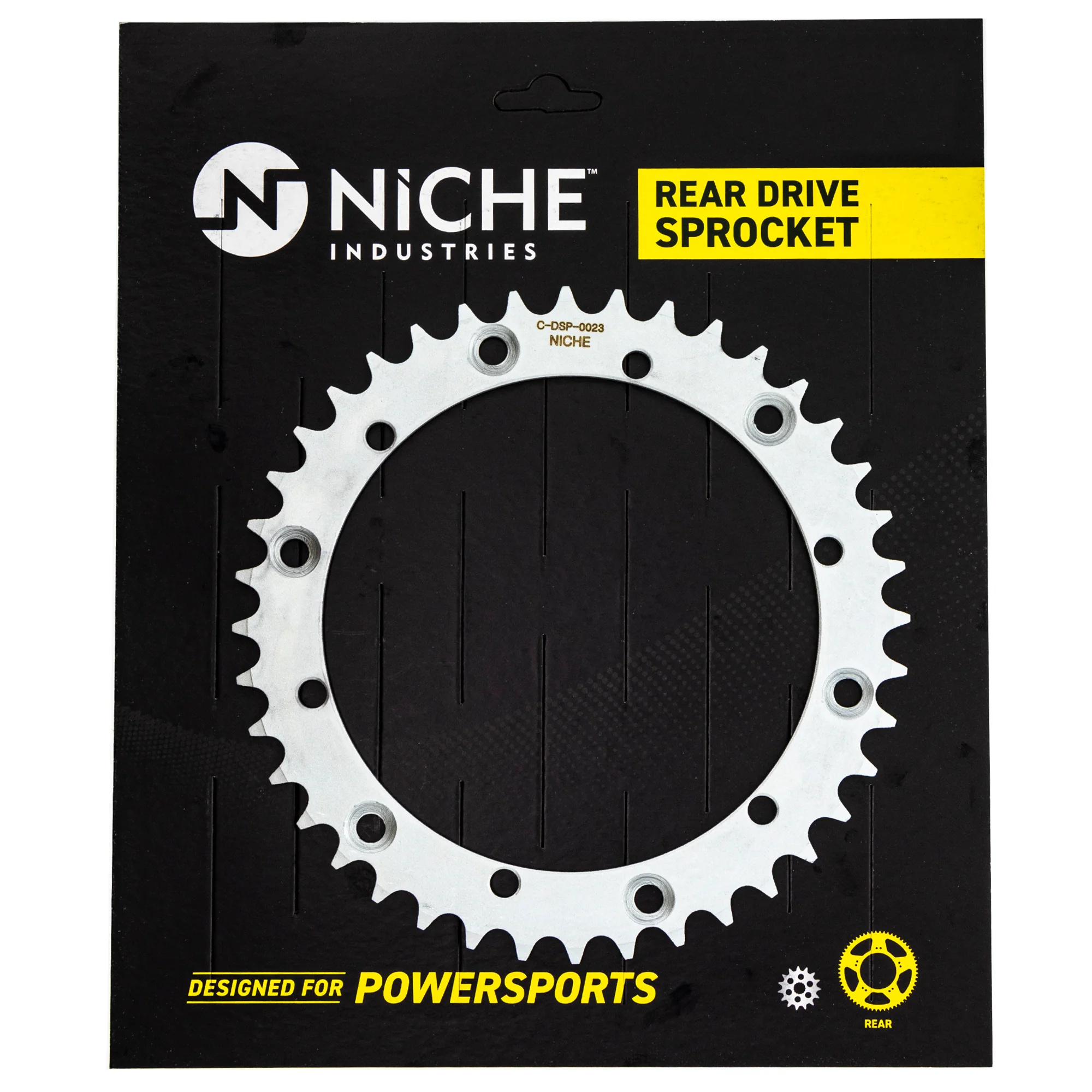

(QTY 1) NICHE 519-CDS2245P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 2XJ-25440-21-00, 2XJ-25440-20-00

Compatible with the Following Vehicles:

Yamaha Warrior 350: 1989-2004
Yamaha Raptor 660R Special Edition: 2005
Yamaha Raptor 660R Limited Edition: 2002-2004
Yamaha Raptor 660R: 2001-2005
Yamaha Blaster 200 Special Edition: 2006
Yamaha Blaster 200: 1988-2006
