MK1003013 Drive Sprocket Set Front & Rear Product Info:

• Pitch 520
• Kit includes 1 Front 17 tooth drive sprocket, and 1 Rear 45 tooth drive sprocket; Sprocket Material consists of SAE 1023 structural carbon steel
• Hub Inner Diameter 21mm; Hub 2 (ID) 25mm; Distance Between Mounting Holes (ID) 42mm; Hub Inner Diameter 134mm; Mounting Hole (ID) 10.5mm; Distance Between Mounting Holes (ID) 160mm

Included in This Kit:

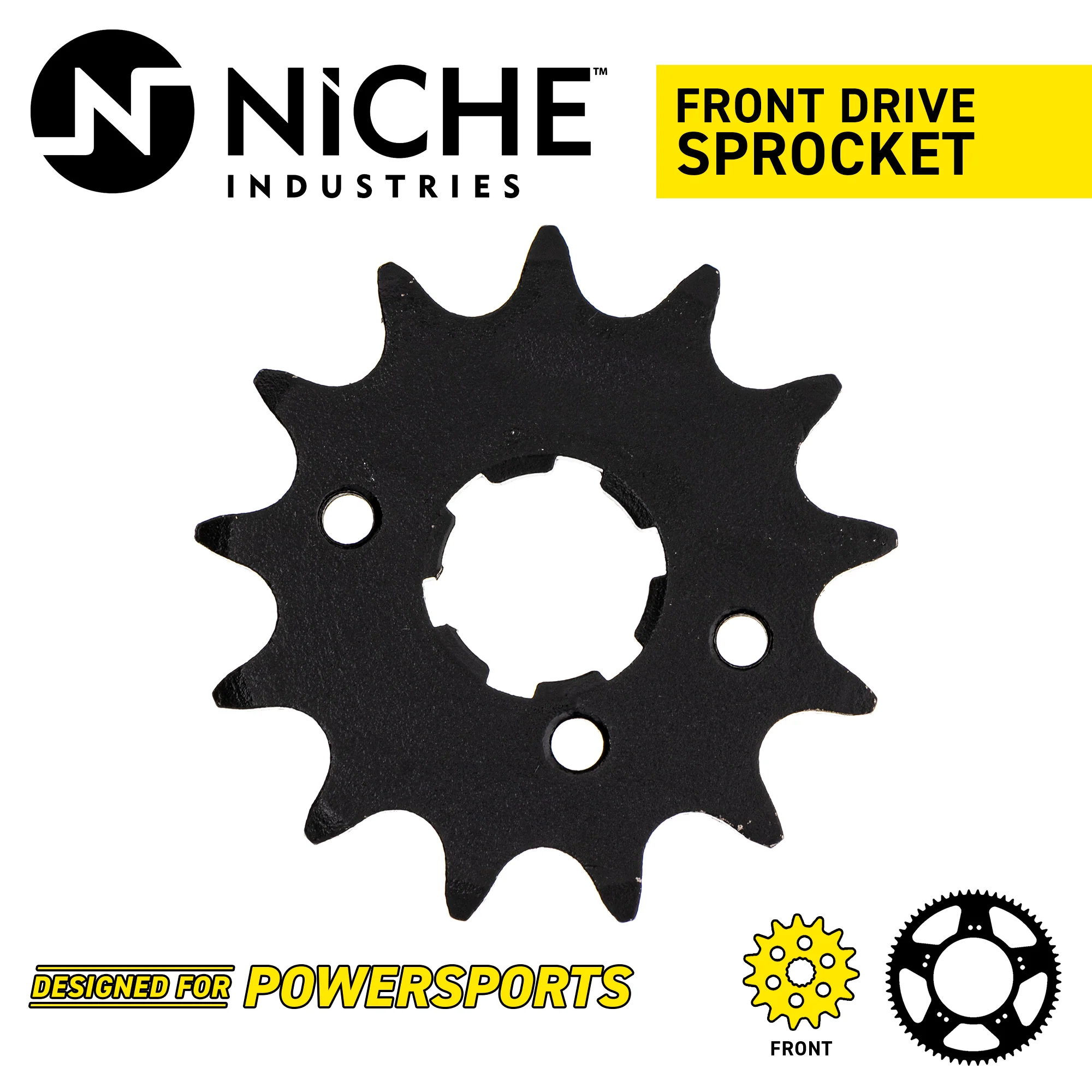

(QTY 1) NICHE 519-CDS2220P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 93834-13207-00, 93834-13206-00, 93834-13030-00, 23X-17461-30-00, 13144-1027

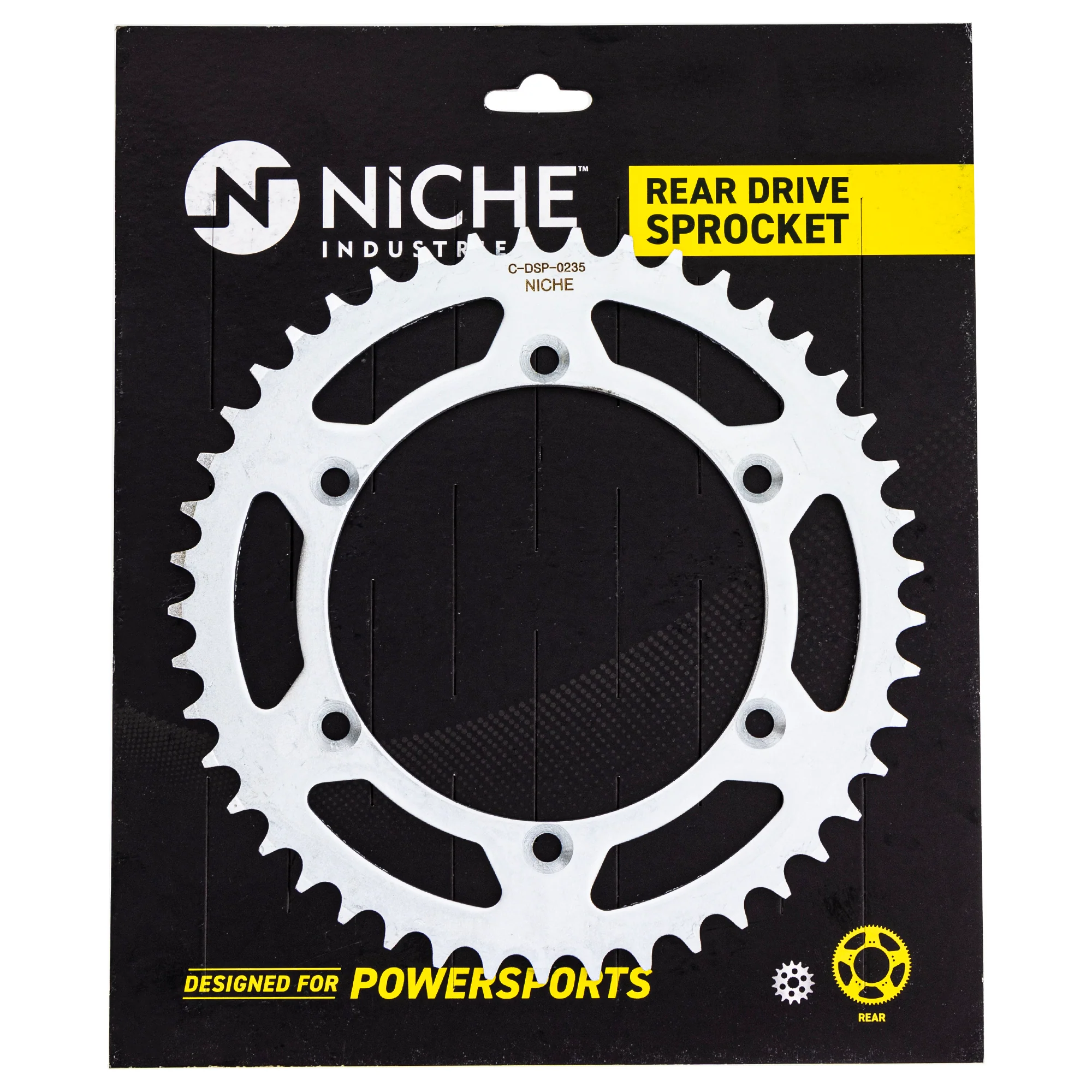

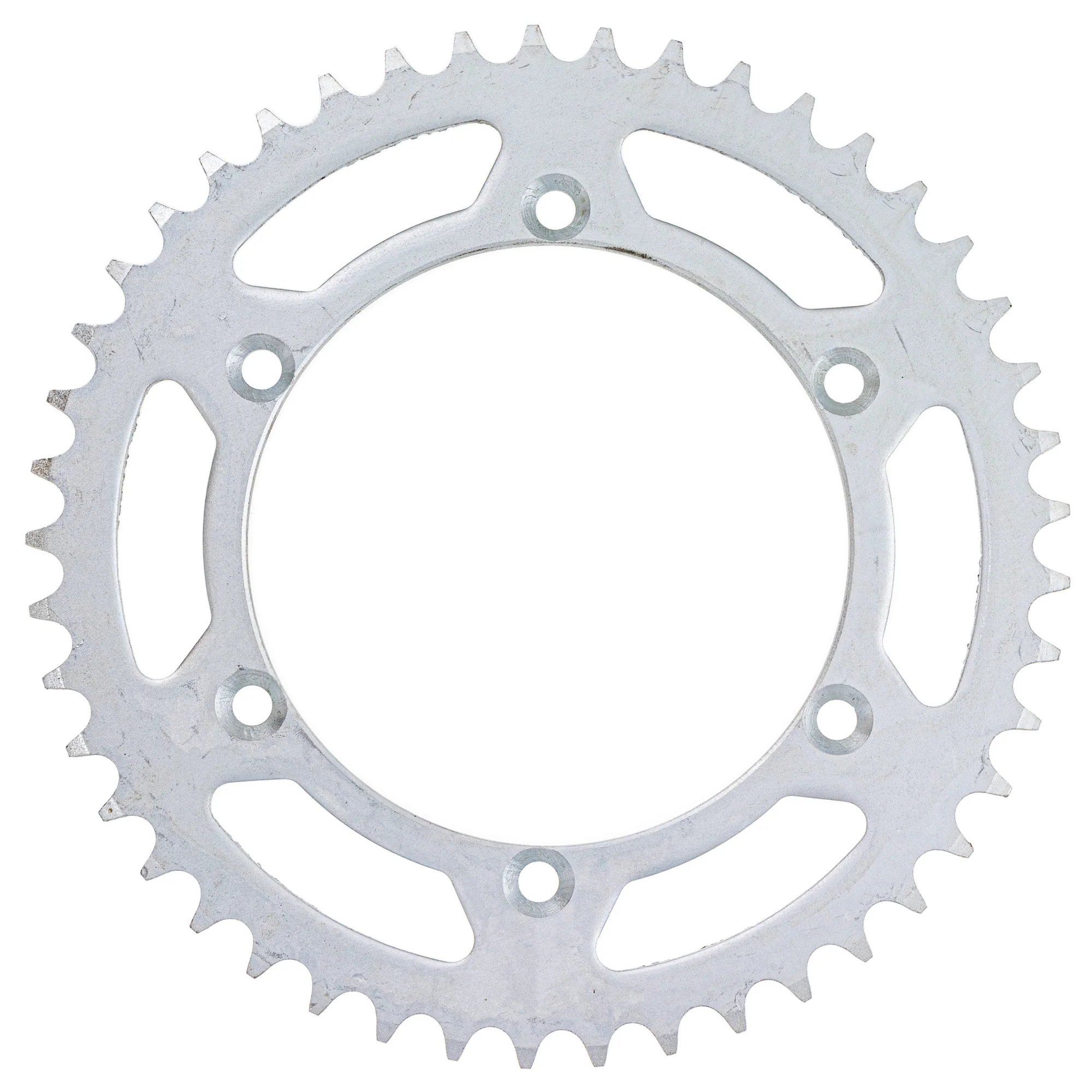

(QTY 1) NICHE 519-CDS2466P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 42041-1413, 42041-1154

Compatible with the Following Vehicles:

Kawasaki KX500: 1988-2004
Kawasaki KX250: 1988-1998
Kawasaki KDX250: 1991-1994
Kawasaki KDX220R: 2002-2005
Kawasaki KDX200: 1989-2006
