MK1003202 Drive Sprocket Set Front & Rear Product Info:

• Pitch 525
• Kit includes 1 Front 17 tooth drive sprocket, and 1 Rear 42 tooth drive sprocket; Sprocket Material consists of SAE 1023 structural carbon steel
• Hub Inner Diameter 21.7mm; Hub 2 (ID) 25mm; Distance Between Mounting Holes (ID) 41mm; Hub Inner Diameter 134mm; Mounting Hole (ID) 10.5mm; Distance Between Mounting Holes (ID) 160mm

Included in This Kit:

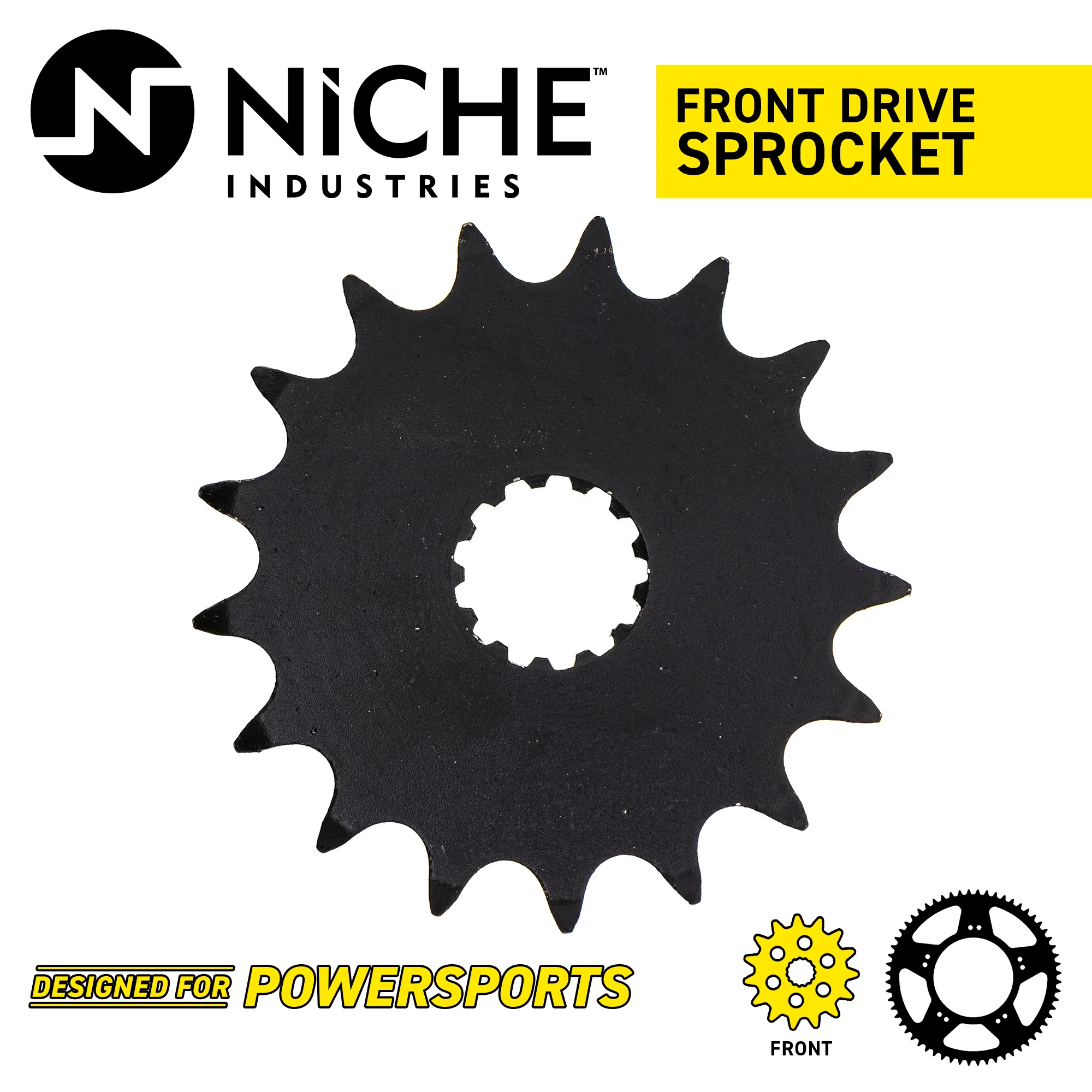

(QTY 1) NICHE 519-CDS2346P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 27511-20A21, 27511-20A20, 27510-20A42, 27510-20A41, 27510-20A40, 27510-20A22, 27510-20A21, 27510-20A20

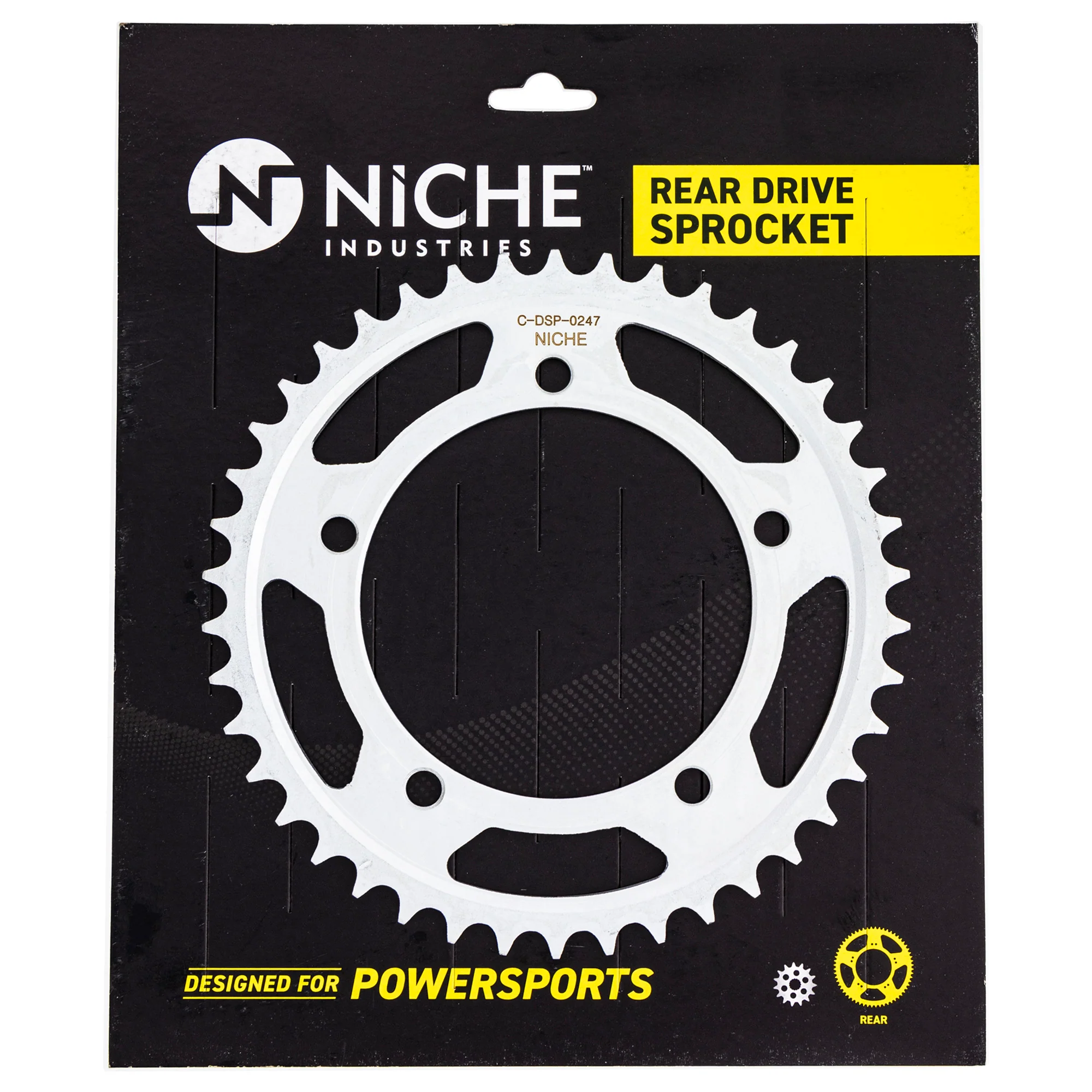

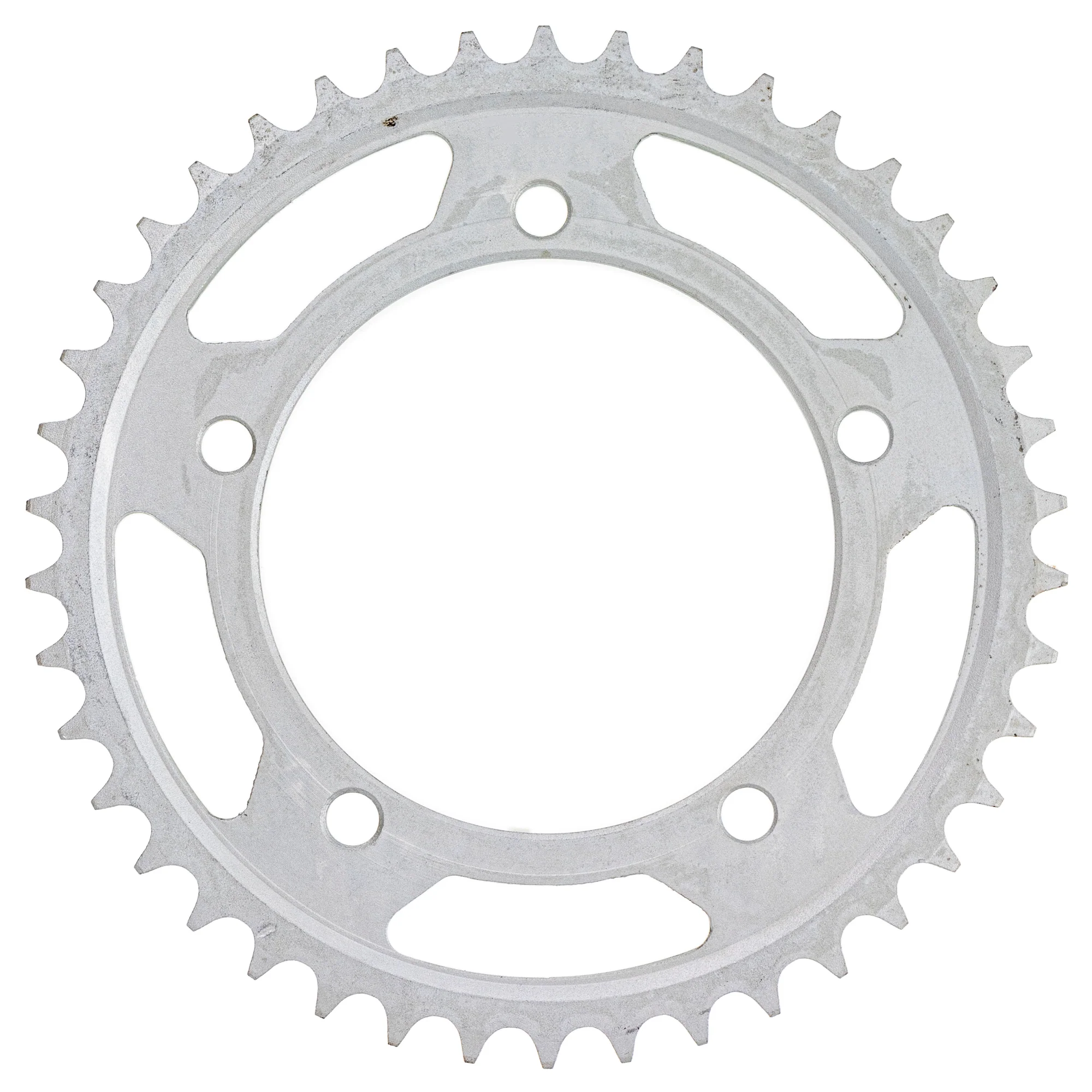

(QTY 1) NICHE 519-CDS2469P Tooth Rear Drive Sprocket

Substitute For OEM Part Numbers(s): T2012546, T2012517, 64511-35F10, 64511-35F00

Compatible with the Following Vehicles:

Suzuki Vstrom 1000 DL1000 XT ABS: 2018
Suzuki Vstrom 1000 DL1000 Adventure: 2012
Suzuki Vstrom 1000 DL1000 ABS Adventure: 2014-2016
Suzuki Vstrom 1000 DL1000 ABS: 2014-2019
Suzuki Vstrom 1000 DL1000: 2002-2019
Suzuki GSXS750Z: 2015
Suzuki GSXS750: 2015-2016
Suzuki GSXR750: 2000-2019
Suzuki GSXR1000: 2001-2006
