MK1003482 Drive Sprocket Set Front & Rear Product Info:

• Front Drive Sprocket Pitch 520, Teeth 13; Rear Drive Sprocket Pitch 520, Teeth 48; Sprocket Material consists of SAE 1023 structural carbon steel
• Hub Inner Diameter 21mm; Hub 2 (ID) 25mm; Distance Between Mounting Holes (ID) 42mm; Hub Inner Diameter 152mm; Mounting Hole (ID) 8.5mm; Distance Between Mounting Holes (ID) 175mm

Included in This Kit:

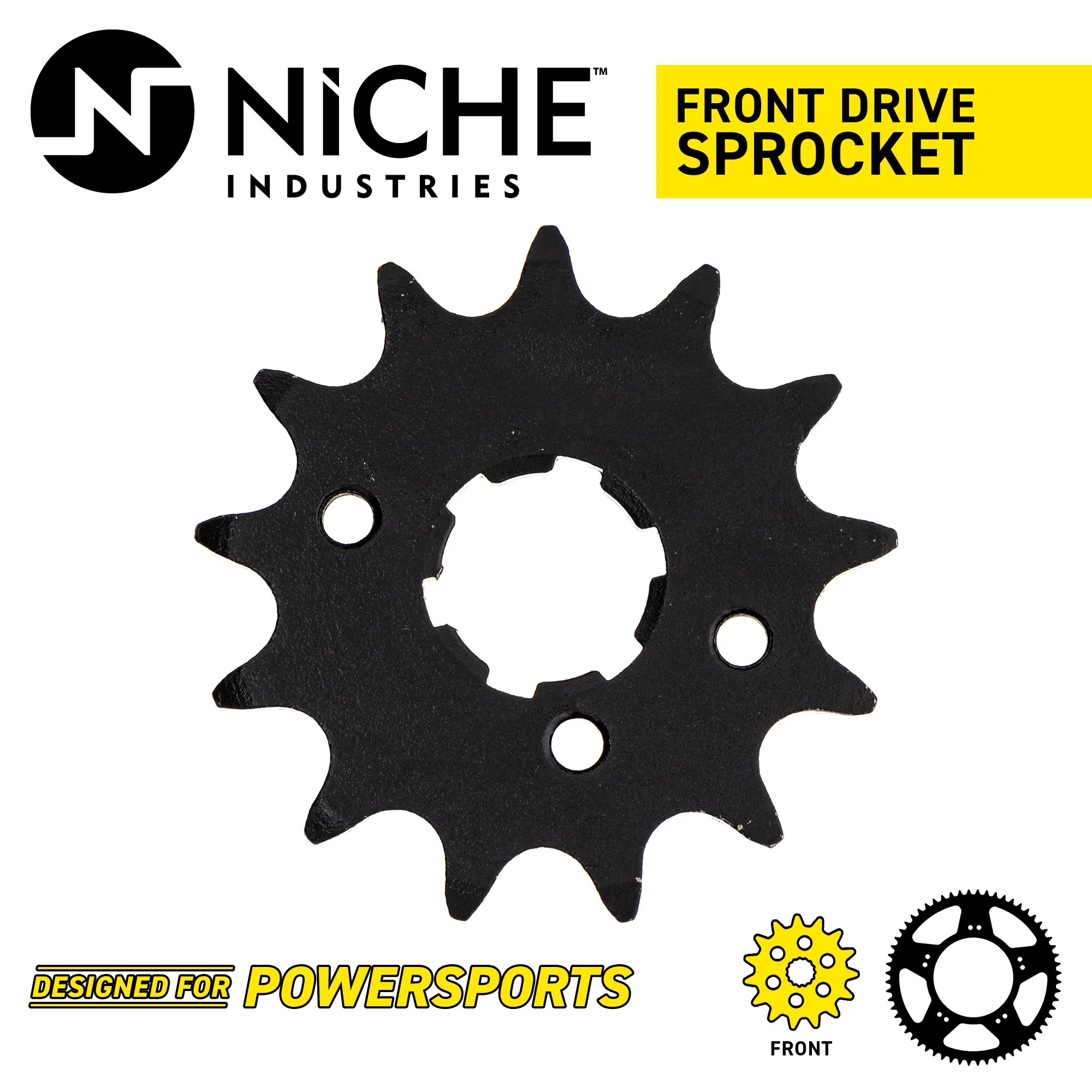

(QTY 1) NICHE 519-CDS2220P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 93834-13207-00, 93834-13206-00, 93834-13030-00, 23X-17461-30-00, 13144-1027

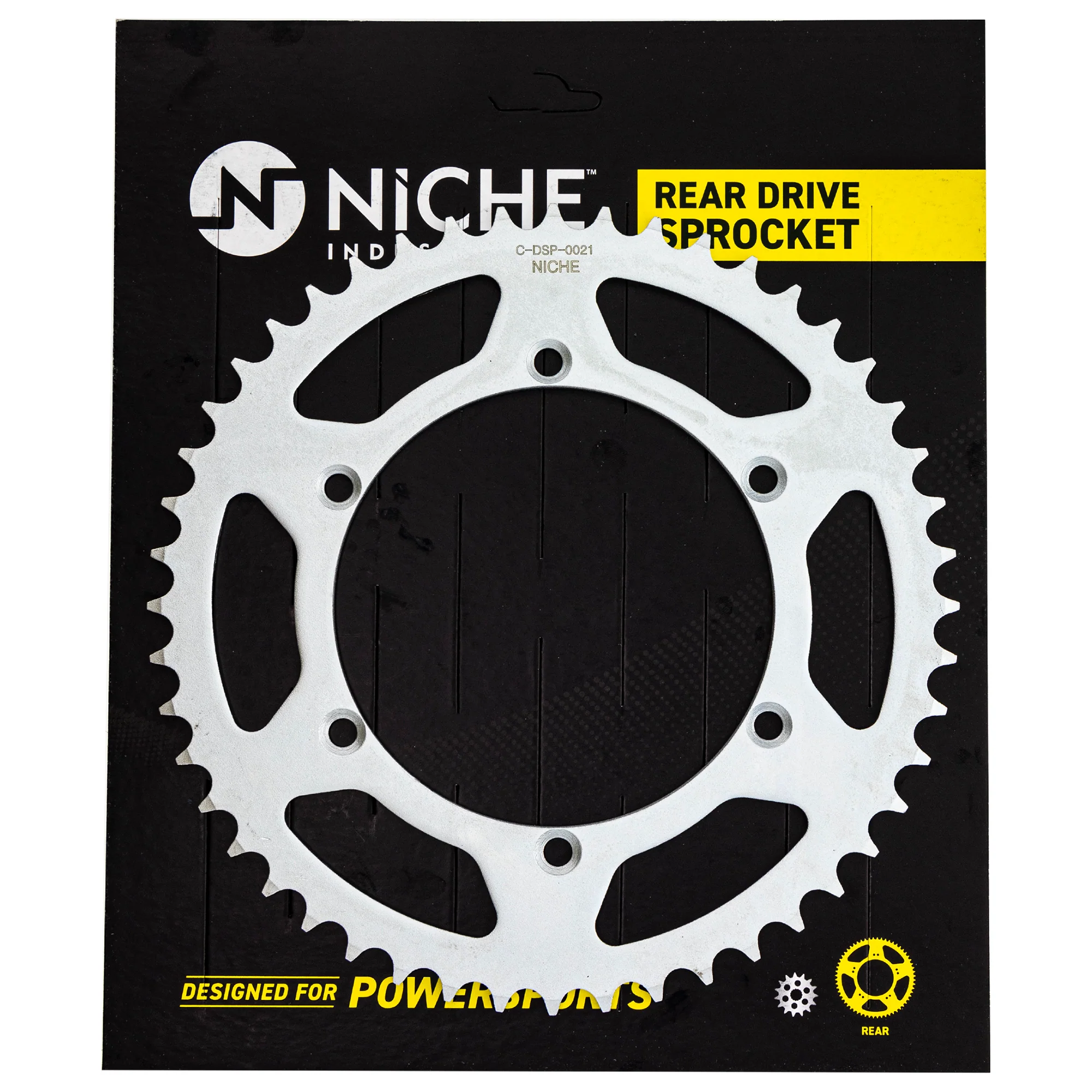

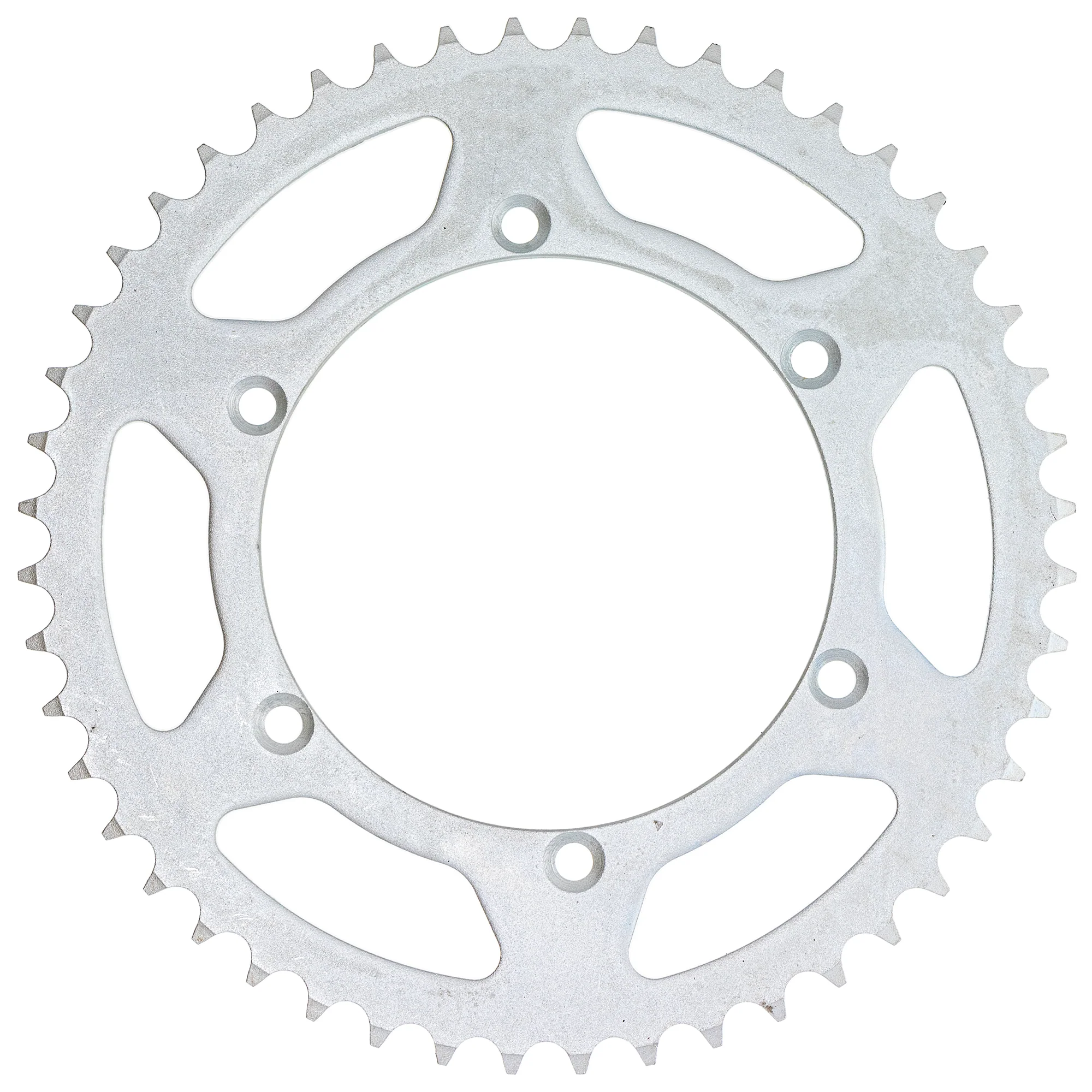

(QTY 1) NICHE 519-CDS2243P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 42041-1448, 42041-1383, 42041-1328, 42041-1257, 42041-1103

Compatible with the Following Vehicles:

Kawasaki KX500: 1988-2004
Kawasaki KX250: 1988-1998
Kawasaki KDX250: 1991-1994
Kawasaki KDX220R: 2003-2005
Kawasaki KDX200: 1986-2006
