MK1003490 Drive Sprocket Set Front & Rear Product Info:

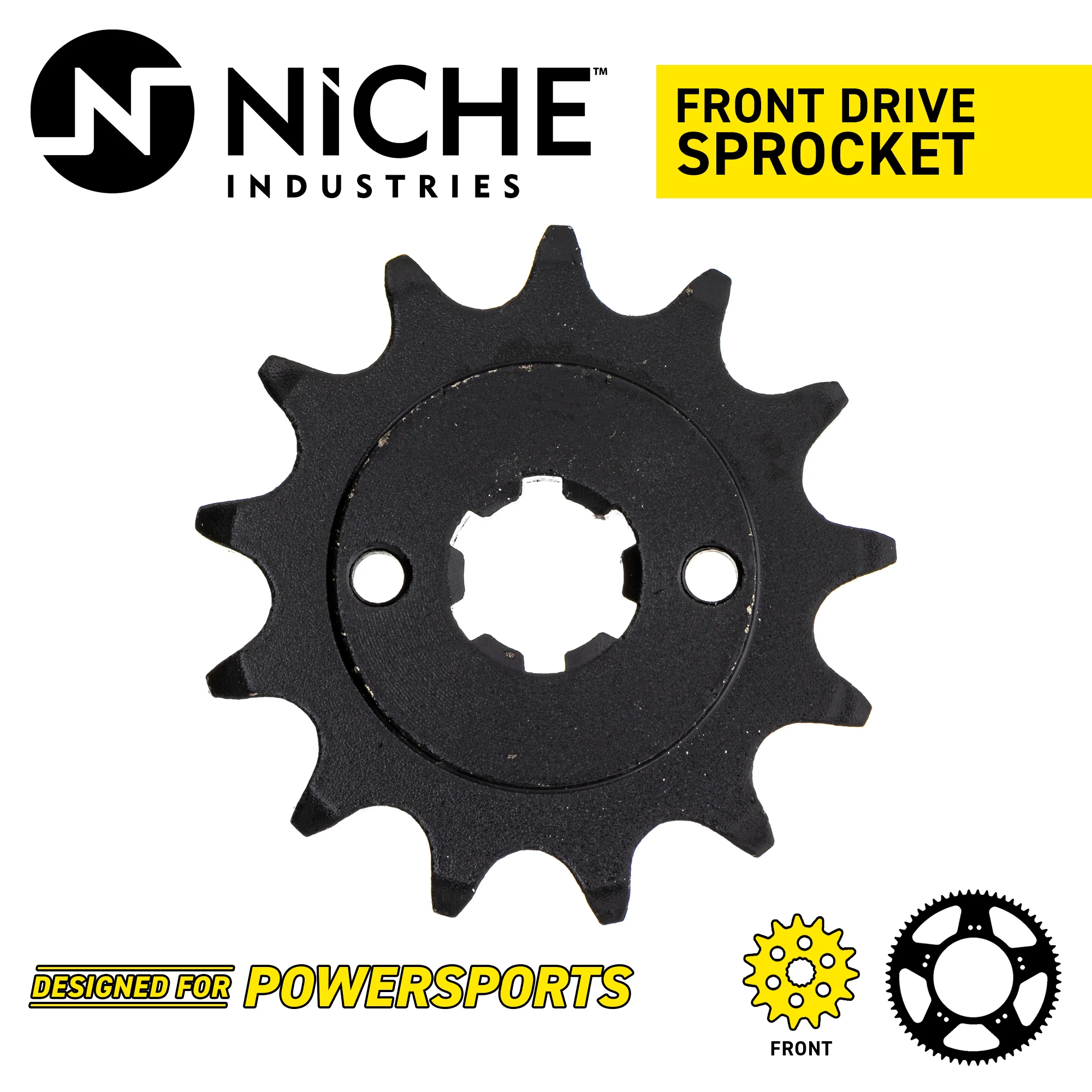

• Front Drive Sprocket Pitch 520, Teeth 13

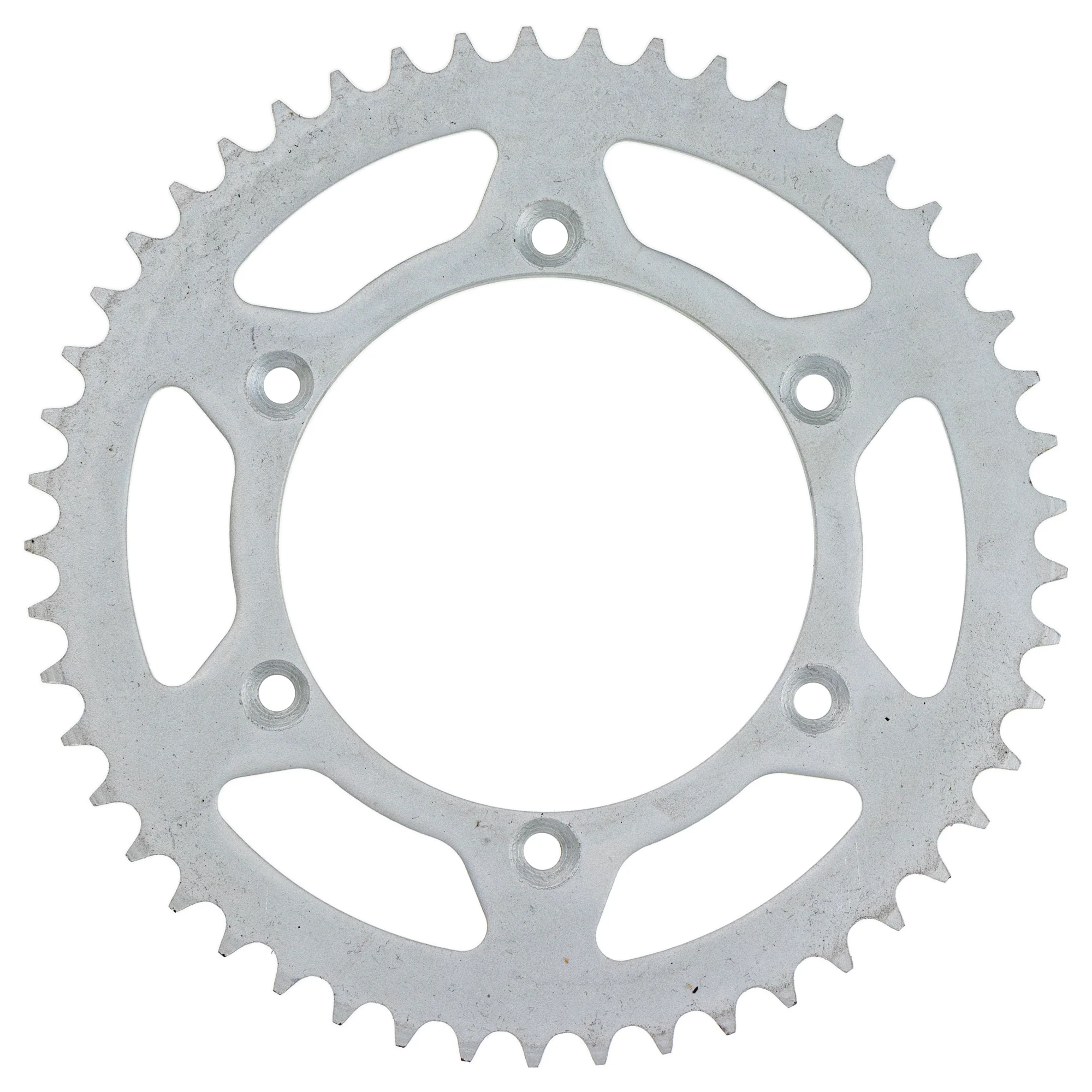

• Rear Drive Sprocket Pitch 520, Teeth 49; Sprocket Material consists of SAE 1023 structural carbon steel
• Hub Inner Diameter 21.7mm; Hub 2 (ID) 25mm; Hub Inner Diameter 136mm; Mounting Hole (ID) 8.5mm; Distance Between Mounting Holes (ID) 156mm

Included in This Kit:

(QTY 1) NICHE 519-CDS2241P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 93832-13164-00

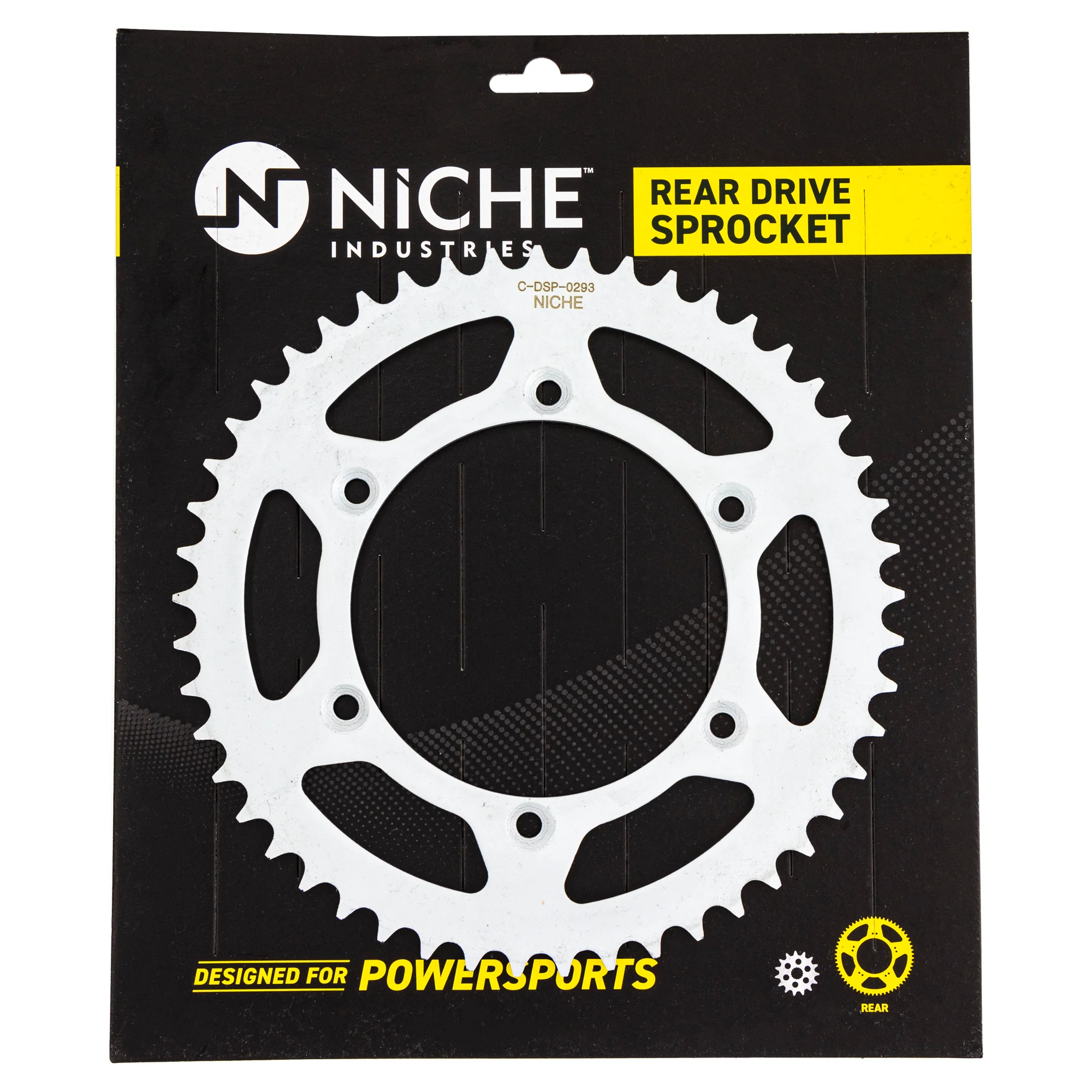

(QTY 1) NICHE 519-CDS2415P Rear Drive Sprocket

Substitute For OEM Part Numbers(s): 5NY-25449-00-00, 5ET-25449-00-00, 1C6-F5449-22-00, 1C6-F5449-21-00, 1C6-25449-20-00, 1C3-25449-00-00, 17D-25449-50-00

Compatible with the Following Vehicles:

Yamaha TTR230: 2005-2020
