MK1004747 Drive Sprockets & Chain Kit Product Info:

• Outer Plate thickness 2.22mm; Inner Plate thickness 2.22mm; Width between inner plates 6.25mm
• Sprocket Material consists of SAE 1023 structural carbon steel; Oil - LT-001A High Temperature Chain Oil

Included in This Kit:

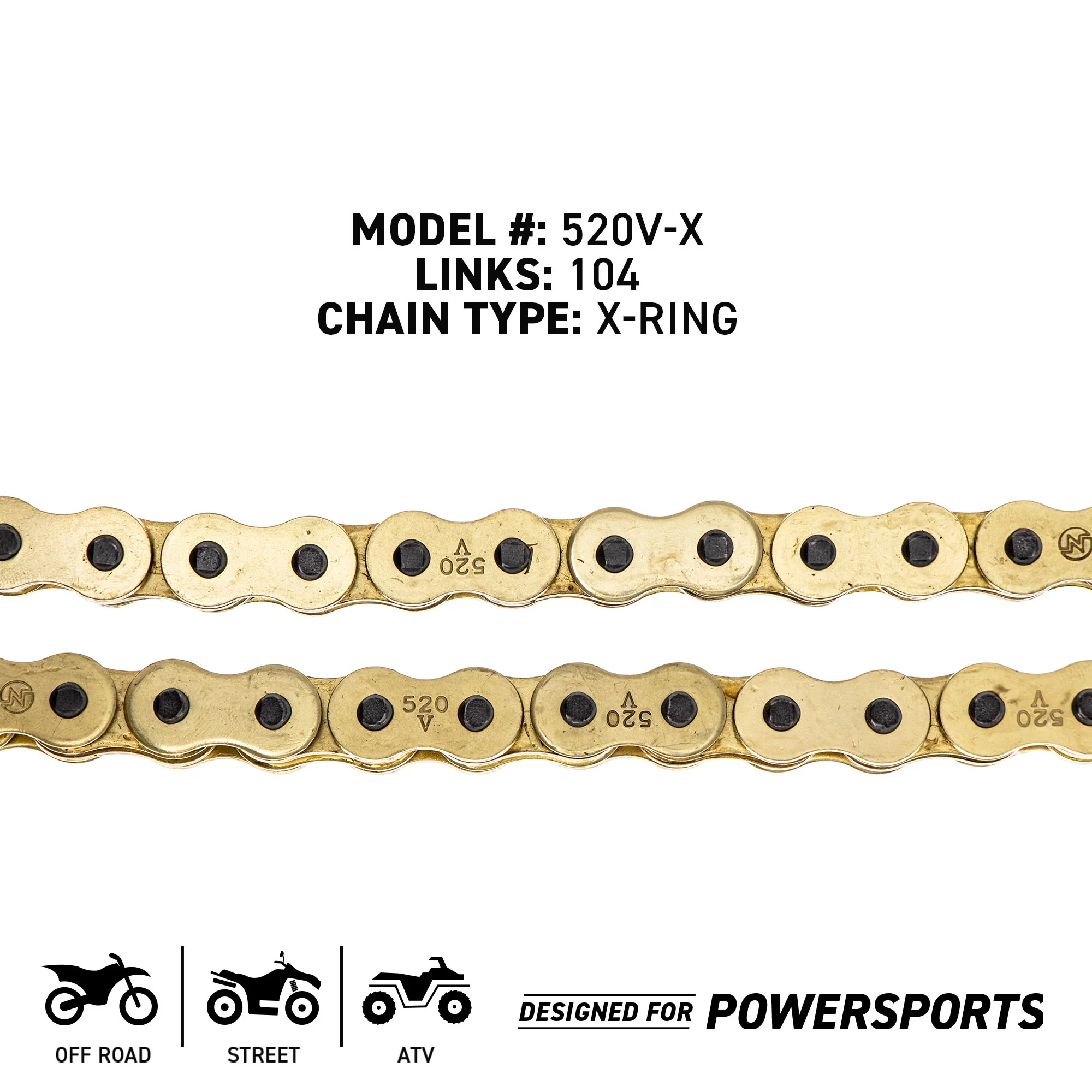

(QTY 1) NICHE 519-CDC2407H Gold X-Ring Chain 104 w/ Master Link

Substitute For OEM Part Numbers(s): T2017216, T2012529, 67641051A, 67641041A, 405W3-MN1-505, 405A3-MG2-023, 405A3-MG2-005, 405A3-MG2-003, 405A3-KV6-672, 405A3-KV6-671, 405A3-KV0-672, 405A3-KV0-671, 405A3-KB4-672, 405A3-KB4-671, 40550-KV6-406, 40550-KV6-405, 40530-MN1-672, 40530-MN1-671, 40530-MK2-005, 40530-MK2-003, 40530-MG3-013, 40530-MG3-005, 40530-MG3-003, 40530-MA0-015, 40530-MA0-005, 40530-KN5-005, 40530-KK0-005, 40530-KK0-003, 40530-KG1-672, 40530-KG1-671, 40530-KF0-771, 40530-KF0-005, 40530-KA2-771, 40530-HB7-005, 40530-HB7-003, 06405-KR3-436, 06405-KPM-P10, 06405-KCR-P10

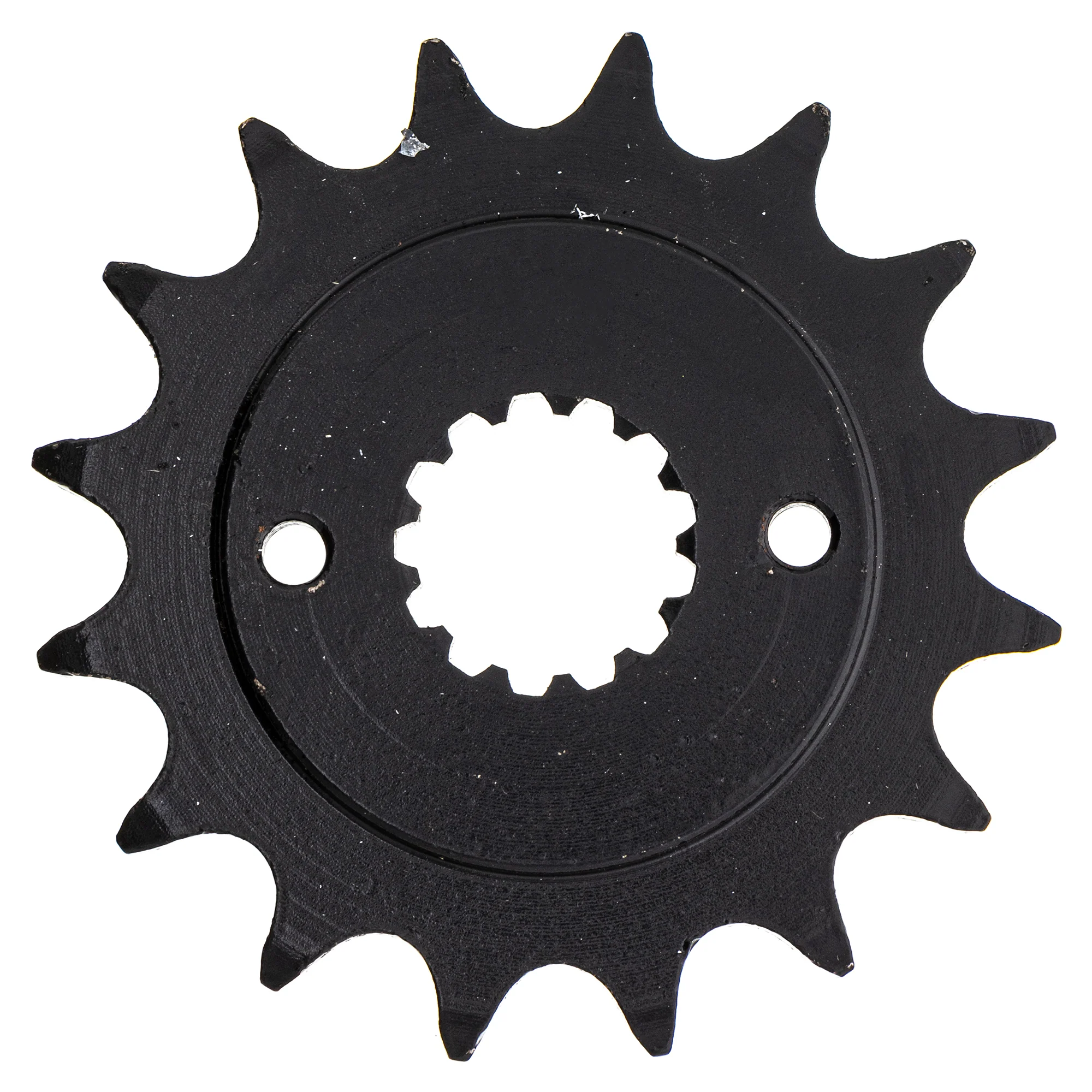

(QTY 1) NICHE 519-CDS2352P Front Drive Sprocket

Substitute For OEM Part Numbers(s): 13144-1272, 13144-1269, 13144-1085

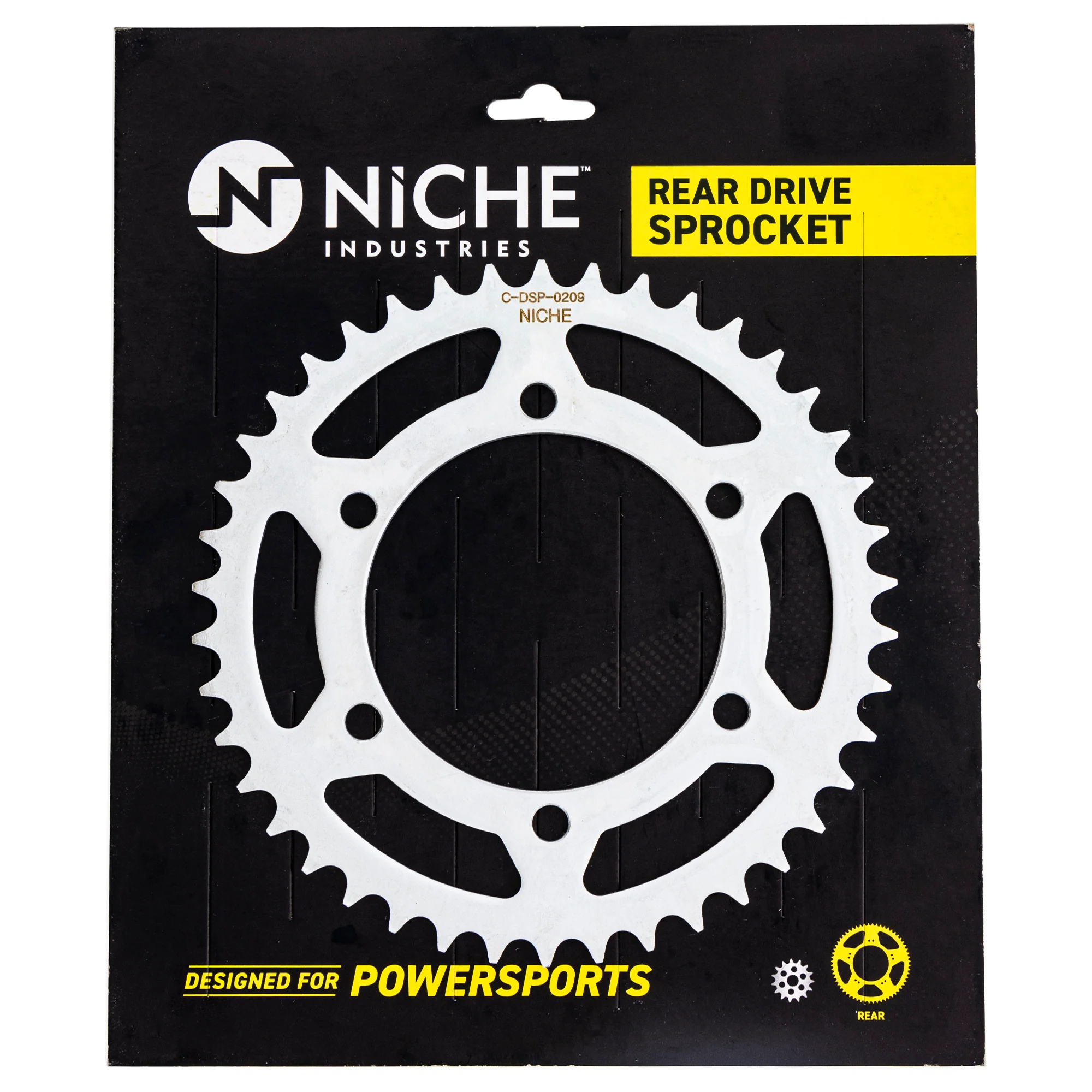

(QTY 1) NICHE 519-CDS2433P Rear Drive Sprocket

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Yamaha YZ125: 1978-1982
Yamaha XT600: 1984-1989
Yamaha SRX600: 1986
Yamaha IT175: 1983
Yamaha FZR400: 1988-1990
Yamaha Exciter 250 SR250: 1980-1982
Yamaha DT250: 1977-1979
Yamaha Banshee 350 Special Edition: 2005
Yamaha Banshee 350 Limited Edition: 2004
Yamaha Banshee 350: 1987-2006
Kawasaki Super Sherpa 250: 2003
Kawasaki Ninja 500R: 1997-2009
Kawasaki Ninja 500: 1987-2009
Kawasaki Ninja 250R: 1986-1987
Kawasaki KLX250SF: 2009-2010
Kawasaki KLR250: 1987-2002
Kawasaki KL250: 1985-1986
Kawasaki GPz550: 1984-1985
Honda XR350R: 1983-1984
Honda XR250R: 1997-2004
Honda XR250L: 1991-1996
Honda XL600R: 1984-1987
Honda XL200R: 1984
Honda Shadow ACE 1100: 1997
Honda Rebel 250: 1996-1999
Honda Nighthawk 250: 1992-2002
Honda MTX200: 1983-1986
Honda Interceptor 250: 1988
Honda Elsinore 250: 1975
Honda CRF150R: 2007
Honda CRF150F: 2003-2017
Aprilia Tuono 125: 2004-2005
Aprilia RS125: 1996
