MK1008286 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 23mm; Outer (OD) 40mm; Height 6mm
• Seal 2 Diameter Inner (ID) 49mm; Outer (OD) 62mm; Height 6mm
• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 40mm; Height 12mm; Bearing 2 Diameter Inner (ID)17mm; Outer (OD) 35mm; Height 10mm

Included in This Kit:

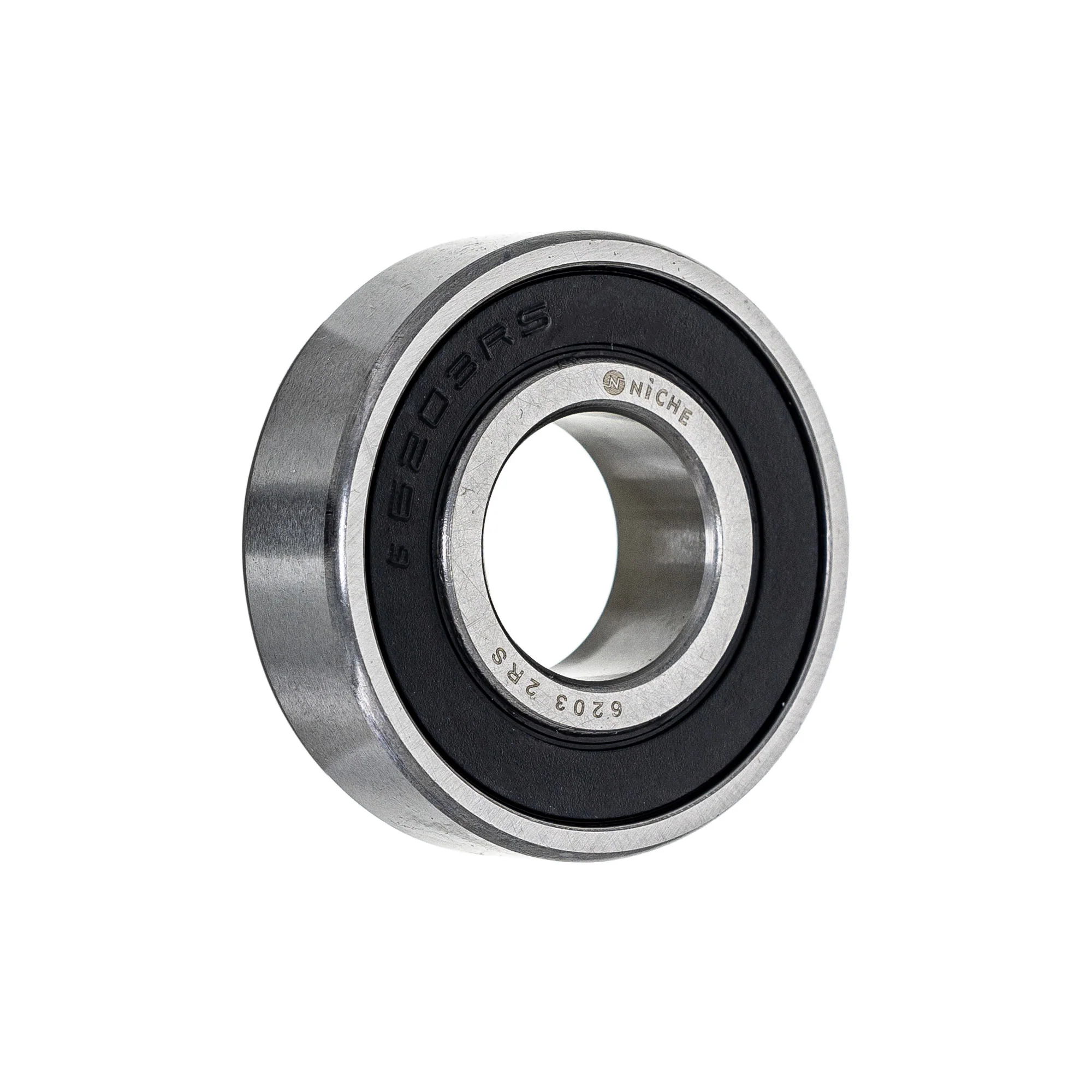

(QTY 2) NICHE 519-CBB2226R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): IH-441805-R91, GW-97047, GW-325339, GW-1185064, GW-103532, 96150-62033-10, 96150-62030-10, 96140-62030-10, 96100-62030-00, 960102176, 941-0600, 941-0124A, 941-0124, 91051-KWF-901, 91051-KVK-901, 91051-K35-V01, 91013-KPS-732, 90912-444-005, 753-04081, 741-0600, 741-0124A, 741-0124, 708982, 706-10035, 706-085336, 704992, 703275, 700479, 613257, 5418800, 49562MA, 43846MA, 42630-GK4-003, 405403800, 38-7820, 1820197, 1813562, 1813484, 1813383, 1813216, 1501389MA, 1483635M1, 1255MA, 12325MA, 1185064, 1120502, 1120423, 110485X, 110485, 100-1048, 095406, 01000340

(QTY 4) NICHE 519-CBB2238R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): BD3-F51H2-10-00, 99999-02969-00, 93306-00316-00, 93306-00315-00, 93306-00302-00, 92045-Y011, 91065-KA3-832, 91055-HC3-000, 91051-KSE-003, 85-9970, 625060037, 601B6003U, 454013, 450393, 43D-F51H2-00-00, 3303-468, 08133-60037, 08123-60037, 0625060037

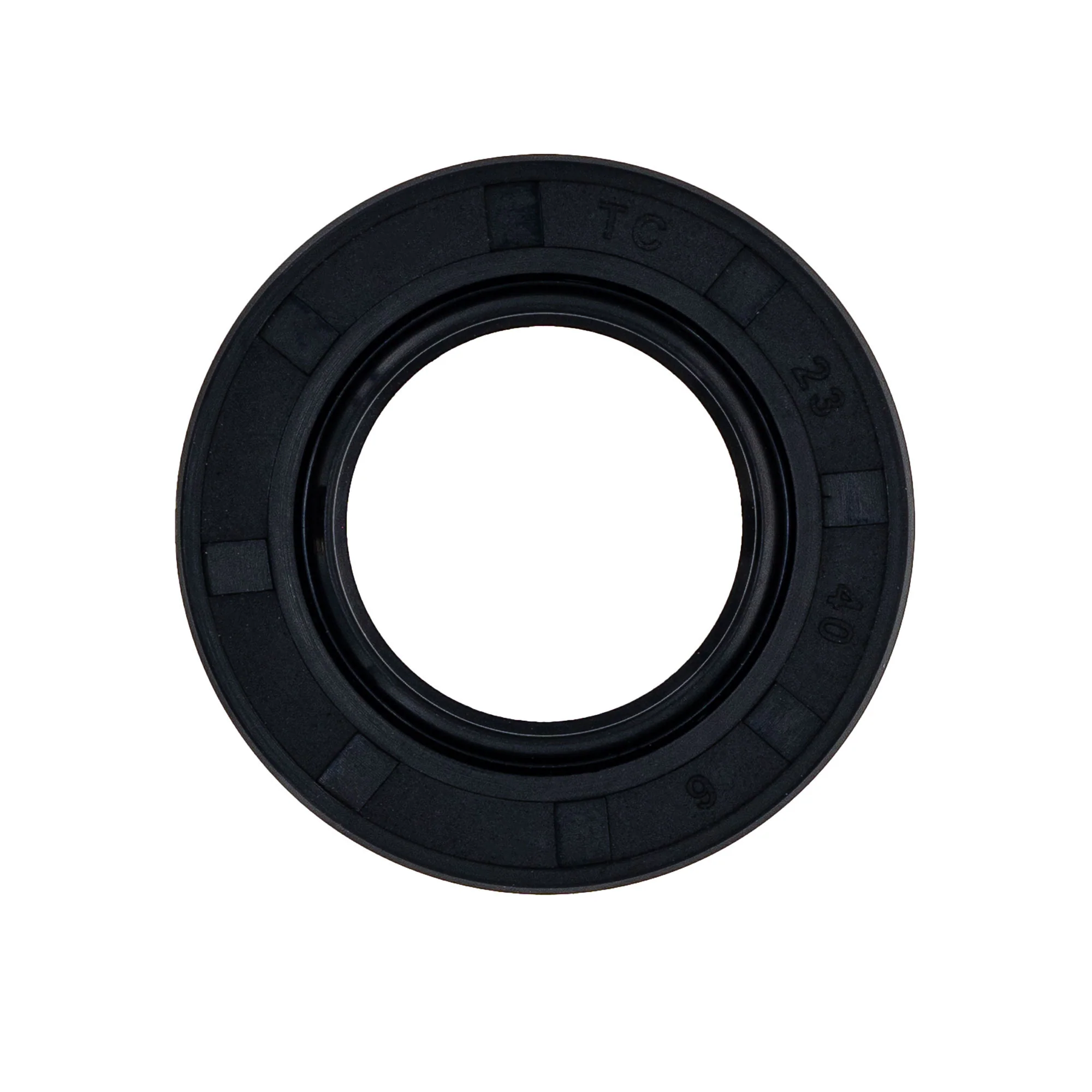

(QTY 2) NICHE 519-CSE2282A Seal Type TC 23x40x6

Substitute For OEM Part Numbers(s): 92049-3714, 92049-1260, 92049-1110

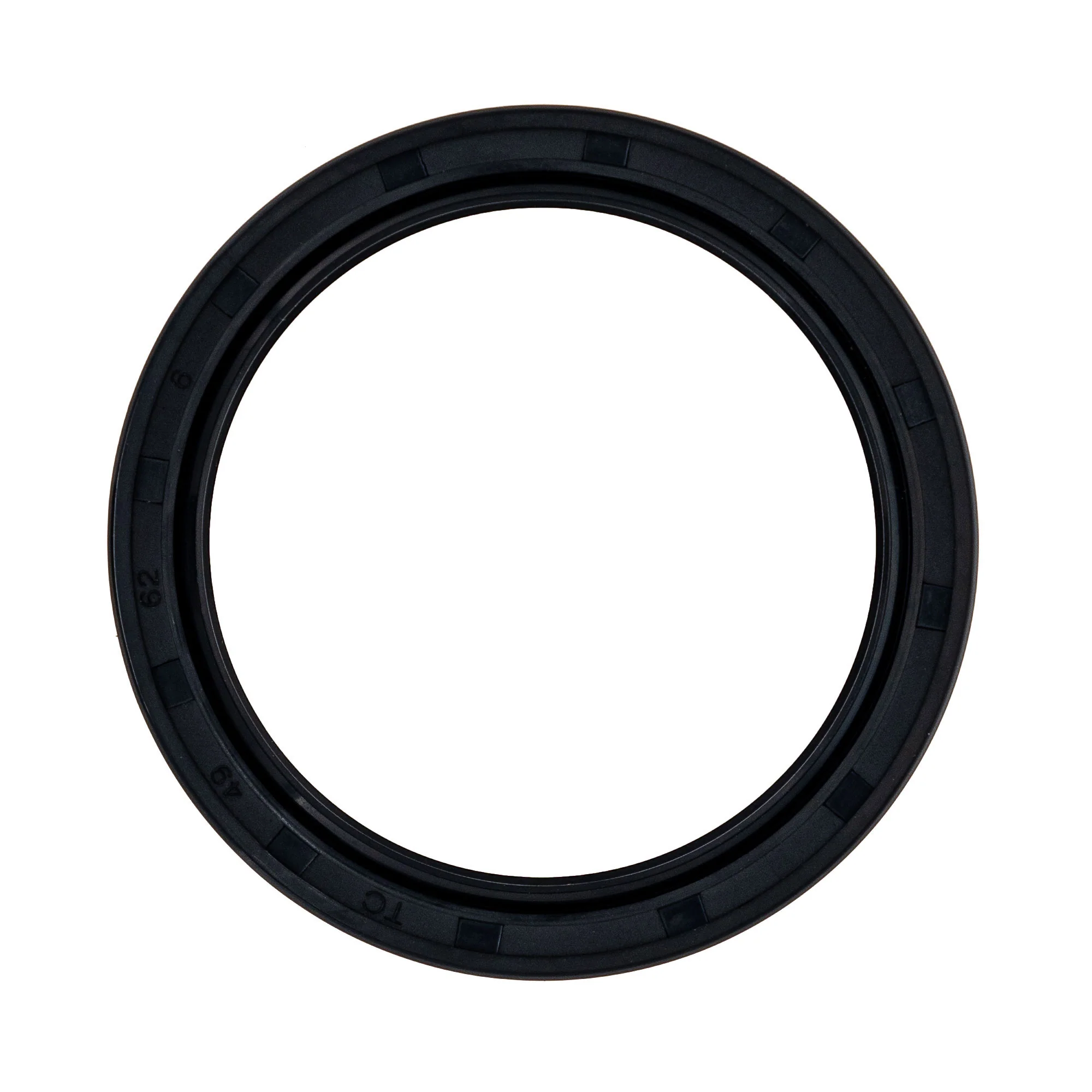

(QTY 2) NICHE 519-CSE2321A Seal Type TC 49x62x6

Substitute For OEM Part Numbers(s): 93105-49023, 93102-48370-00

Compatible with the Following Vehicles:

Yamaha Moto 4 350: 1987-1988
Yamaha Moto 4 225: 1986-1988
Yamaha Moto 4 200: 1985-1989
