MK1008332 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 39mm; Outer (OD) 58.2mm; Height 7mm
• Seal 2 Diameter Inner (ID) 40mm; Outer (OD) 62mm; Height 7mm
• Seal 3 Diameter Inner (ID) 40mm; Outer (OD) 55mm; Height 8mm
• Bearing 1 Diameter Inner (ID)35mm; Outer (OD) 62mm; Height 14mm; Bearing 2 Diameter Inner (ID)30mm; Outer (OD) 55mm; Height 30mm

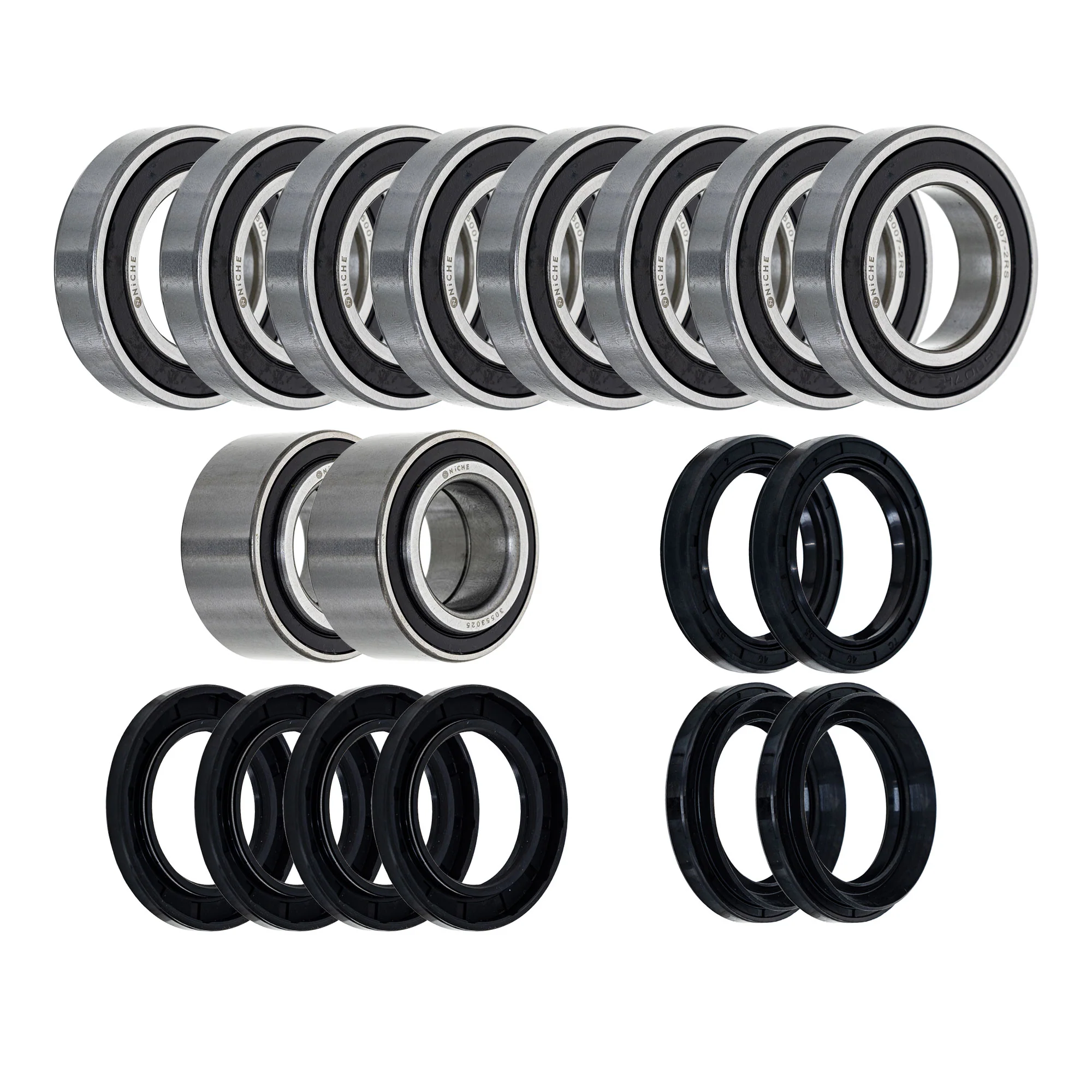

Included in This Kit:

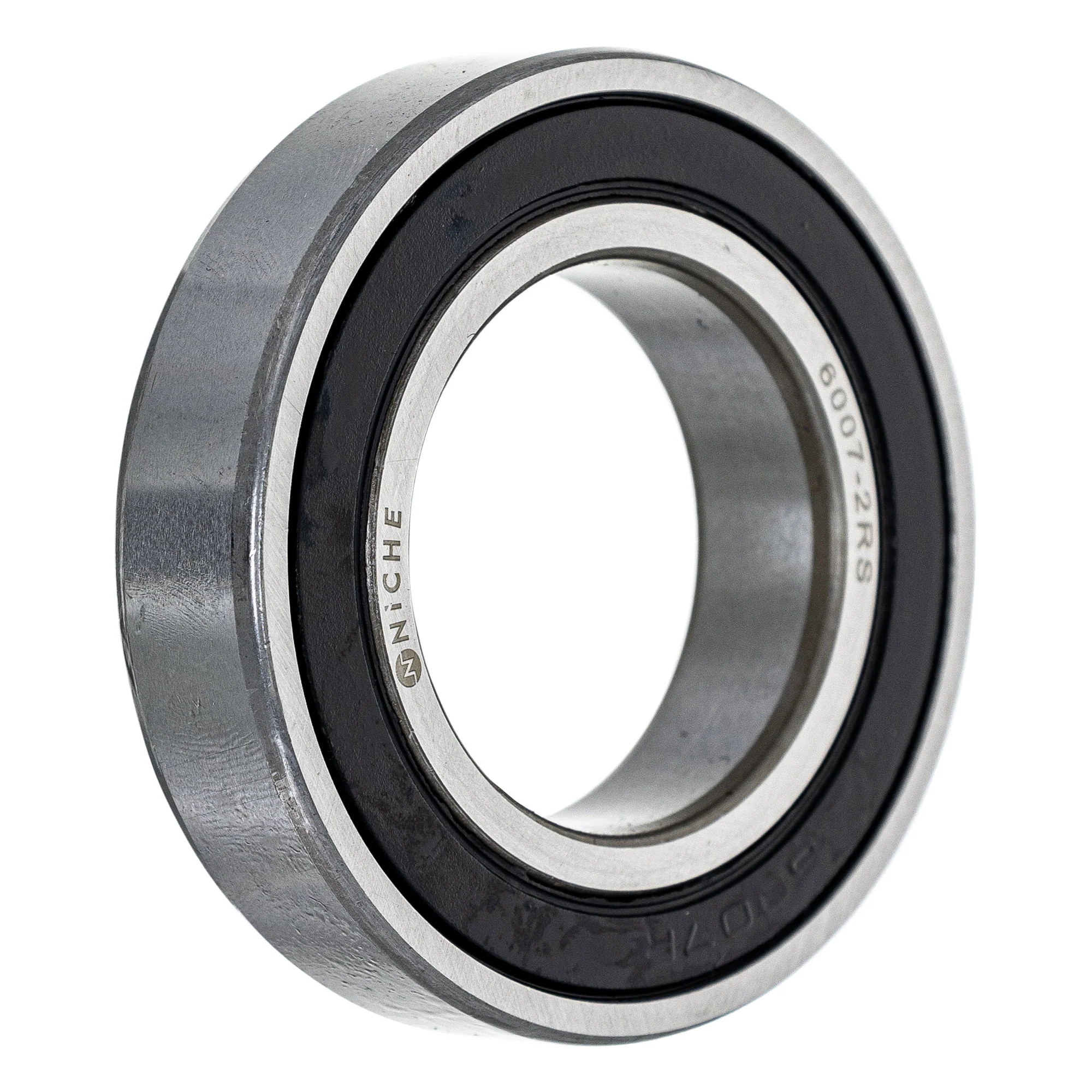

(QTY 8) NICHE 519-CBB2220R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): JD9323, JD8534, ES10548, AMX308163, A961006007LLU, 96150-60070-10, 93306-00710-00, 93306-00705-00, 93306-00702-00, 91054-HC4-003, 91052-HB3-771, 91052-H33-771, 835163M1, 80364908, 705500275, 601B6007, 601A6007UU, 601A6007, 4WV-46165-00-00, 4-156-462, 364908, 3515502, 3515501, 339800X1, 254684, 233883-8, 233883, 233833, 09262-35032, 06912-HN2-010, 06912-HN2-000, 0402-339

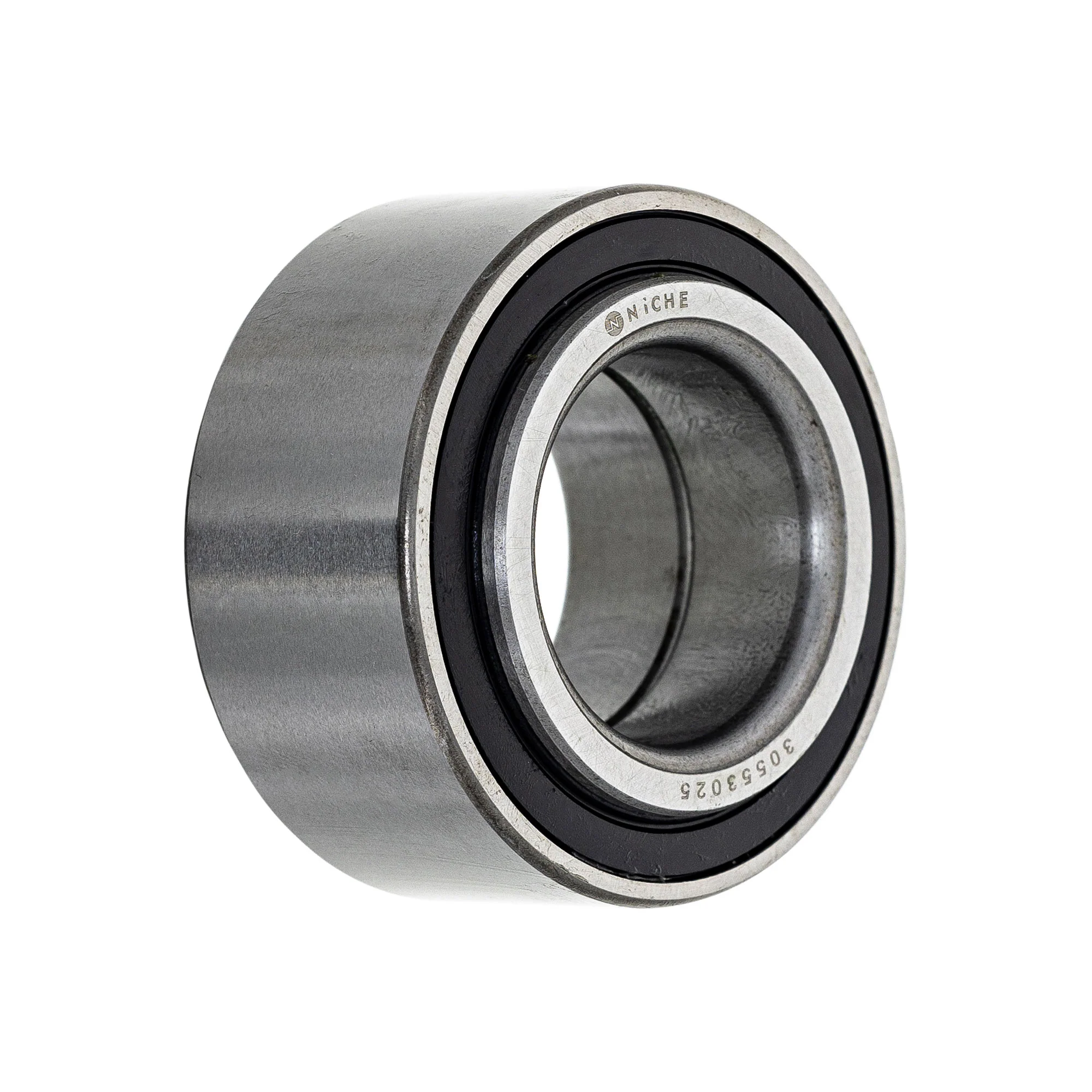

(QTY 2) NICHE 519-CBB2263R Ball Bearing

Substitute For OEM Part Numbers(s): 0402-275, 0402-085

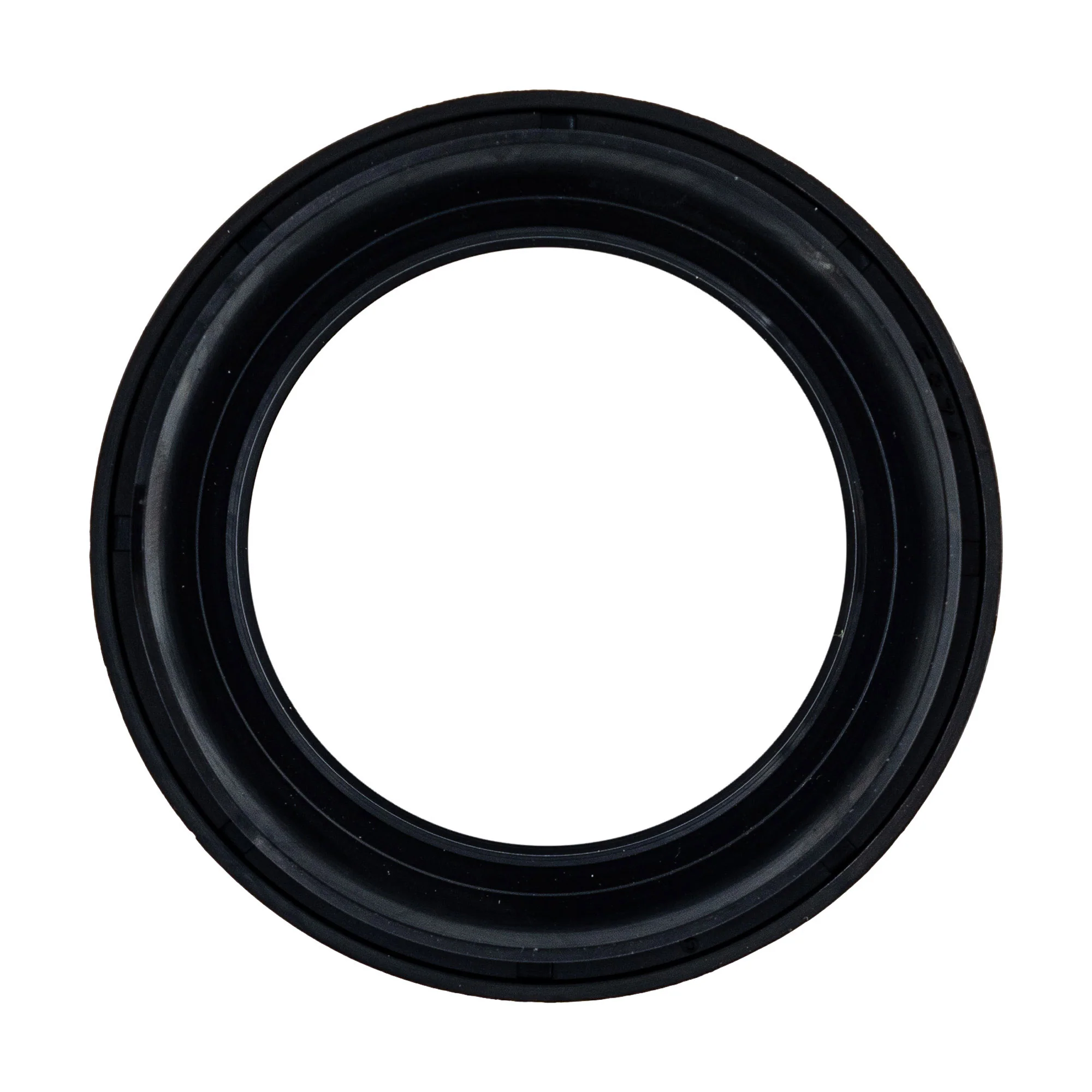

(QTY 2) NICHE 519-CSE2227A Seal Type TCY 40x58x7/12

Substitute For OEM Part Numbers(s): 91209-HN2-003, 91209-HA7-773, 91209-HA7-772, 91209-HA7-771, 2402-610, 09283-40018, 0402-069

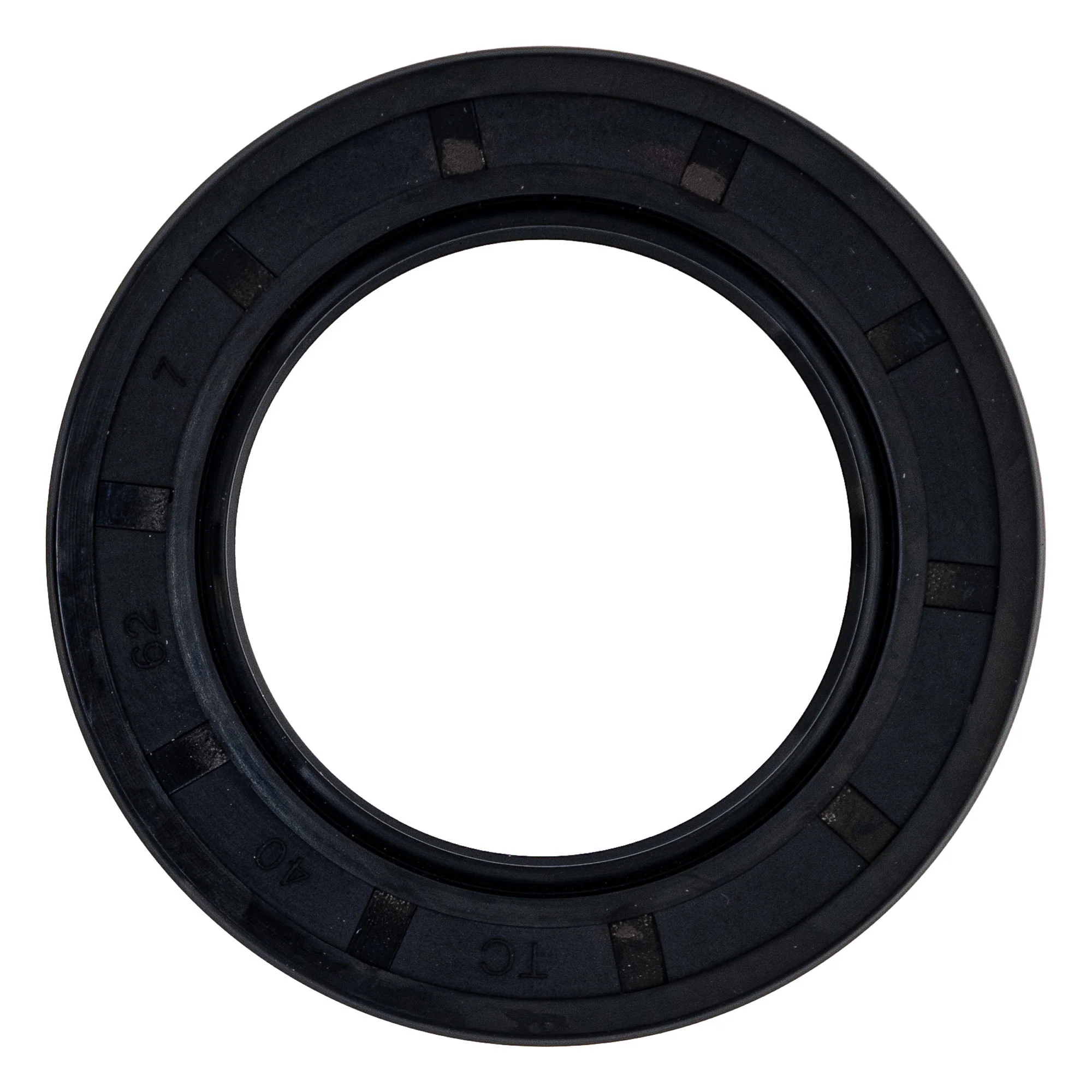

(QTY 4) NICHE 519-CSE2265A Seal Type TC 40x62x7

Substitute For OEM Part Numbers(s): 93106-40041-00, 93102-40211-00, 92050-027, 91203-918-015, 91203-918-013, 0402-348

(QTY 2) NICHE 519-CSE2276A Seal Type TC 40x55x8

Substitute For OEM Part Numbers(s): 93110-33022-00, 92049-1376

Compatible with the Following Vehicles:

Arctic Cat 500 TBX Automatic: 2002
