MK1008333 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 39mm; Outer (OD) 58.2mm; Height 7mm
• Seal 2 Diameter Inner (ID) 40mm; Outer (OD) 55mm; Height 8mm
• Bearing 1 Diameter Inner (ID)30mm; Outer (OD) 55mm; Height 32mm
• Bearing 2 Diameter Inner (ID)30mm; Outer (OD) 55mm; Height 30mm

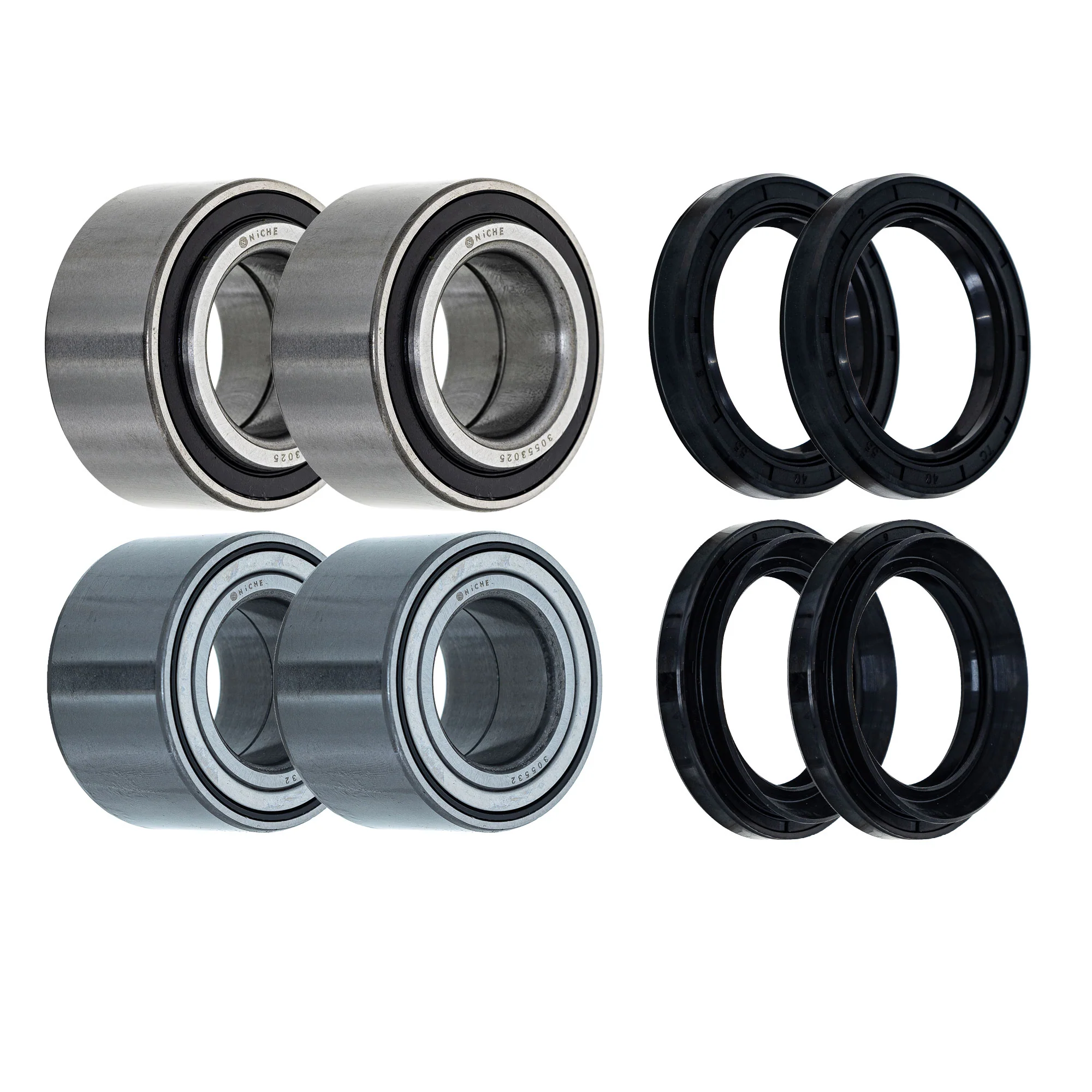

Included in This Kit:

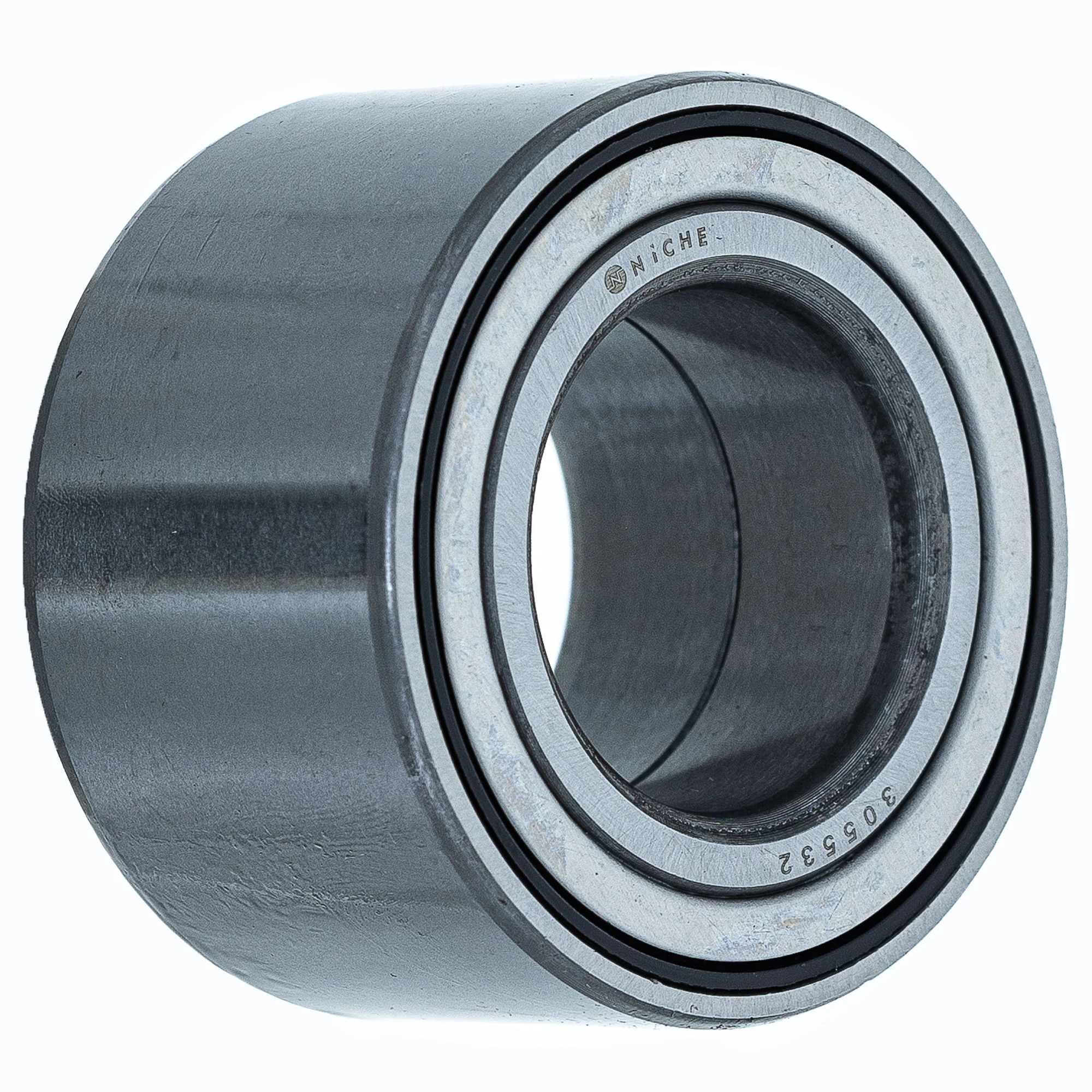

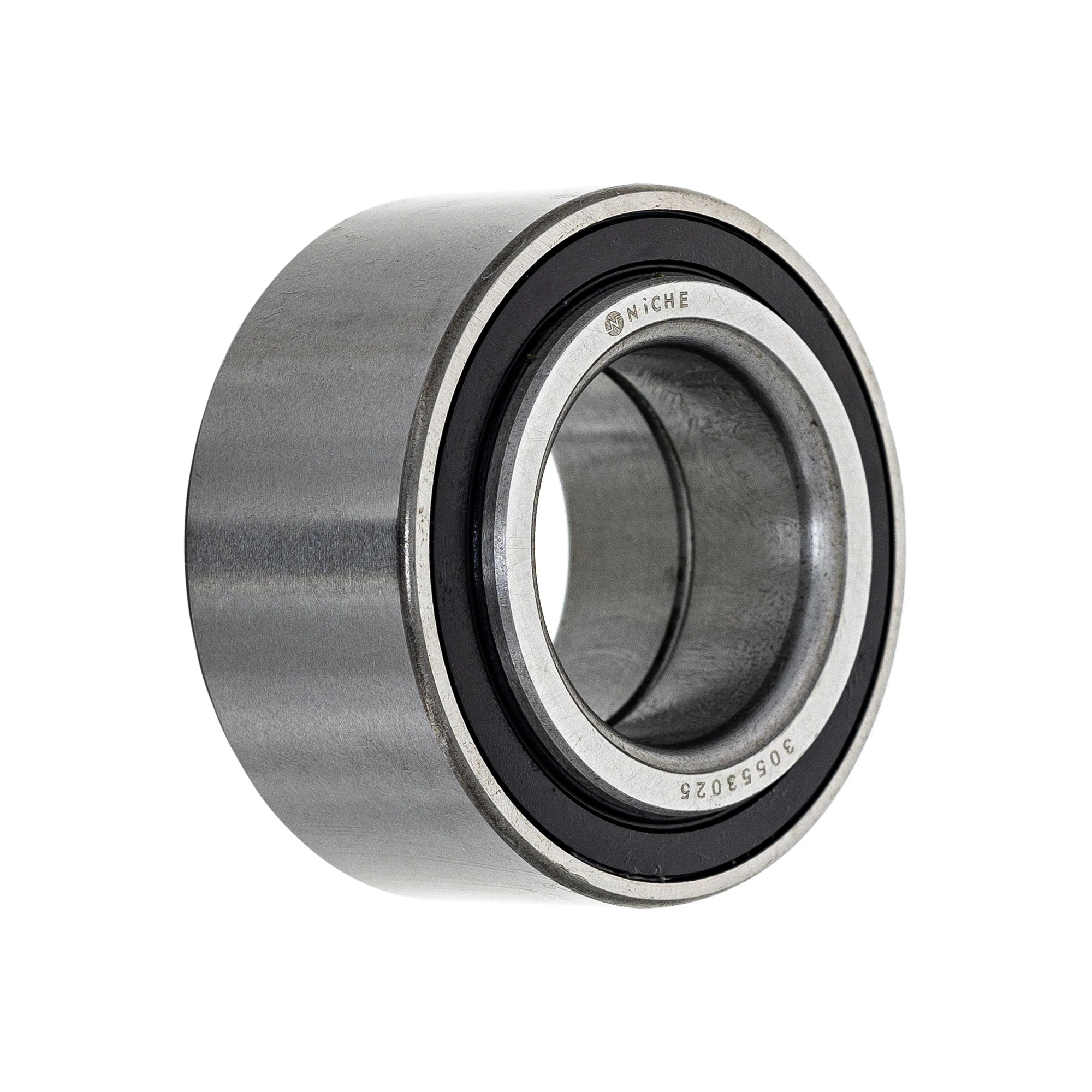

(QTY 2) NICHE 519-CBB2246R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 93305-00602-00, 93305-00601-00, 92045-0800, 92045-0123, 3323-119, 21259-31G00, 1402-809, 1402-027, 109-2064, 103-3303

(QTY 2) NICHE 519-CBB2263R Ball Bearing

Substitute For OEM Part Numbers(s): 0402-275, 0402-085

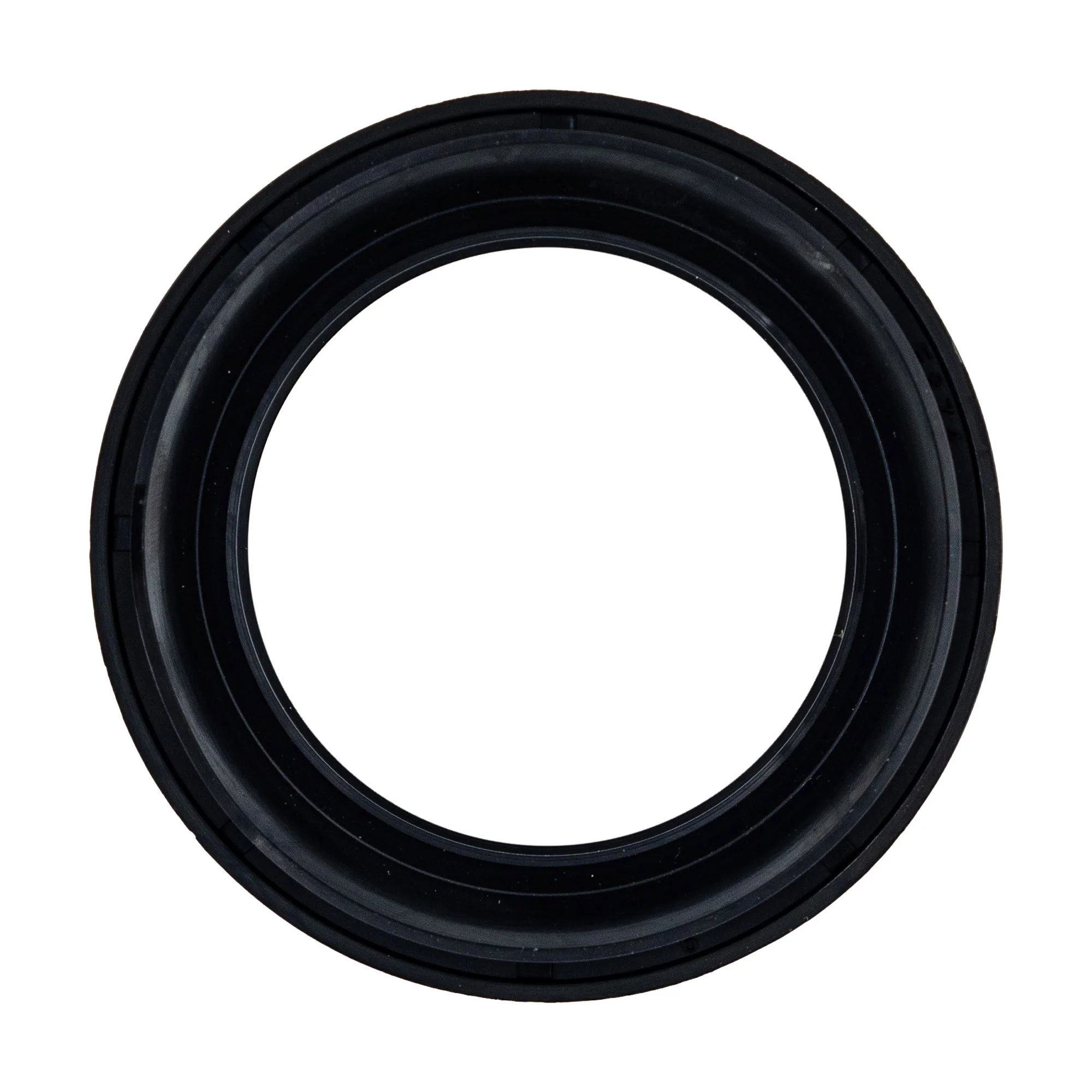

(QTY 2) NICHE 519-CSE2227A Seal Type TCY 40x58x7/12

Substitute For OEM Part Numbers(s): 91209-HN2-003, 91209-HA7-773, 91209-HA7-772, 91209-HA7-771, 2402-610, 09283-40018, 0402-069

(QTY 2) NICHE 519-CSE2276A Seal Type TC 40x55x8

Substitute For OEM Part Numbers(s): 93110-33022-00, 92049-1376

Compatible with the Following Vehicles:

Arctic Cat 650 V2 MRP: 2004
Arctic Cat 650 V2: 2004
