MK1008353 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 23mm; Outer (OD) 42mm; Height 7mm
• Seal 2 Diameter Inner (ID) 44mm; Outer (OD) 62mm; Height 7mm
• Bearing 1 Diameter Inner (ID)35mm; Outer (OD) 62mm; Height 14mm
• Bearing 2 Diameter Inner (ID)15mm; Outer (OD) 42mm; Height 13mm

Included in This Kit:

(QTY 2) NICHE 519-CBB2220R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): JD9323, JD8534, ES10548, AMX308163, A961006007LLU, 96150-60070-10, 93306-00710-00, 93306-00705-00, 93306-00702-00, 91054-HC4-003, 91052-HB3-771, 91052-H33-771, 835163M1, 80364908, 705500275, 601B6007, 601A6007UU, 601A6007, 4WV-46165-00-00, 4-156-462, 364908, 3515502, 3515501, 339800X1, 254684, 233883-8, 233883, 233833, 09262-35032, 06912-HN2-010, 06912-HN2-000, 0402-339

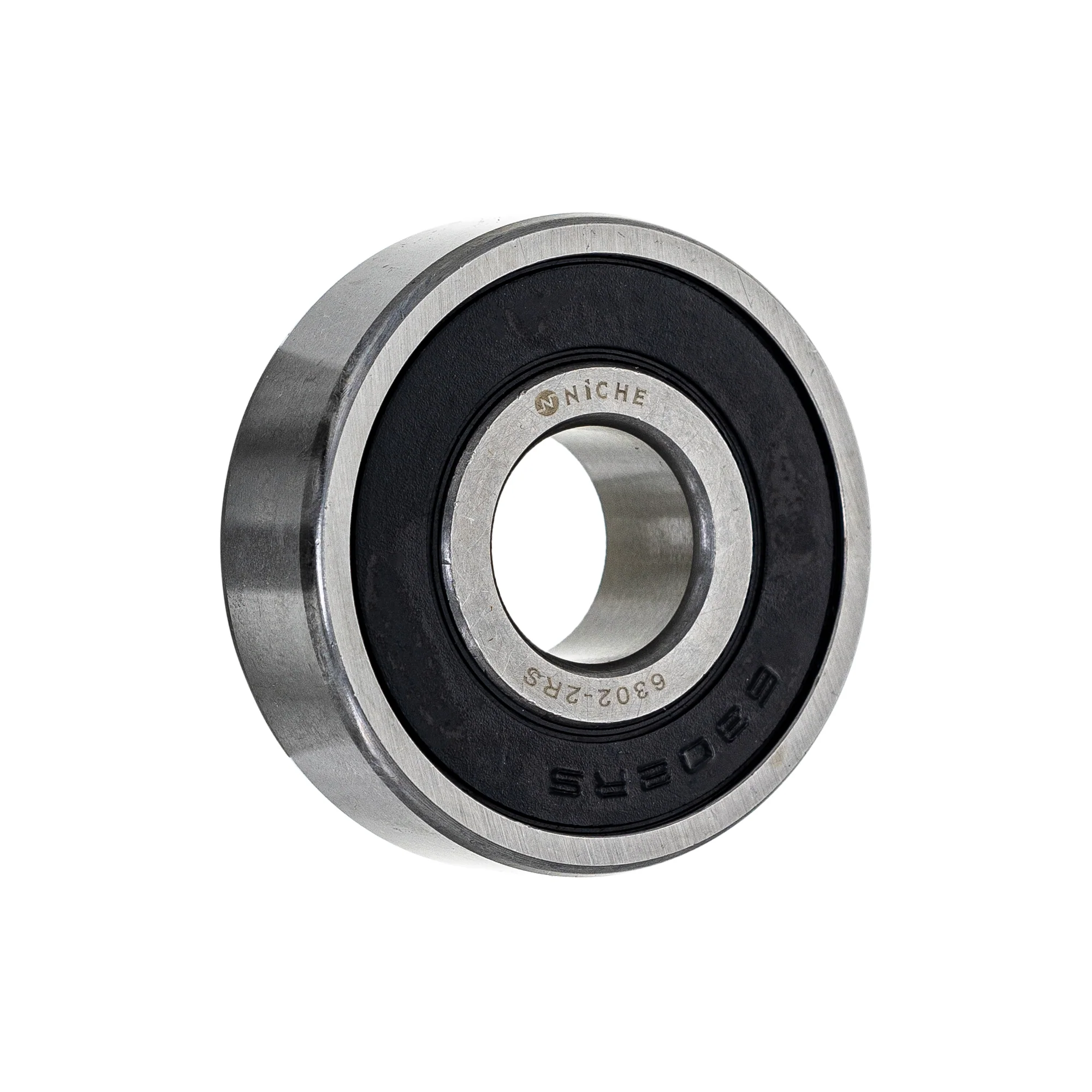

(QTY 4) NICHE 519-CBB2232R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63020-10, 96140-63020-10, 96120-63020-10, 93306-30212-00, 91052-KR3-005, 91052-HB5-671, 91051-KEH-662, 91051-KC2-882, 601B6302UU, 601B6302U, 09262-15027, 08153-63027, 08144-63027, 08123-63027, 08113-63020

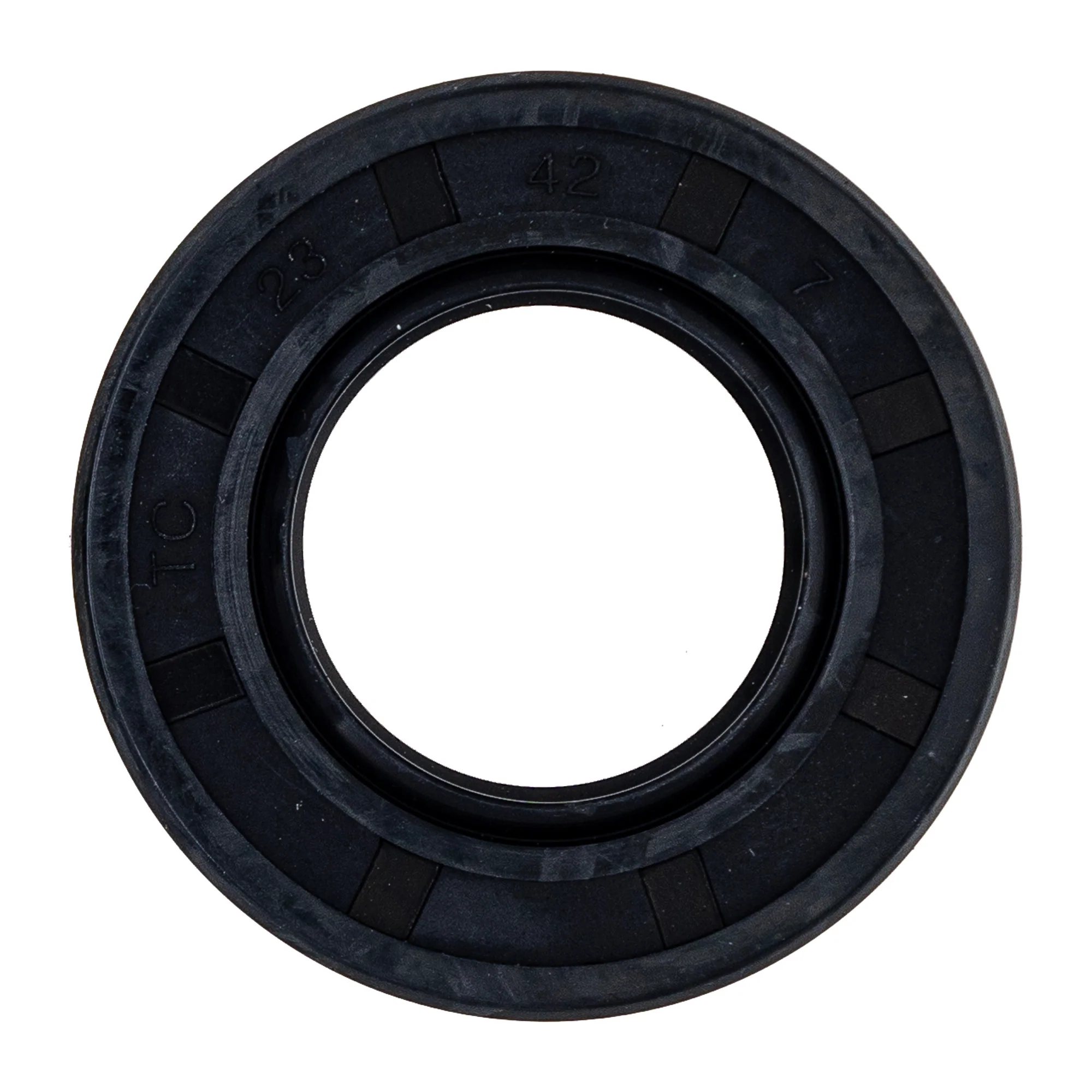

(QTY 4) NICHE 519-CSE2230A Seal Type TC 23x42x7

Substitute For OEM Part Numbers(s): 91251-958-004, 91251-958-003

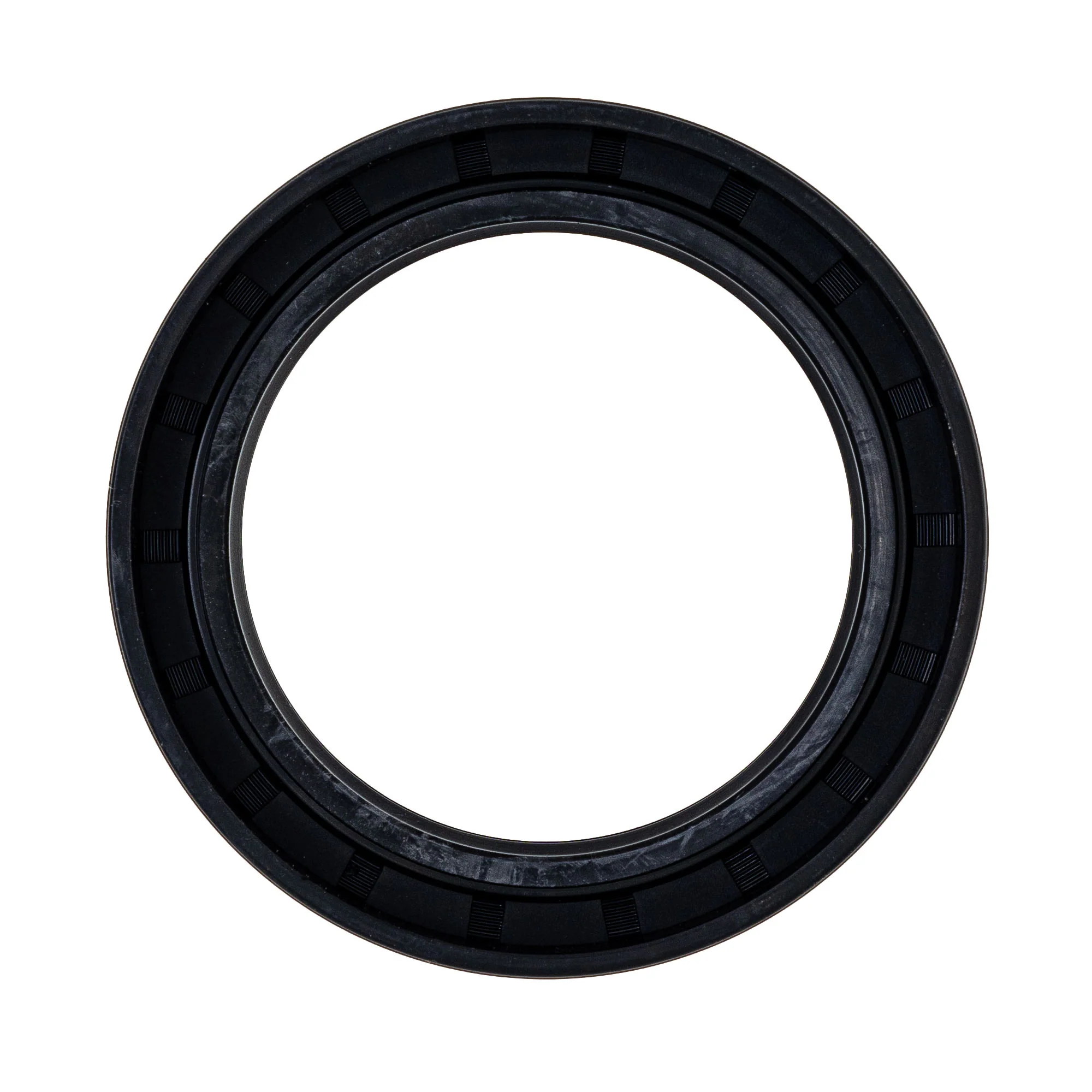

(QTY 2) NICHE 519-CSE2292A Seal Type TCY 44x60x7/11.5

Substitute For OEM Part Numbers(s): 91262-HA8-003, 91211-HN8-003

Compatible with the Following Vehicles:

Honda ATC200X: 1986-1987
