MK1008428 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)30mm; Outer (OD) 55mm; Height 13mm
• Bearing 2 Diameter Inner (ID)17mm; Outer (OD) 35mm; Height 10mm
• Seal 1 Diameter Inner (ID) 23mm; Outer (OD) 35mm; Height 7mm; Seal 2 Diameter Inner (ID) 38mm; Outer (OD) 55mm; Height 8mm
• Seal 3 Diameter Inner (ID) 40mm; Outer (OD) 52mm; Height 6mm; Seal 4 Diameter Inner (ID) 36mm; Outer (OD) 60mm; Height 6mm

Included in This Kit:

(QTY 2) NICHE 519-CBB2224R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): BD3-F53N4-00-00, 96150-60060-10, 96100-60060-00, 96100-60060, 93306-006Y4-00, 93306-006Y2-00, 93306-006Y0-00, 93306-00640-00, 93306-00615-00, 93306-00612-00, 92045-Y028, 92045-Y008, 625060060, 601B6006G, 454032, 450429, 43D-F53N4-00-00, 3604-257, 3304-201, 3303-466, 3301-413, 320291X1, 08123-60067

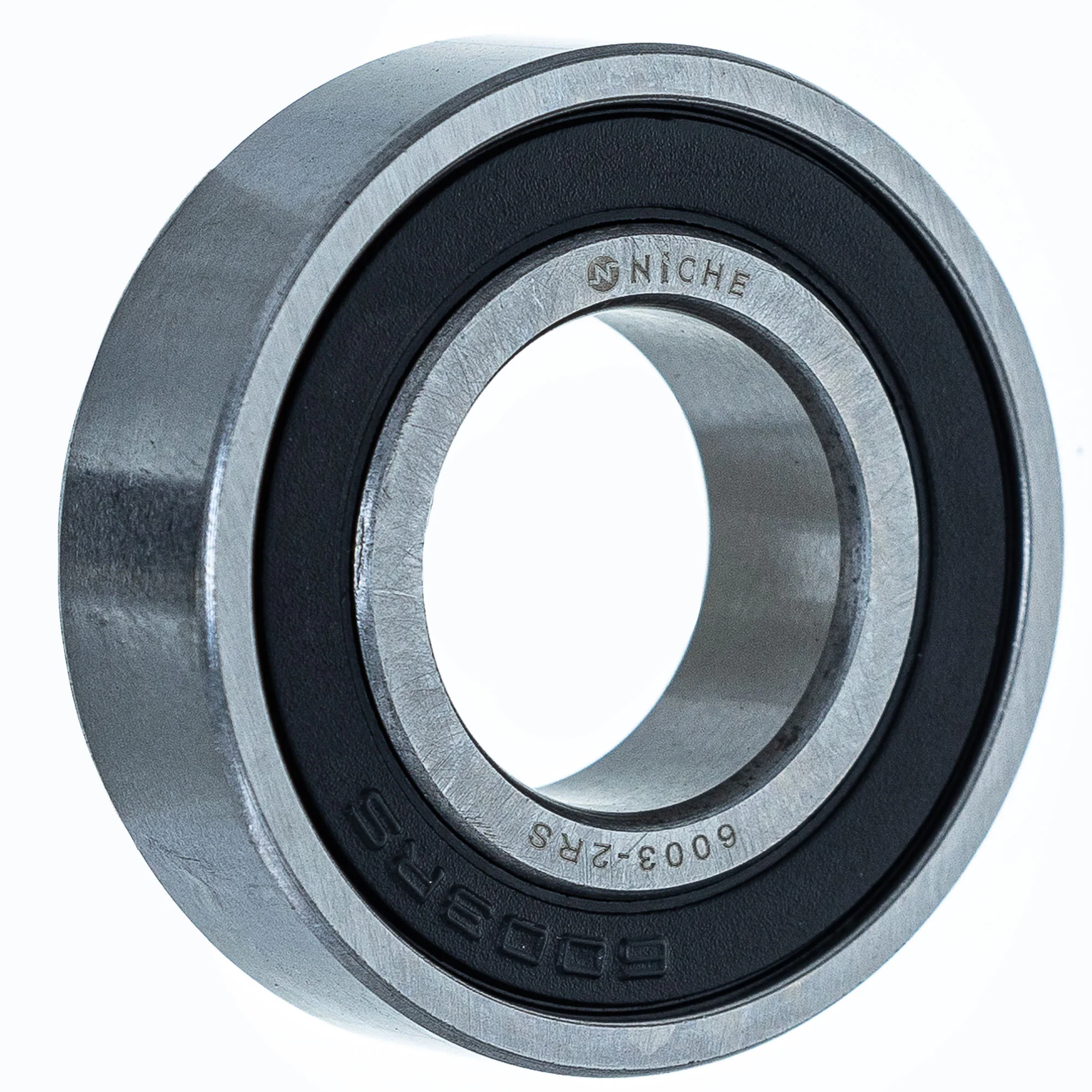

(QTY 4) NICHE 519-CBB2238R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): BD3-F51H2-10-00, 99999-02969-00, 93306-00316-00, 93306-00315-00, 93306-00302-00, 92045-Y011, 91065-KA3-832, 91055-HC3-000, 91051-KSE-003, 85-9970, 625060037, 601B6003U, 454013, 450393, 43D-F51H2-00-00, 3303-468, 08133-60037, 08123-60037, 0625060037

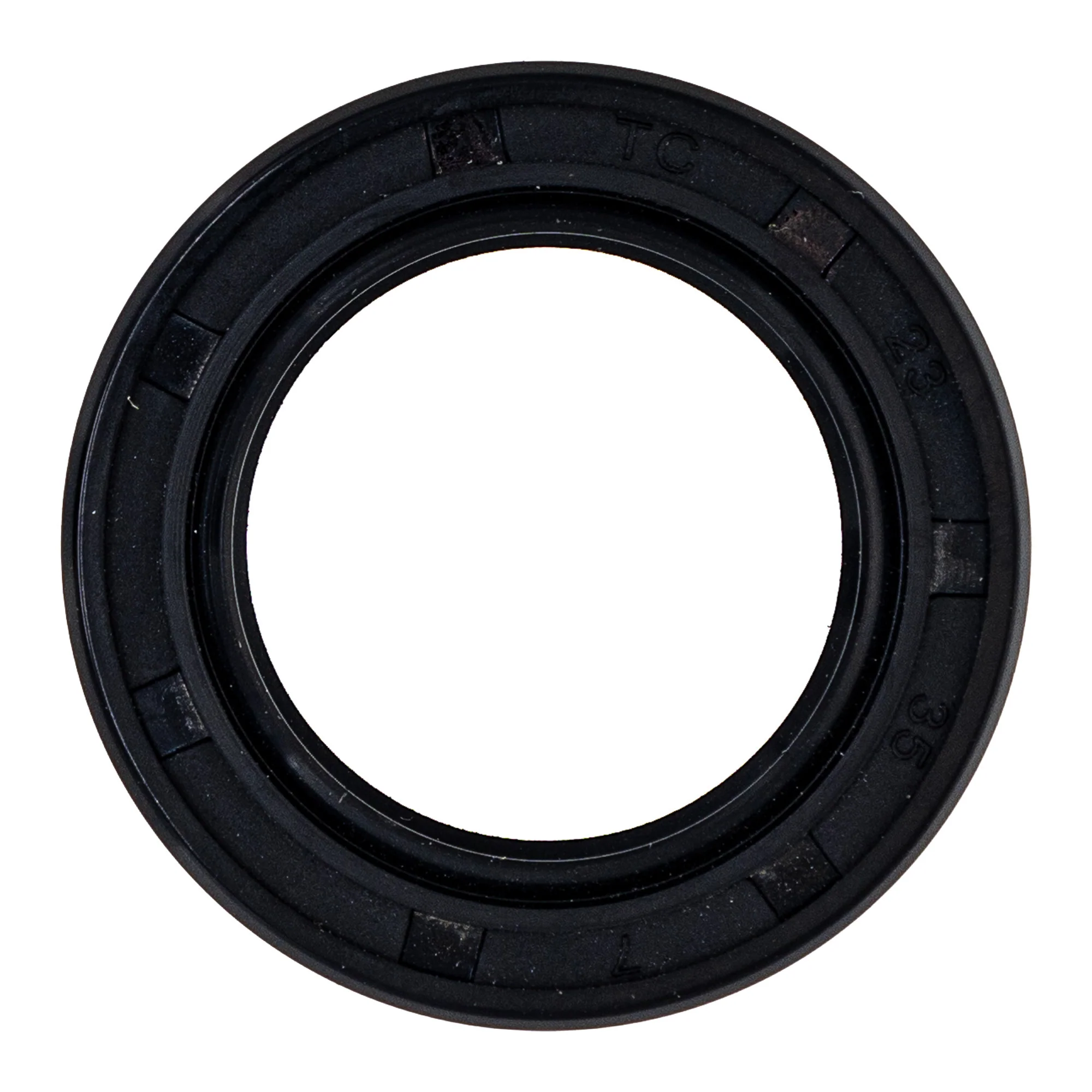

(QTY 4) NICHE 519-CSE2235A Seal Type TC 23x35x7

Substitute For OEM Part Numbers(s):

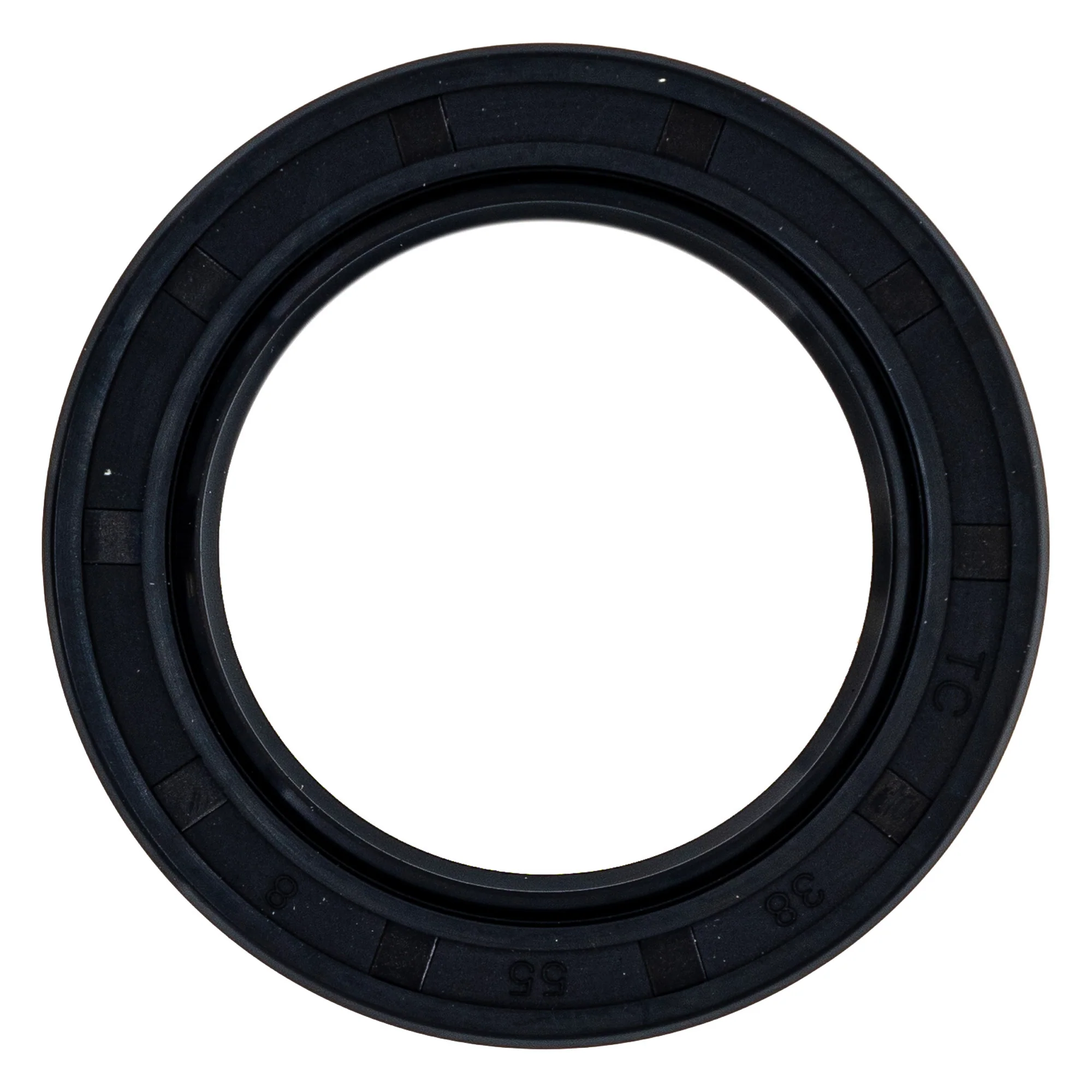

(QTY 1) NICHE 519-CSE2264A Seal Type TC 38x55x8

Substitute For OEM Part Numbers(s): 93106-38046-00, 93102-38383-00, 91203-957-003, 1402-011, 09283-38013

(QTY 2) NICHE 519-CSE2272A Seal Type TC 40x52x6

Substitute For OEM Part Numbers(s): 93106-40027-00, 93102-40367-00

(QTY 1) NICHE 519-CSE2385A Seal Type TC 36x60x6

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Yamaha Raptor 80: 2002-2008
Yamaha Grizzly 80: 2005-2008
Yamaha Champ 100: 1989-1991
