MK1008430 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 23mm; Outer (OD) 35mm; Height 7mm
• Seal 2 Diameter Inner (ID) 35mm; Outer (OD) 52mm; Height 7mm
• Seal 3 Diameter Inner (ID) 40mm; Outer (OD) 52mm; Height 6mm
• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 35mm; Height 10mm; Bearing 2 Diameter Inner (ID)28mm; Outer (OD) 52mm; Height 12mm

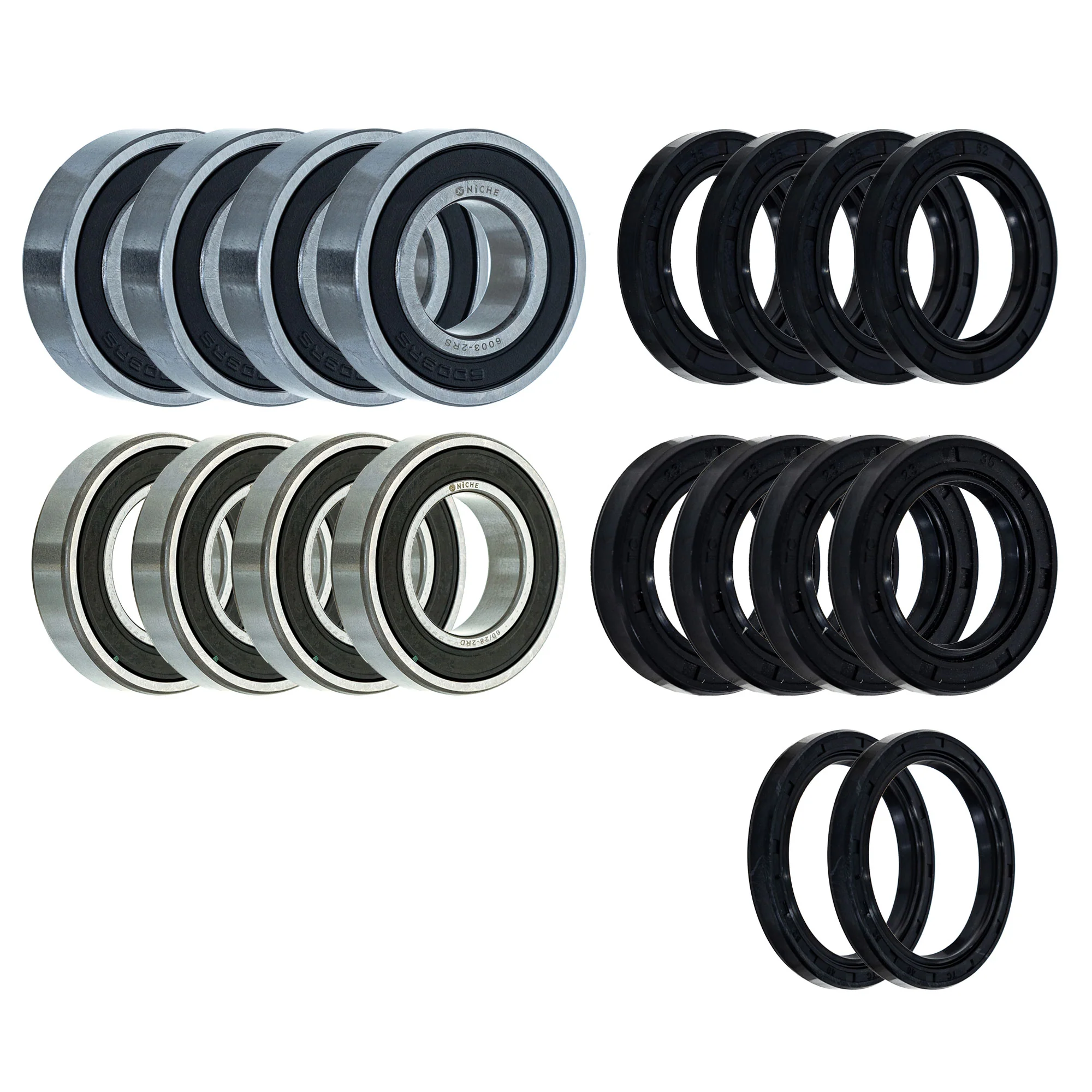

Included in This Kit:

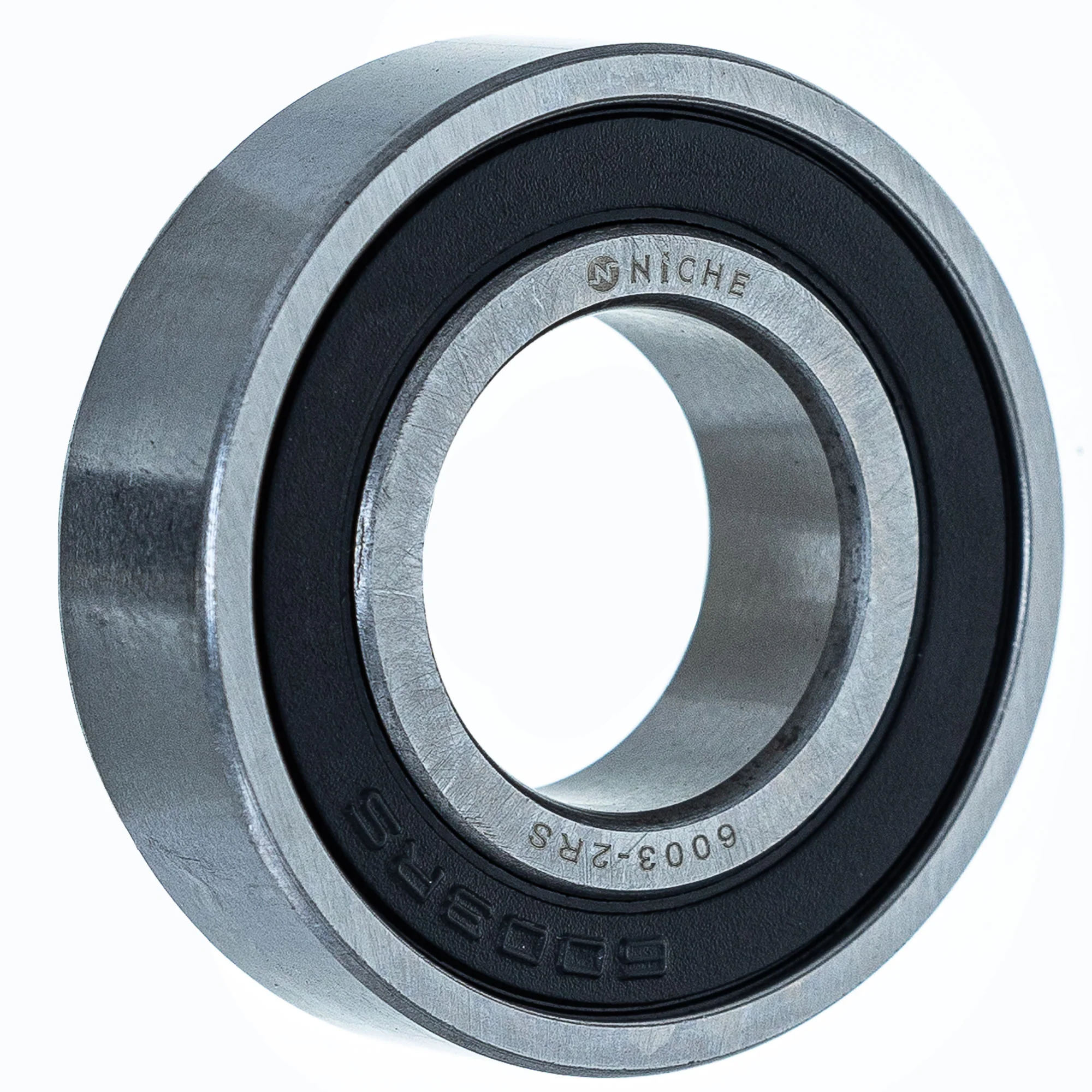

(QTY 4) NICHE 519-CBB2238R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): BD3-F51H2-10-00, 99999-02969-00, 93306-00316-00, 93306-00315-00, 93306-00302-00, 92045-Y011, 91065-KA3-832, 91055-HC3-000, 91051-KSE-003, 85-9970, 625060037, 601B6003U, 454013, 450393, 43D-F51H2-00-00, 3303-468, 08133-60037, 08123-60037, 0625060037

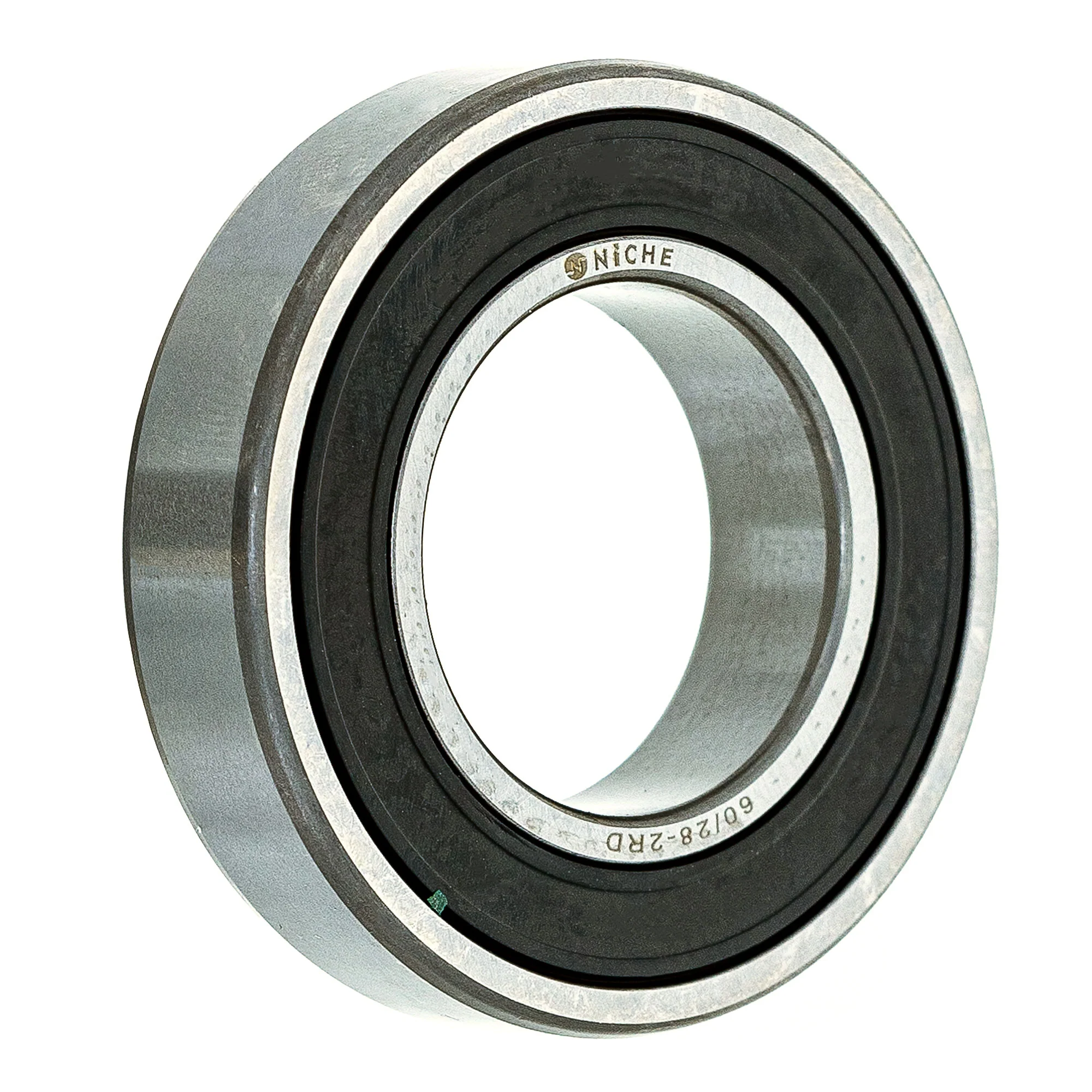

(QTY 4) NICHE 519-CBB2321R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-07809-00, 93306-07808-00, 93306-07806-00, 93306-07801-00, 92045-S038, 91053-MFR-671, 91051-HA7-671, 91051-HA7-670, 09262-28052, 09262-28043

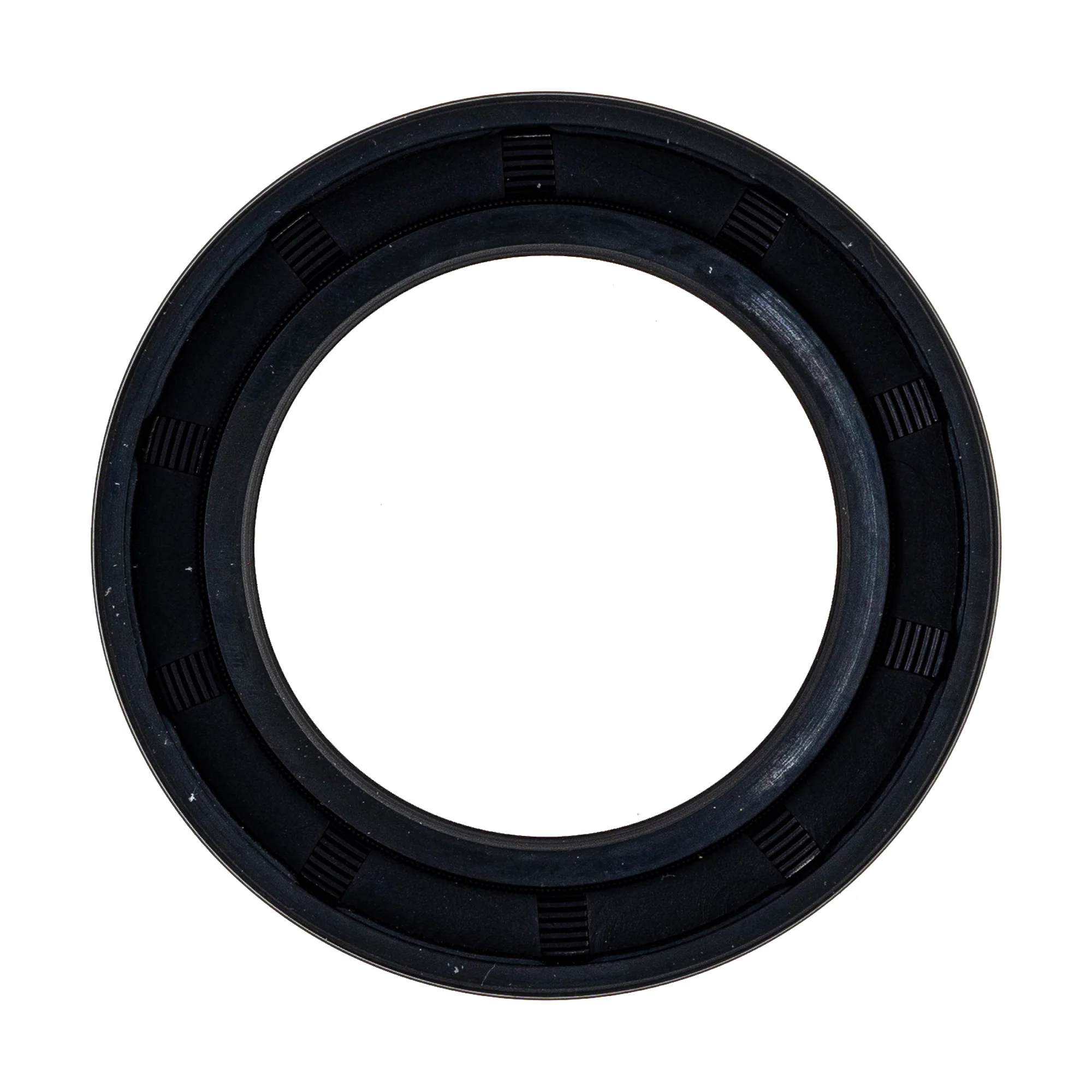

(QTY 4) NICHE 519-CSE2235A Seal Type TC 23x35x7

Substitute For OEM Part Numbers(s):

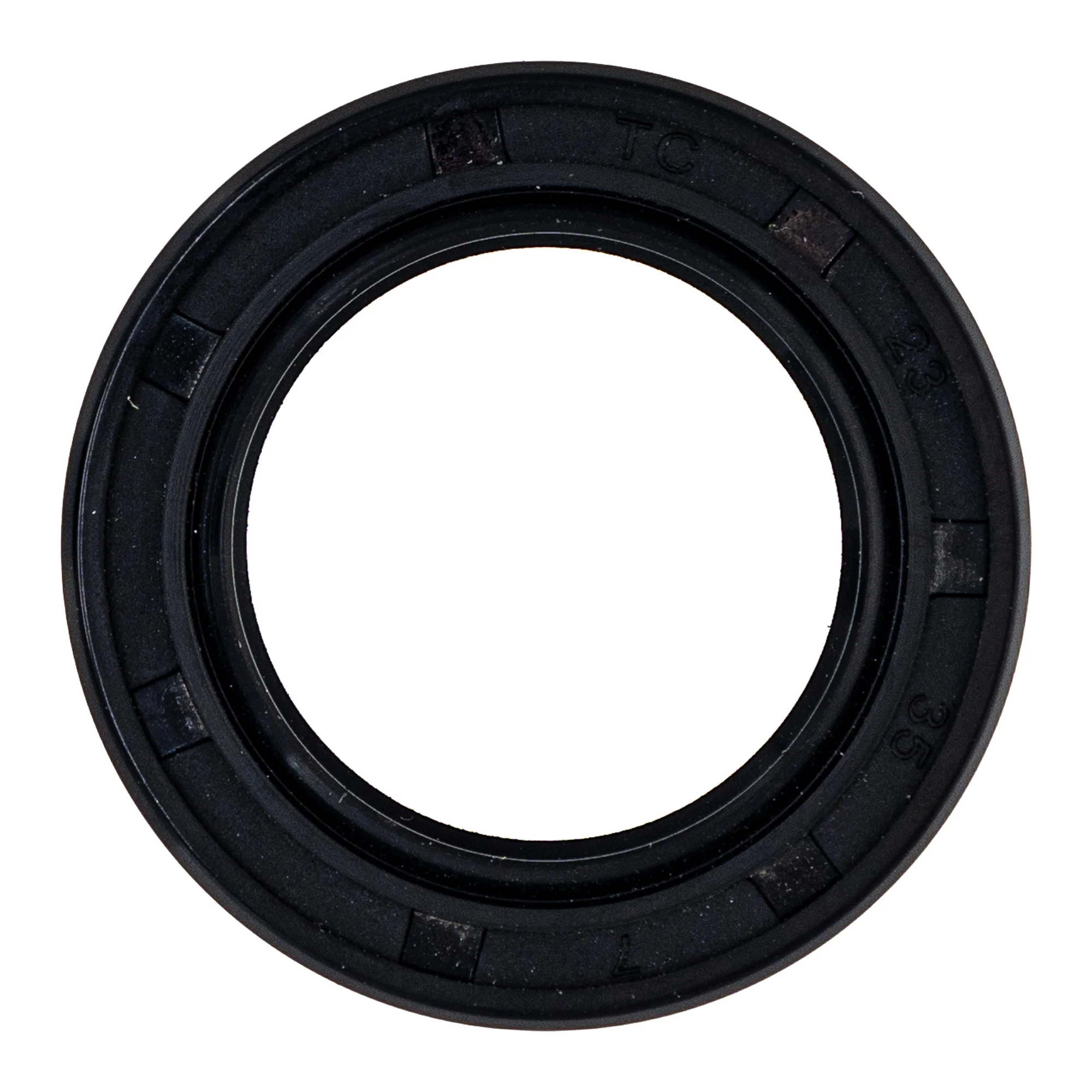

(QTY 4) NICHE 519-CSE2244A Seal Type TC 35x52x7

Substitute For OEM Part Numbers(s): 93105-35025-00, 93102-35318-00, 93101-35097-00

(QTY 2) NICHE 519-CSE2272A Seal Type TC 40x52x6

Substitute For OEM Part Numbers(s): 93106-40027-00, 93102-40367-00

Compatible with the Following Vehicles:

Yamaha Champ 100: 1987-1988
