MK1008476 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 28mm; Outer (OD) 42mm; Height 6mm
• Seal 2 Diameter Inner (ID) 23mm; Outer (OD) 37mm; Height 7mm
• Seal 3 Diameter Inner (ID) 21mm; Outer (OD) 37mm; Height 7mm
• Bearing 1 Diameter Inner (ID)15mm; Outer (OD) 42mm; Height 13mm; Bearing 2 Diameter Inner (ID)12mm; Outer (OD) 37mm; Height 12mm

Included in This Kit:

(QTY 2) NICHE 519-CBB2232R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63020-10, 96140-63020-10, 96120-63020-10, 93306-30212-00, 91052-KR3-005, 91052-HB5-671, 91051-KEH-662, 91051-KC2-882, 601B6302UU, 601B6302U, 09262-15027, 08153-63027, 08144-63027, 08123-63027, 08113-63020

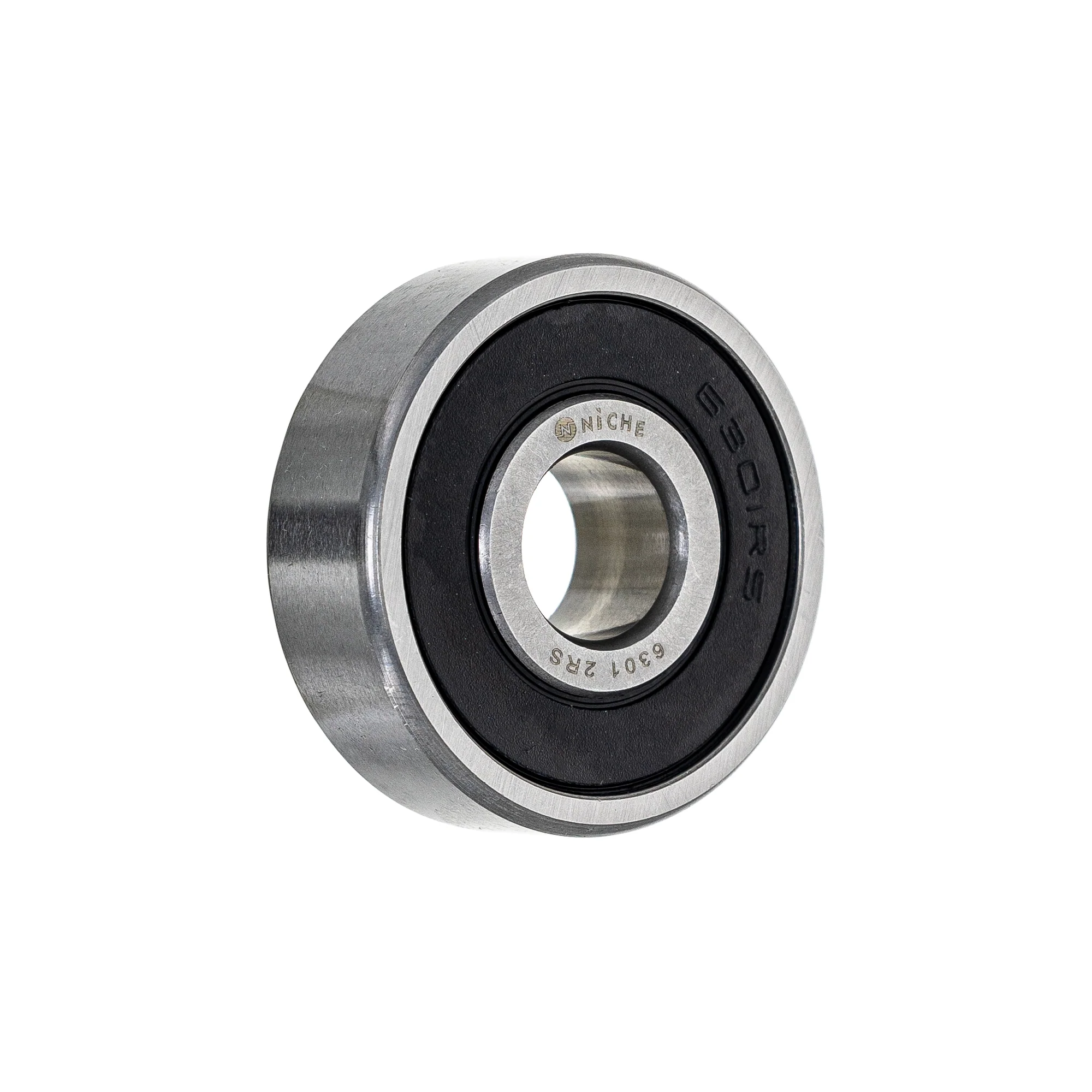

(QTY 2) NICHE 519-CBB2243R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): KKK60-1B630-1UU, KKK60-1B630-11U, K601B-6301U, 96150-63010-10, 96140-63010-10, 96140-63010, 96100-63010, 93306-301YY-00, 93306-301YX-00, 93306-30111-00, 93306-30102-00, 92045-S029, 91053-KWW-642, 91053-KWW-641, 91053-KWB-601, 91053-KSS-902, 91053-KSS-901, 91052-KYK-911, 91052-KWW-C51, 601B6301UU, 08143-63017, 08143-63010, 08123-63017, 08113-63010

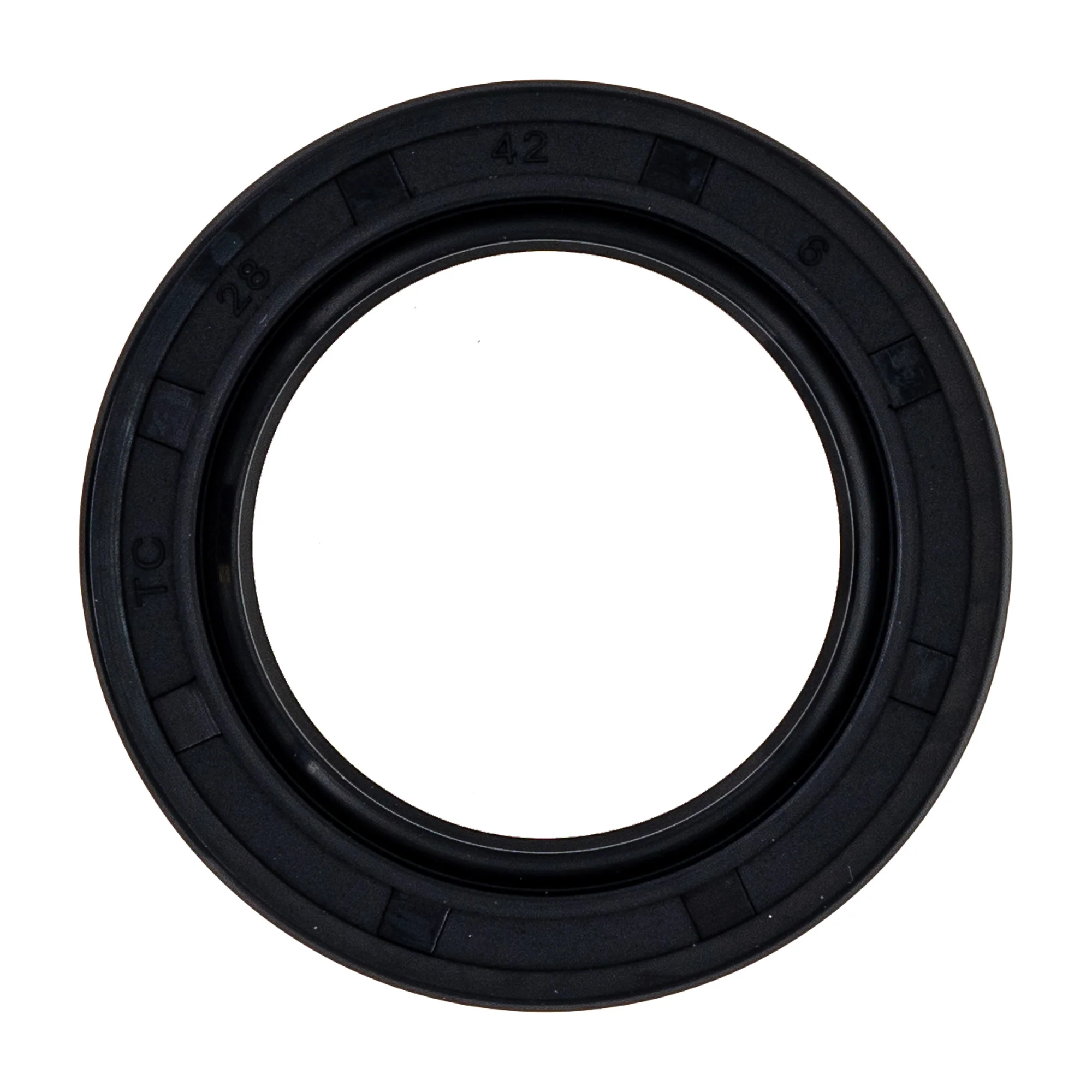

(QTY 1) NICHE 519-CSE2249A Seal Type TC 28x42x6

Substitute For OEM Part Numbers(s):

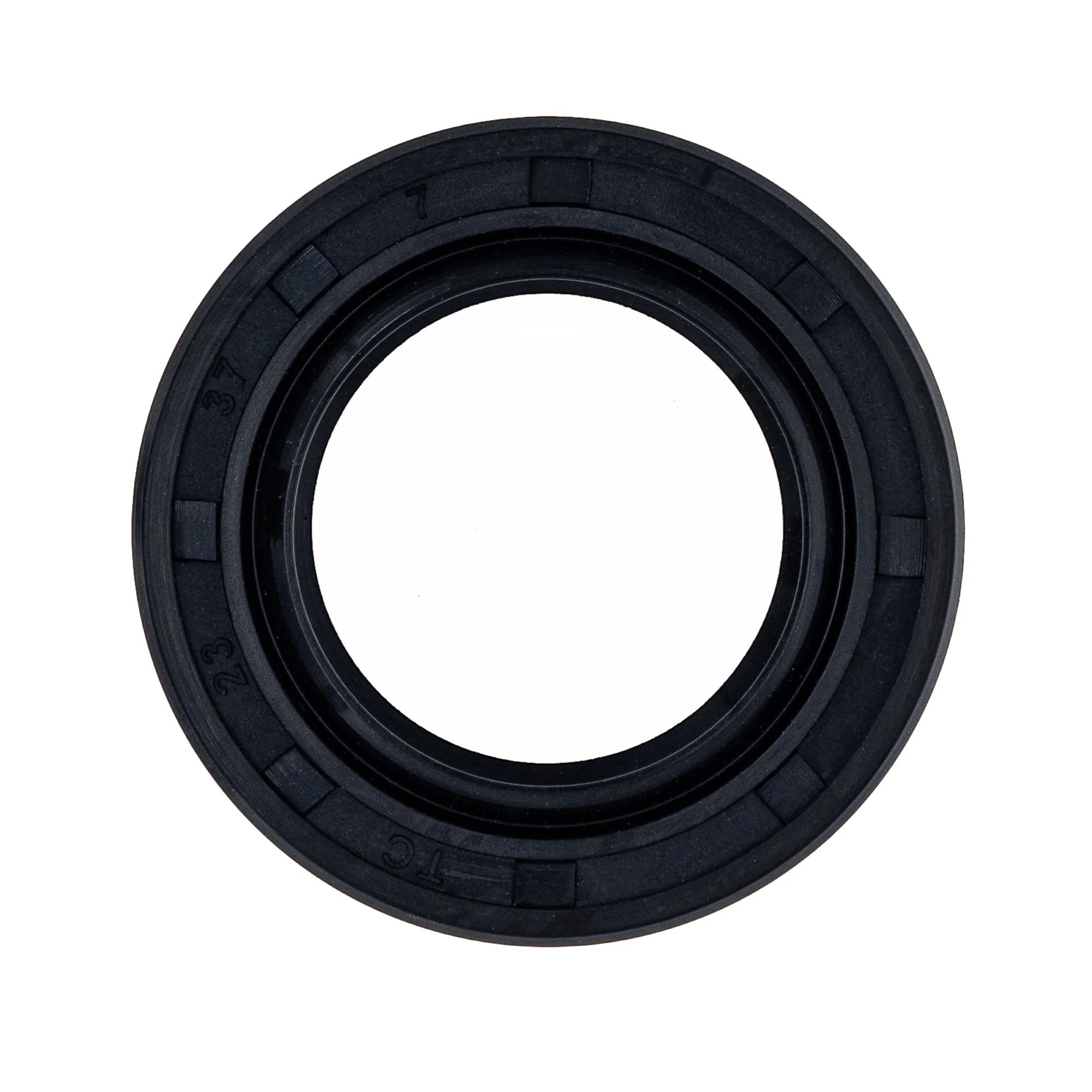

(QTY 2) NICHE 519-CSE2204A Seal Type TC 23x37x7

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2214A Seal Type TCY 21x37x7/11

Substitute For OEM Part Numbers(s): 93104-21016-00, 91251-K35-V01, 90755-KGA-K00, 90755-229-005, 90755-229-003, 90755-229-000

Compatible with the Following Vehicles:

Honda XR200: 1980-1984
Honda XL185S: 1979-1983
Honda XL125: 1974-1978
Honda Trail 125: 1977
