MK1008585 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 40mm; Outer (OD) 50mm; Height 5mm
• Seal 2 Diameter Inner (ID) 33mm; Outer (OD) 62mm; Height 7mm
• Bearing 1 Diameter Inner (ID)15mm; Outer (OD) 42mm; Height 13mm; Bearing 2 Diameter Inner (ID)20mm; Outer (OD) 47mm; Height 14mm
• Bearing 3 Diameter Inner (ID)25mm; Outer (OD) 62mm; Height 17mm; Bearing 4 Diameter Inner (ID)20mm; Outer (OD) 52mm; Height 15mm

Included in This Kit:

(QTY 2) NICHE 519-CBB2232R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63020-10, 96140-63020-10, 96120-63020-10, 93306-30212-00, 91052-KR3-005, 91052-HB5-671, 91051-KEH-662, 91051-KC2-882, 601B6302UU, 601B6302U, 09262-15027, 08153-63027, 08144-63027, 08123-63027, 08113-63020

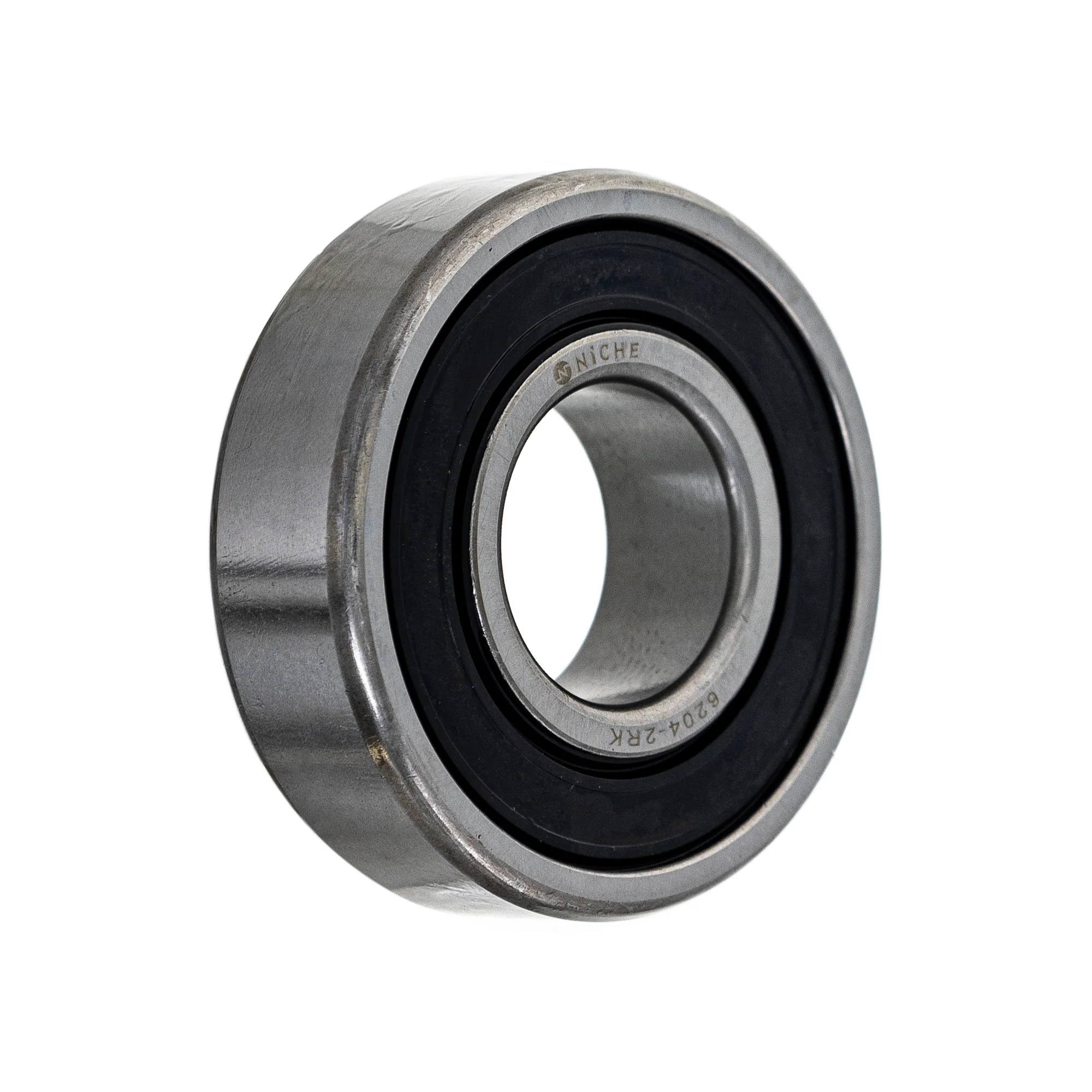

(QTY 1) NICHE 519-CBB2281R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 601B6204UU

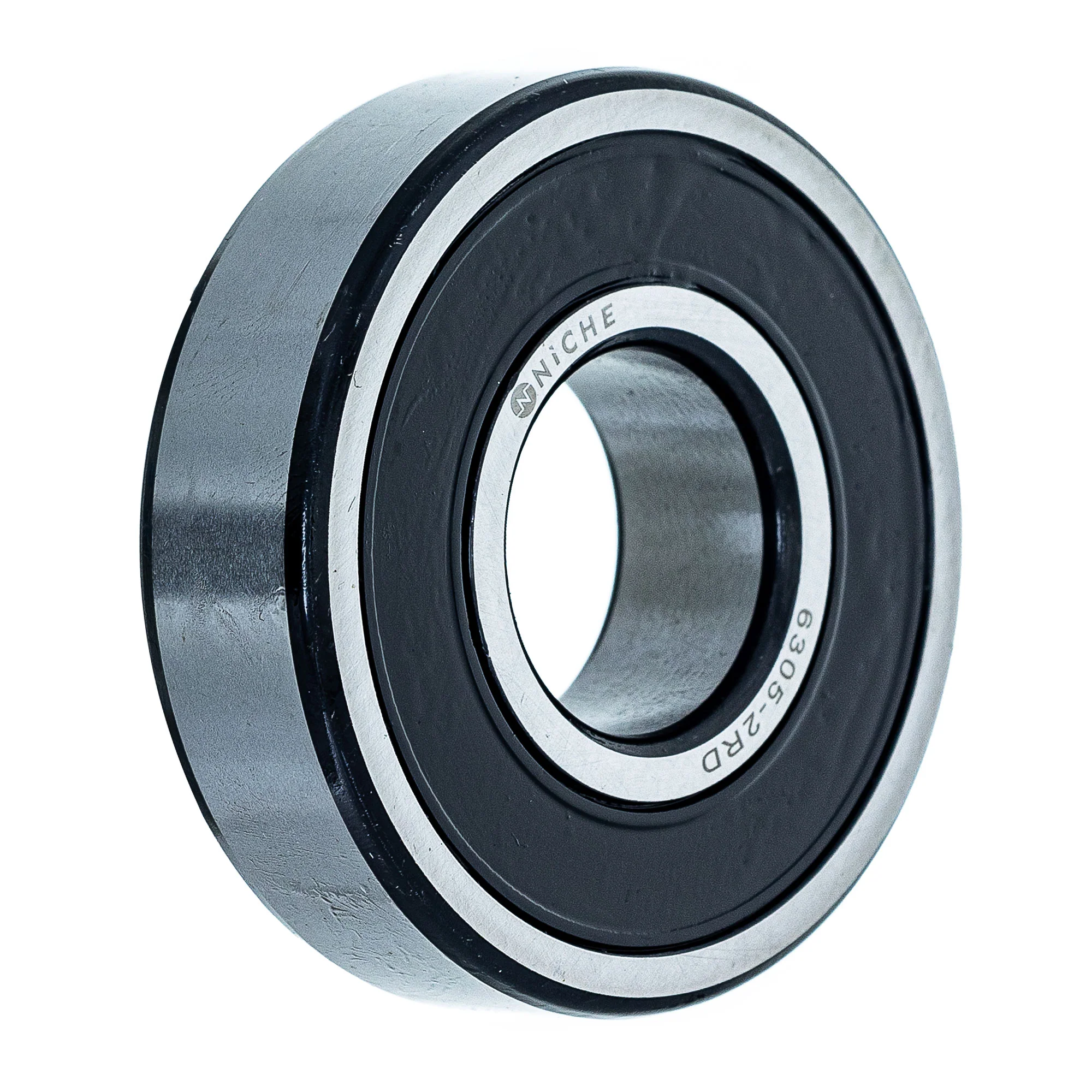

(QTY 1) NICHE 519-CBB2290R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-305U0-00, 93306-30507-00, 91051-MM5-003, 91051-MBT-611, 91051-MAT-003, 09262-25073, 08113-63050

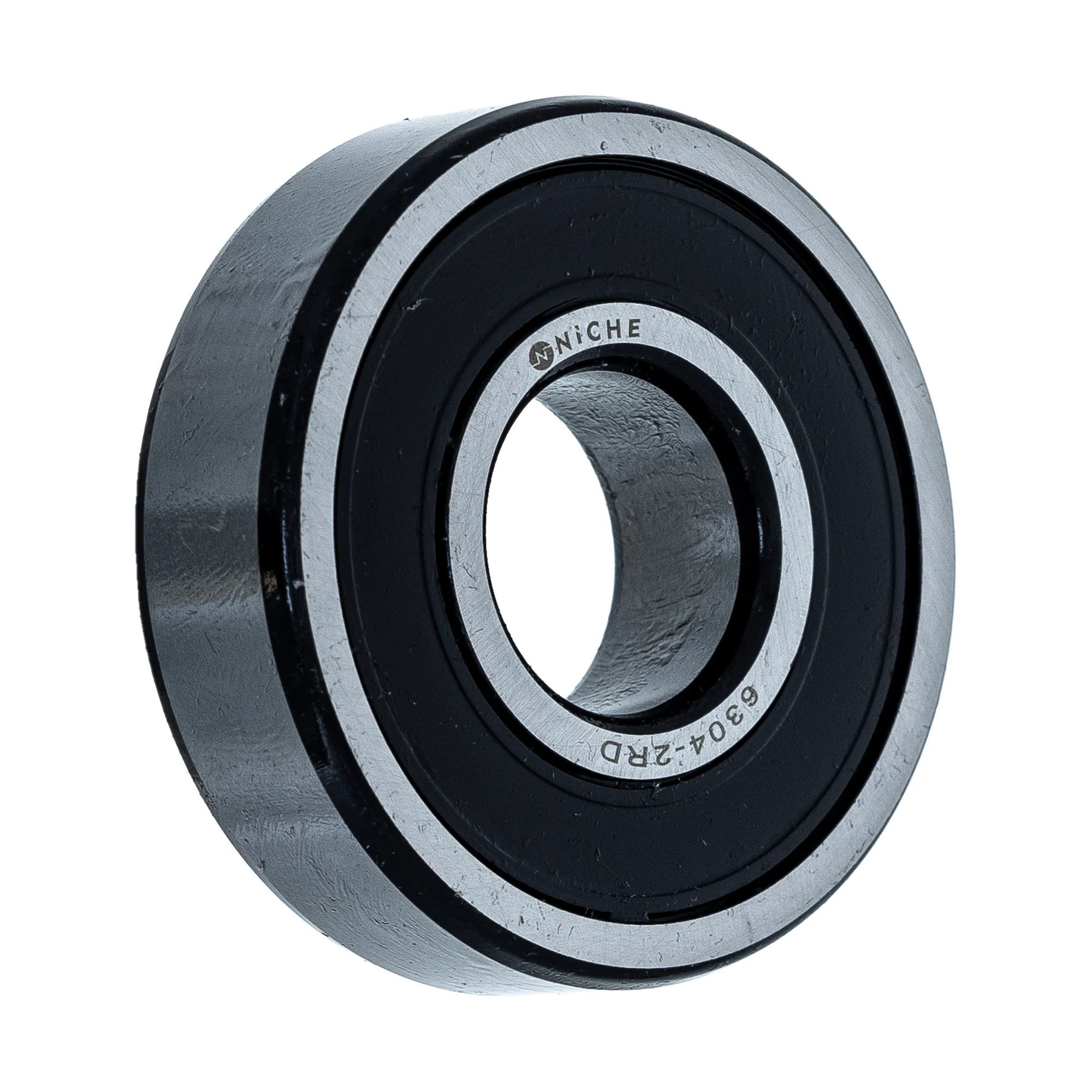

(QTY 1) NICHE 519-CBB2207R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63040-10, 96140-63040-10, 96120-63040-10, 96120-63040-00, 96120-63040, 93306-30446-00, 93306-30437-00, 91053-MR5-003, 91053-MM5-004, 601B6304UU, 601B6304U, 601B6304, 08123-63047, 08123-63040

(QTY 2) NICHE 519-CSE2267A Seal Type TC 40x50x5

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2384A Seal Type TC 33x62x7

Substitute For OEM Part Numbers(s): 09285-33001

Compatible with the Following Vehicles:

Suzuki RE5: 1975-1976
