MK1008603 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)15mm; Outer (OD) 42mm; Height 13mm
• Bearing 2 Diameter Inner (ID)20mm; Outer (OD) 42mm; Height 12mm
• Bearing 3 Diameter Inner (ID)25mm; Outer (OD) 62mm; Height 17mm
• Seal 1 Diameter Inner (ID) 40mm; Outer (OD) 50mm; Height 5mm; Seal 2 Diameter Inner (ID) 35mm; Outer (OD) 62mm; Height 8mm

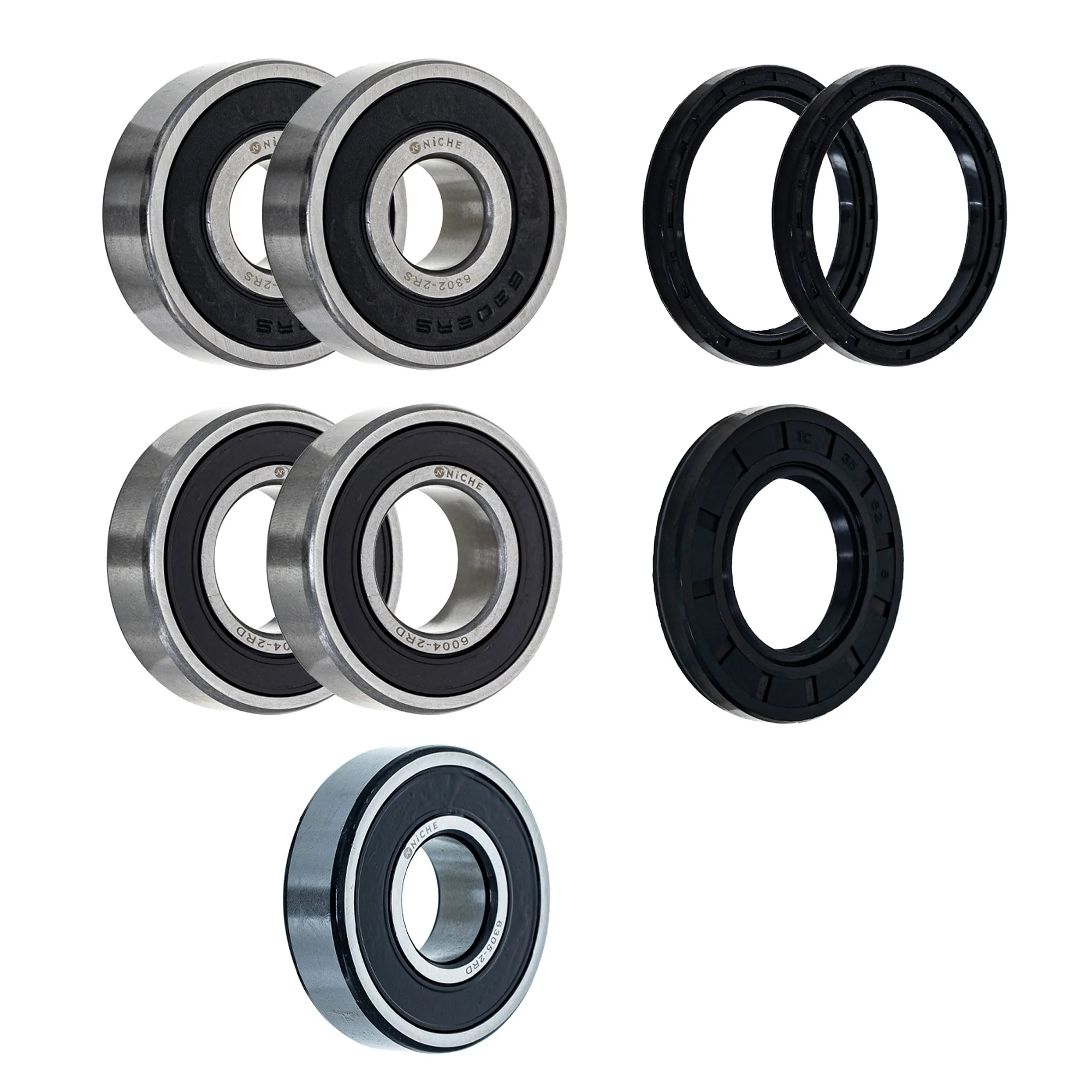

Included in This Kit:

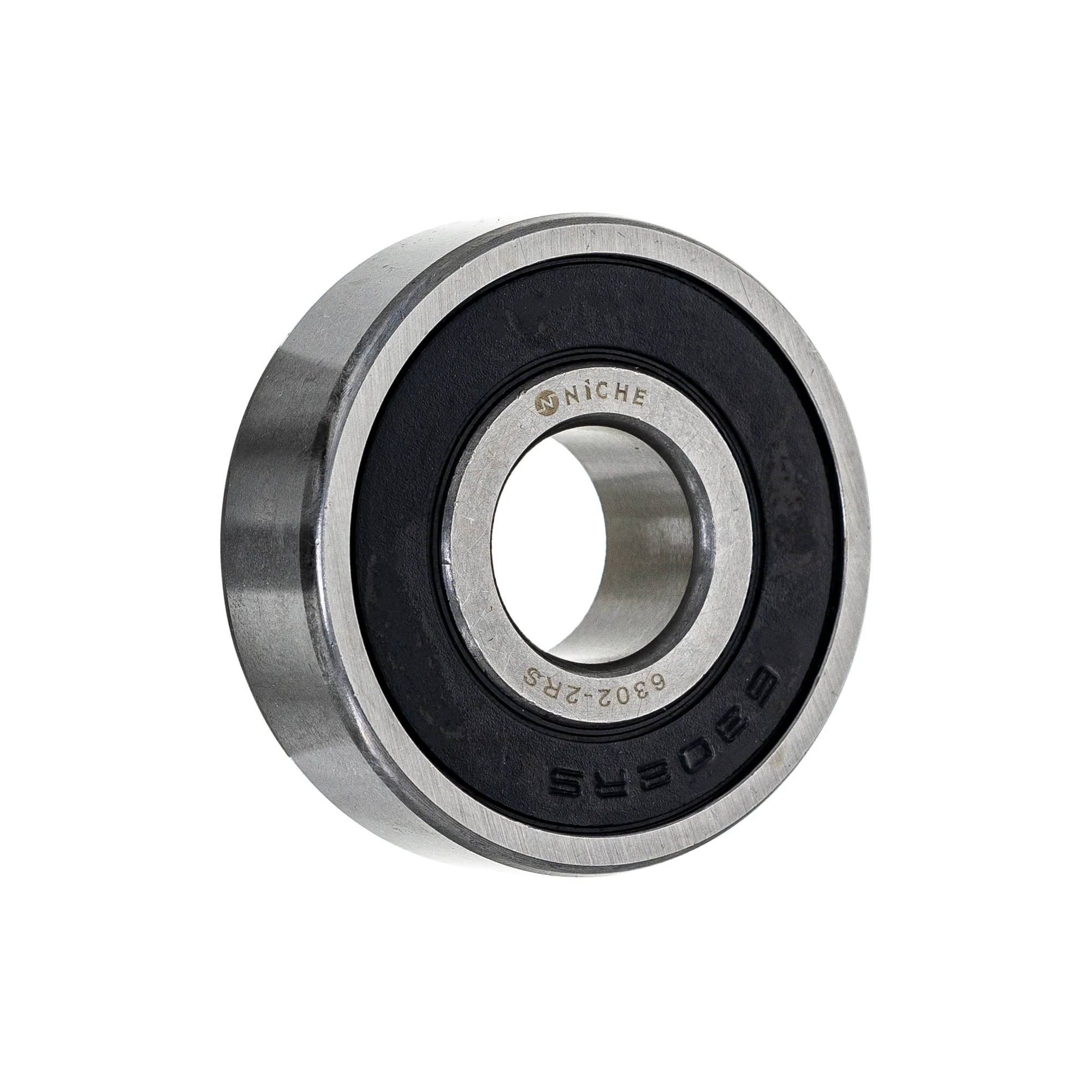

(QTY 2) NICHE 519-CBB2232R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63020-10, 96140-63020-10, 96120-63020-10, 93306-30212-00, 91052-KR3-005, 91052-HB5-671, 91051-KEH-662, 91051-KC2-882, 601B6302UU, 601B6302U, 09262-15027, 08153-63027, 08144-63027, 08123-63027, 08113-63020

(QTY 2) NICHE 519-CBB2230R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): T3800702, 96150-60040-10, 93306-00444-00, 93306-00441-00, 93306-00430-00, 93306-00418-00, 93306-00416-00

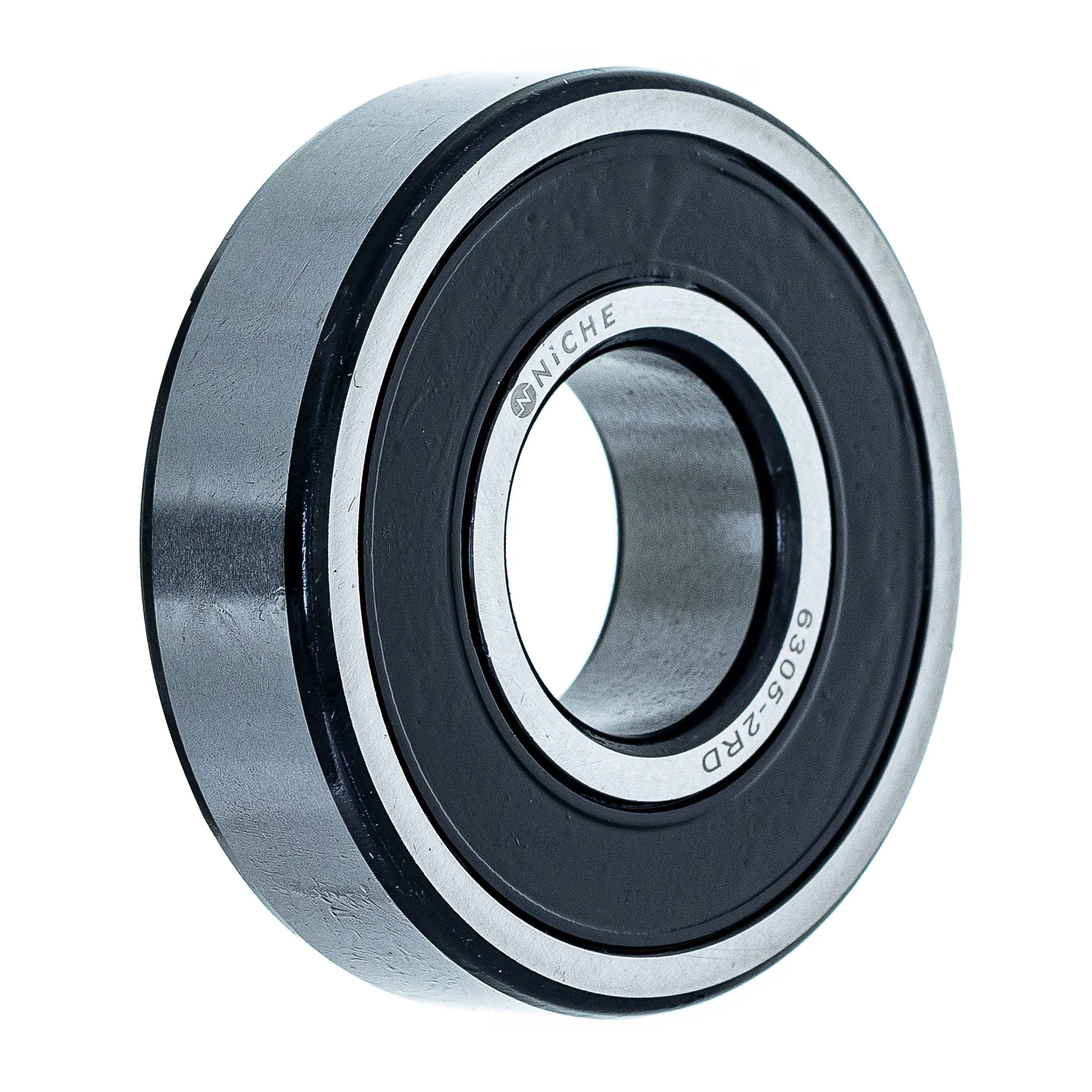

(QTY 1) NICHE 519-CBB2290R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-305U0-00, 93306-30507-00, 91051-MM5-003, 91051-MBT-611, 91051-MAT-003, 09262-25073, 08113-63050

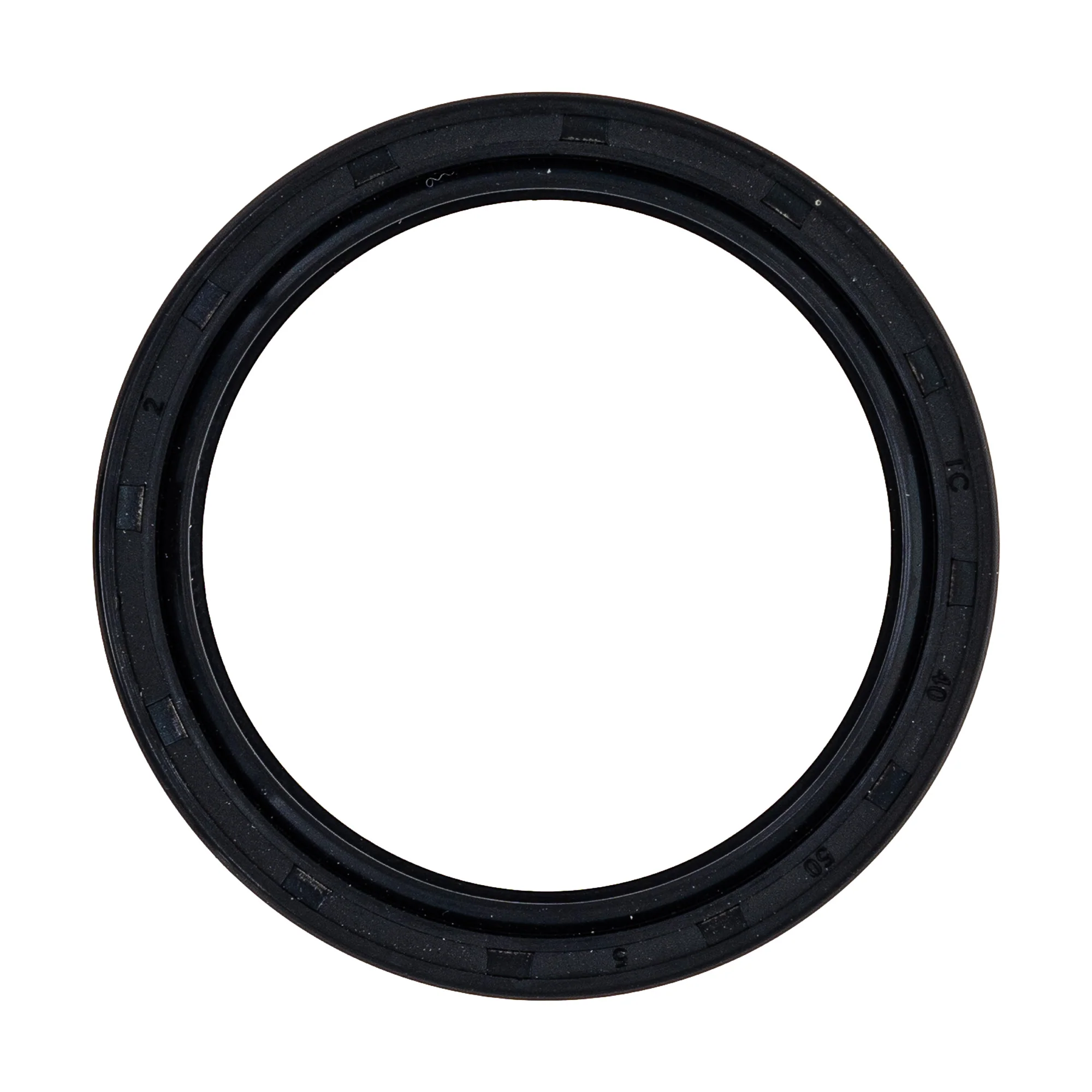

(QTY 2) NICHE 519-CSE2267A Seal Type TC 40x50x5

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2208A Seal Type TC 35x62x8

Substitute For OEM Part Numbers(s): M149282, M138391

Compatible with the Following Vehicles:

Suzuki GSXR750 Limited: 1986
Suzuki GSXR750: 1986-1987
