MK1008644 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)15mm; Outer (OD) 42mm; Height 13mm; Bearing 2 Diameter Inner (ID)17mm; Outer (OD) 40mm; Height 12mm
• Bearing 3 Diameter Inner (ID)20mm; Outer (OD) 52mm; Height 15mm; Bearing 4 Diameter Inner (ID)17mm; Outer (OD) 47mm; Height 14mm
• Seal 1 Diameter Inner 45mm; Outer 58mm; Height 6mm; Seal 2 Inner 32mm; Outer 52mm; Height 7mm; Seal 3 Inner 40mm; Outer 50mm; Height 5mm
• Seal 4 Diameter Inner 25mm; Outer 47mm; Height 6mm; Seal 5 Inner 22mm; Outer 42mm; Height 5mm; Seal 6 Inner 47mm; Outer 58mm; Height 7mm

Included in This Kit:

(QTY 2) NICHE 519-CBB2232R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63020-10, 96140-63020-10, 96120-63020-10, 93306-30212-00, 91052-KR3-005, 91052-HB5-671, 91051-KEH-662, 91051-KC2-882, 601B6302UU, 601B6302U, 09262-15027, 08153-63027, 08144-63027, 08123-63027, 08113-63020

(QTY 1) NICHE 519-CBB2280R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-20310-00, 625062032

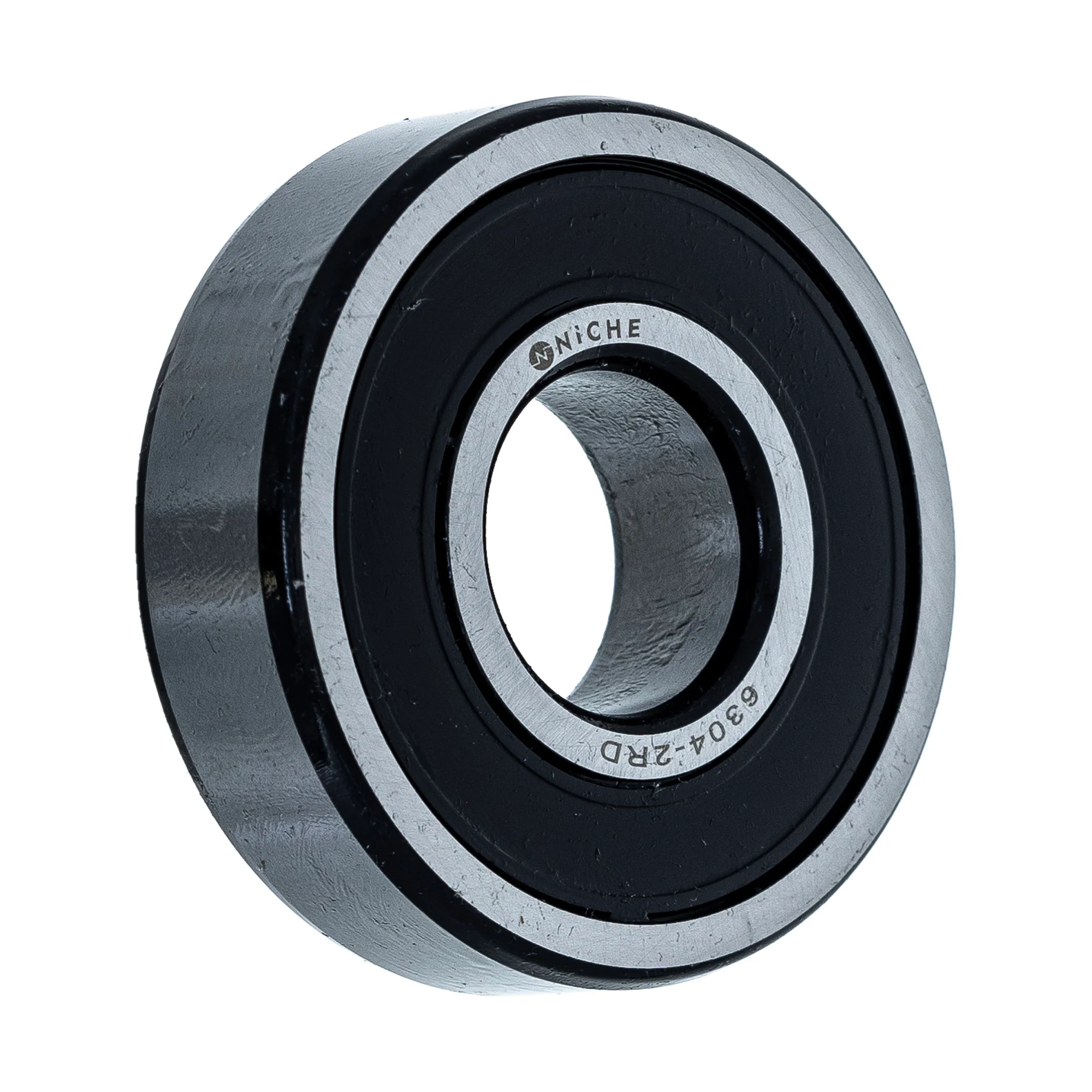

(QTY 1) NICHE 519-CBB2207R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63040-10, 96140-63040-10, 96120-63040-10, 96120-63040-00, 96120-63040, 93306-30446-00, 93306-30437-00, 91053-MR5-003, 91053-MM5-004, 601B6304UU, 601B6304U, 601B6304, 08123-63047, 08123-63040

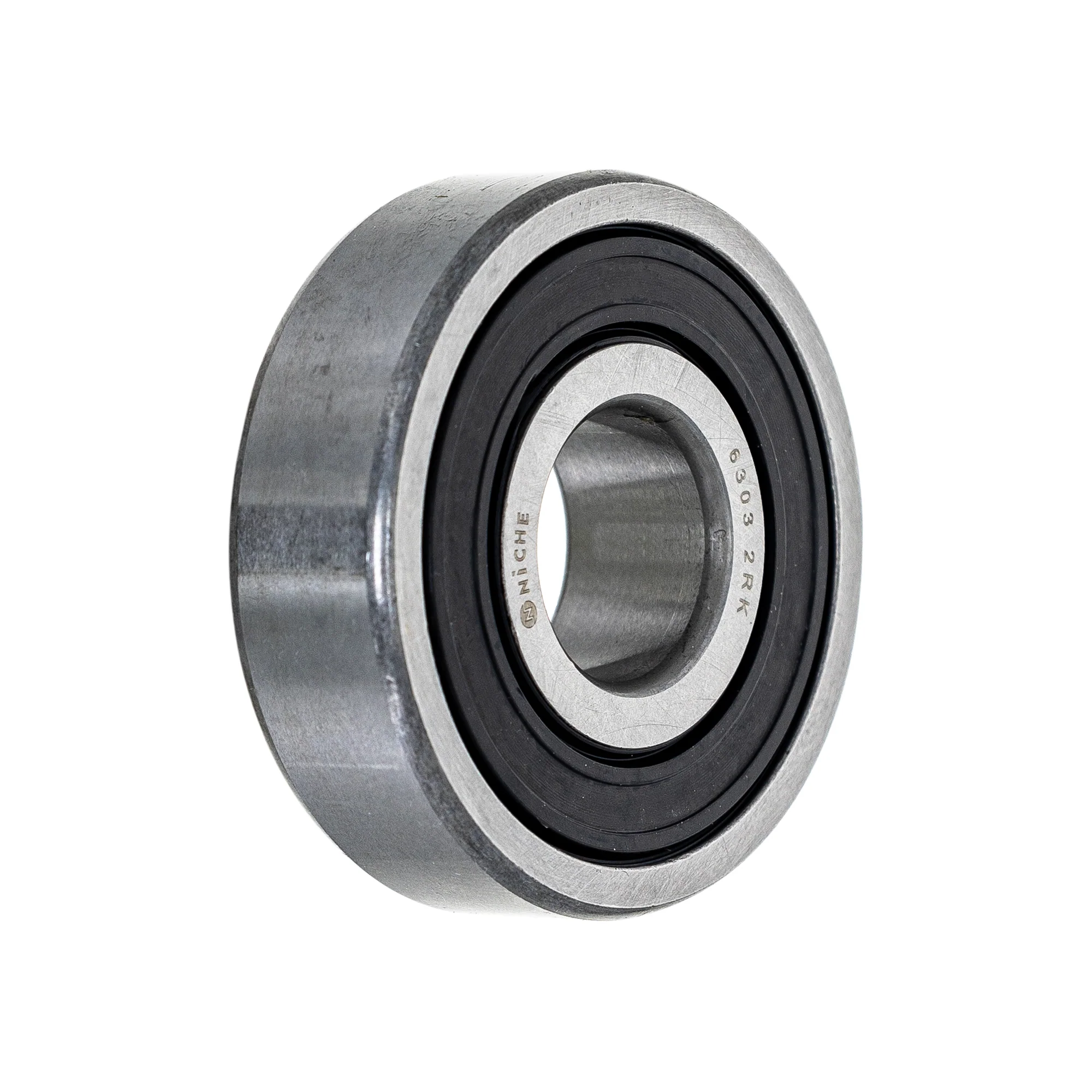

(QTY 1) NICHE 519-CBB2328R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): J10-81158-10, 96150-63030-10, 96140-63030-10, 96140-63030-00, 96140-63030, 96120-63030-0S, 96120-63030, 93306-30317-00, 92045-0733, 91054-MT6-832, 91054-MT6-831, 91051-MGZ-J01, 91051-KS4-003, 91051-KPS-732, 91051-KPS-731, 601B6303UU, 38751-590-004, 31582-50F20, 31114-PGK-A01, 31114-P01-014, 31114-P01-004, 26872-G01, 26872G01, 23521-G1, 23521G1, 16877-G1, 16877G1, 1135350, 08143-63037, 08124-63037, 08123-63037

(QTY 1) NICHE 519-CSE2254A Seal Type TC 45x58x6

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2257A Seal Type TC 32x52x7

Substitute For OEM Part Numbers(s): 91253-VM0-004, 91253-VM0-003, 91253-250-000, 09285-32004

(QTY 1) NICHE 519-CSE2267A Seal Type TC 40x50x5

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2271A Seal Type TC 25x47x6

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Yamaha SRX600: 1986
Yamaha FZ600: 1986-1988
Yamaha FJ600: 1984-1985
