MK1008658 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 40mm; Height 12mm
• Bearing 2 Diameter Inner (ID)17mm; Outer (OD) 47mm; Height 14mm; Bearing 3 Inner (ID)22mm; Outer (OD) 56mm; Height 16mm
• Seal 1 Diameter Inner (ID) 28mm; Outer (OD) 47mm; Height 7mm; Seal 2 Diameter Inner (ID) 45mm; Outer (OD) 58mm; Height 6mm
• Seal 3 Diameter Inner (ID) 25mm; Outer (OD) 47mm; Height 6mm; Seal 4 Diameter Inner (ID) 42mm; Outer (OD) 56mm; Height 6mm

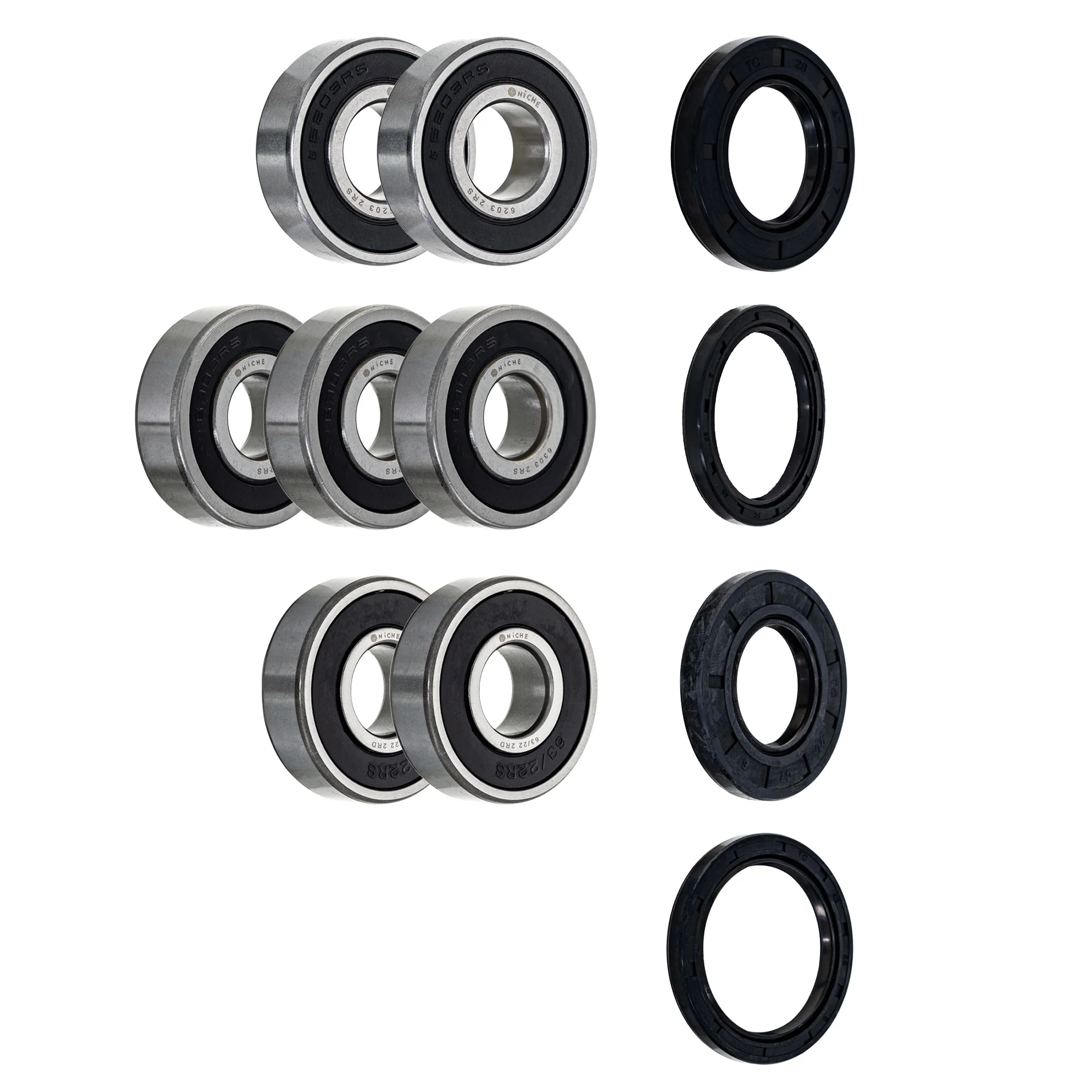

Included in This Kit:

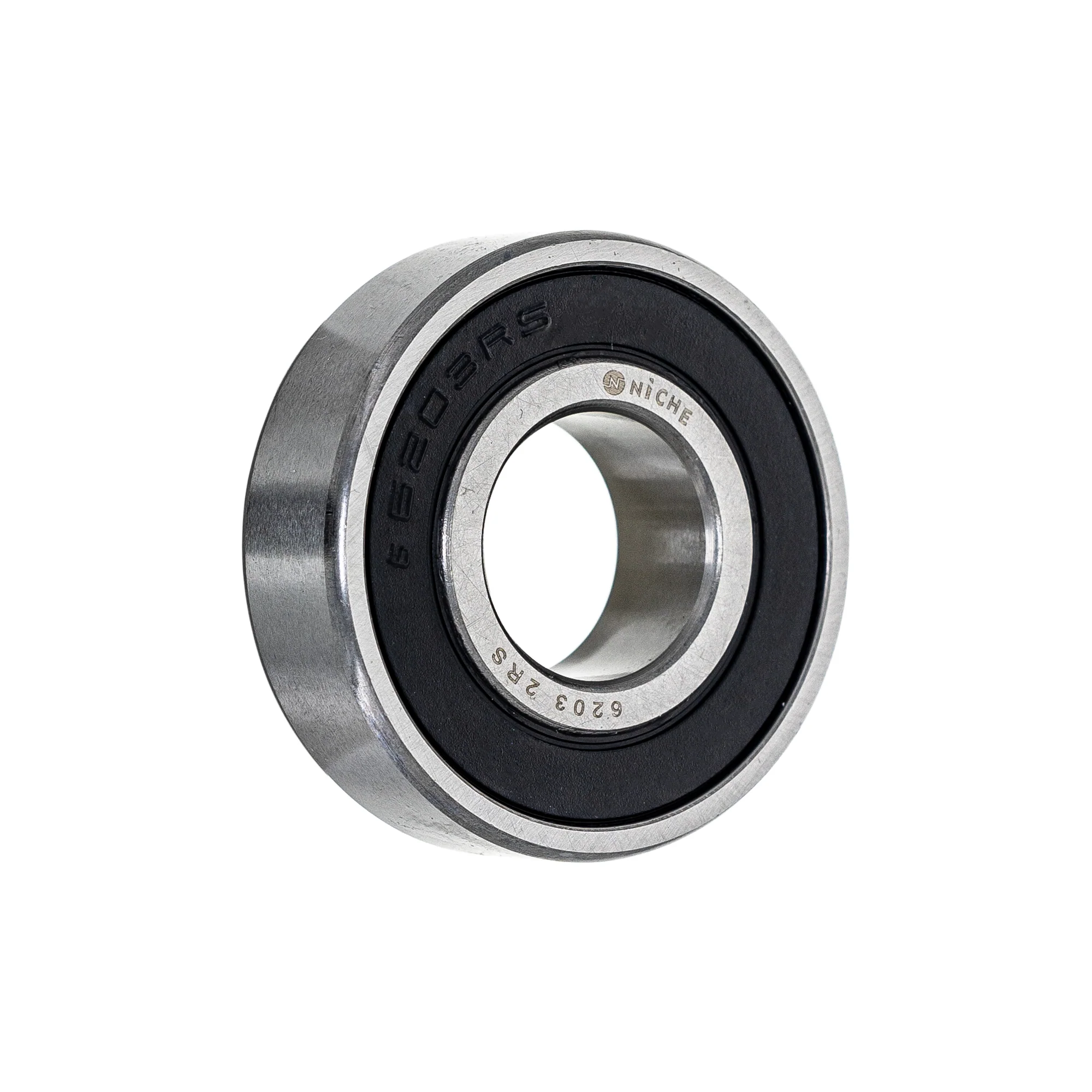

(QTY 2) NICHE 519-CBB2226R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): IH-441805-R91, GW-97047, GW-325339, GW-1185064, GW-103532, 96150-62033-10, 96150-62030-10, 96140-62030-10, 96100-62030-00, 960102176, 941-0600, 941-0124A, 941-0124, 91051-KWF-901, 91051-KVK-901, 91051-K35-V01, 91013-KPS-732, 90912-444-005, 753-04081, 741-0600, 741-0124A, 741-0124, 708982, 706-10035, 706-085336, 704992, 703275, 700479, 613257, 5418800, 49562MA, 43846MA, 42630-GK4-003, 405403800, 38-7820, 1820197, 1813562, 1813484, 1813383, 1813216, 1501389MA, 1483635M1, 1255MA, 12325MA, 1185064, 1120502, 1120423, 110485X, 110485, 100-1048, 095406, 01000340

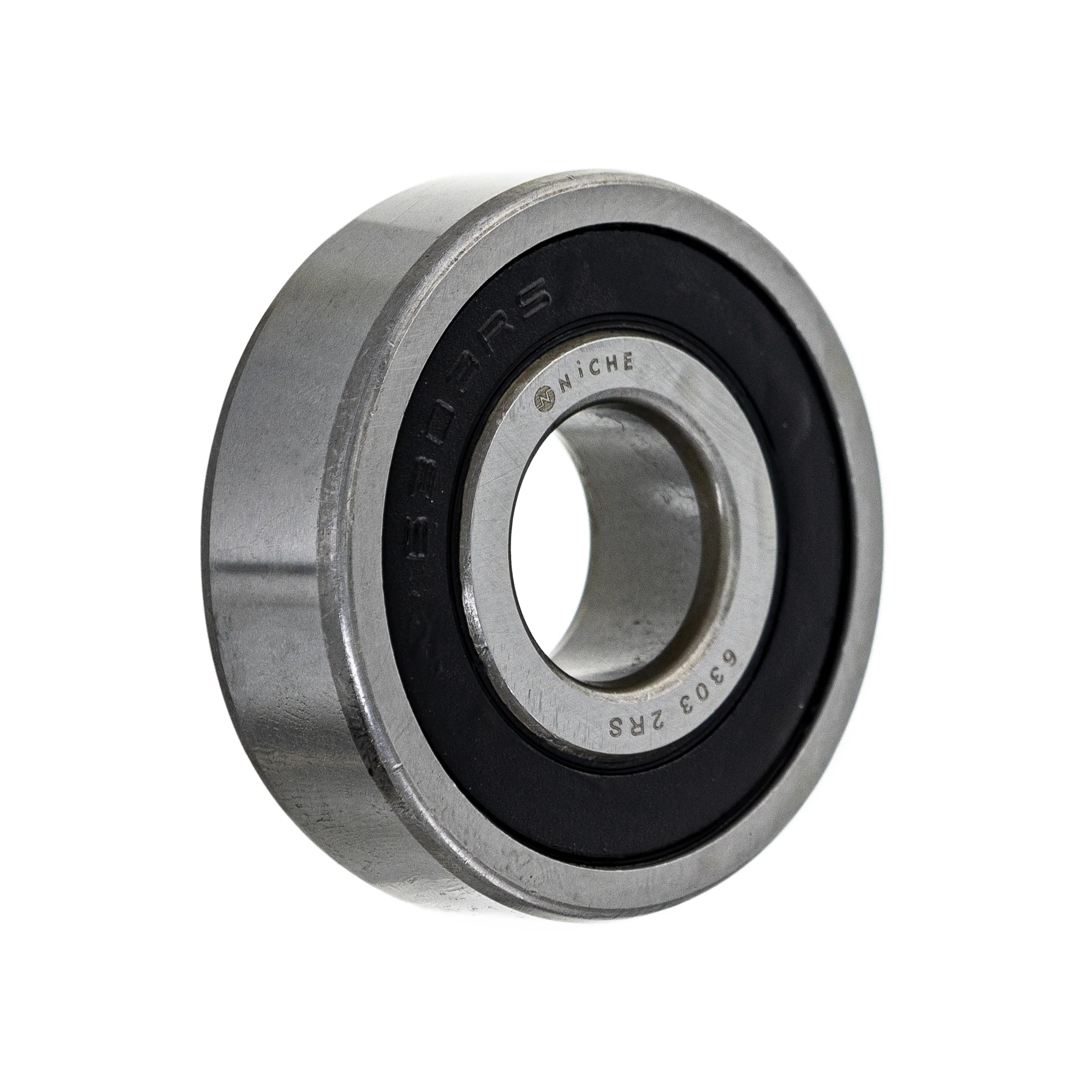

(QTY 3) NICHE 519-CBB2236R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): J10-81158-10, 96150-63030-10, 96140-63030-10, 96140-63030-00, 96140-63030, 96120-63030-0S, 96120-63030, 93306-30317-00, 92045-3746, 92045-0733, 91054-MT6-832, 91054-MT6-831, 91051-MGZ-J01, 91051-KS4-003, 91051-KPS-732, 91051-KPS-731, 601B6303UU, 38751-590-004, 31582-50F20, 31114-PGK-A01, 31114-P01-014, 31114-P01-004, 26872-G01, 26872G01, 23521-G1, 23521G1, 16877-G1, 16877G1, 1135350, 08143-63037, 08124-63037, 08123-63037

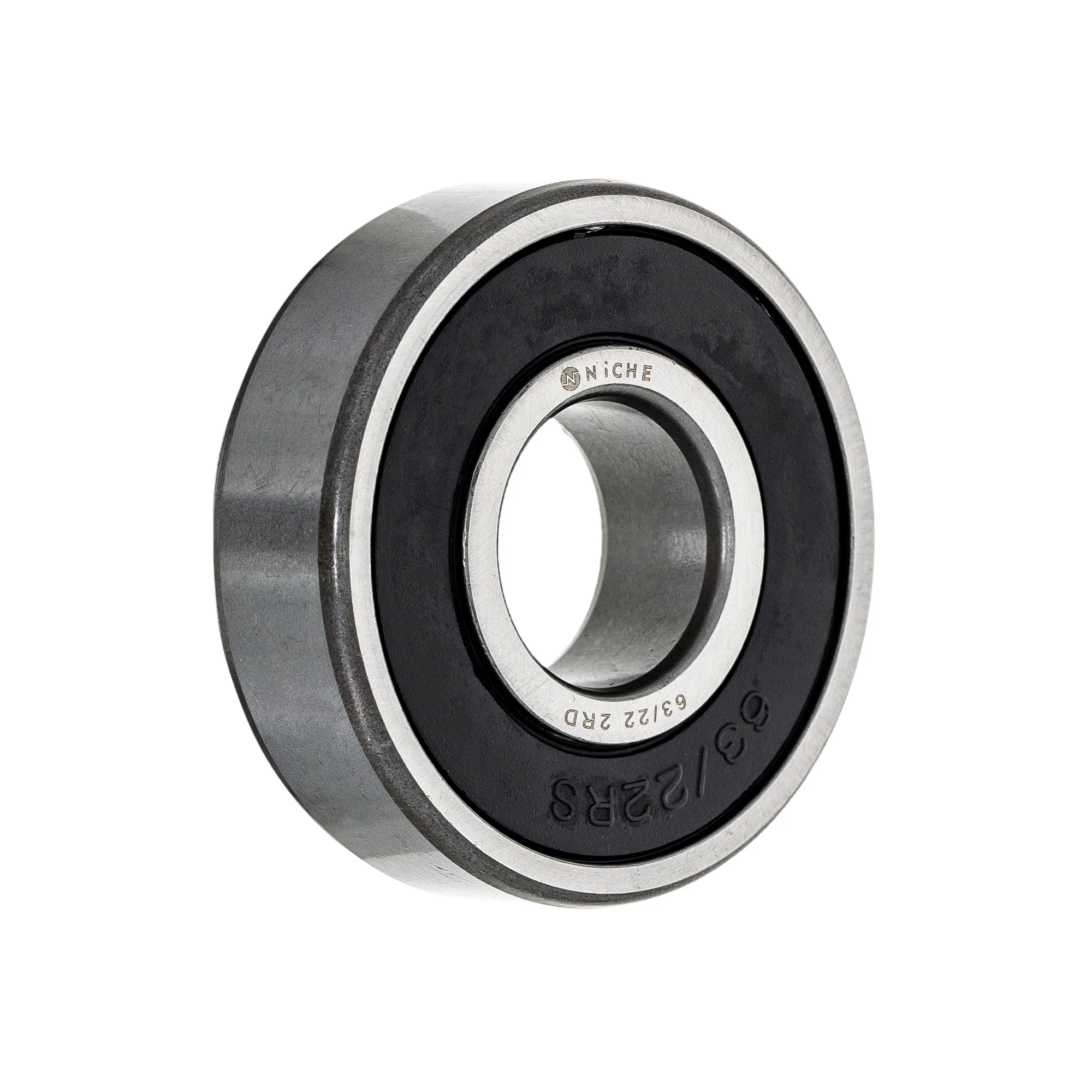

(QTY 2) NICHE 519-CBB2286R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 91051-MAS-003

(QTY 1) NICHE 519-CSE2238A Seal Type TC 28x47x7

Substitute For OEM Part Numbers(s): 93106-28023-00, 91252-KZ4-003, 09285-28004, 09285-28001

(QTY 1) NICHE 519-CSE2254A Seal Type TC 45x58x6

Substitute For OEM Part Numbers(s):

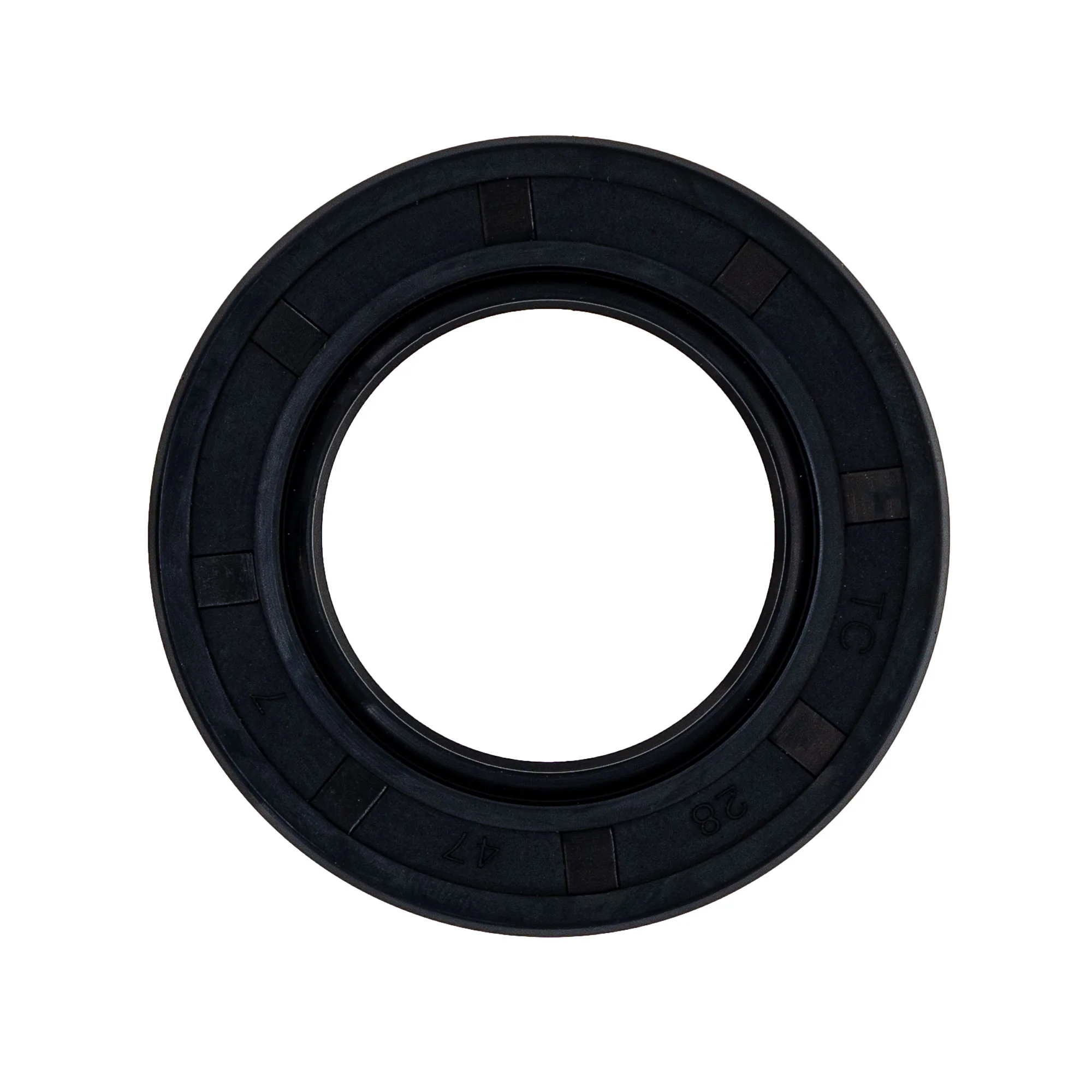

(QTY 1) NICHE 519-CSE2271A Seal Type TC 25x47x6

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2305A Seal Type TC 42x56x6

Substitute For OEM Part Numbers(s): 93105-42024-00

Compatible with the Following Vehicles:

Yamaha TDM850: 1992-1993
