MK1008683 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)15mm; Outer (OD) 42mm; Height 13mm
• Bearing 2 Diameter Inner (ID)12mm; Outer (OD) 37mm; Height 12mm
• Bearing 3 Diameter Inner (ID)20mm; Outer (OD) 52mm; Height 15mm
• Seal 1 Diameter Inner (ID) 26mm; Outer (OD) 42mm; Height 7mm; Seal 2 Diameter Inner (ID) 18mm; Outer (OD) 38mm; Height 7mm

Included in This Kit:

(QTY 1) NICHE 519-CBB2232R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63020-10, 96140-63020-10, 96120-63020-10, 93306-30212-00, 91052-KR3-005, 91052-HB5-671, 91051-KEH-662, 91051-KC2-882, 601B6302UU, 601B6302U, 09262-15027, 08153-63027, 08144-63027, 08123-63027, 08113-63020

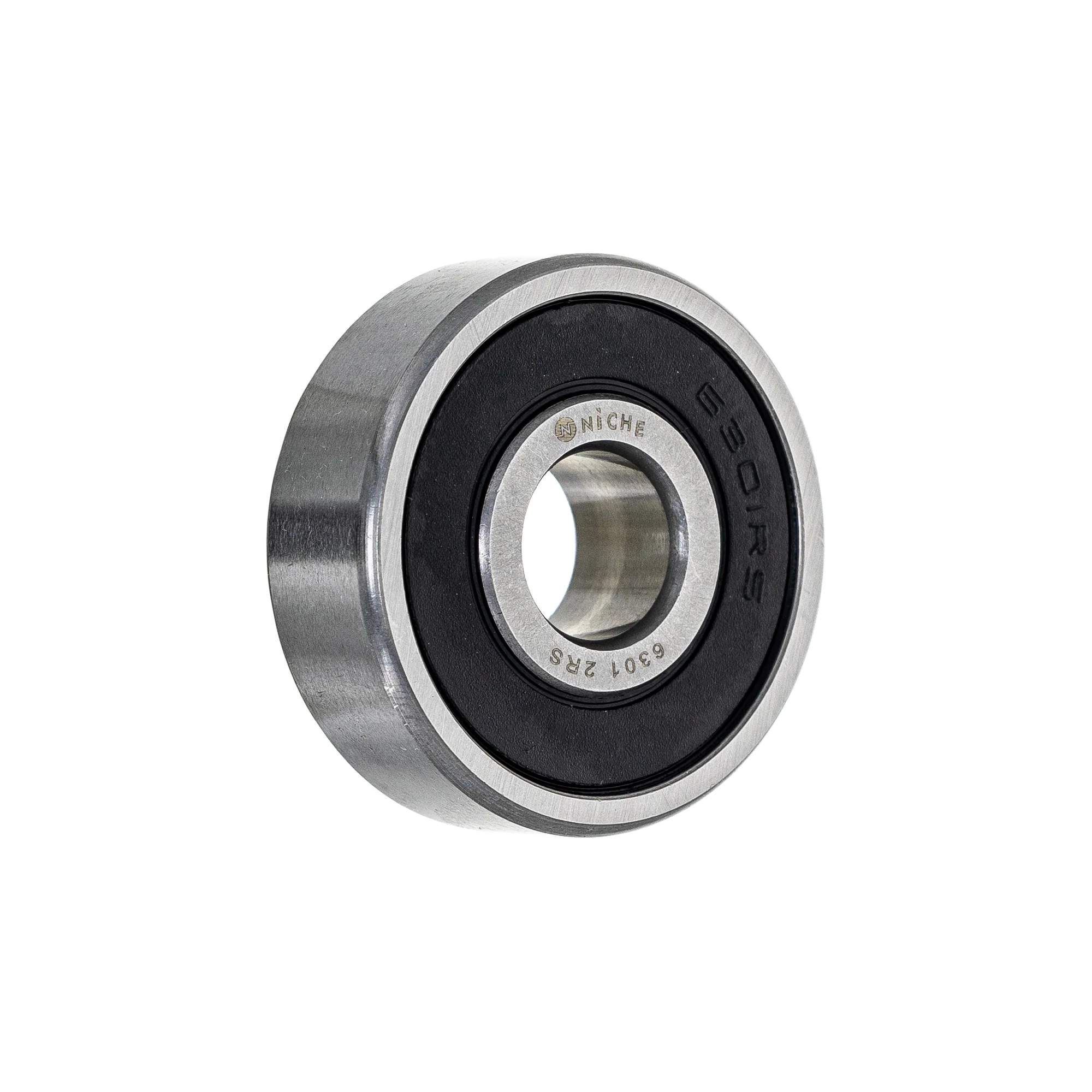

(QTY 2) NICHE 519-CBB2243R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): KKK60-1B630-1UU, KKK60-1B630-11U, K601B-6301U, 96150-63010-10, 96140-63010-10, 96140-63010, 96100-63010, 93306-301YY-00, 93306-301YX-00, 93306-30111-00, 93306-30102-00, 92045-S029, 91053-KWW-642, 91053-KWW-641, 91053-KWB-601, 91053-KSS-902, 91053-KSS-901, 91052-KYK-911, 91052-KWW-C51, 601B6301UU, 08143-63017, 08143-63010, 08123-63017, 08113-63010

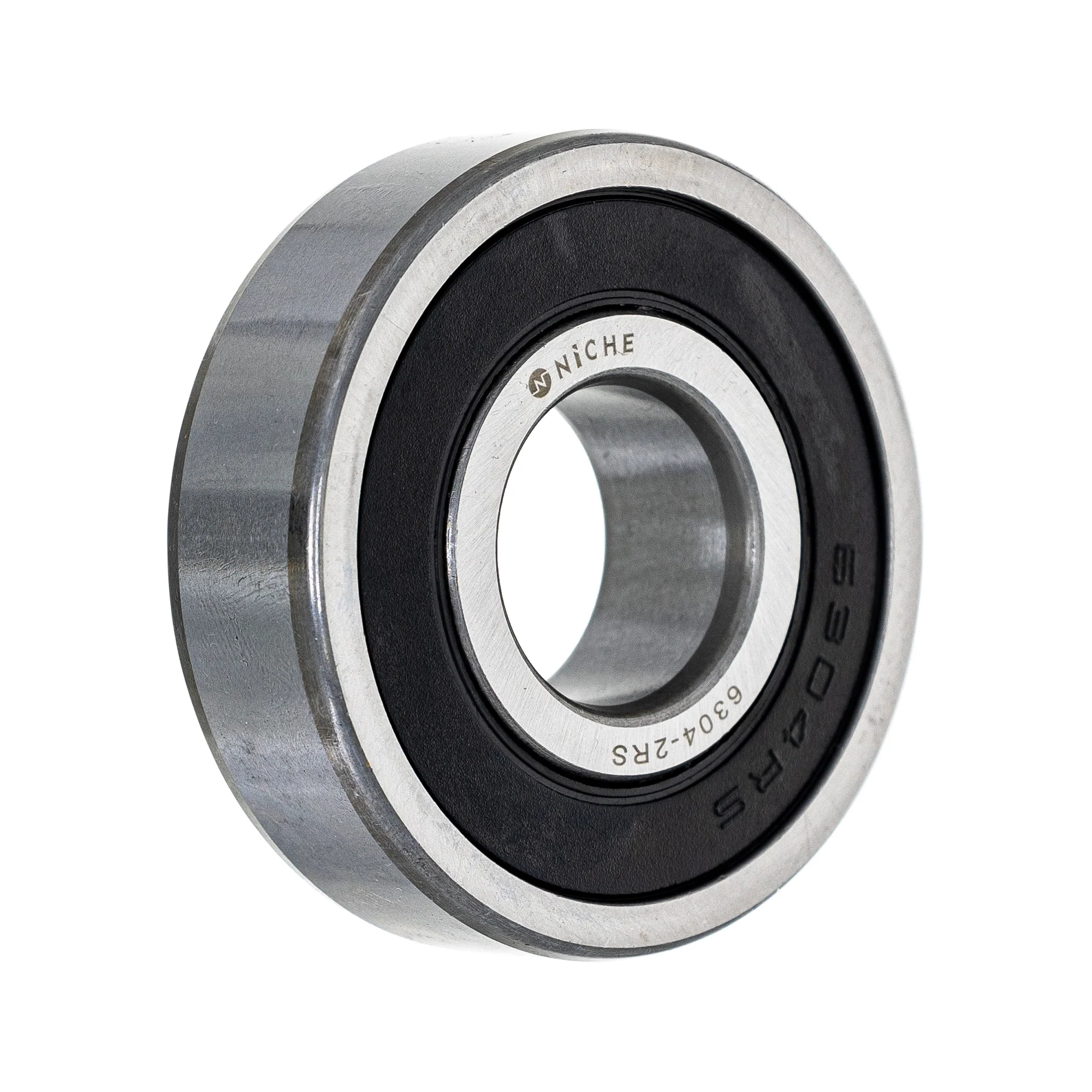

(QTY 1) NICHE 519-CBB2244R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): KKK60-1B630-4UU, 96150-63040-10, 96140-63040-10, 96120-63040-10, 96120-63040-00, 96120-63040, 93306-30446-00, 93306-30437-00, 91053-MR5-003, 91053-MM5-004, 601B6304UU, 601B6304U, 601B6304, 08123-63047, 08123-63040

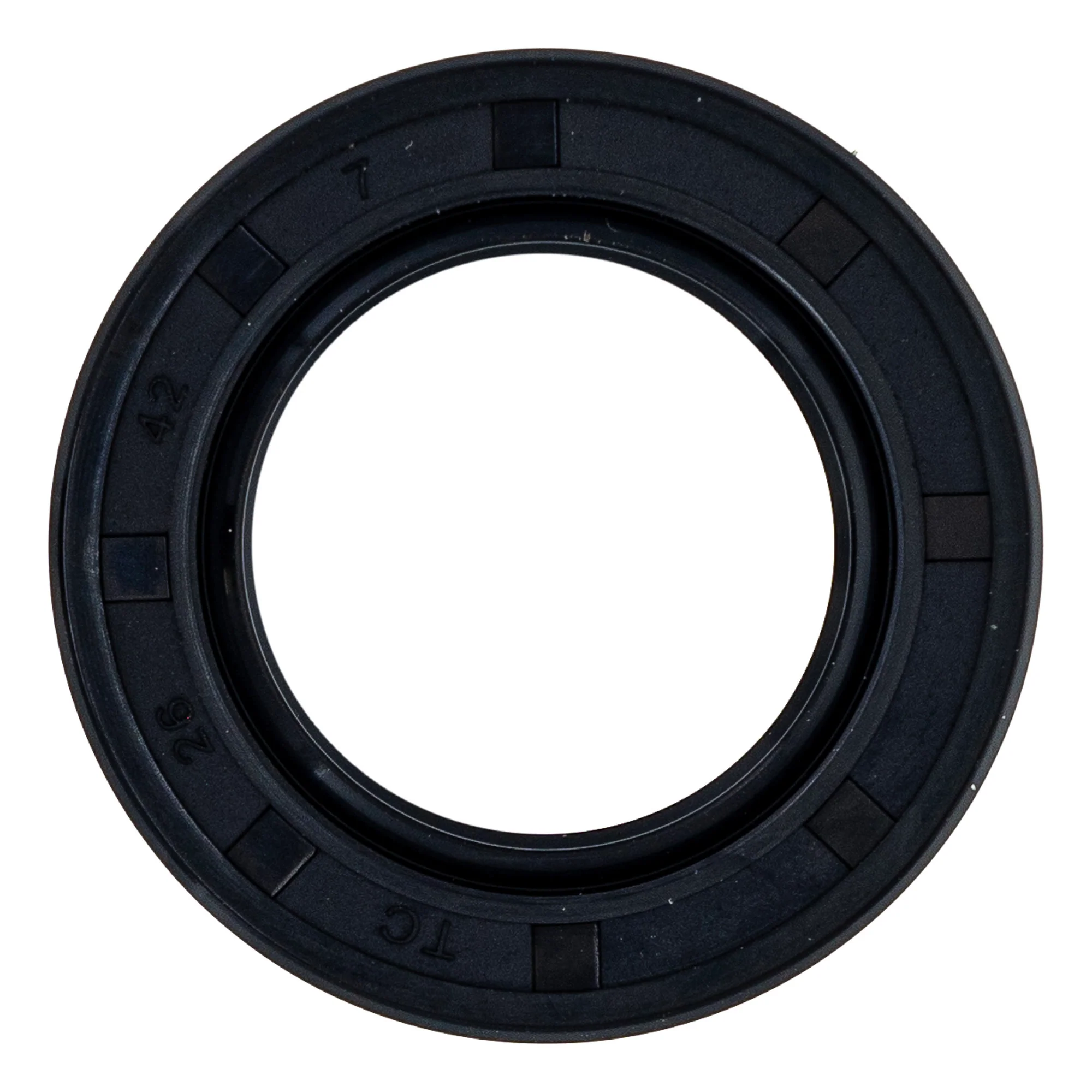

(QTY 1) NICHE 519-CSE2228A Seal Type TC 26x42x7

Substitute For OEM Part Numbers(s): 93105-26026-00, 91252-230-005, 91252-230-003

(QTY 1) NICHE 519-CSE2394A Seal Type TC 18x38x7

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Suzuki TM400 Cyclone: 1971-1975
Suzuki TM250 Champion: 1972-1975
