MK1008716 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 35mm; Height 10mm
• Bearing 2 Diameter Inner (ID)15mm; Outer (OD) 35mm; Height 11mm
• Bearing 3 Diameter Inner (ID)22mm; Outer (OD) 44mm; Height 12mm
• Seal 1 Diameter Inner (ID) 28mm; Outer (OD) 47mm; Height 7mm; Seal 2 Diameter Inner (ID) 22mm; Outer (OD) 35mm; Height 5mm

Included in This Kit:

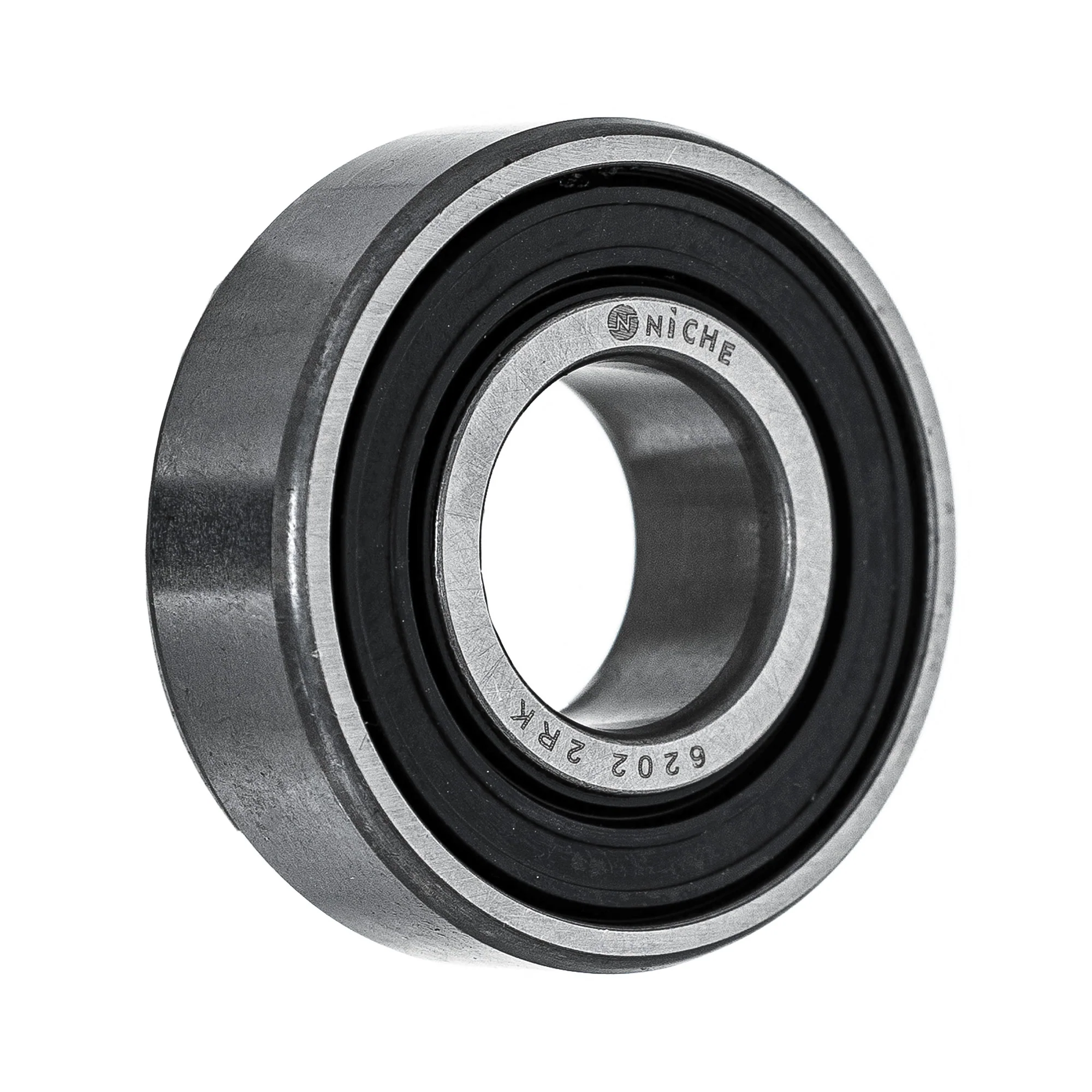

(QTY 1) NICHE 519-CBB2276R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): BD3-F51H2-10-00, 96100-60030-00, 96100-60030, 3303-468, 1525005, 0625060037

(QTY 1) NICHE 519-CBB2298R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 91051-KEB-G01, 601B6202Z, 601B6202UU, 601B6202UG, 601B6202U, 601B6202G, 601B6202

(QTY 3) NICHE 519-CBB2320R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-072Y0-00, 93306-07208-00, 93306-07202-00, 93306-00420-00, 93306-00412-00, 92045-1218, 91103-VA4-003, 91074-KV3-721, 91051-HE0-003, 09262-22035, 09262-22033

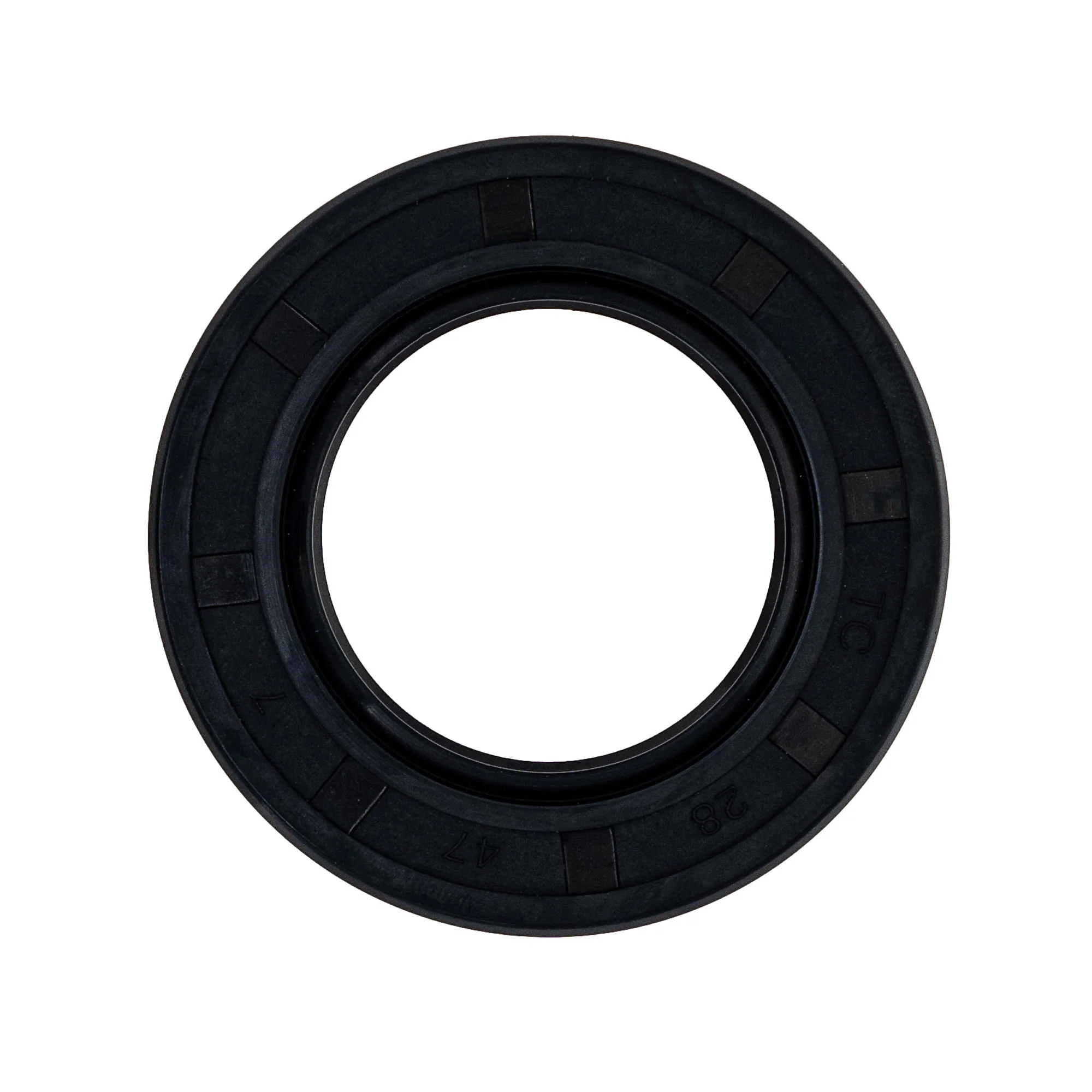

(QTY 2) NICHE 519-CSE2238A Seal Type TC 28x47x7

Substitute For OEM Part Numbers(s): 93106-28023-00, 91252-KZ4-003, 09285-28004, 09285-28001

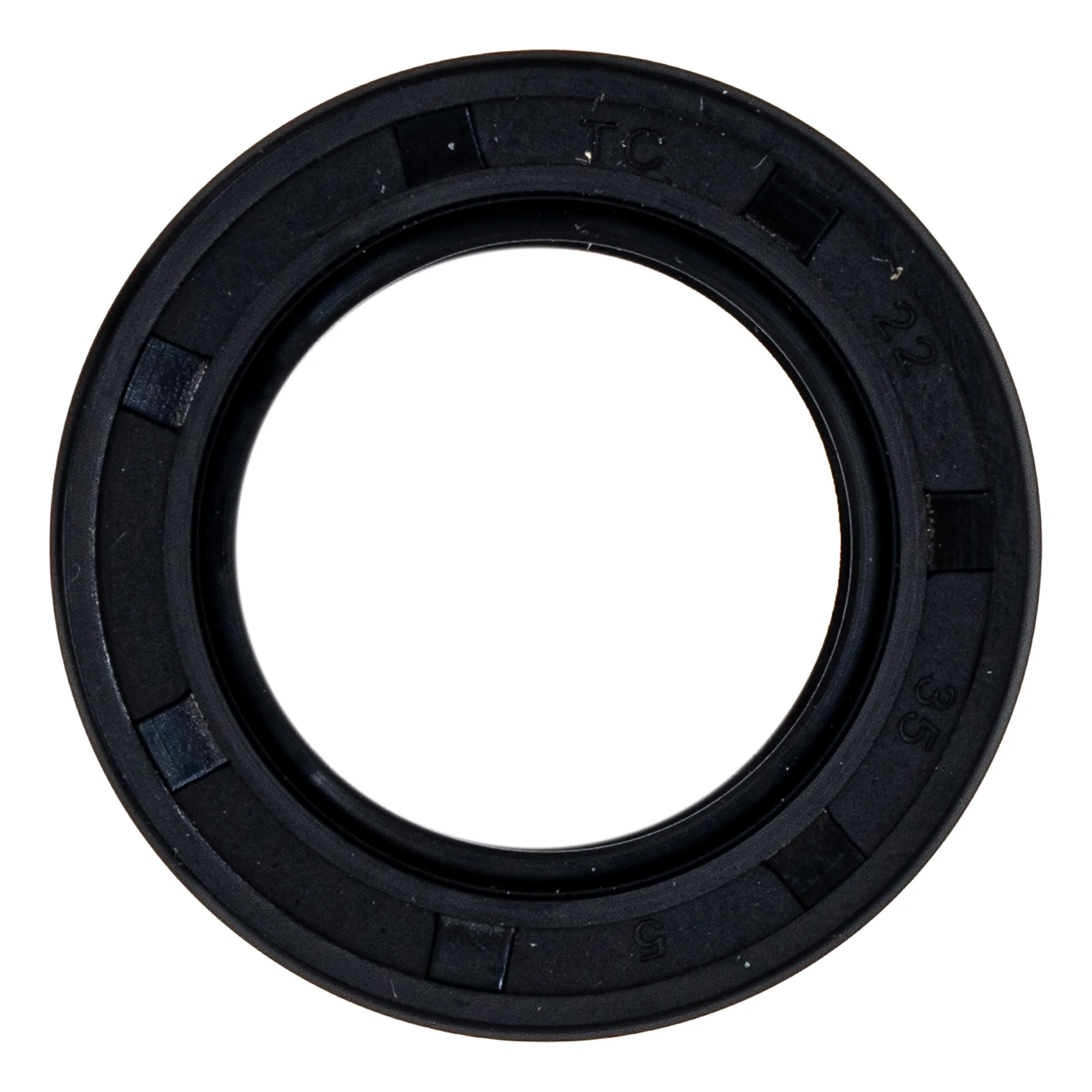

(QTY 1) NICHE 519-CSE2258A Seal Type TC 22x35x5

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Yamaha TTR250: 1999-2006
Yamaha TTR225: 2003
