MK1008718 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 40mm; Height 12mm
• Bearing 2 Diameter Inner (ID)22mm; Outer (OD) 44mm; Height 12mm
• Bearing 3 Diameter Inner (ID)22mm; Outer (OD) 50mm; Height 14mm
• Seal 1 Diameter Inner 23mm; Outer 40mm; Height 6mm; Seal 2 Inner 30mm; Outer 44mm; Height 5mm; Seal 3 Inner 30mm; Outer 50mm; Height 7mm

Included in This Kit:

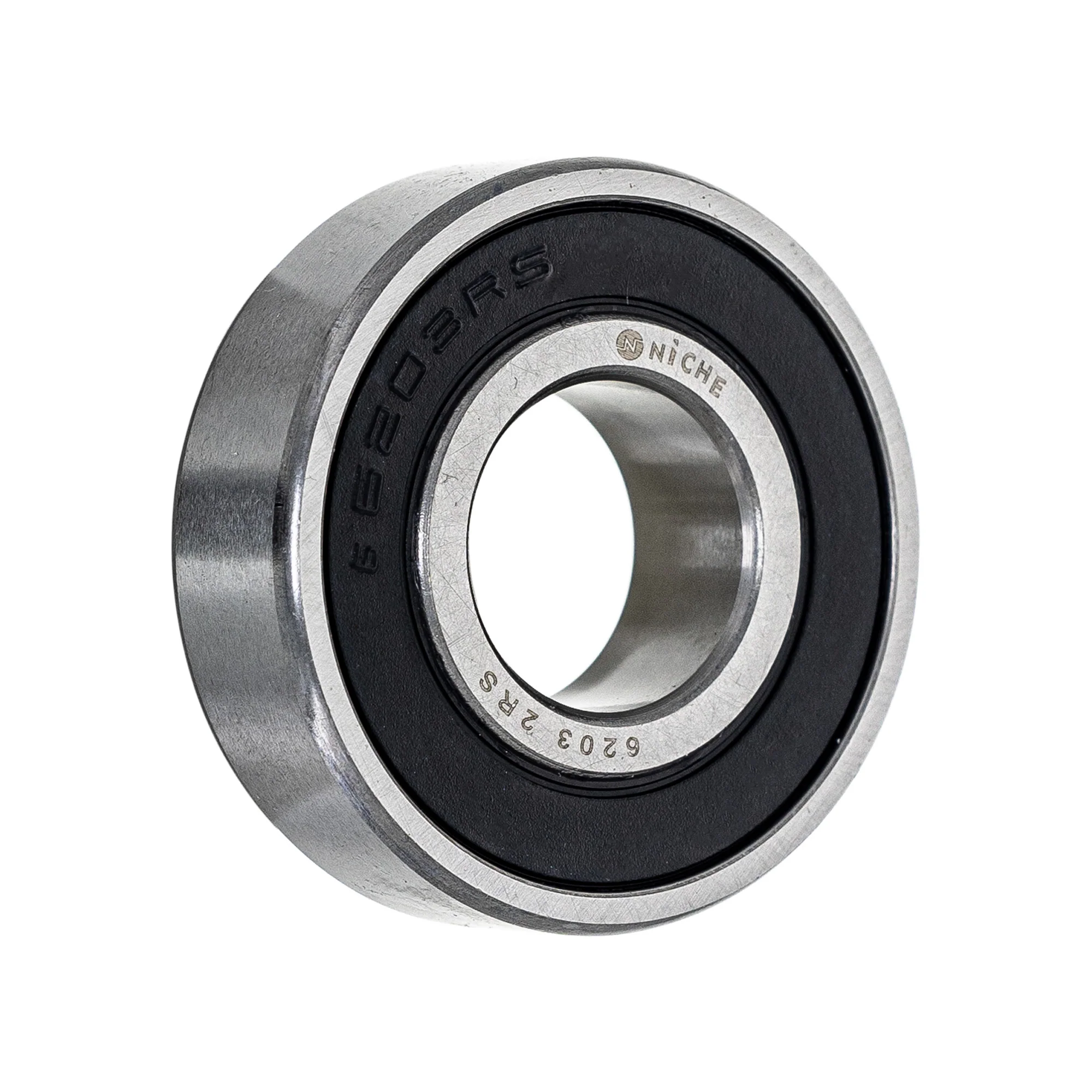

(QTY 2) NICHE 519-CBB2226R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): IH-441805-R91, GW-97047, GW-325339, GW-1185064, GW-103532, 96150-62033-10, 96150-62030-10, 96140-62030-10, 96100-62030-00, 960102176, 941-0600, 941-0124A, 941-0124, 91051-KWF-901, 91051-KVK-901, 91051-K35-V01, 91013-KPS-732, 90912-444-005, 753-04081, 741-0600, 741-0124A, 741-0124, 708982, 706-10035, 706-085336, 704992, 703275, 700479, 613257, 5418800, 49562MA, 43846MA, 42630-GK4-003, 405403800, 38-7820, 1820197, 1813562, 1813484, 1813383, 1813216, 1501389MA, 1483635M1, 1255MA, 12325MA, 1185064, 1120502, 1120423, 110485X, 110485, 100-1048, 095406, 01000340

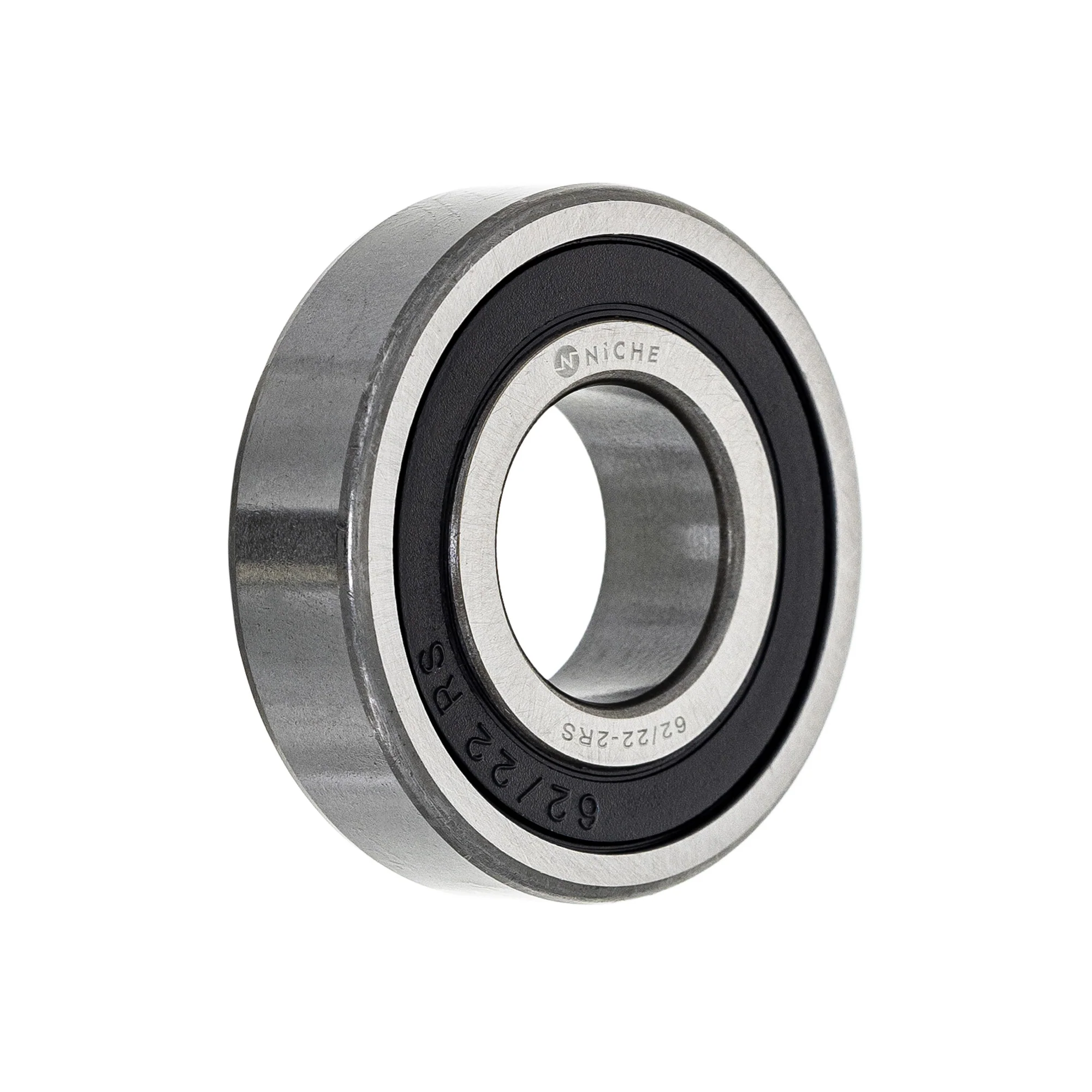

(QTY 1) NICHE 519-CBB2267R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-072Y0-00, 93306-07208-00, 93306-07202-00, 93306-00420-00, 93306-00412-00, 92045-1218, 92045-1170, 91103-VA4-003, 91074-KV3-721, 91051-HE0-003, 09262-22035, 09262-22033

(QTY 1) NICHE 519-CBB2271R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-27212-00, 93306-27206-00, 93306-27205-00, 92045-3745, 92045-3743, 91073-MV4-782, 91073-MV4-781, 91073-KV3-700, 09262-22027, 09262-22015

(QTY 2) NICHE 519-CSE2282A Seal Type TC 23x40x6

Substitute For OEM Part Numbers(s): 92049-3714, 92049-1260, 92049-1110

(QTY 1) NICHE 519-CSE2298A Seal Type TC 30x44x5

Substitute For OEM Part Numbers(s):

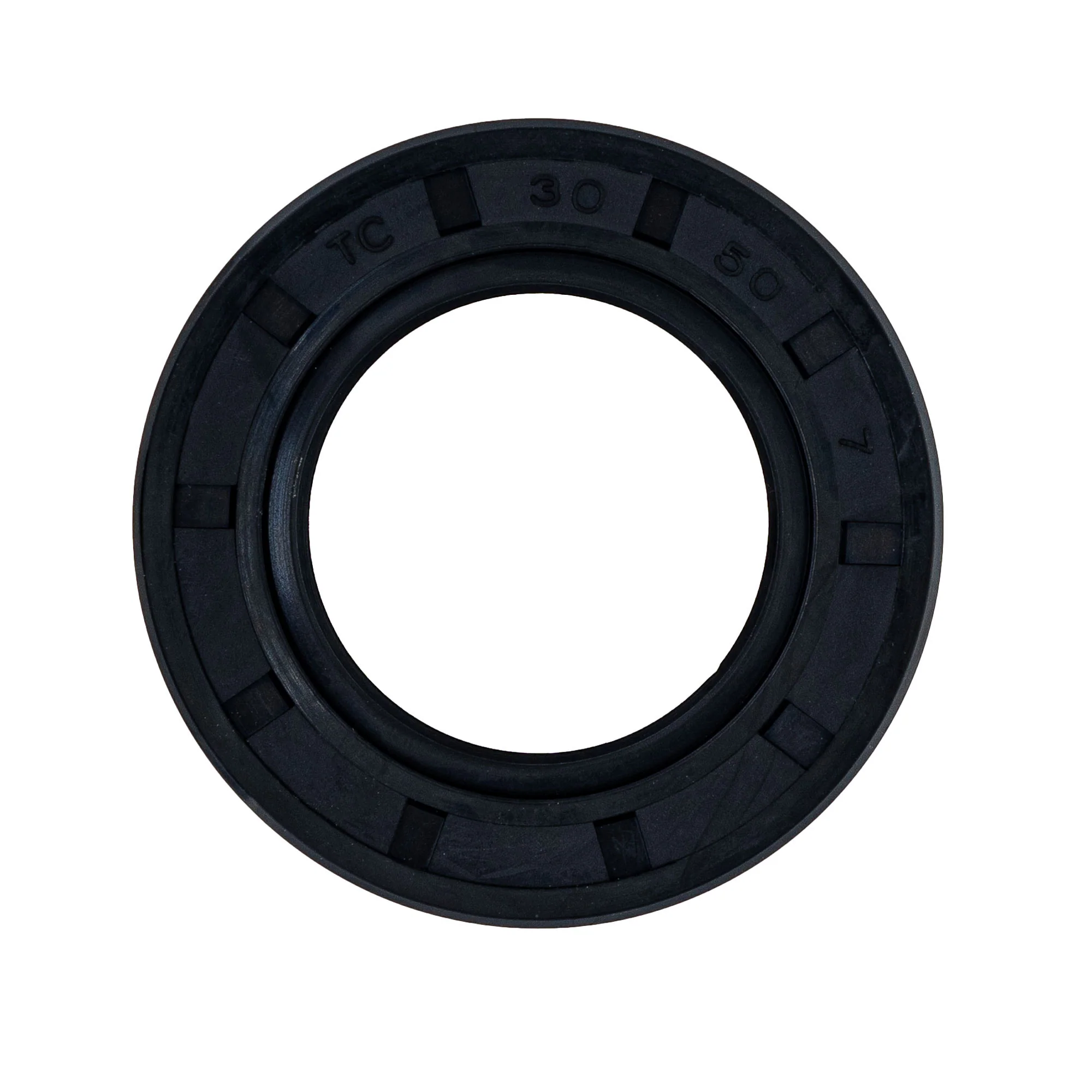

(QTY 1) NICHE 519-CSE2200A Seal Type TC 30x50x7

Substitute For OEM Part Numbers(s): 91202-Z2F-801

Compatible with the Following Vehicles:

Yamaha WR250X: 2008-2011
Yamaha WR250R Team Yamaha: 2011-2013
Yamaha WR250R: 2008-2017
