MK1008755 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 40mm; Height 12mm
• Bearing 2 Diameter Inner (ID)15mm; Outer (OD) 35mm; Height 11mm
• Bearing 3 Diameter Inner (ID)20mm; Outer (OD) 47mm; Height 14mm
• Seal 1 Diameter Inner 40mm; Outer 50mm; Height 5mm; Seal 2 Inner 25mm; Outer 40mm; Height 7mm; Seal 3 Inner 21mm; Outer 37mm; Height 7mm

Included in This Kit:

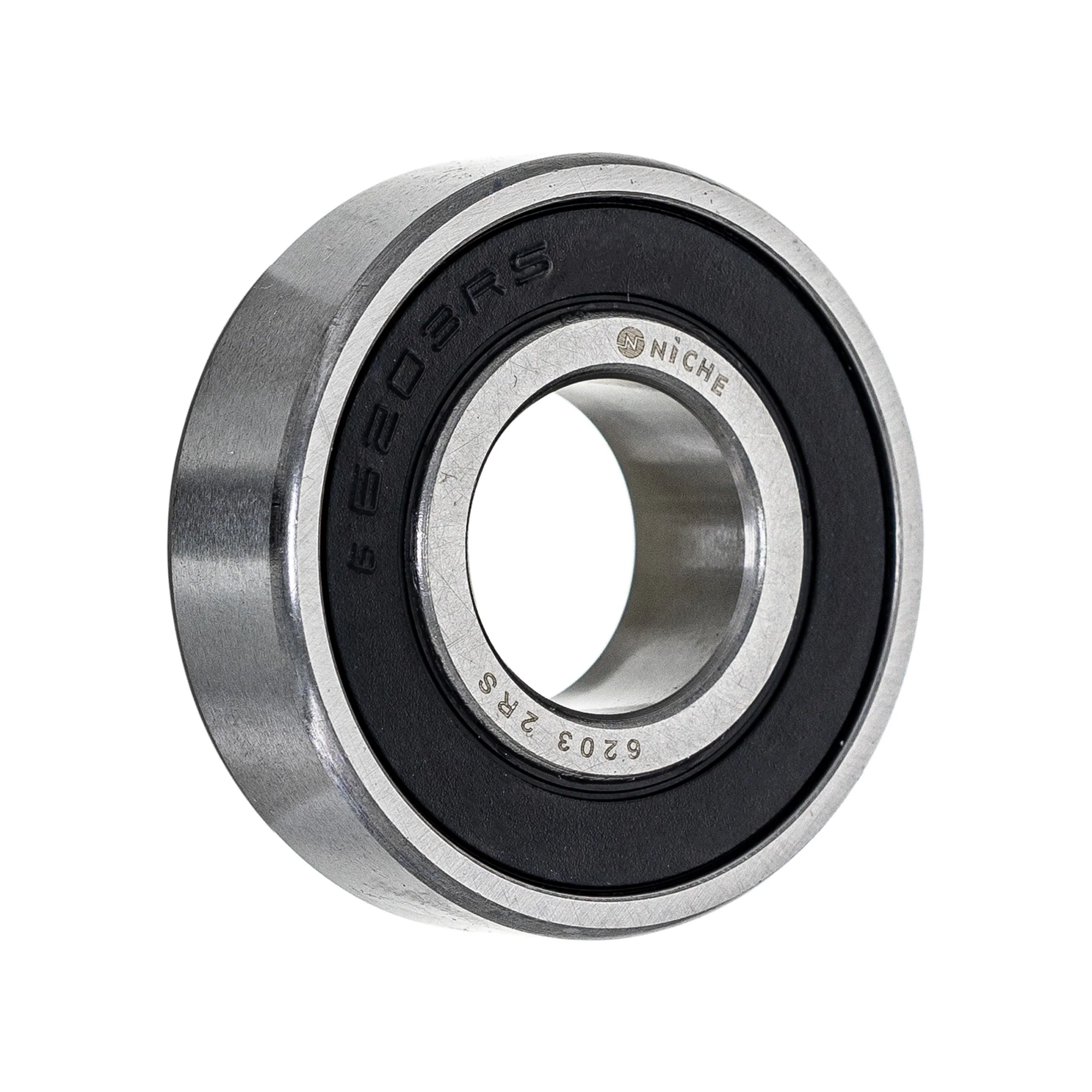

(QTY 1) NICHE 519-CBB2226R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): IH-441805-R91, GW-97047, GW-325339, GW-1185064, GW-103532, 96150-62033-10, 96150-62030-10, 96140-62030-10, 96100-62030-00, 960102176, 941-0600, 941-0124A, 941-0124, 91051-KWF-901, 91051-KVK-901, 91051-K35-V01, 91013-KPS-732, 90912-444-005, 753-04081, 741-0600, 741-0124A, 741-0124, 708982, 706-10035, 706-085336, 704992, 703275, 700479, 613257, 5418800, 49562MA, 43846MA, 42630-GK4-003, 405403800, 38-7820, 1820197, 1813562, 1813484, 1813383, 1813216, 1501389MA, 1483635M1, 1255MA, 12325MA, 1185064, 1120502, 1120423, 110485X, 110485, 100-1048, 095406, 01000340

(QTY 2) NICHE 519-CBB2227R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): M800578, KKK60-1B620-2UU, 96150-62020-10, 96150-62020, 96140-62020-10, 96100-62020-00, 96100-62020, 92045-Y025, 92045-S036, 92045-0734, 92045-0112, 91140-62020-10, 91074-GBF-831, 91072-GC4-601, 91052-HC4-003, 91052-HC4-000, 91051-KEB-G01, 91014-KPS-761, 91014-KPS-732, 91014-KPS-731, 91006-GFC-901, 91002-HB6-000, 625062028, 601B6202UU, 601B6202U, 601B202UU, 3514650, 3514528, 3514464, 339932X1, 3304-202, 09262-15024, 09262-15021, 08284-62027, 08143-62027, 08123-62027, 08113-62027, 0625062028, 0625062027

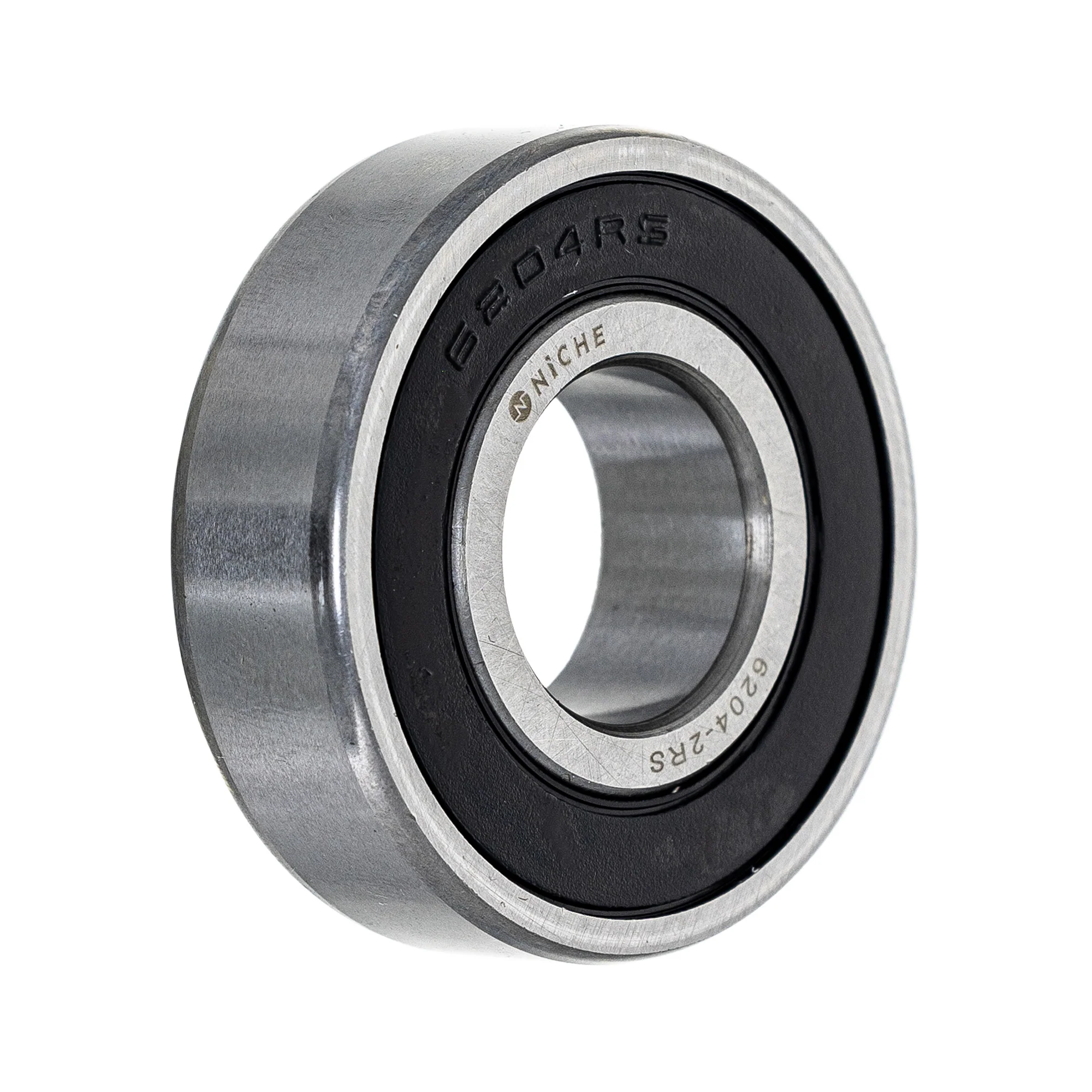

(QTY 1) NICHE 519-CBB2229R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): SU-9001310-0001, NA322329, JD10363, IH-ST207, IH-537290-R91, BD-NA322329, AM124479, 99158, 96150-62040-10, 96140-62040-10, 96120-62040-10, 941-0919B, 941-0919A, 941-0919, 91102-VA4-013, 91061-KS6-831, 91053-MGS-D31, 91052-MZ2-A21, 91052-MM5-003, 91052-MBR-003, 91052-MBC-004, 91052-MAE-004, 91051-MAE-004, 91013-MCG-901, 88-000625-4-204, 741-0919P, 741-0919B, 741-0919A, 741-0919, 5412300, 532129895, 50384, 405402900, 405402400, 365330, 339599X1, 25182, 251297, 251-204, 1652-111, 129895, 1120377

(QTY 1) NICHE 519-CSE2267A Seal Type TC 40x50x5

Substitute For OEM Part Numbers(s):

(QTY 2) NICHE 519-CSE2260A Seal Type TC 25x40x7

Substitute For OEM Part Numbers(s): 91258-410-013, 91258-410-006, 91258-410-003, 91253-443-762, 91253-443-761, 91252-KCY-671, 91252-428-000, 91216-729-921

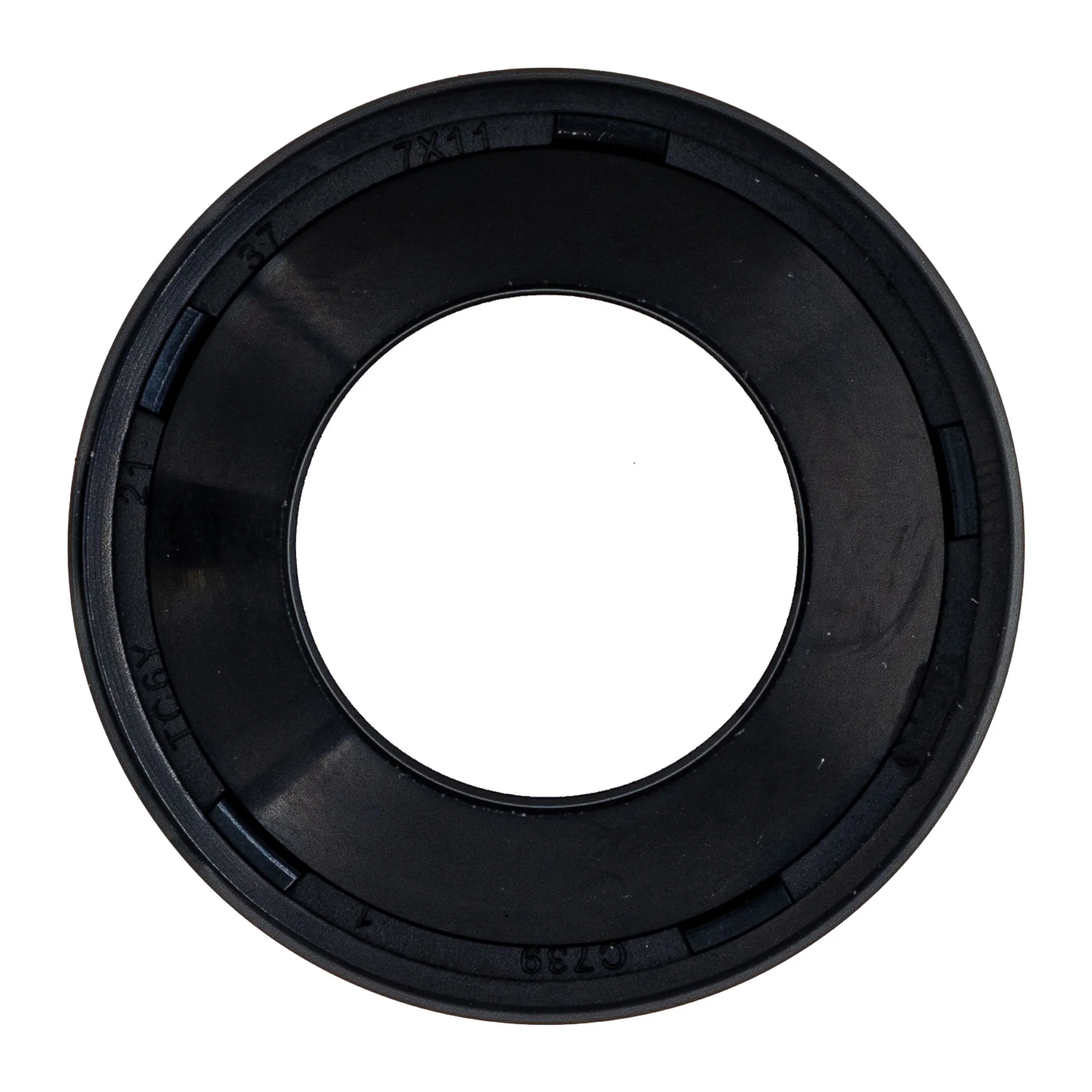

(QTY 1) NICHE 519-CSE2214A Seal Type TCY 21x37x7/11

Substitute For OEM Part Numbers(s): 93104-21016-00, 91251-K35-V01, 90755-KGA-K00, 90755-229-005, 90755-229-003, 90755-229-000

Compatible with the Following Vehicles:

Honda XR600R: 1985-1992
Honda XR350R: 1985
Honda XR250R: 1986-1995
