MK1008815 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 40mm; Height 12mm
• Bearing 2 Diameter Inner (ID)17mm; Outer (OD) 47mm; Height 14mm; Bearing 3 Inner (ID)17mm; Outer (OD) 35mm; Height 10mm
• Seal 1 Diameter Inner (ID) 40mm; Outer (OD) 50mm; Height 5mm; Seal 2 Diameter Inner (ID) 25mm; Outer (OD) 40mm; Height 7mm
• Seal 3 Diameter Inner (ID) 25mm; Outer (OD) 47mm; Height 6mm; Seal 4 Diameter Inner (ID) 24mm; Outer (OD) 37mm; Height 7mm

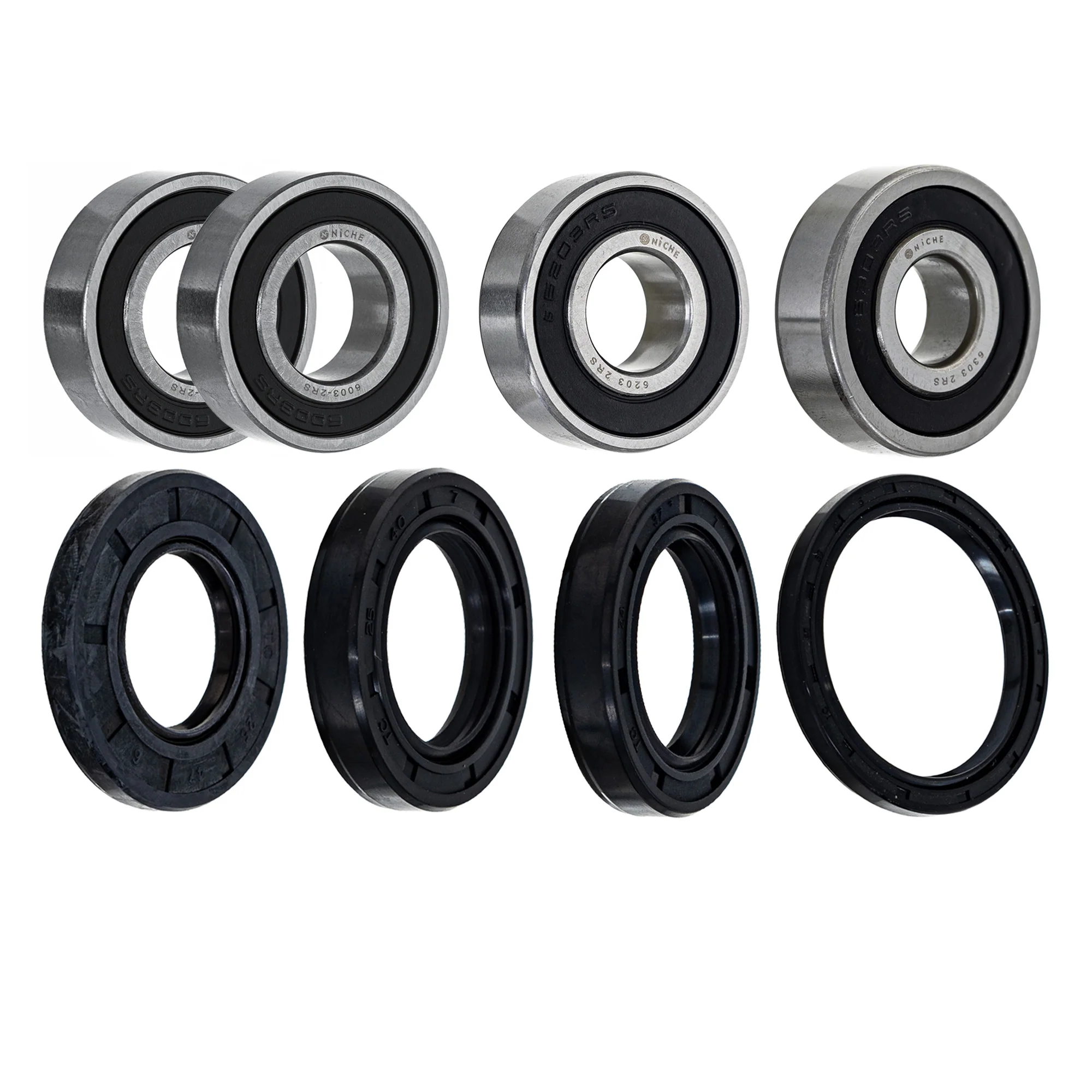

Included in This Kit:

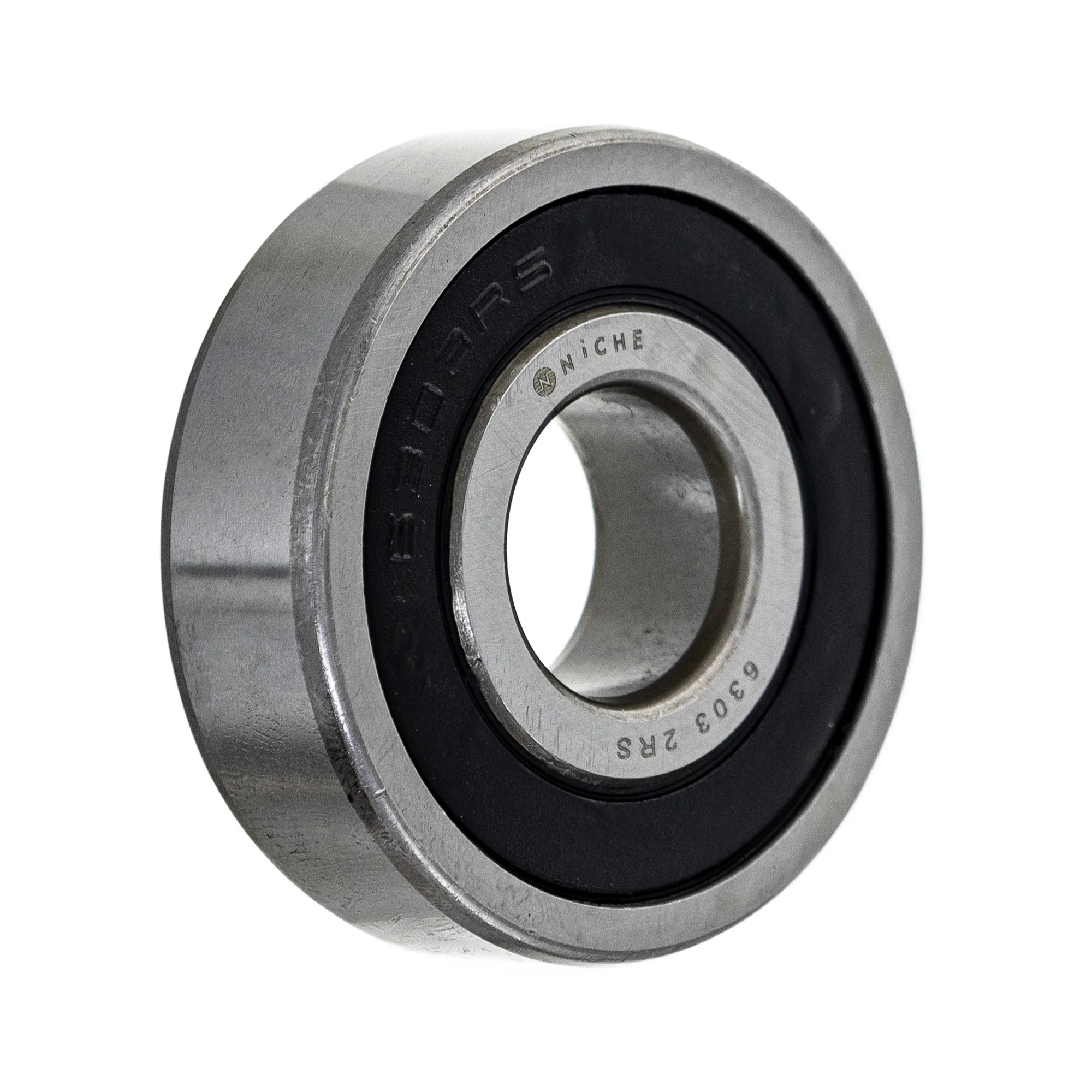

(QTY 1) NICHE 519-CBB2226R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): IH-441805-R91, GW-97047, GW-325339, GW-1185064, GW-103532, 96150-62033-10, 96150-62030-10, 96140-62030-10, 96100-62030-00, 960102176, 941-0600, 941-0124A, 941-0124, 91051-KWF-901, 91051-KVK-901, 91051-K35-V01, 91013-KPS-732, 90912-444-005, 753-04081, 741-0600, 741-0124A, 741-0124, 708982, 706-10035, 706-085336, 704992, 703275, 700479, 613257, 5418800, 49562MA, 43846MA, 42630-GK4-003, 405403800, 38-7820, 1820197, 1813562, 1813484, 1813383, 1813216, 1501389MA, 1483635M1, 1255MA, 12325MA, 1185064, 1120502, 1120423, 110485X, 110485, 100-1048, 095406, 01000340

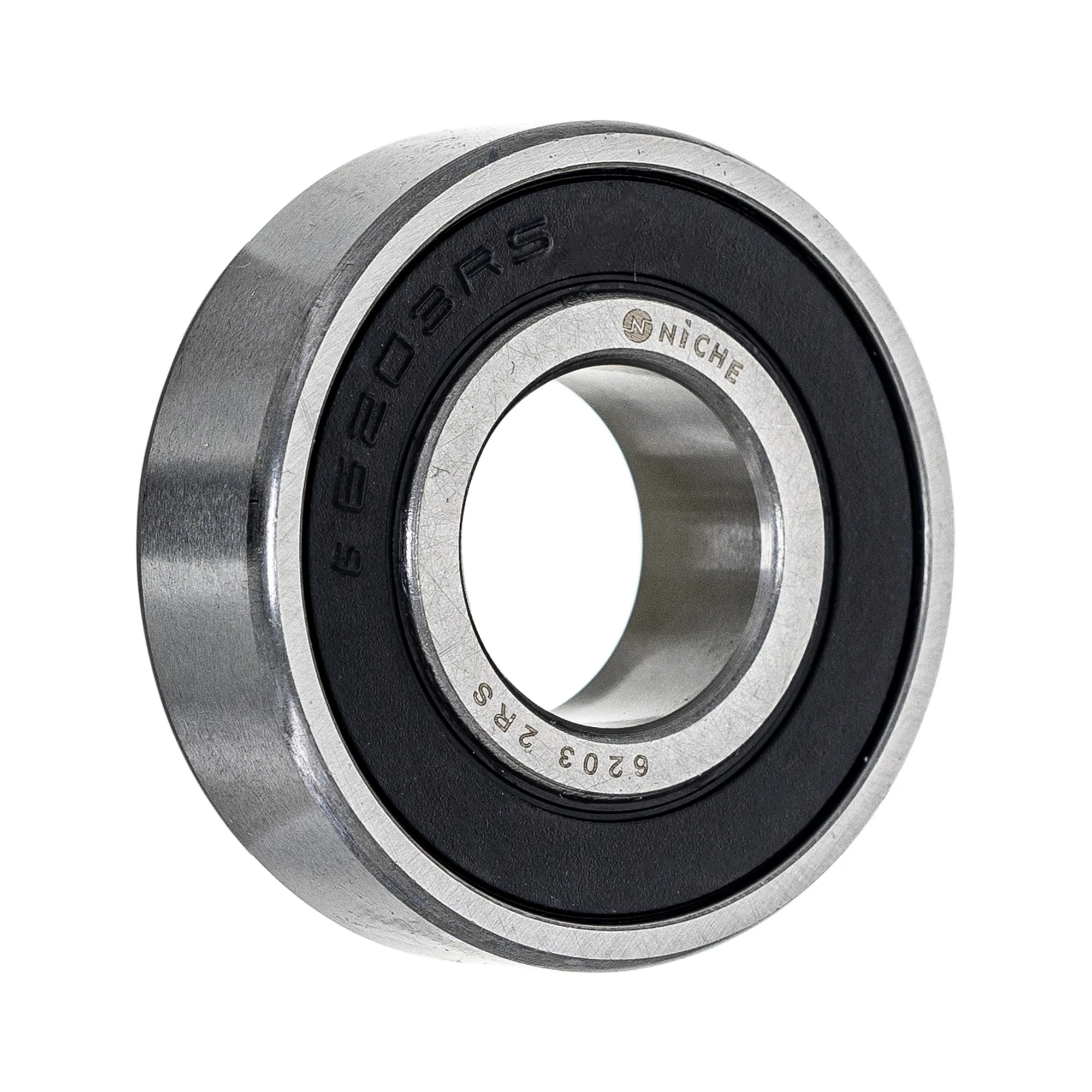

(QTY 1) NICHE 519-CBB2236R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): J10-81158-10, 96150-63030-10, 96140-63030-10, 96140-63030-00, 96140-63030, 96120-63030-0S, 96120-63030, 93306-30317-00, 92045-3746, 92045-0733, 91054-MT6-832, 91054-MT6-831, 91051-MGZ-J01, 91051-KS4-003, 91051-KPS-732, 91051-KPS-731, 601B6303UU, 38751-590-004, 31582-50F20, 31114-PGK-A01, 31114-P01-014, 31114-P01-004, 26872-G01, 26872G01, 23521-G1, 23521G1, 16877-G1, 16877G1, 1135350, 08143-63037, 08124-63037, 08123-63037

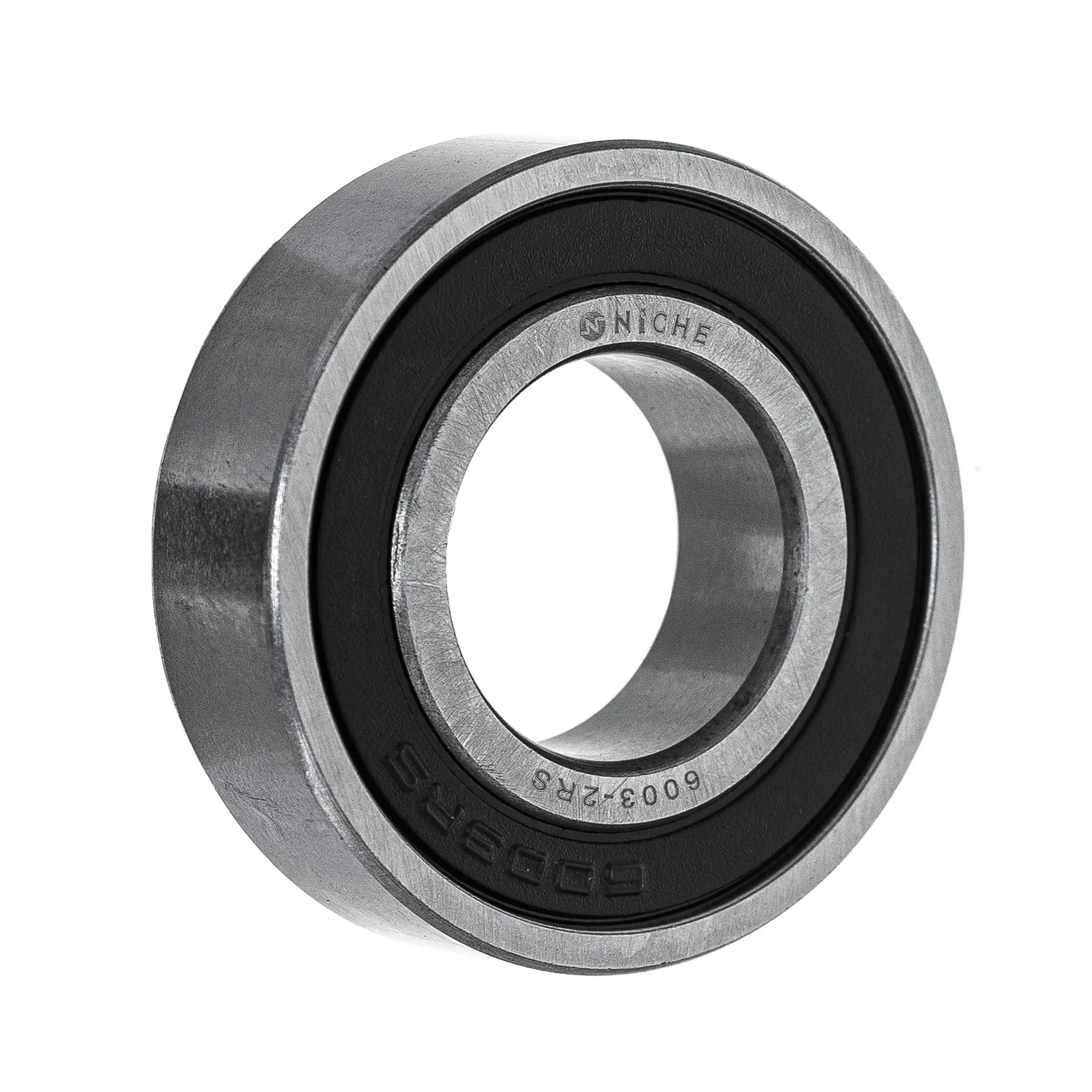

(QTY 2) NICHE 519-CBB2238R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): BD3-F51H2-10-00, 99999-02969-00, 93306-00316-00, 93306-00315-00, 93306-00302-00, 92045-Y011, 91065-KA3-832, 91055-HC3-000, 91051-KSE-003, 85-9970, 625060037, 601B6003U, 454013, 450393, 43D-F51H2-00-00, 3303-468, 08133-60037, 08123-60037, 0625060037

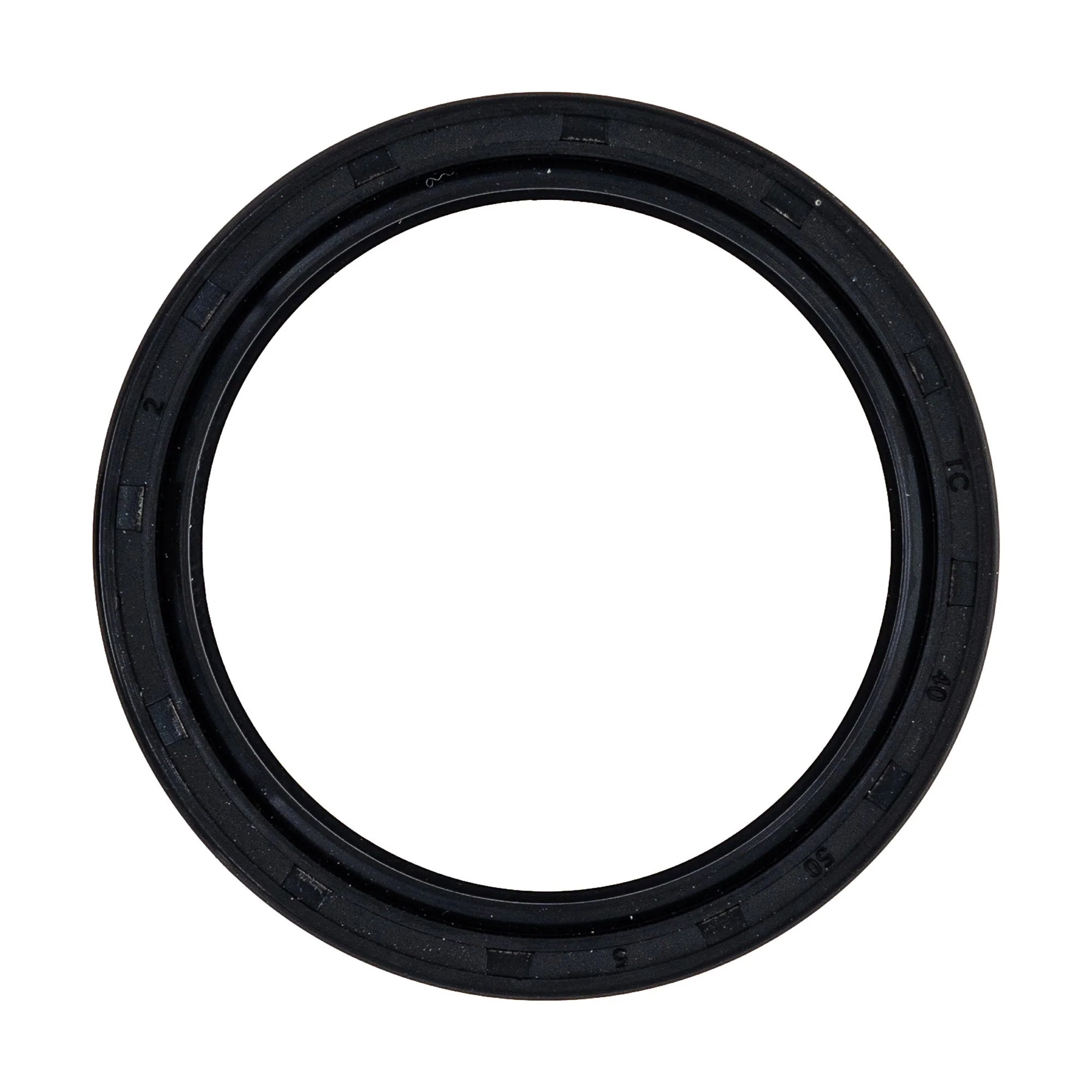

(QTY 1) NICHE 519-CSE2267A Seal Type TC 40x50x5

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2260A Seal Type TC 25x40x7

Substitute For OEM Part Numbers(s): 91258-410-013, 91258-410-006, 91258-410-003, 91253-443-762, 91253-443-761, 91252-KCY-671, 91252-428-000, 91216-729-921

(QTY 1) NICHE 519-CSE2271A Seal Type TC 25x47x6

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2343A Seal Type TC 24x37x7

Substitute For OEM Part Numbers(s): 91259-KS6-831, 91259-KA3-832, 91204-KPH-901, 91204-GN2-005

Compatible with the Following Vehicles:

Honda XR400R: 1996-2004
