MK1008870 Wheel Bearing Seal Kit Product Info:

• Seal Diameter Inner (ID) 28mm; Outer (OD) 44mm; Height 8mm
• Bearing 1 Diameter Inner (ID)25mm; Outer (OD) 47mm; Height 12mm
• Bearing 2 Diameter Inner (ID)22mm; Outer (OD) 44mm; Height 12mm
• Bearing 3 Diameter Inner (ID)22mm; Outer (OD) 50mm; Height 14mm

Included in This Kit:

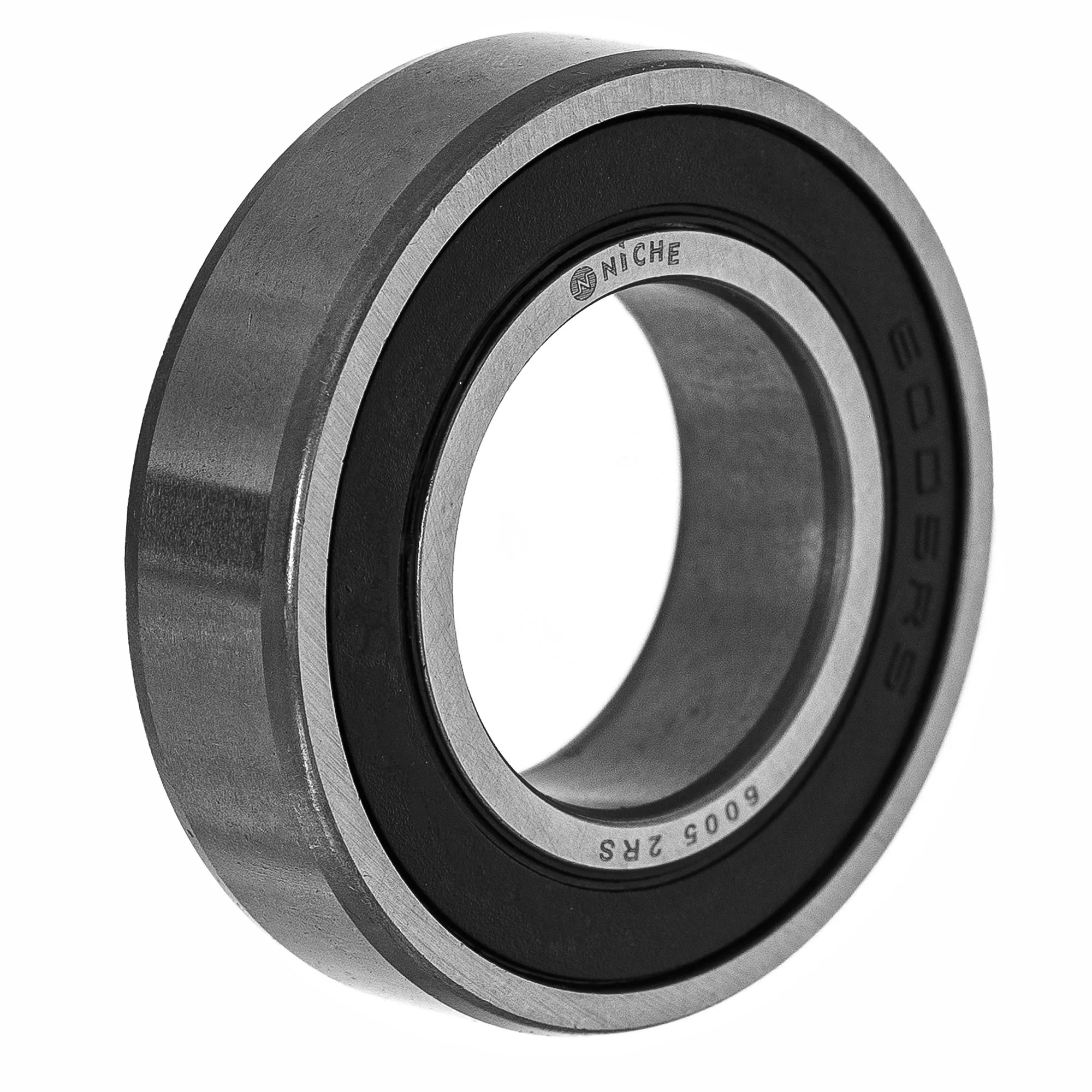

(QTY 1) NICHE 519-CBB2234R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): JD9326, 96150-60050-10, 93306-005Y3-00, 93306-00511-00, 93306-00507-00, 92045-1039, 92045-0105, 91052-MCF-003, 91052-MCF-000, 8A0026846, 80058260, 625060058, 601B6005UU, 24905270, 1739639YP, 08123-60057

(QTY 1) NICHE 519-CBB2267R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-072Y0-00, 93306-07208-00, 93306-07202-00, 93306-00420-00, 93306-00412-00, 92045-1218, 92045-1170, 91103-VA4-003, 91074-KV3-721, 91051-HE0-003, 09262-22035, 09262-22033

(QTY 1) NICHE 519-CBB2271R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-27212-00, 93306-27206-00, 93306-27205-00, 92045-3745, 92045-3743, 91073-MV4-782, 91073-MV4-781, 91073-KV3-700, 09262-22027, 09262-22015

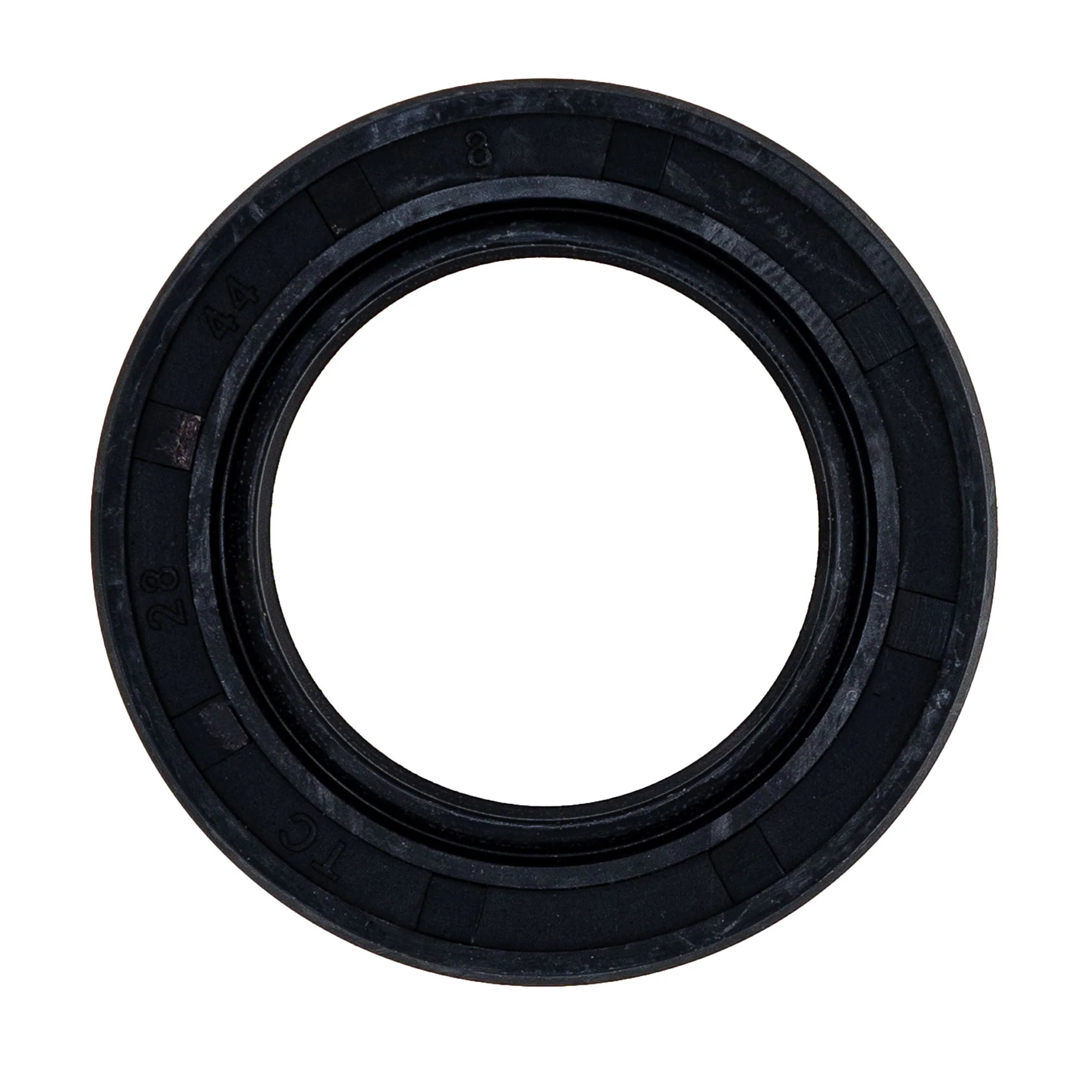

(QTY 1) NICHE 519-CSE2279A Seal Type TC 28x44x8

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Yamaha Super Tenere XTZ1200 ES: 2019-2022
Yamaha Super Tenere XTZ1200: 2012-2022
