MK1008884 Wheel Bearing Seal Kit Product Info:

• Seal Diameter Inner (ID) 28mm; Outer (OD) 47mm; Height 7mm
• Bearing 1 Diameter Inner (ID)15mm; Outer (OD) 35mm; Height 11mm
• Bearing 2 Diameter Inner (ID)20mm; Outer (OD) 47mm; Height 14mm; Bearing 3 Diameter Inner (ID)15mm; Outer (OD) 42mm; Height 13mm

Included in This Kit:

(QTY 1) NICHE 519-CBB2252R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96140-62020-10, 91052-HC4-003, 91052-HC4-000, 91014-KPS-761, 91014-KPS-732, 91014-KPS-731, 3514994, 09262-15024

(QTY 1) NICHE 519-CBB2212R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): NA322329, MT3069, JD7677, JD10363, IH-537290-R91, BD-NA322329, AM124479, 99158, 96150-62040-10, 96150-62040, 96140-62040-10, 96120-62040-10, 941-0919B, 941-0919A, 941-0919, 91102-VA4-013, 91061-KS6-831, 91053-MGS-D31, 91052-MZ2-A21, 91052-MT3-004, 91052-MM5-003, 91052-MBR-003, 91052-MBC-004, 91052-MAJ-G50, 91052-MAE-004, 91051-MK4-005, 91051-MAE-004, 91013-MCG-901, 91003-MK2-680, 91003-MG2-792, 91003-MG2-791, 91003-MG2-790, 741-0919P, 741-0919B, 741-0919A, 741-0919, 5412300, 405402900, 405402400, 365330, 1652-111, 129895

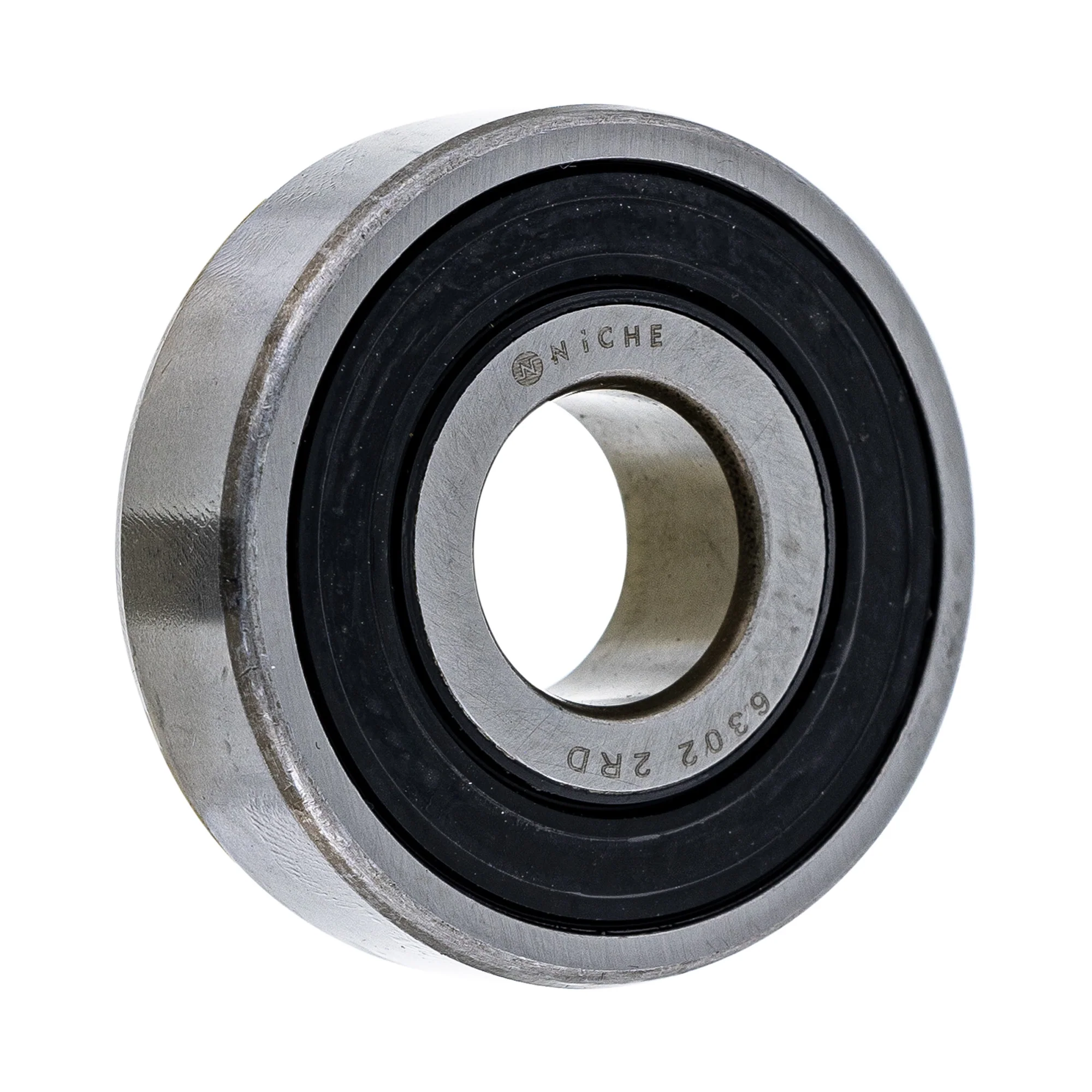

(QTY 1) NICHE 519-CBB2324R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 96150-63020-10, 96140-63020-10, 96120-63020-10, 93306-30212-00, 91052-KR3-005, 91052-HB5-671, 91051-KEH-662, 91051-KC2-882, 601B6302UU, 601B6302U, 09262-15027, 08153-63027, 08144-63027, 08123-63027, 08113-63020

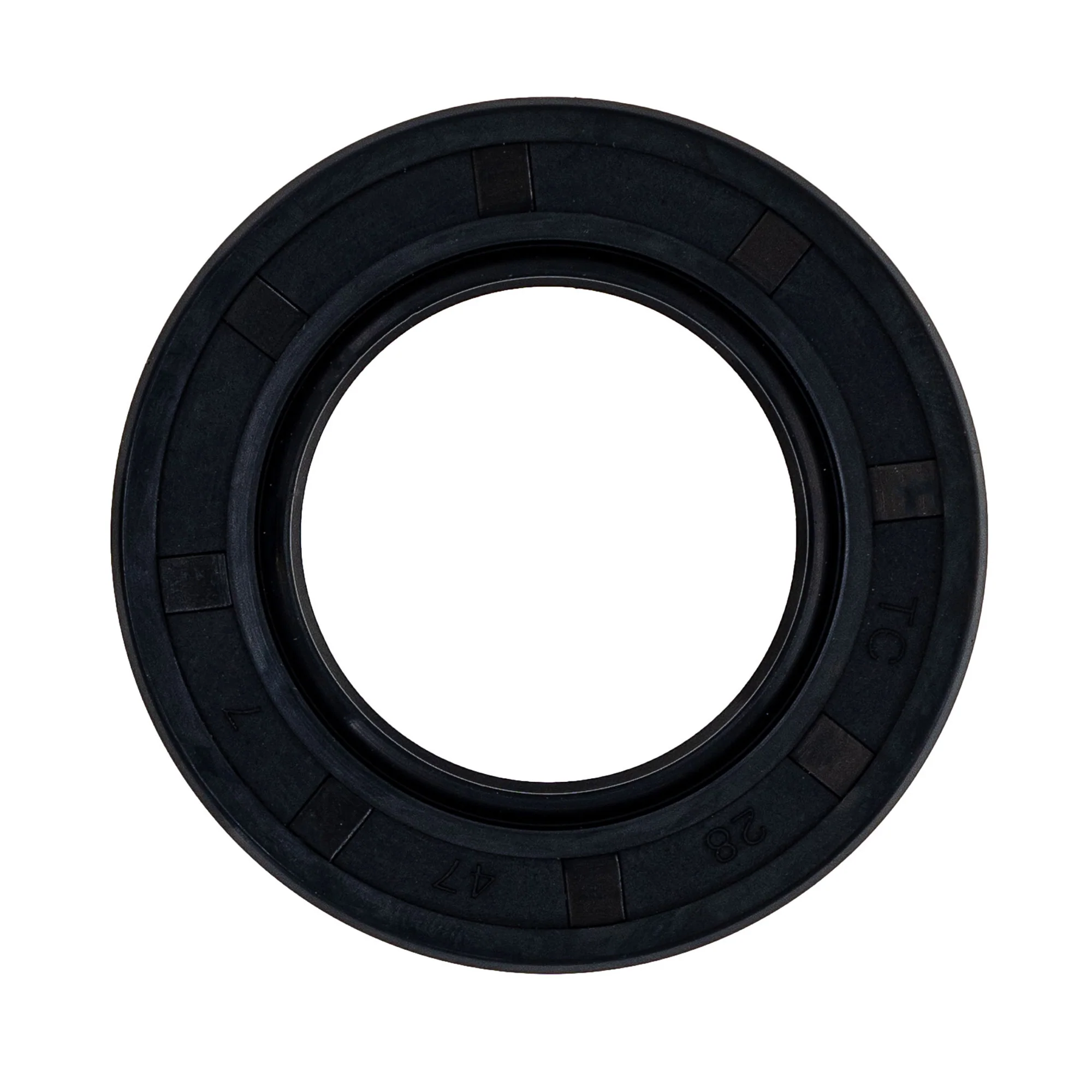

(QTY 1) NICHE 519-CSE2238A Seal Type TC 28x47x7

Substitute For OEM Part Numbers(s): 93106-28023-00, 91252-KZ4-003, 09285-28004, 09285-28001

Compatible with the Following Vehicles:

Suzuki TU250X: 2011
Suzuki TU250: 2009-2011
Suzuki GZ250: 2000-2010
Suzuki GN250: 1982-1985
