MK1009252 Wheel Bearing Seal Kit Product Info:

• Seal 1 Diameter Inner (ID) 30mm; Outer (OD) 42mm; Height 7mm; Seal 2 Diameter Inner (ID) 20mm; Outer (OD) 32mm; Height 5mm
• Bearing 1 Diameter Inner (ID)16mm; Outer (OD) 32mm; Height 9mm; Bearing 2 Diameter Inner (ID)25mm; Outer (OD) 42mm; Height 9mm

Included in This Kit:

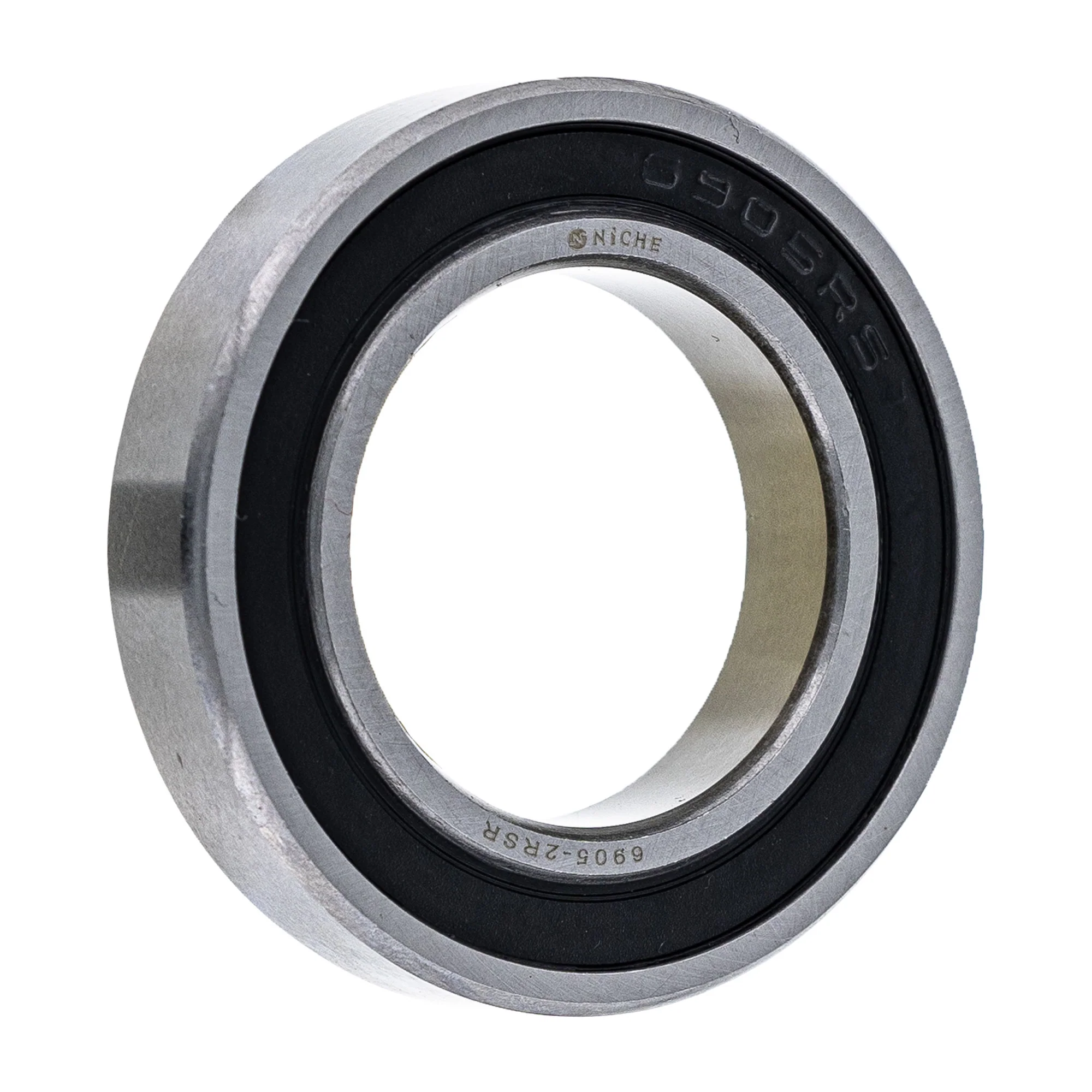

(QTY 4) NICHE 519-CBB2334R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): JD9347, 96150-60020-10, 96100-60020-10, 95030035136, 93306-00201-00, 92045-Y010, 91073-GBF-831, 91071-HC4-601, 91071-GC4-601, 91052-KSE-003, 454014, 450392, 3303-467, 08123-60027, 08120-60027, 08113-60020

(QTY 2) NICHE 519-CBB2338R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-90510-00, 91052-KZ4-J21, 8000-84938, 625069050, 09262-25139, 08113-69057

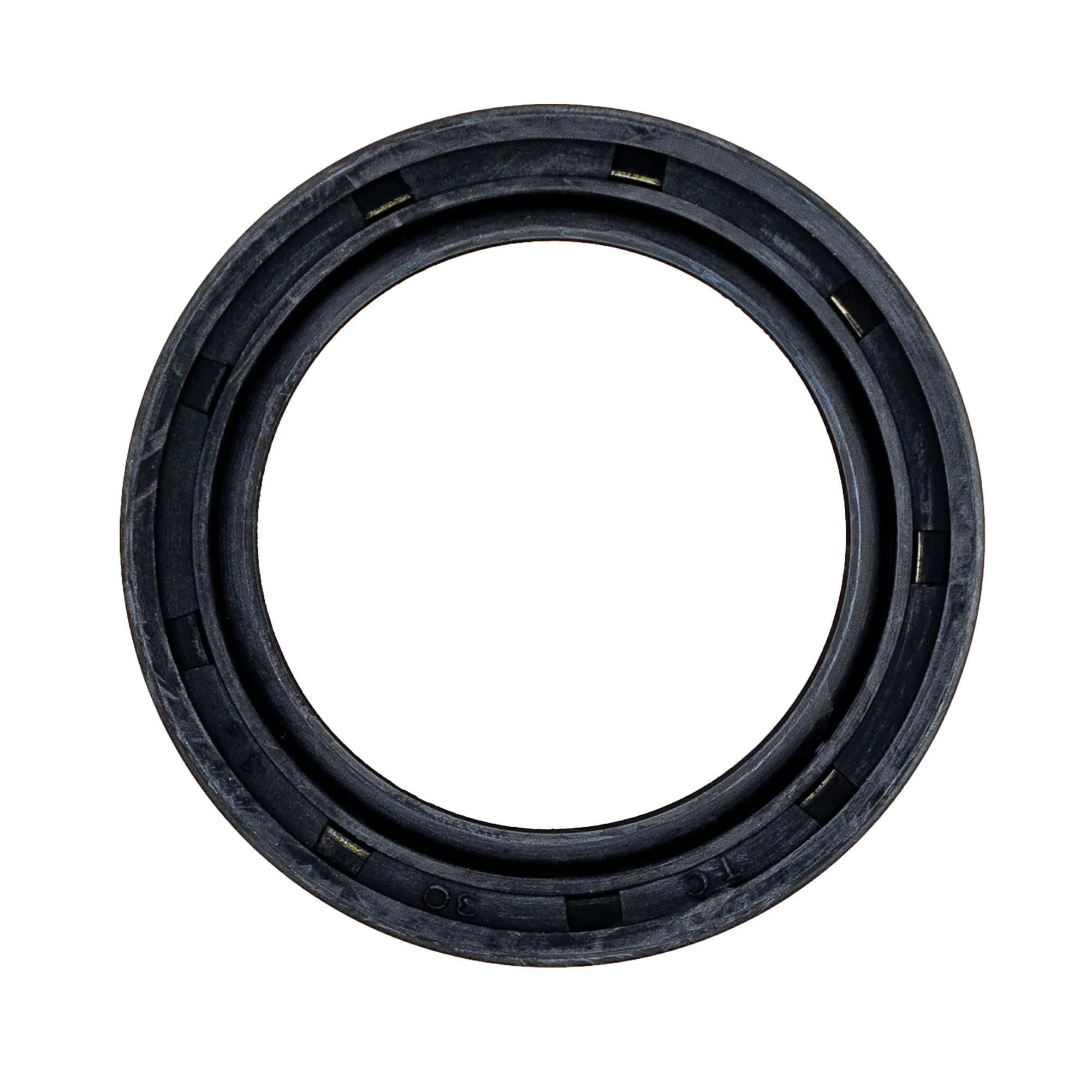

(QTY 2) NICHE 519-CSE2273A Seal Type TC 30x42x7

Substitute For OEM Part Numbers(s): 92049-0130, 64729-04601

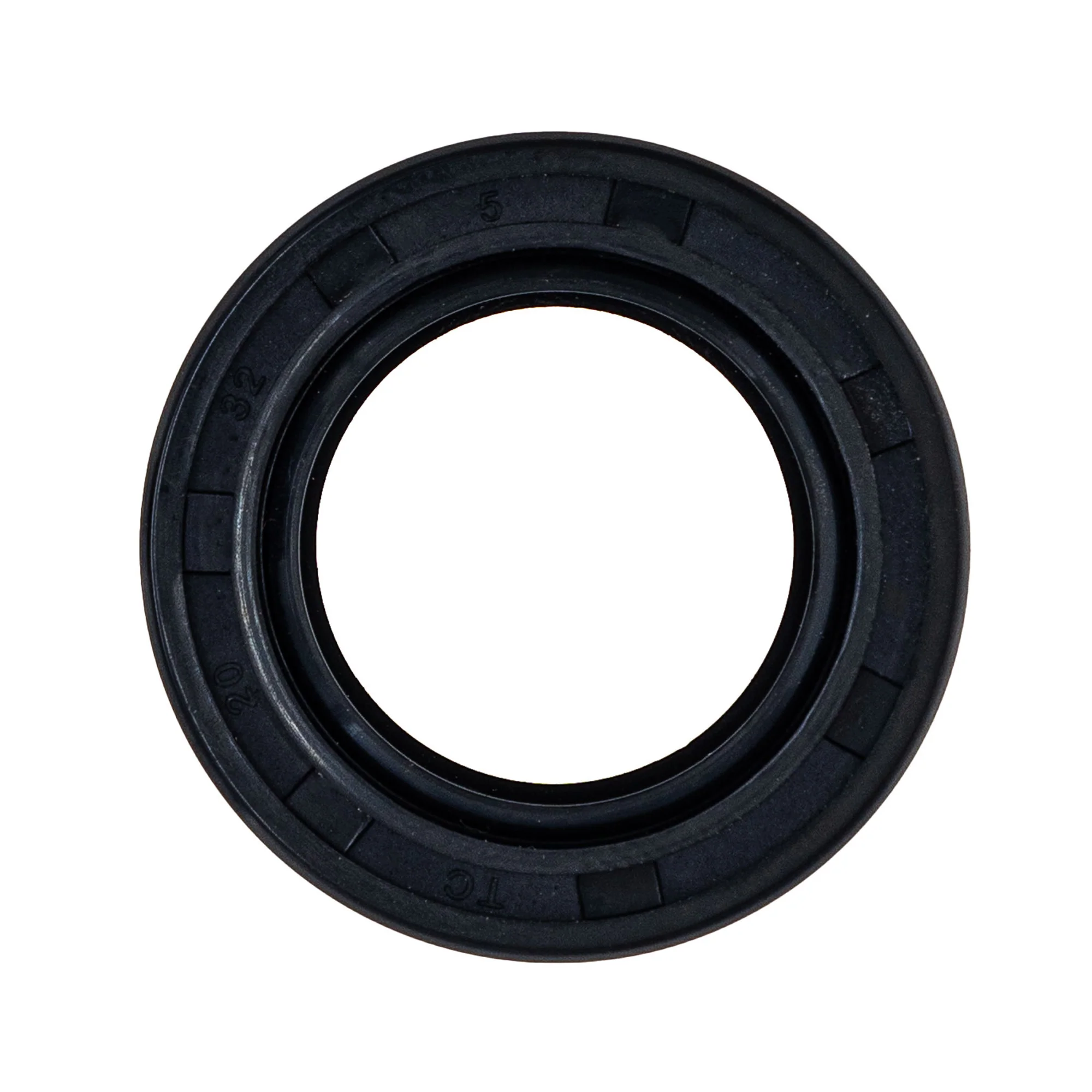

(QTY 4) NICHE 519-CSE2337A Seal Type TC 20x32x5

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Suzuki Vinson 500 4X4 Manual: 2003-2007
Suzuki Vinson 500 4X4 Auto: 2002-2007
Suzuki Quadrunner 500 4X4: 1998-2002
Suzuki Quadrunner 250 4X4: 1987
Suzuki Quadmaster 500 4X4: 2000-2001
Suzuki King Quad 400 4X4 FSi: 2011-2017
Suzuki King Quad 400 4X4 FS: 2008-2017
Suzuki King Quad 400 4X4 ASi Limited Edition: 2016
Suzuki King Quad 400 4X4 ASi: 2011-2017
Suzuki King Quad 400 4X4 AS: 2008-2017
Suzuki Eiger 400 4X4 Auto: 2002-2007
Suzuki Eiger 400 2X4 Manual: 2003-2007
Suzuki Eiger 400 2X4 Auto: 2002-2007
