MK1009254 Wheel Bearing Seal Kit Product Info:

• Bearing 1 Diameter Inner (ID)17mm; Outer (OD) 40mm; Height 12mm; Bearing 2 Diameter Inner (ID)35mm; Outer (OD) 62mm; Height 14mm
• Seal 1 Diameter Inner (ID) 26mm; Outer (OD) 42mm; Height 7mm; Seal 2 Diameter Inner (ID) 42mm; Outer (OD) 62mm; Height 7mm
• Seal 3 Diameter Inner (ID) 22mm; Outer (OD) 40mm; Height 8mm; Seal 4 Diameter Inner (ID) 46mm; Outer (OD) 62mm; Height 8mm

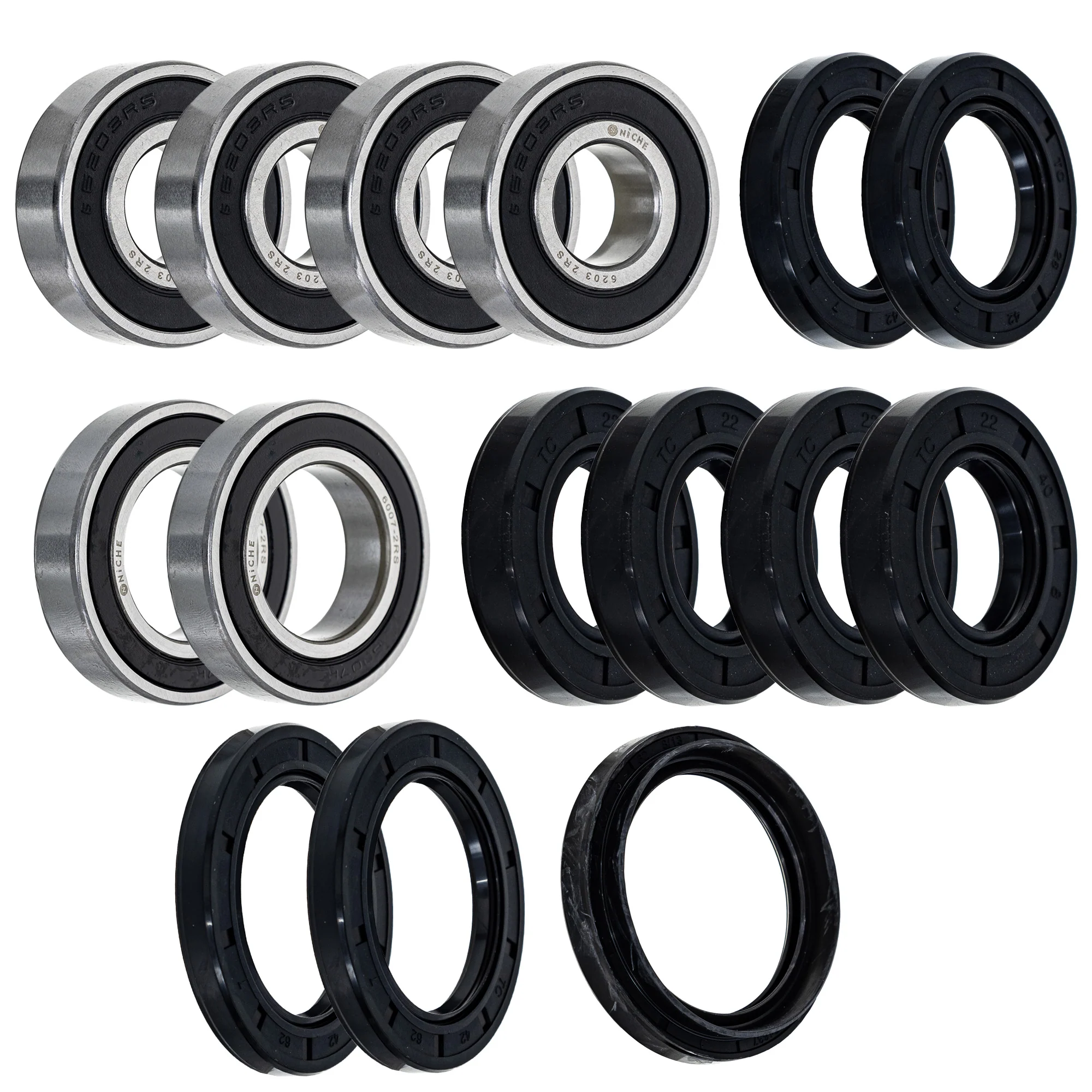

Included in This Kit:

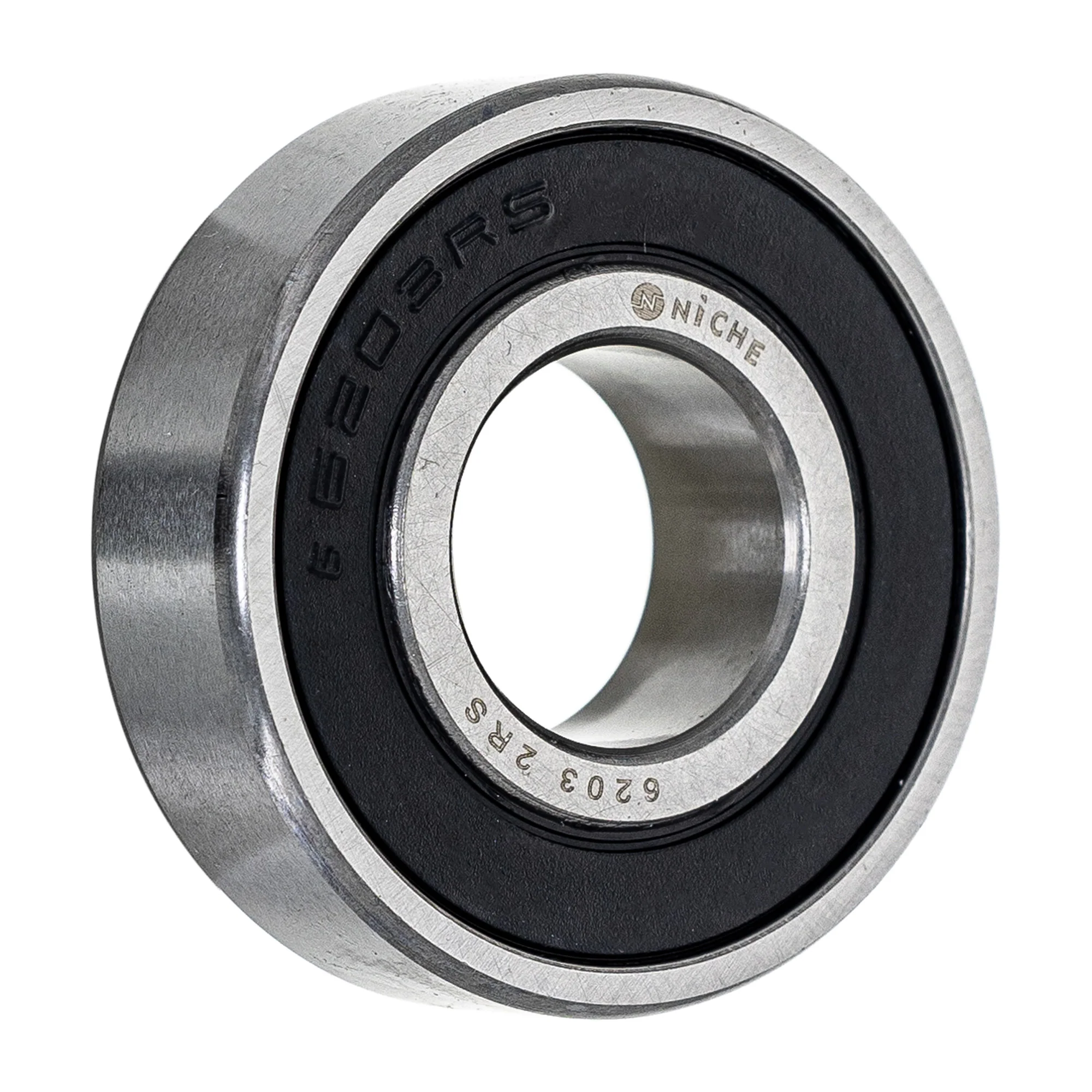

(QTY 4) NICHE 519-CBB2226R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): IH-441805-R91, GW-97047, GW-325339, GW-1185064, GW-103532, 96150-62033-10, 96150-62030-10, 96140-62030-10, 96100-62030-00, 960102176, 941-0600, 941-0124A, 941-0124, 91051-KWF-901, 91051-KVK-901, 91051-K35-V01, 91013-KPS-732, 90912-444-005, 753-04081, 741-0600, 741-0124A, 741-0124, 708982, 706-10035, 706-085336, 704992, 703275, 700479, 613257, 5418800, 49562MA, 43846MA, 42630-GK4-003, 405403800, 38-7820, 1820197, 1813562, 1813484, 1813383, 1813216, 1501389MA, 1483635M1, 1255MA, 12325MA, 1185064, 1120502, 1120423, 110485X, 110485, 100-1048, 095406, 01000340

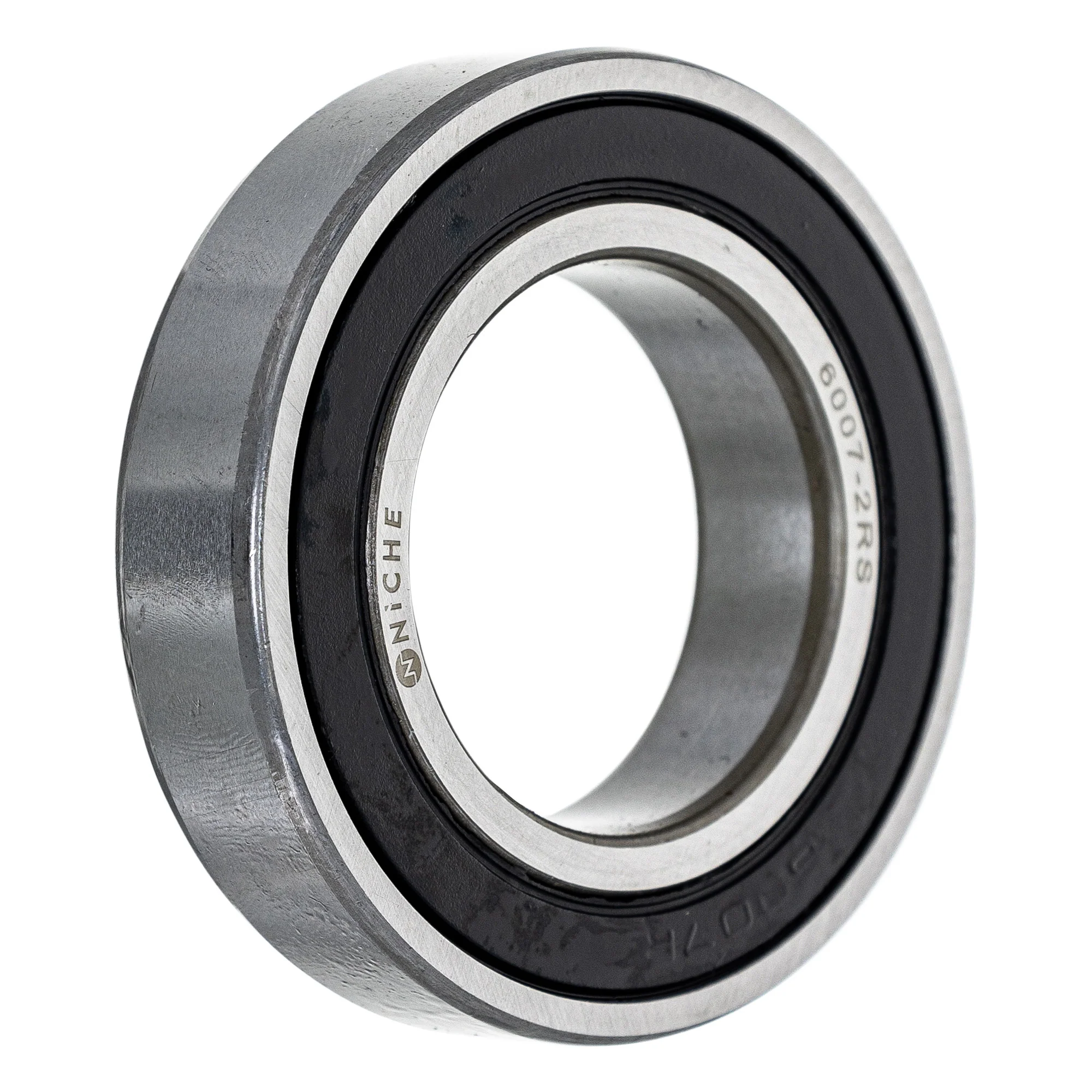

(QTY 2) NICHE 519-CBB2220R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): JD9323, JD8534, ES10548, AMX308163, A961006007LLU, 96150-60070-10, 93306-00710-00, 93306-00705-00, 93306-00702-00, 91054-HC4-003, 91052-HB3-771, 91052-H33-771, 835163M1, 80364908, 705500275, 601B6007, 601A6007UU, 601A6007, 4WV-46165-00-00, 4-156-462, 364908, 3515502, 3515501, 339800X1, 254684, 233883-8, 233883, 233833, 09262-35032, 06912-HN2-010, 06912-HN2-000, 0402-339

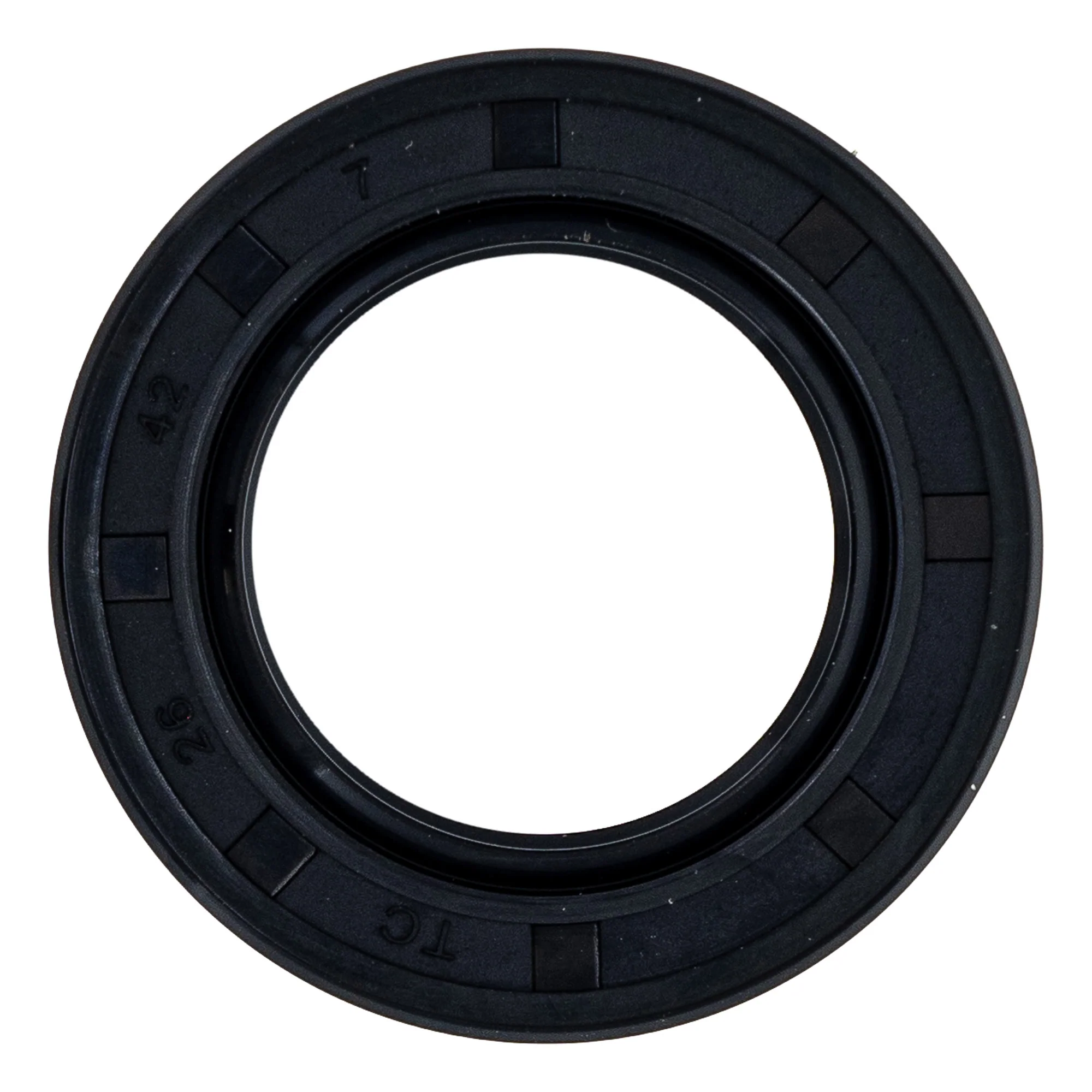

(QTY 2) NICHE 519-CSE2228A Seal Type TC 26x42x7

Substitute For OEM Part Numbers(s): 93105-26026-00, 91252-230-005, 91252-230-003

(QTY 2) NICHE 519-CSE2237A Seal Type TC 42x62x7

Substitute For OEM Part Numbers(s): 93106-42026-00, 93102-42260-00, 92093-4008, 92049-4001, 91252-958-014, 91252-958-013, 91252-958-004, 91252-958-003, 91203-943-003, 09283-42013, 09283-42011, 09283-42010

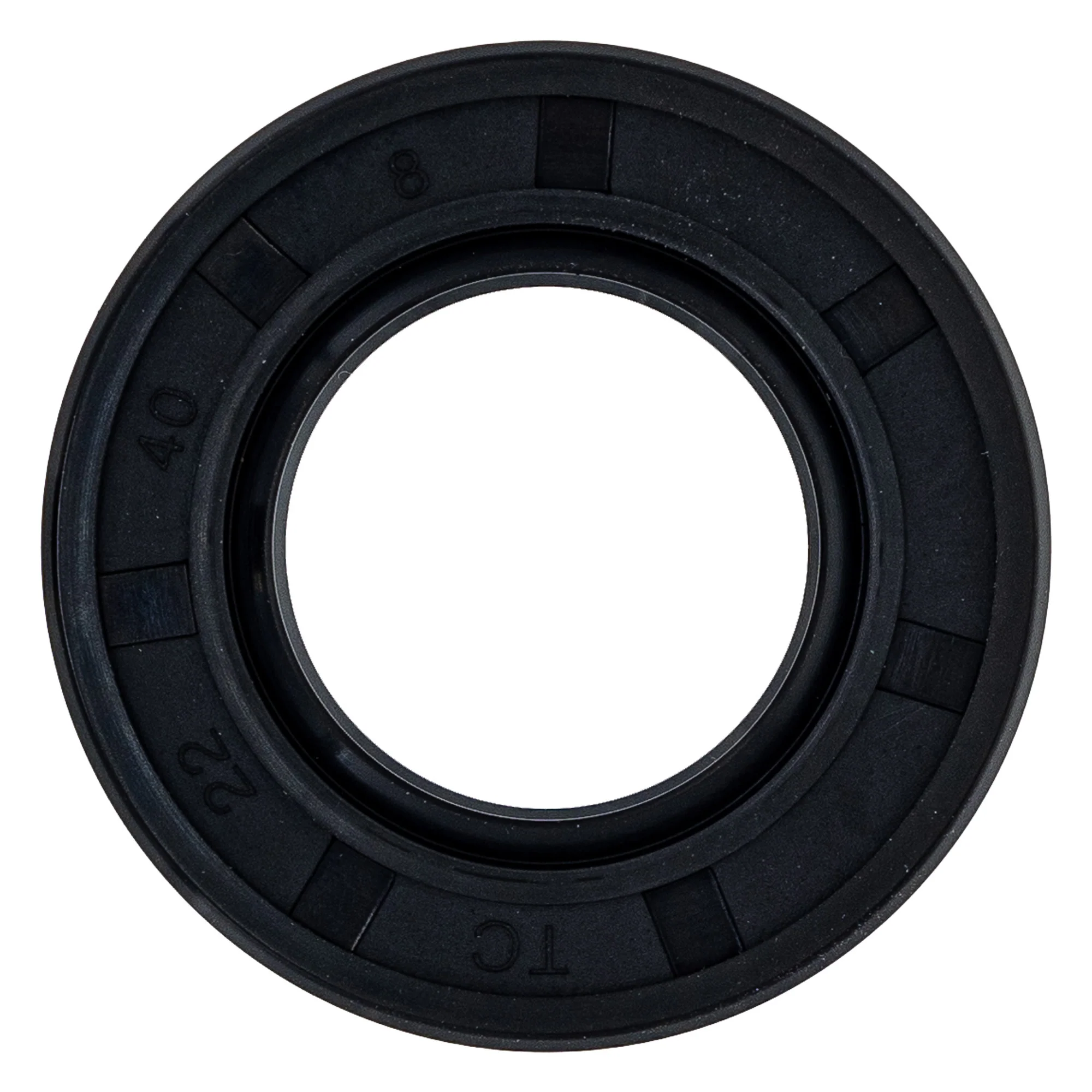

(QTY 4) NICHE 519-CSE2252A Seal Type TC 22x40x8

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2259A Seal Type TCY 46x62x8/13

Substitute For OEM Part Numbers(s):

Compatible with the Following Vehicles:

Suzuki King Quad 750 4X4 AXi EPS: 2011-2017
Suzuki King Quad 750 4X4 AXi: 2008-2017
Suzuki King Quad 700 4X4: 2005-2007
Suzuki King Quad 500 4X4 AXi EPS: 2011-2017
Suzuki King Quad 500 4X4 AXi: 2010-2017
Suzuki King Quad 450 4X4 AXi: 2007-2010
