MK1009343 Axle with Wheel Bearing and Seal Kit Product Info:

• Rear Axle Axle Compressed Length 24 15/16, Inboard Splines 19T, Inboard Spline Diameter 2 7/16, Outboard Splines 24T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M18x1.5

Included in This Kit:

(QTY 2) NICHE 519-CBB2234R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): JD9326, 96150-60050-10, 93306-005Y3-00, 93306-00511-00, 93306-00507-00, 92045-1039, 92045-0105, 91052-MCF-003, 91052-MCF-000, 8A0026846, 80058260, 625060058, 601B6005UU, 24905270, 1739639YP, 08123-60057

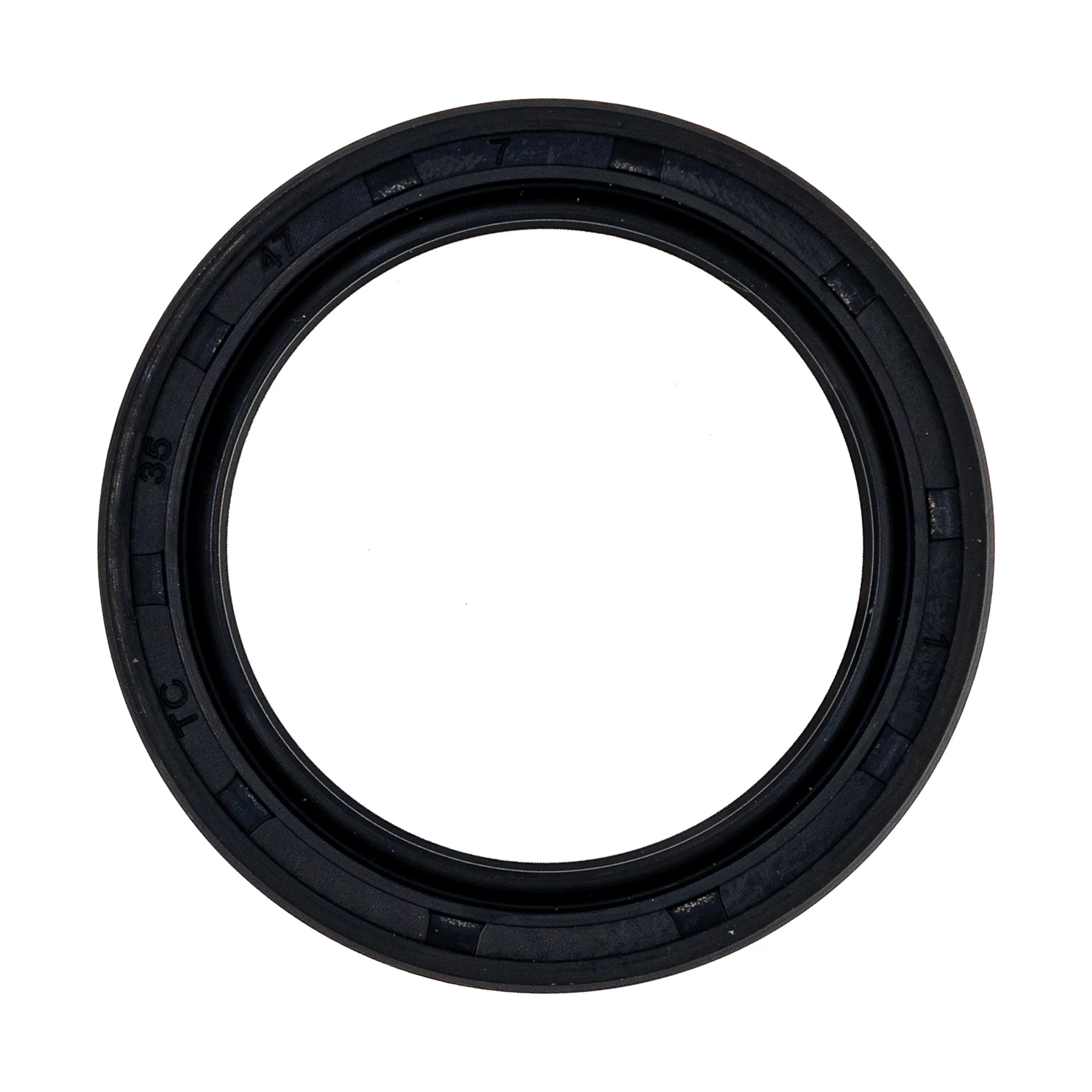

(QTY 2) NICHE 519-CSE2243A Seal Type TC 35x47x7

Substitute For OEM Part Numbers(s):

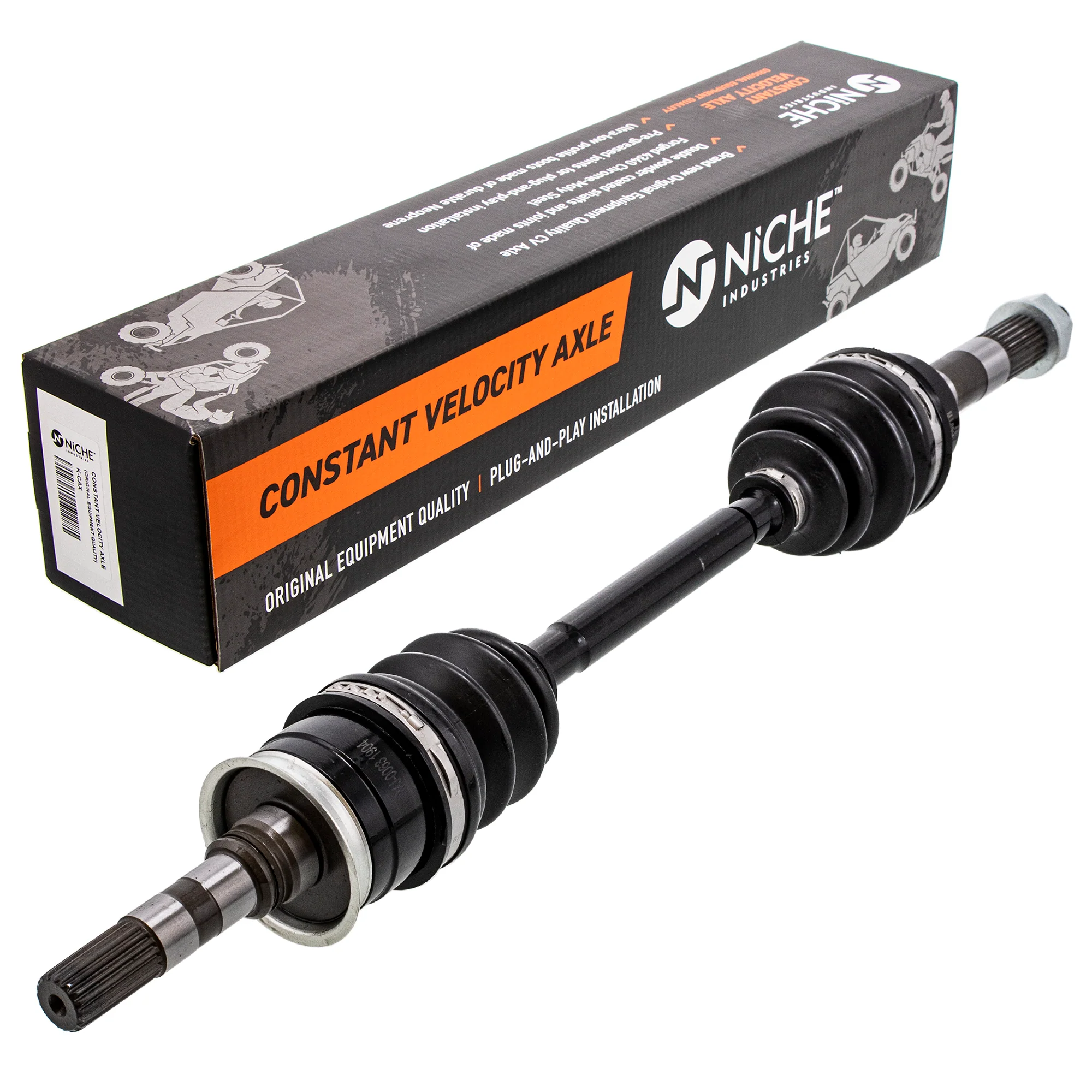

(QTY 1) NICHE 519-KCA2285X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0801, 59266-0034, 39158-1102

Compatible with the Following Vehicles:

Kawasaki Mule 4010 Trans SE: 2019
Kawasaki Mule 4010 Trans Camo: 2019-2021
Kawasaki Mule 4010 Trans: 2019-2021
Kawasaki Mule 4010 SE: 2016-2018
Kawasaki Mule 4010 Diesel: 2009-2013
Kawasaki Mule 4010: 2009-2021
Kawasaki Mule 3010 Trans Diesel: 2007-2008
Kawasaki Mule 3010 Trans: 2007-2008
Kawasaki Mule 3010 Diesel: 2007-2008
Kawasaki Mule 3010: 2007-2008
Kawasaki Mule 2510 Diesel: 2000-2002
Kawasaki Mule 2510: 1993-2002
