MK1009362 Axle with Wheel Bearing and Seal Kit Product Info:

• Axle Compressed Length 27, Inboard Splines 24T, Inboard Spline Diameter 3 1/4, Outboard Splines 29T, Outboard Spline Diameter 3 1/8, Shaft Diameter 15/16, Thread Measurement M20x1.5

Included in This Kit:

(QTY 2) NICHE 519-CBB2261R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 92045-0905, 92045-0762, 706000635, 706000320, 705400088, 293370019, 293350150, 293350126, 293350118, 293350040

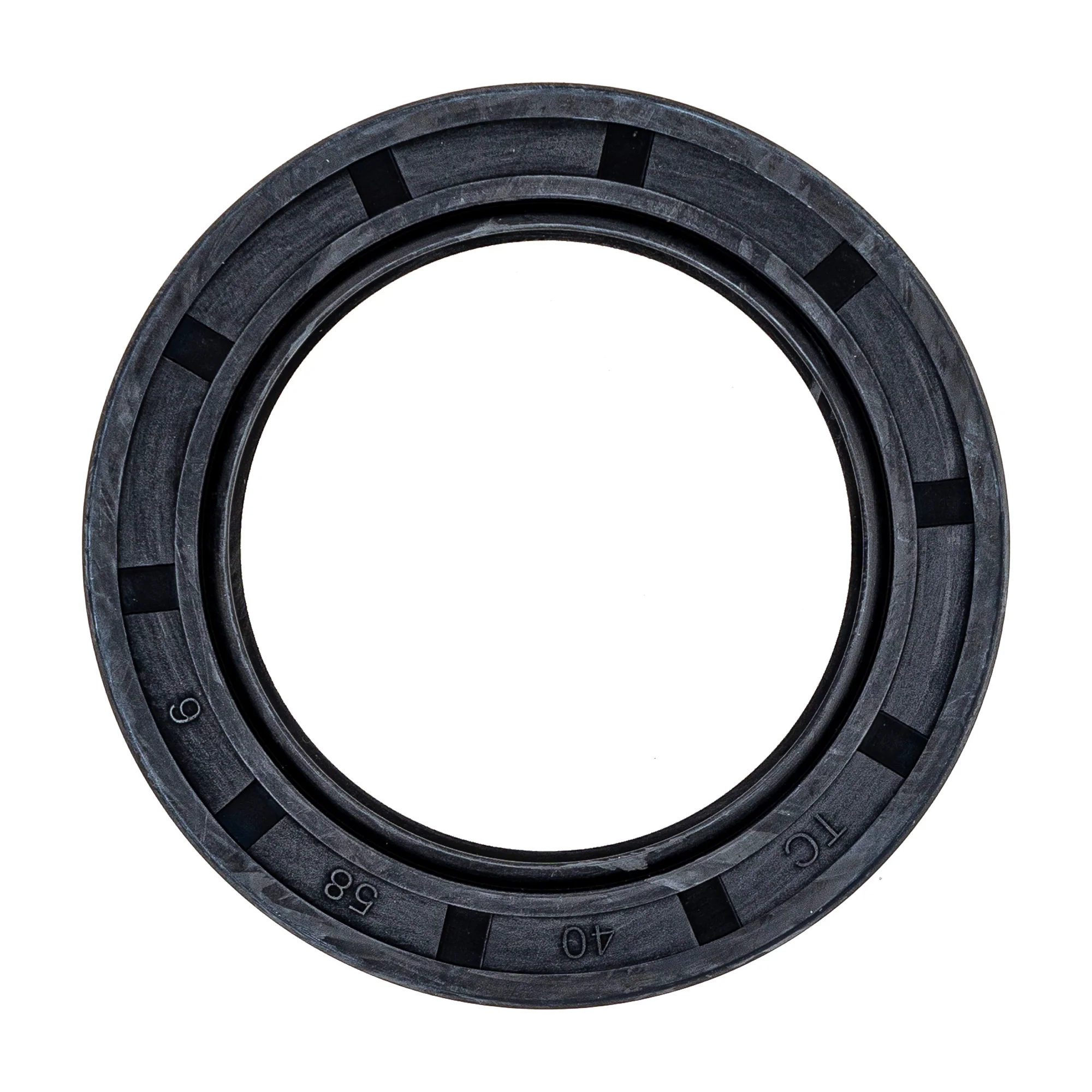

(QTY 2) NICHE 519-CSE2245A Seal Type TC 40x58x6

Substitute For OEM Part Numbers(s): 09283-40018

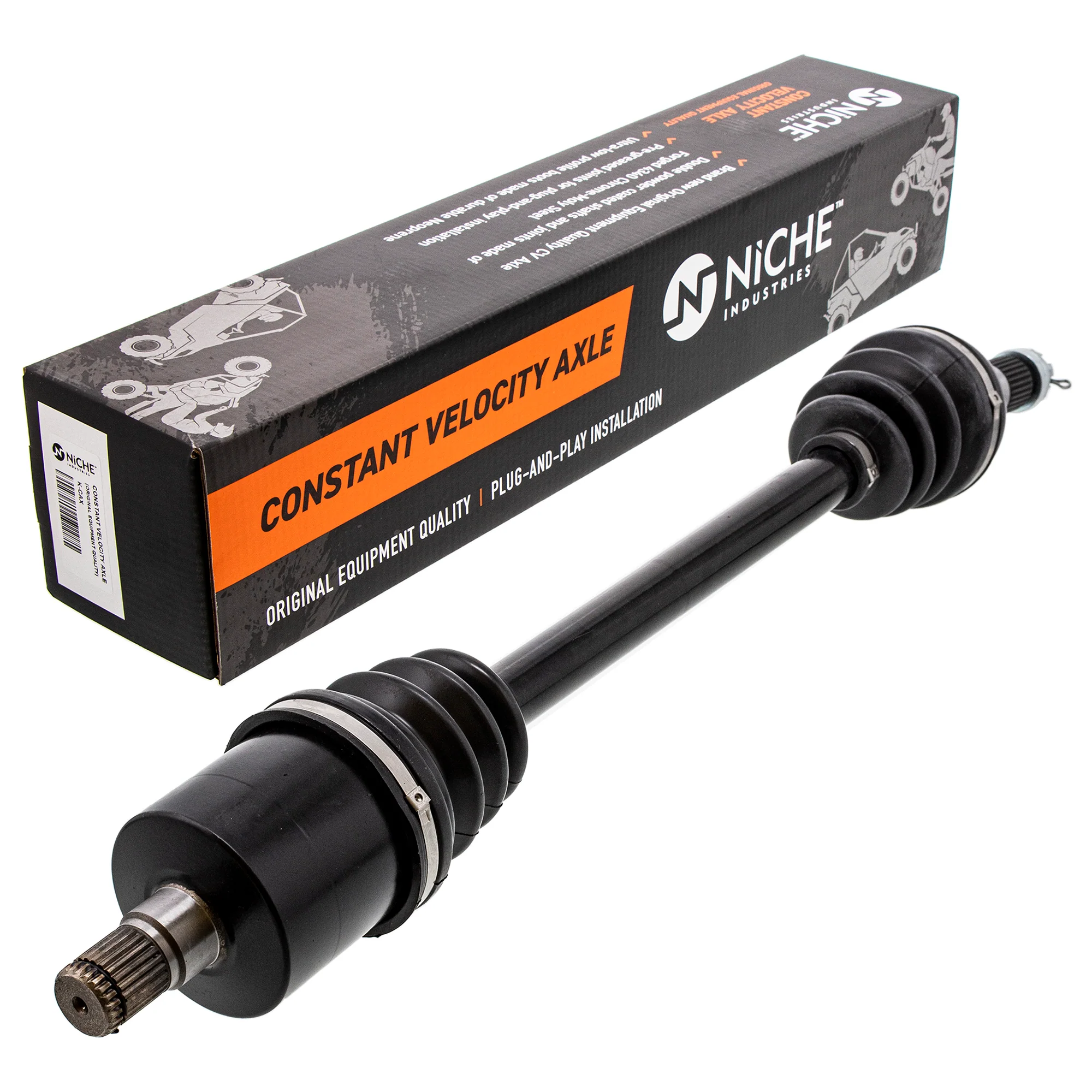

(QTY 2) NICHE 519-KCA2378X Rear Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705502411, 705502355

Compatible with the Following Vehicles:

Arctic Cat XC 450: 2011-2017
Arctic Cat Alterra 500: 2017-2018
Arctic Cat Alterra 450: 2016
Arctic Cat Alterra 400: 2016-2017
Arctic Cat 450: 2014-2015
Arctic Cat 425 Special: 2012
Arctic Cat 425: 2011-2012
Arctic Cat 400 Automatic: 2013-2015
Arctic Cat 366 Special: 2010-2011
Arctic Cat 350: 2011-2012
