MK1009364 Axle and Wheel Bearing Kit Product Info:

• NICHE Bearing 27x55x32; Diameters Inner (ID) 27mm; Outer (OD) 55mm; Height 32mm
• Front Left Compressed Length 19 3/8, Inboard Splines 20T, Inboard Spline Diameter 2 9/16, Outboard Splines 26T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M20x1.0
• Front Right Compressed Length 19 15/16, Inboard Splines 20T, Inboard Spline Diameter 2 9/16, Outboard Splines 26T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M20x1.0

Included in This Kit:

(QTY 2) NICHE 519-CBB2289R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 91051-HR3-A21

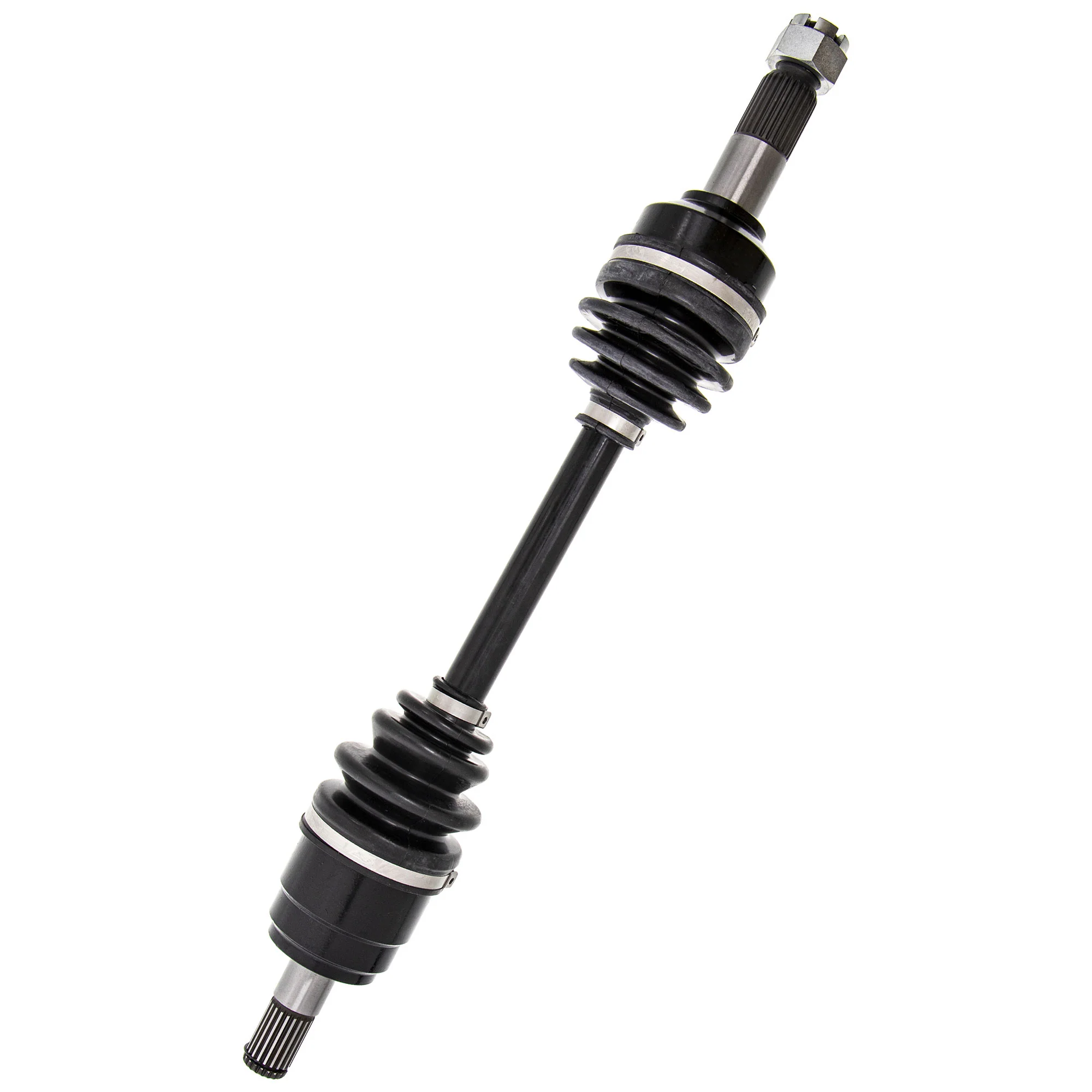

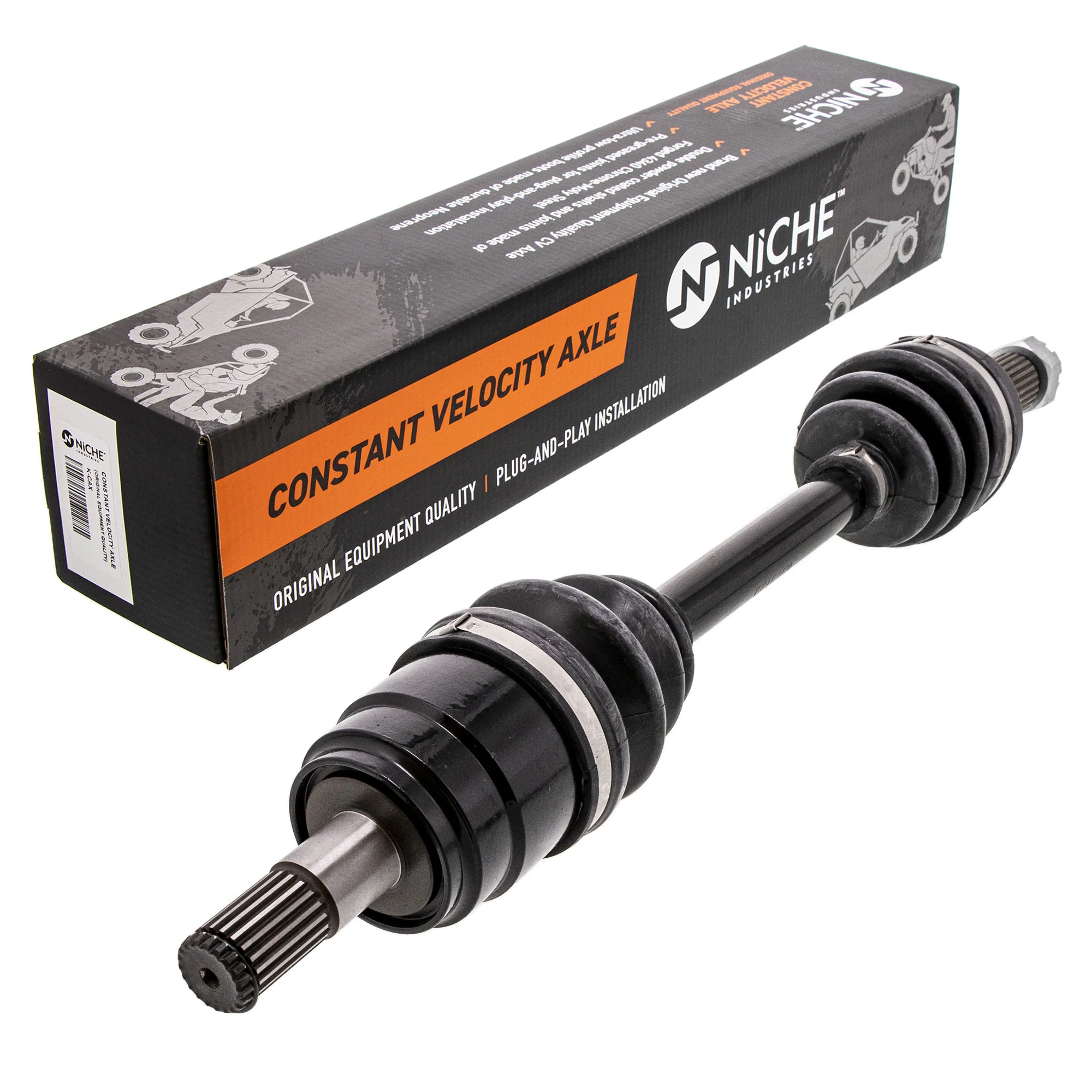

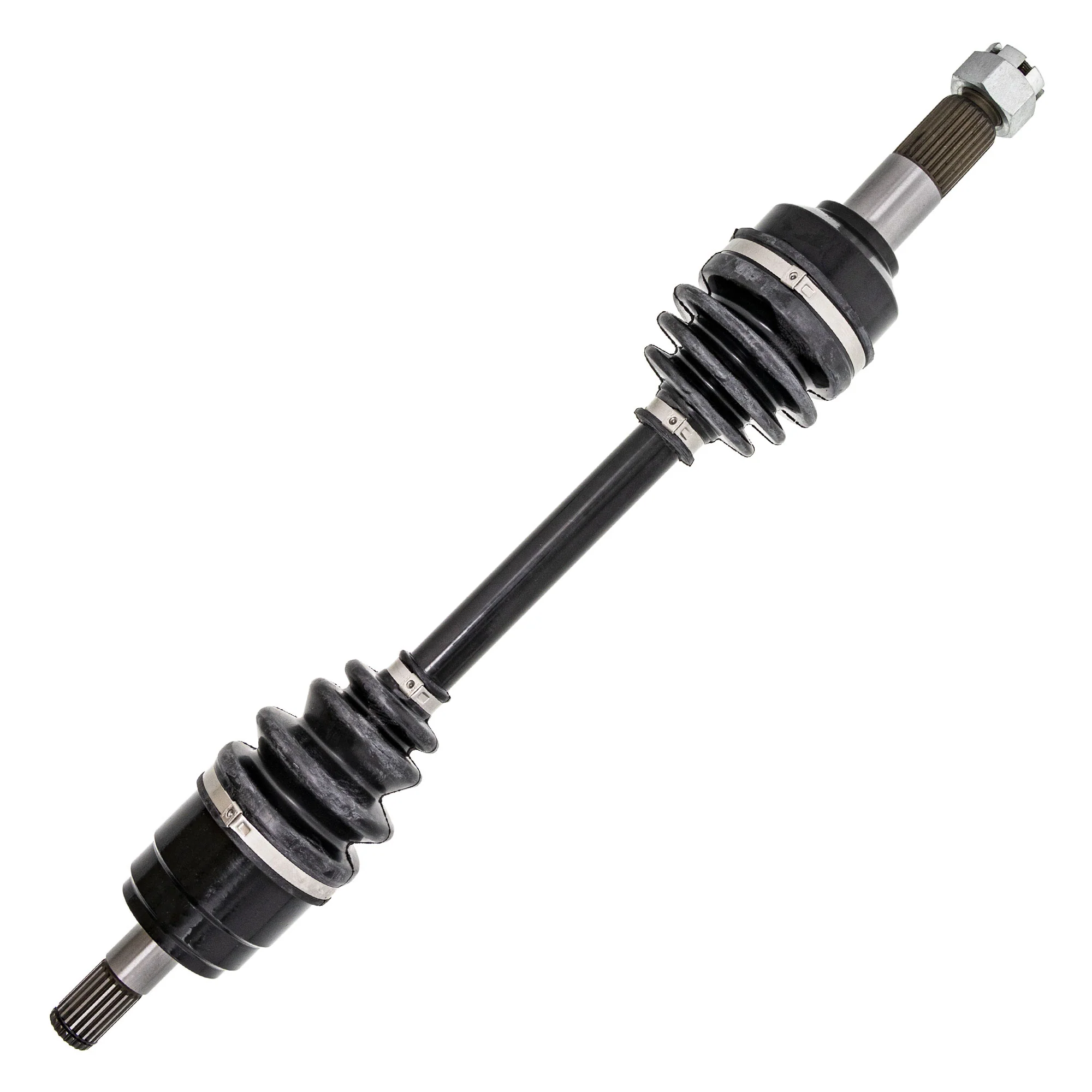

(QTY 1) NICHE 519-KCA2343X Front Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 44350-HR4-A22, 44350-HR4-A21

(QTY 1) NICHE 519-KCA2345X Front Right Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 44250-HR4-A22, 44250-HR4-A21

Compatible with the Following Vehicles:

Honda FourTrax Foreman 500 EPS: 2014-2019
Honda FourTrax Foreman 500 ES EPS: 2014-2019
Honda FourTrax Foreman 500 ES: 2014-2019
Honda FourTrax Foreman 500: 2014-2019
Honda FourTrax Foreman Rubicon 500 Auto DCT Deluxe EPS: 2015-2016
Honda FourTrax Foreman Rubicon 500 Auto DCT EPS: 2015-2016
Honda FourTrax Foreman Rubicon 500 Auto DCT: 2015-2016
Honda FourTrax Foreman Rubicon 500 Deluxe EPS: 2015-2016
Honda FourTrax Foreman Rubicon 500 EPS: 2015-2019
Honda FourTrax Foreman Rubicon 500: 2015-2019
Polaris Sportsman 400: 2004
