MK1009368 Axle and Wheel Bearing Kit Product Info:

• NICHE Bearing 35x64x37; Diameters Inner (ID) 35mm; Outer (OD) 64mm; Height 37mm
• Axle Compressed Length 21 5/16, Inboard Splines 22T, Inboard Spline Diameter 2 9/16, Outboard Splines 20T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement 5/8x16

Included in This Kit:

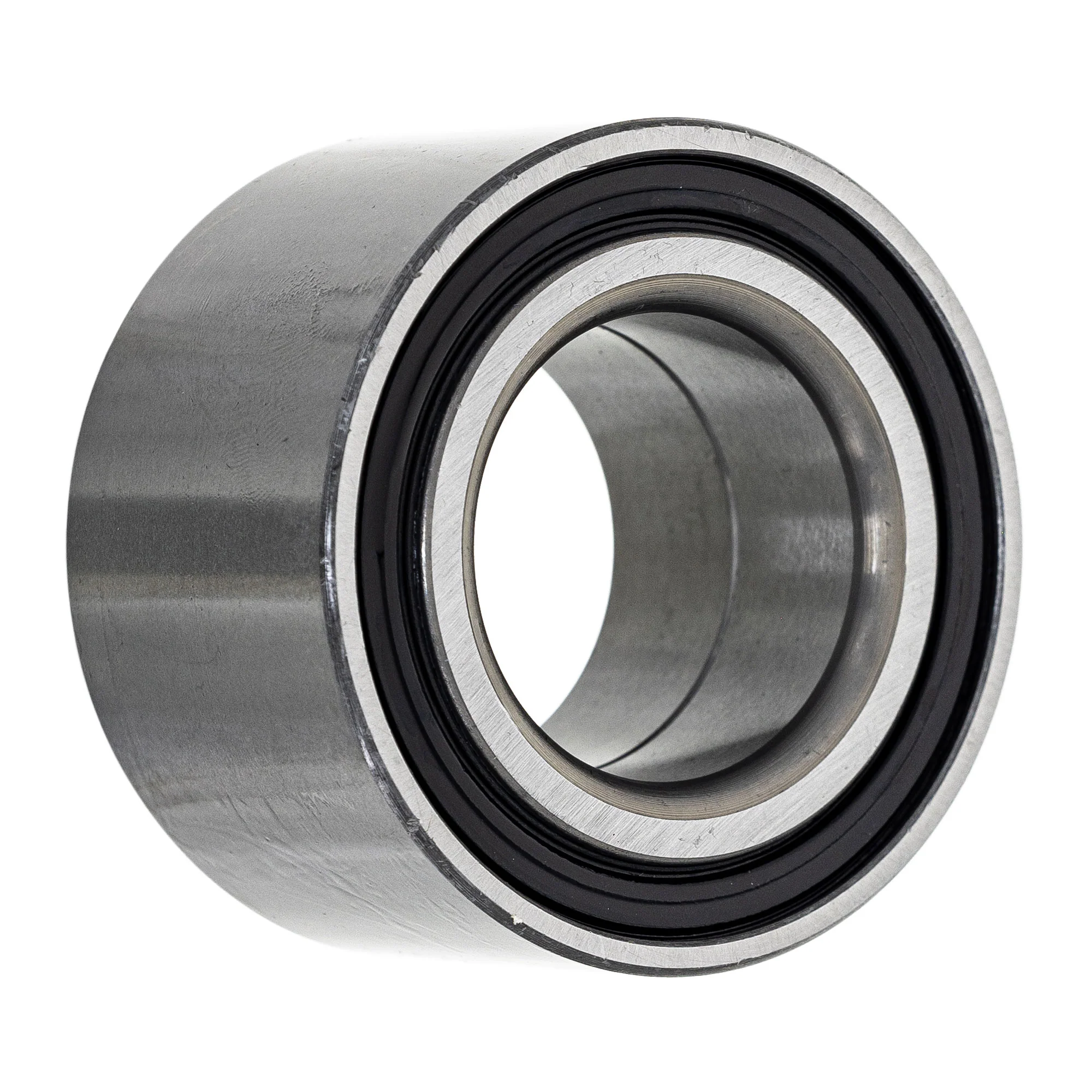

(QTY 1) NICHE 519-CBB2283R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3514634, 3514342

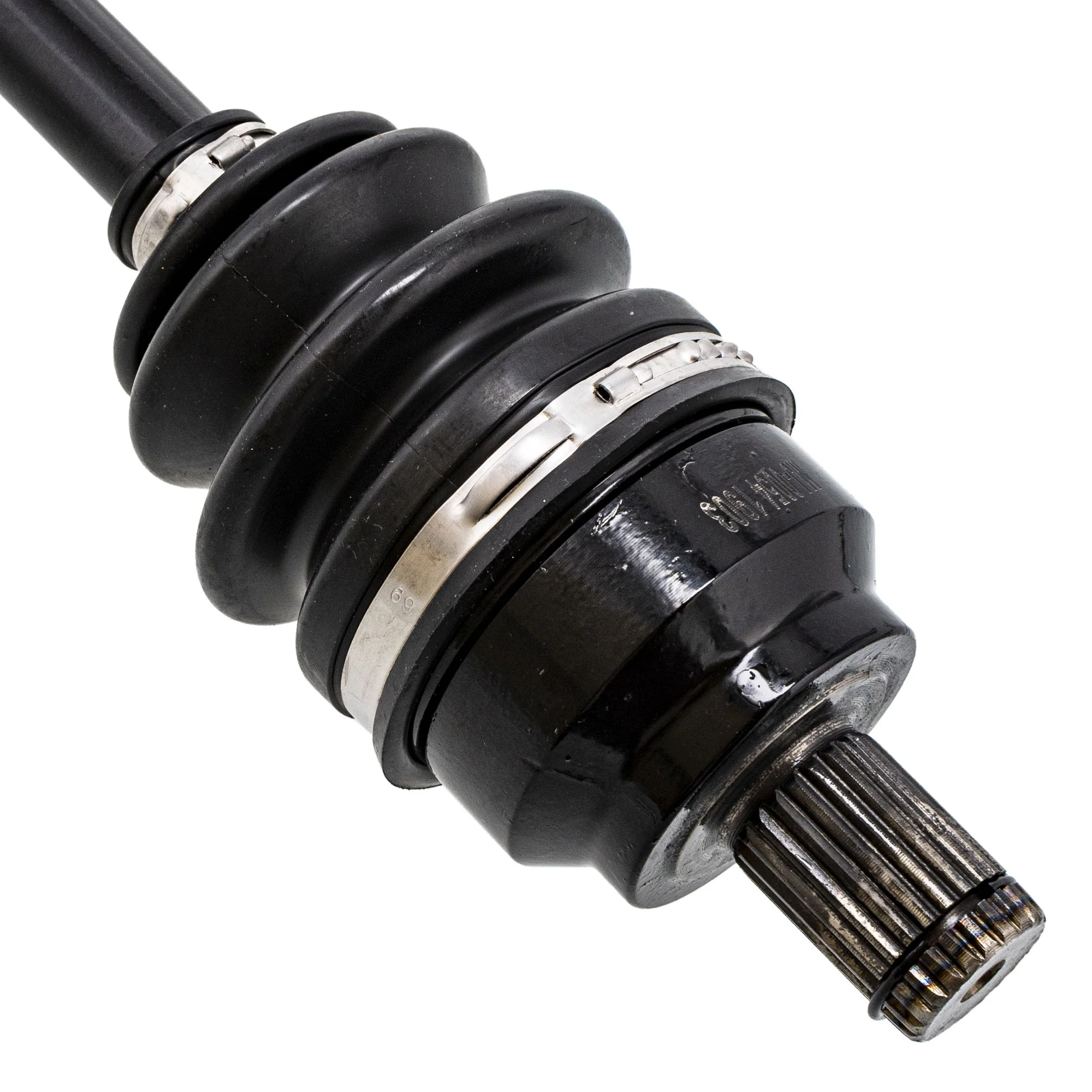

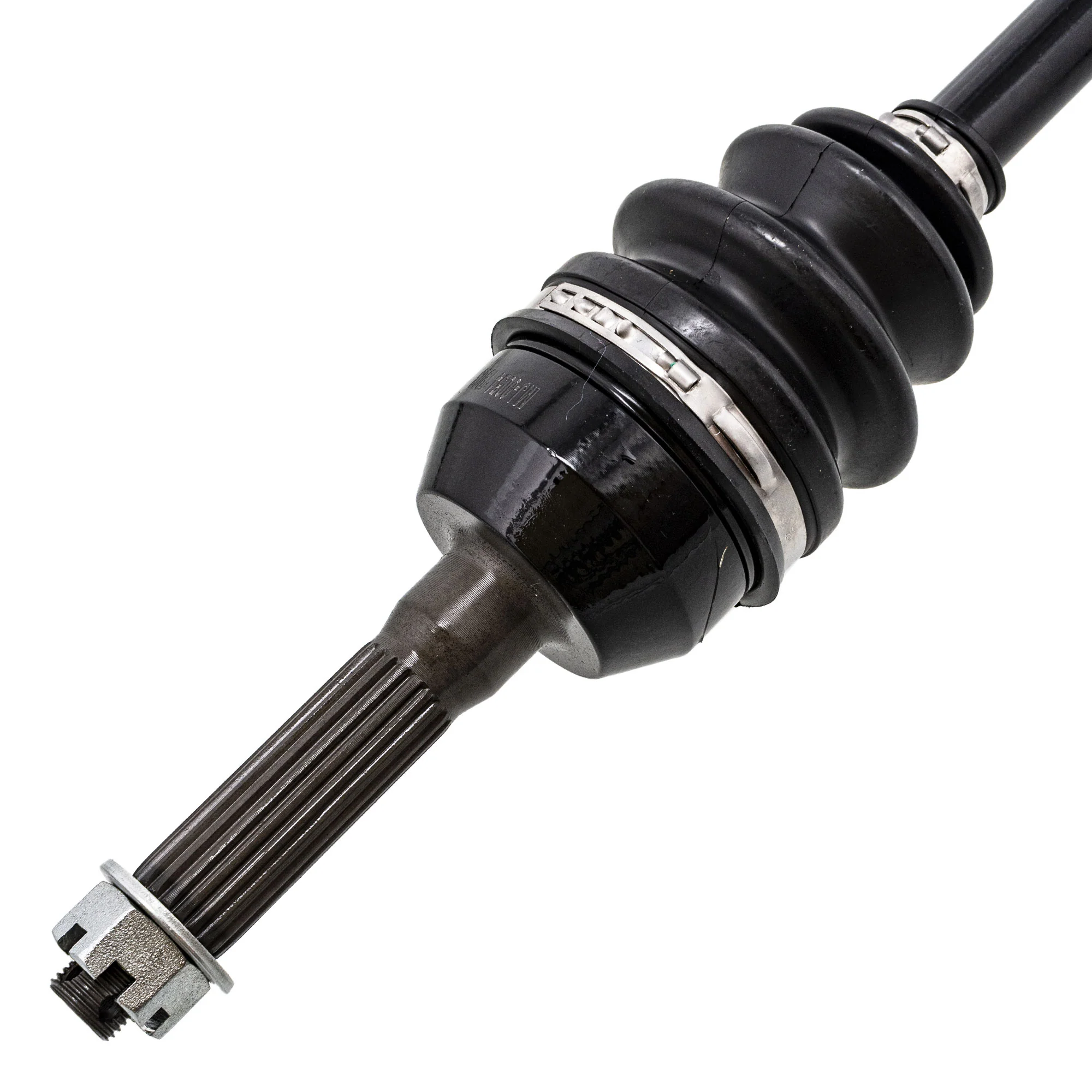

(QTY 1) NICHE 519-KCA2276X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332931

Compatible with the Following Vehicles:

Polaris Sportsman X2 570 EPS: 2015-2017
Polaris Sportsman Touring 570 SP EPS: 2015-2017
Polaris Sportsman Touring 570 EPS: 2015-2017
Polaris Sportsman Touring 570: 2014-2017
Polaris Sportsman Touring 500 HO: 2013
Polaris Sportsman ETX: 2015
Polaris Sportsman 800 Military: 2013-2016
Polaris Sportsman 800 6X6 Forest: 2013-2015
Polaris Sportsman 800: 2013-2016
Polaris Sportsman 570 SP EPS: 2015-2017
Polaris Sportsman 570 EPS Utility: 2017
Polaris Sportsman 570 EPS: 2014-2017
Polaris Sportsman 570 6X6 Big Boss: 2017
Polaris Sportsman 570: 2014-2017
Polaris Sportsman 500 HO: 2013-2014
Polaris Sportsman 450 HO Utility: 2017
Polaris Sportsman 450 HO EPS: 2016-2017
Polaris Sportsman 450 HO: 2016-2017
Polaris Sportsman 400 HO: 2013-2014
Polaris Scrambler 500 2X4: 2000
Polaris Scrambler 400 2X4: 2000
Polaris Scrambler 400: 2000
Polaris Magnum 500 2X4: 2002
