MK1009369 Axle with Wheel Bearing and Seal Kit Product Info:

• Axle Compressed Length 20 9/16, Inboard Splines 22T, Inboard Spline Diameter Cardan Joint, Outboard Splines 26T, Outboard Spline Diameter 3, Shaft Diameter 15/16, Thread Measurement M19X1.5
• NICHE Bearing 20x47x14; Diameters Inner (ID) 20mm; Outer (OD) 47mm; Height 14mm

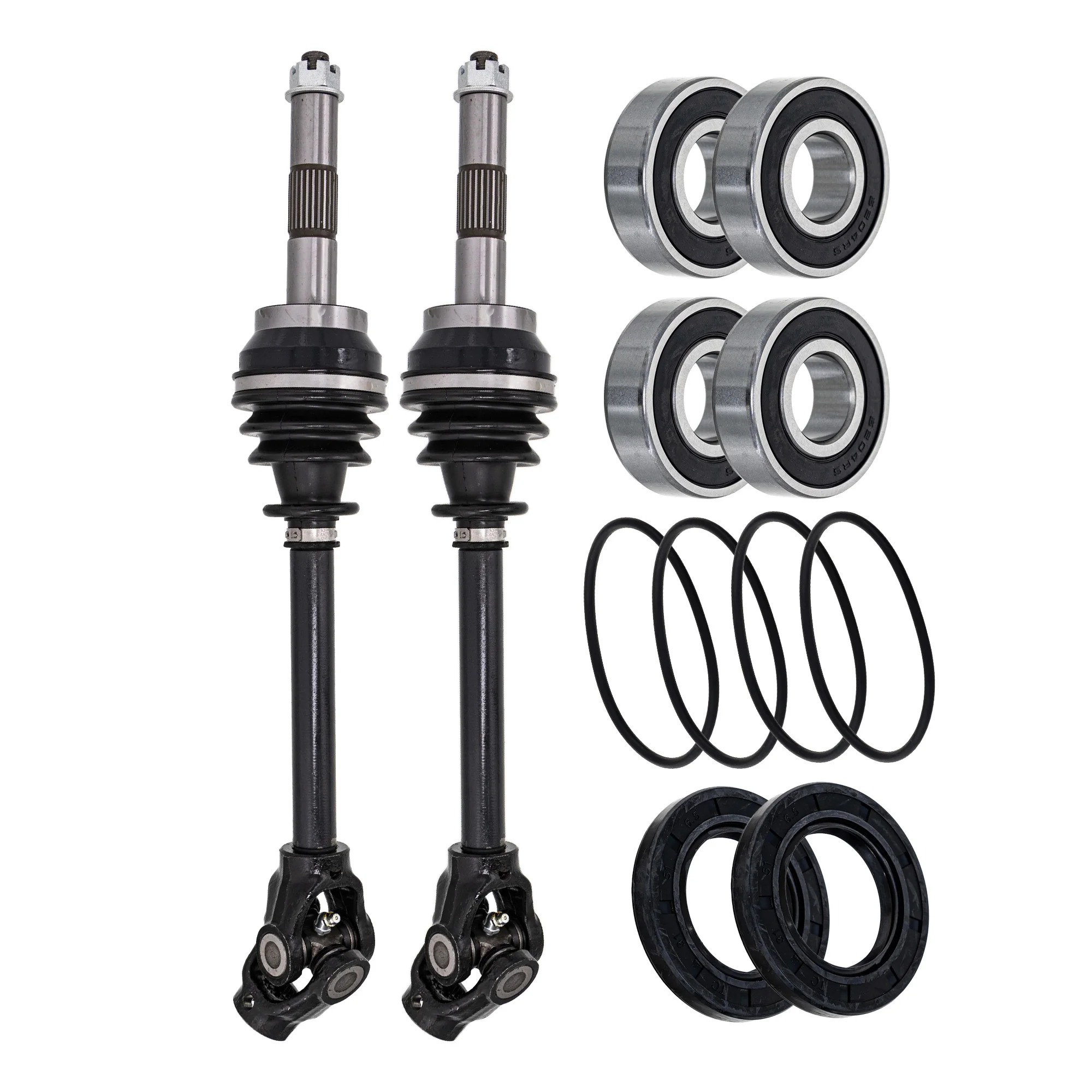

Included in This Kit:

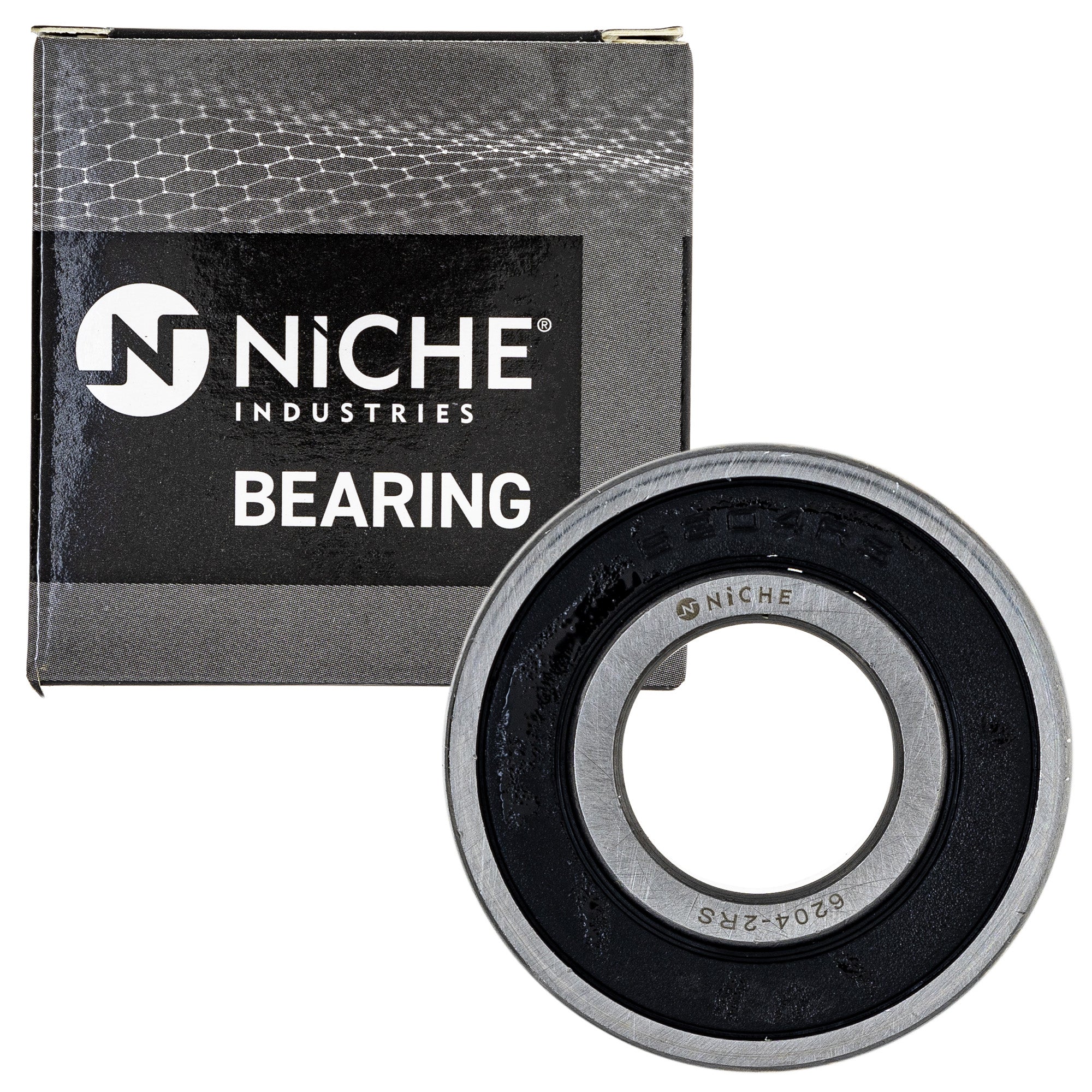

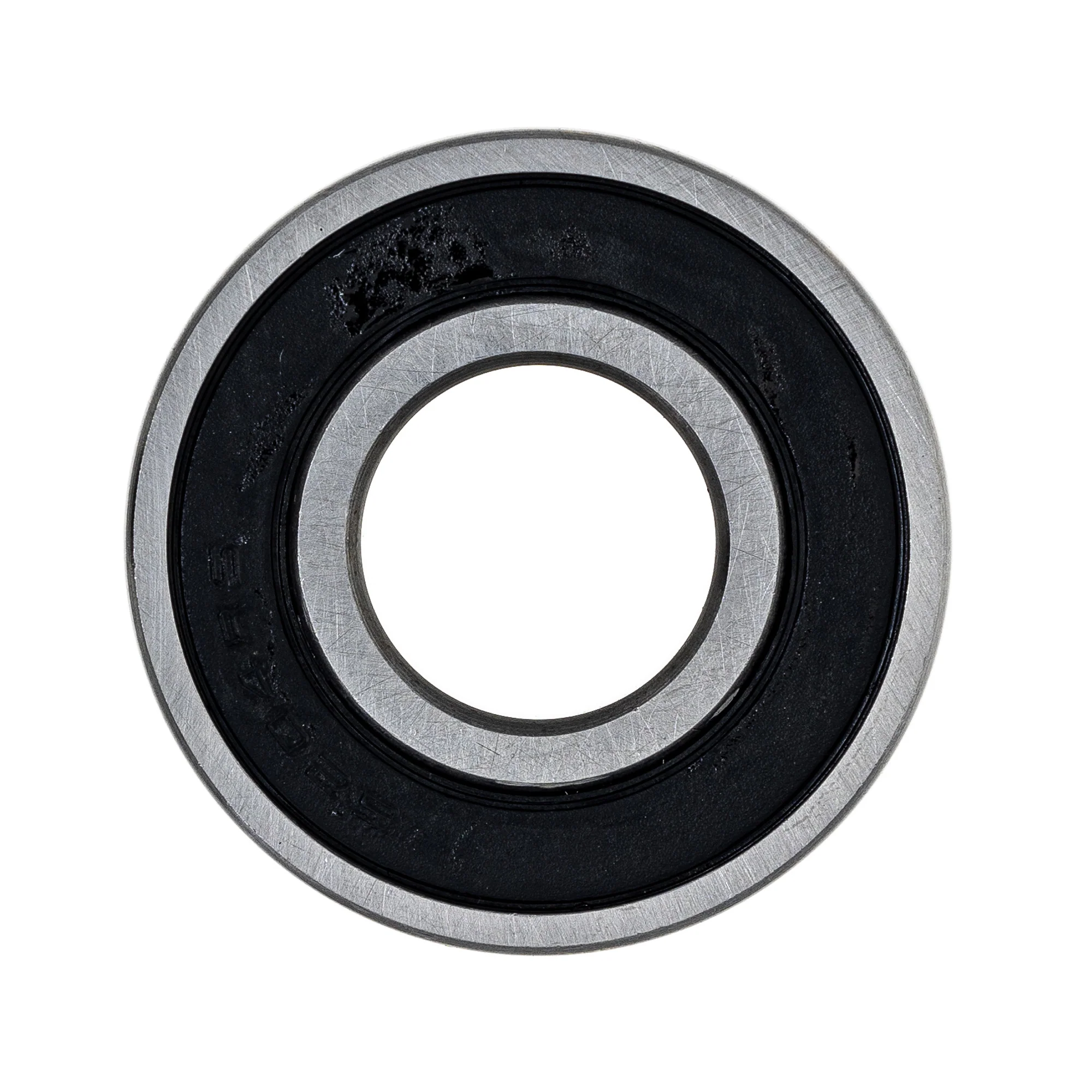

(QTY 4) NICHE 519-CBB2229R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): SU-9001310-0001, NA322329, JD10363, IH-ST207, IH-537290-R91, BD-NA322329, AM124479, 99158, 96150-62040-10, 96140-62040-10, 96120-62040-10, 941-0919B, 941-0919A, 941-0919, 91102-VA4-013, 91061-KS6-831, 91053-MGS-D31, 91052-MZ2-A21, 91052-MM5-003, 91052-MBR-003, 91052-MBC-004, 91052-MAE-004, 91051-MAE-004, 91013-MCG-901, 88-000625-4-204, 741-0919P, 741-0919B, 741-0919A, 741-0919, 5412300, 532129895, 50384, 405402900, 405402400, 365330, 339599X1, 25182, 251297, 251-204, 1652-111, 129895, 1120377

(QTY 4) NICHE 519-COR2246N O-Ring

Substitute For OEM Part Numbers(s):

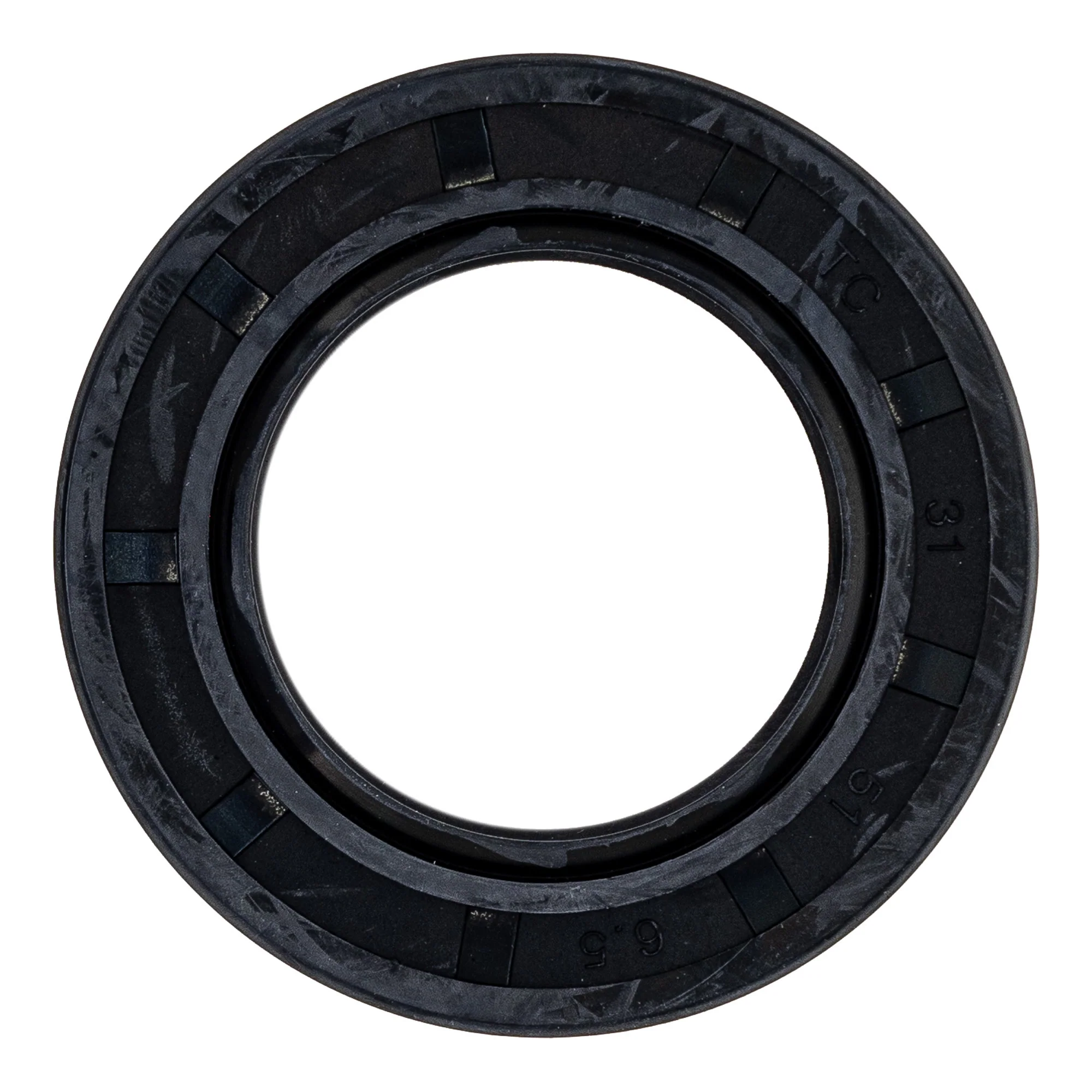

(QTY 2) NICHE 519-CSE2263A Seal Type TC 31x51x6.5

Substitute For OEM Part Numbers(s):

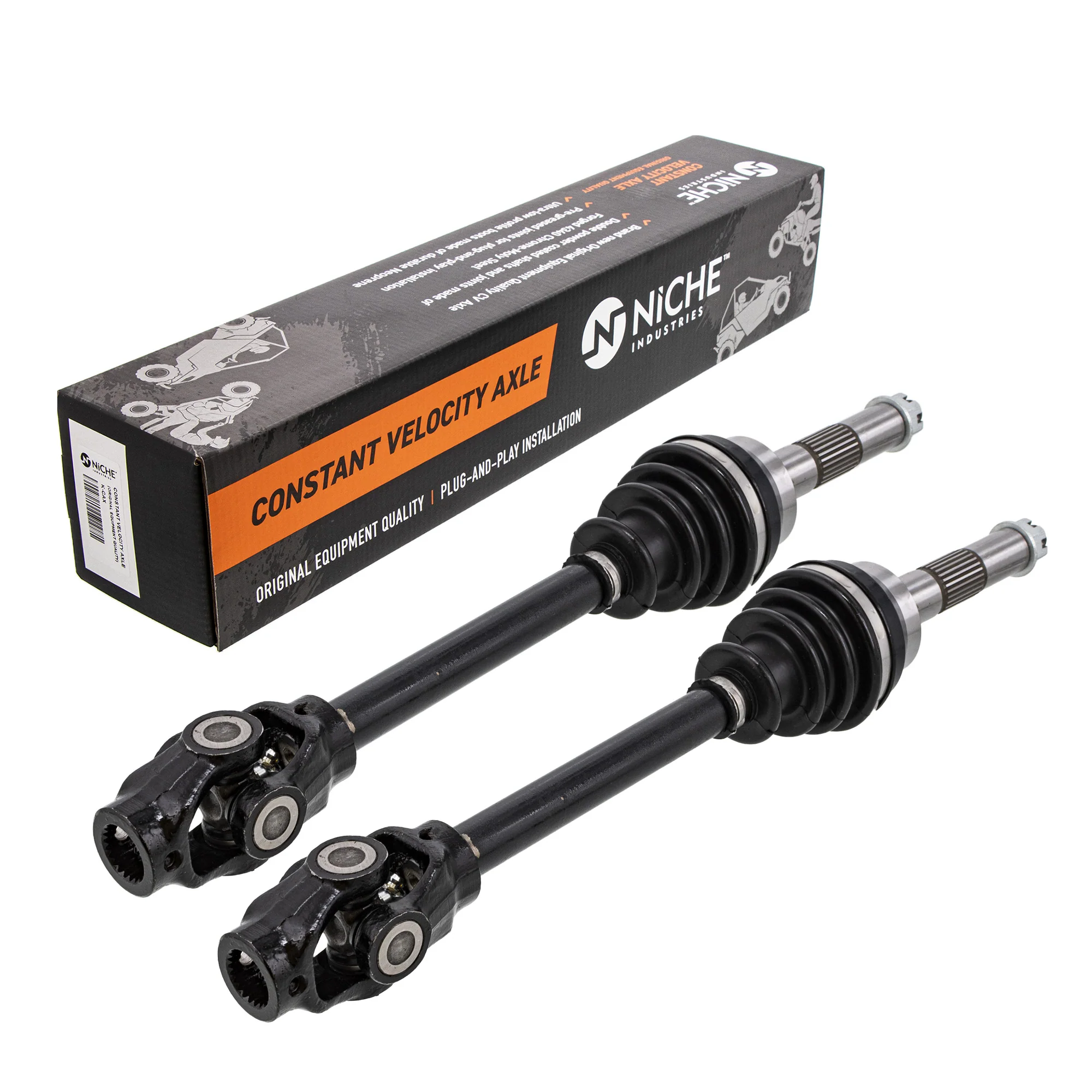

(QTY 2) NICHE 519-KCA2261X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 2200961, 2200960, 1380114, 1380113, 1380094, 1380092, 1380086, 1380085, 1380066, 1380063

Compatible with the Following Vehicles:

Can-Am Maverick Max 1000R X RS DPS: 2014-2015
Can-Am Maverick Max 1000R X DS DPS: 2015
Can-Am Maverick Max 1000R Turbo X DS: 2015
Can-Am Maverick Max 1000R: 2014-2015
Can-Am Maverick 1000R X RS DPS: 2014-2015
Can-Am Maverick 1000R X RS: 2013-2015
Can-Am Maverick 1000R X MR DPS: 2014
Can-Am Maverick 1000R X DS DPS: 2015
Can-Am Maverick 1000R: 2013-2015
