MK1009377 Axle and Wheel Bearing Kit Product Info:

• Compatible with Axle OEMs for Polaris 1380066, 1380086, 1380085
• NICHE Bearing 35x64x37; Diameters Inner (ID) 35mm; Outer (OD) 64mm; Height 37mm
• Axle Compressed Length 20 9/16, Inboard Splines 22T, Inboard Spline Diameter Cardan Joint, Outboard Splines 26T, Outboard Spline Diameter 3, Shaft Diameter 15/16, Thread Measurement M19X1.5

Included in This Kit:

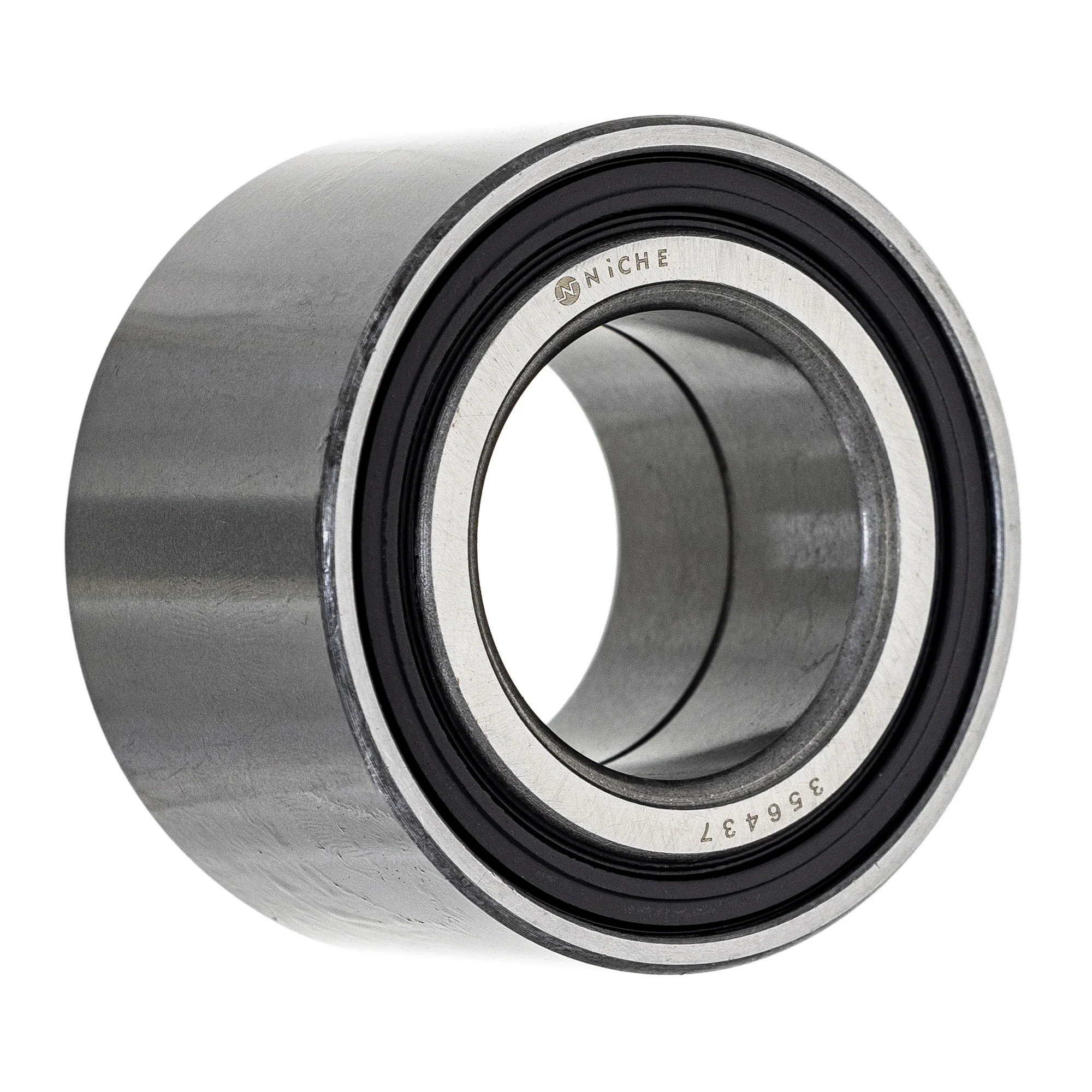

(QTY 2) NICHE 519-CBB2283R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3514634, 3514342

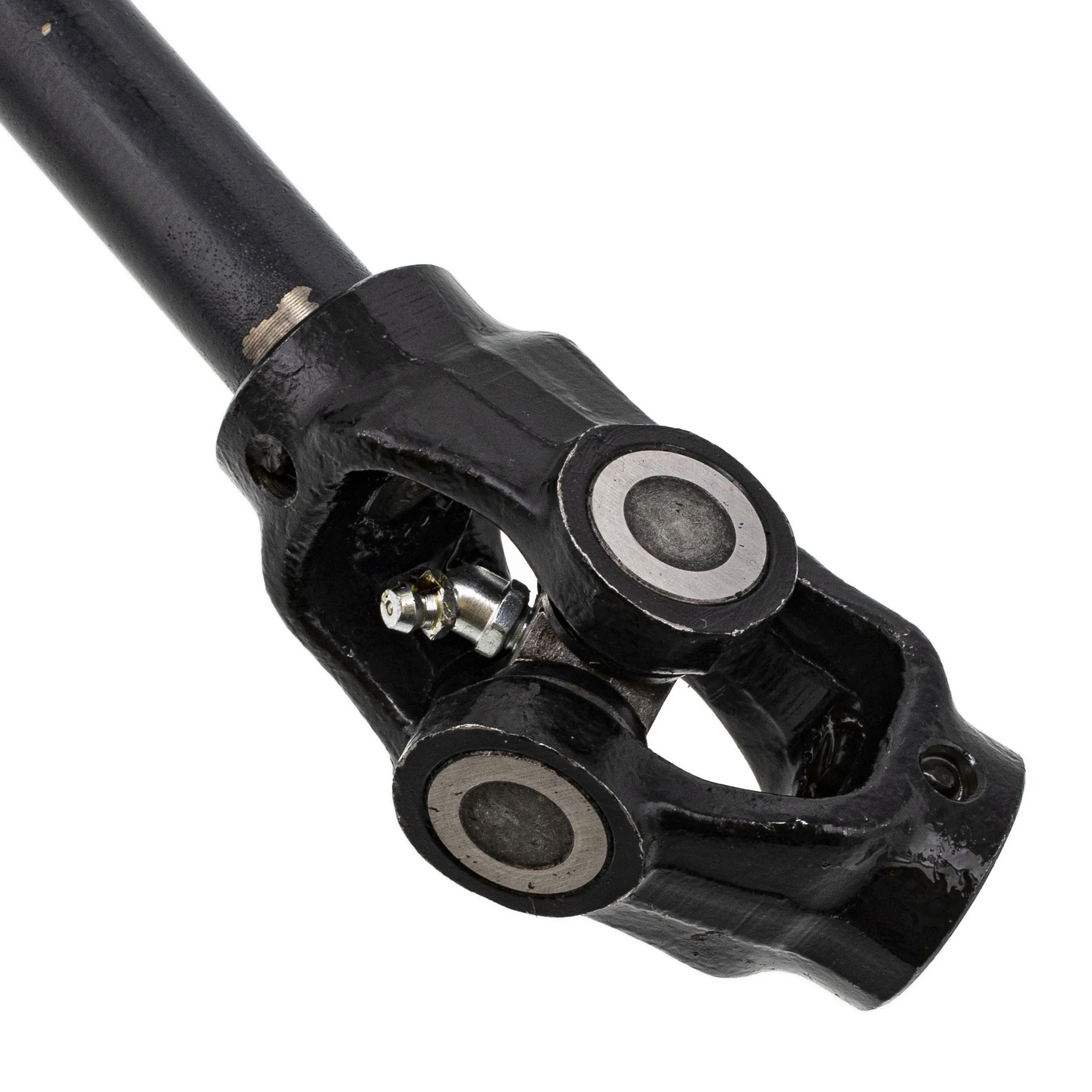

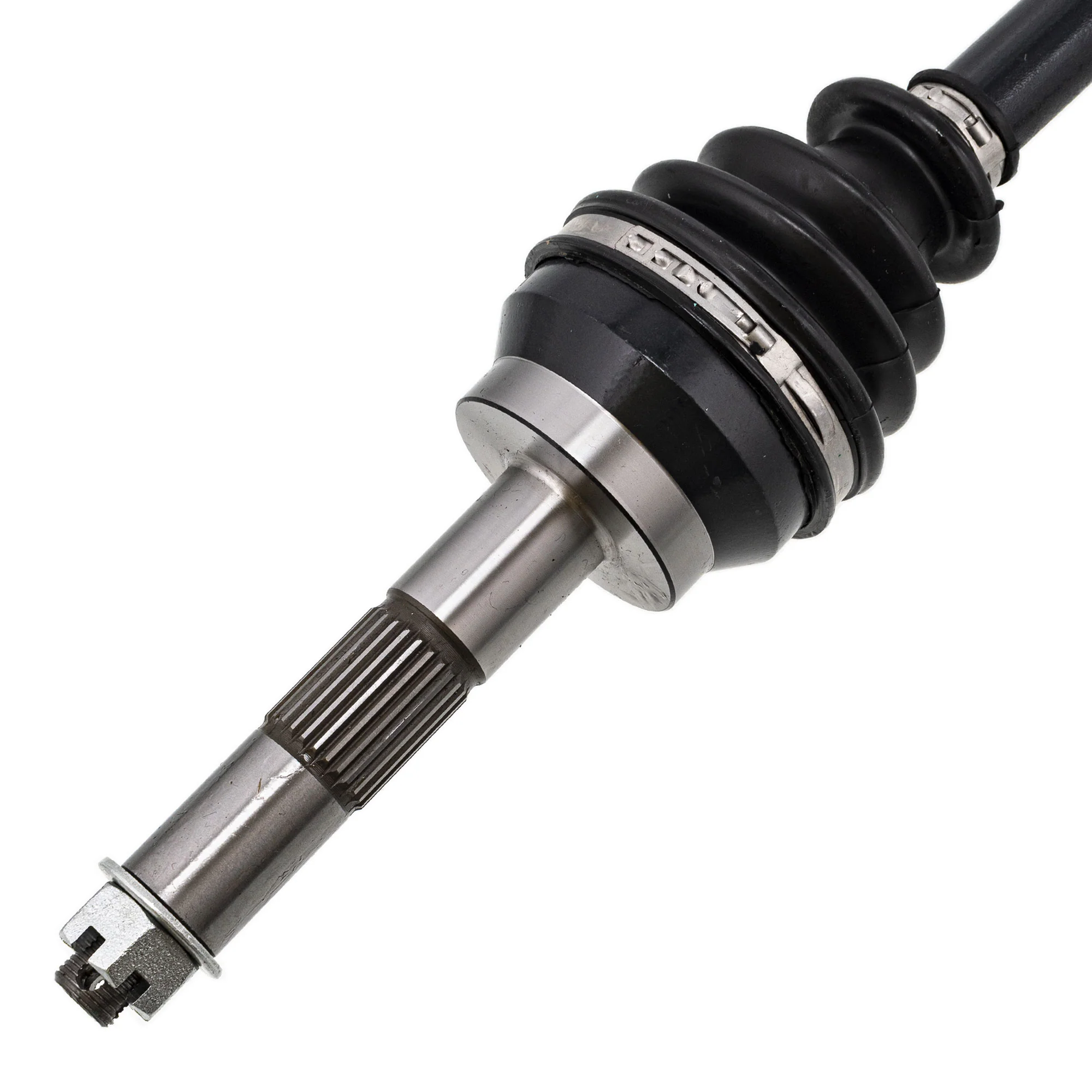

(QTY 2) NICHE 519-KCA2261X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 2200961, 2200960, 1380114, 1380113, 1380094, 1380092, 1380086, 1380085, 1380066, 1380063

Compatible with the Following Vehicles:

Yamaha Grizzly 700 Hunter Edition FI 4X4: 2007
Yamaha Grizzly 660 Hunter Edition 4X4: 2008
Yamaha Grizzly 660 4X4: 2008
Polaris Xpedition 425: 2002
Polaris Xpedition 325: 2002
Polaris Sportsman 500 Limited: 2001
Polaris Sportsman 500 HO Limited: 2001
Polaris Sportsman 500: 1999-2001
Polaris Sportsman 400: 2001
Polaris Sportsman 335: 2000
Polaris Scrambler 500 2X4: 2002
Polaris Scrambler 500: 2000-2002
Polaris Scrambler 400 2X4: 2000
Polaris Scrambler 400: 2000
Polaris Magnum 500 RMK: 2002
Polaris Magnum 500 2X4: 2002
Polaris Magnum 500: 2001-2003
Polaris Magnum 325 Freedom: 2002
Polaris Magnum 325: 2001-2002
Polaris Diesel 455: 2000-2001
