MK1009380 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing Diameters Inner (ID) 30mm; Outer (OD) 60mm; Height 37mm
• Axle Compressed Length 29 13/16, Inboard Splines 24T, Inboard Spline Diameter 3 1/8, Outboard Splines 26T, Outboard Spline Diameter 3 1/8, Shaft Diameter 1, Thread Measurement M18x1.5

Included in This Kit:

(QTY 2) NICHE 519-CBB2261R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 92045-0905, 92045-0762, 706000635, 706000320, 705400088, 293370019, 293350150, 293350126, 293350118, 293350040

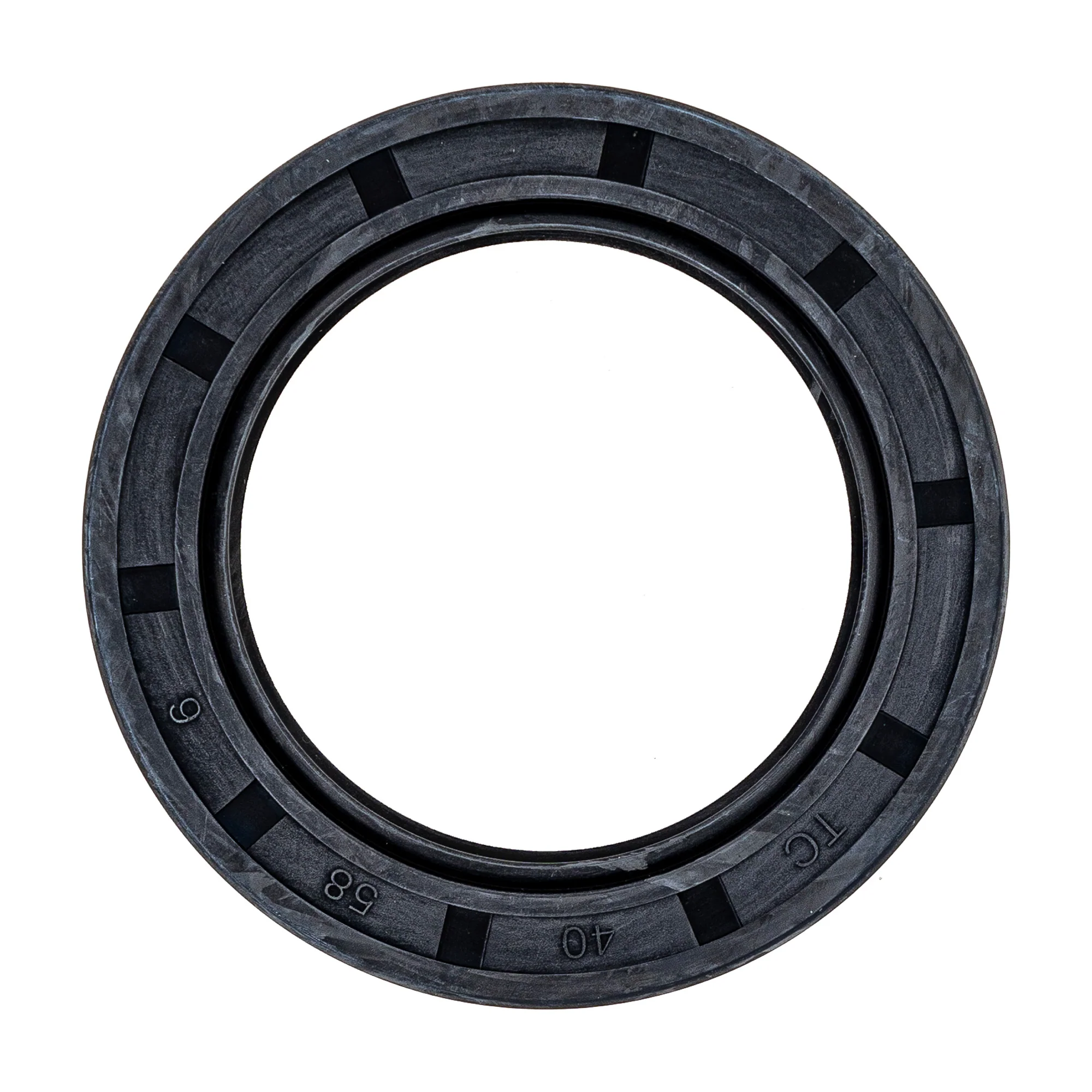

(QTY 2) NICHE 519-CSE2245A Seal Type TC 40x58x6

Substitute For OEM Part Numbers(s): 09283-40018

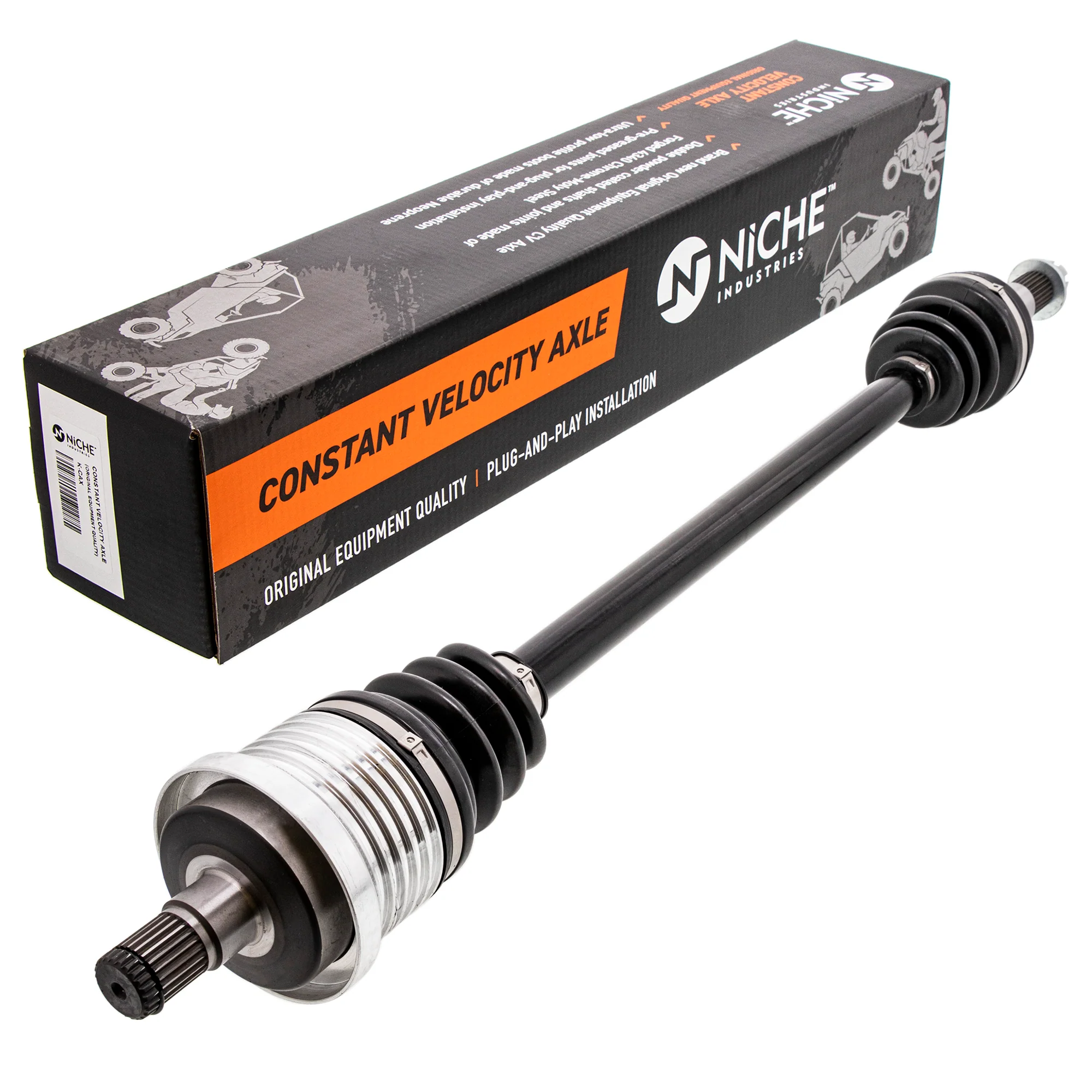

(QTY 2) NICHE 519-KCA2349X Rear Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705502414, 705502413, 705502412, 705502363, 705502356, 705502352, 705502351, 705502235, 705501948, 705501846

Compatible with the Following Vehicles:

Can-Am Renegade 800R X XC: 2013-2014
Can-Am Renegade 800R: 2013-2014
Can-Am Renegade 500: 2013-2014
Can-Am Renegade 1000 X XC: 2013-2015
Can-Am Renegade 1000: 2013-2015
Can-Am Outlander Max 800R DPS: 2015
Can-Am Outlander Max 570 XT DPS: 2018
Can-Am Outlander Max 450: 2019
Can-Am Outlander Max 1000R XT DPS: 2016
Can-Am Outlander Max 1000 XT P DPS: 2013-2014
Can-Am Outlander Max 1000 XT DPS: 2013-2014
Can-Am Outlander Max 1000 Limited DPS: 2013-2015
Can-Am Outlander Max 1000 DPS: 2013-2015
Can-Am Outlander 800R XT P DPS: 2015
Can-Am Outlander 800R XT DPS: 2015
Can-Am Outlander 800R DPS: 2015
Can-Am Outlander 800R: 2015
Can-Am Outlander 650 XT DPS 6X6: 2015
Can-Am Outlander 650 North DPS: 2018
Can-Am Outlander 650 DPS 6X6: 2017
Can-Am Outlander 570 X MR DPS: 2019-2021
Can-Am Outlander 570 Hunting DPS: 2019
Can-Am Outlander 570: 2019-2021
Can-Am Outlander 450 DPS: 2019
Can-Am Outlander 450: 2019
Can-Am Outlander 1000R XT DPS: 2016
Can-Am Outlander 1000 XT P DPS: 2013-2014
Can-Am Outlander 1000 XT DPS 6X6: 2015-2018
Can-Am Outlander 1000 XT DPS: 2013-2018
Can-Am Outlander 1000 XT Camo DPS 6X6: 2016
Can-Am Outlander 1000 X MR DPS: 2015
Can-Am Outlander 1000 DPS: 2013-2015
