MK1009385 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing Dimensions 25.4x50.3x14.9; 40x74x40; 27x50.3x15
• Front Axle Compressed Length 20 9/16, Inboard Splines 22T, Inboard Spline Diameter Cardan Joint, Outboard Splines 26T, Outboard Spline Diameter 3, Shaft Diameter 15/16, Thread Measurement 5/8X16
• Rear Axle Compressed Length 21 9/16, Inboard Splines 36T, Inboard Spline Diameter 3 1/4, Outboard Splines 26T, Outboard Spline Diameter 3 3/16, Shaft Diameter 1, Thread Measurement M19X1.5

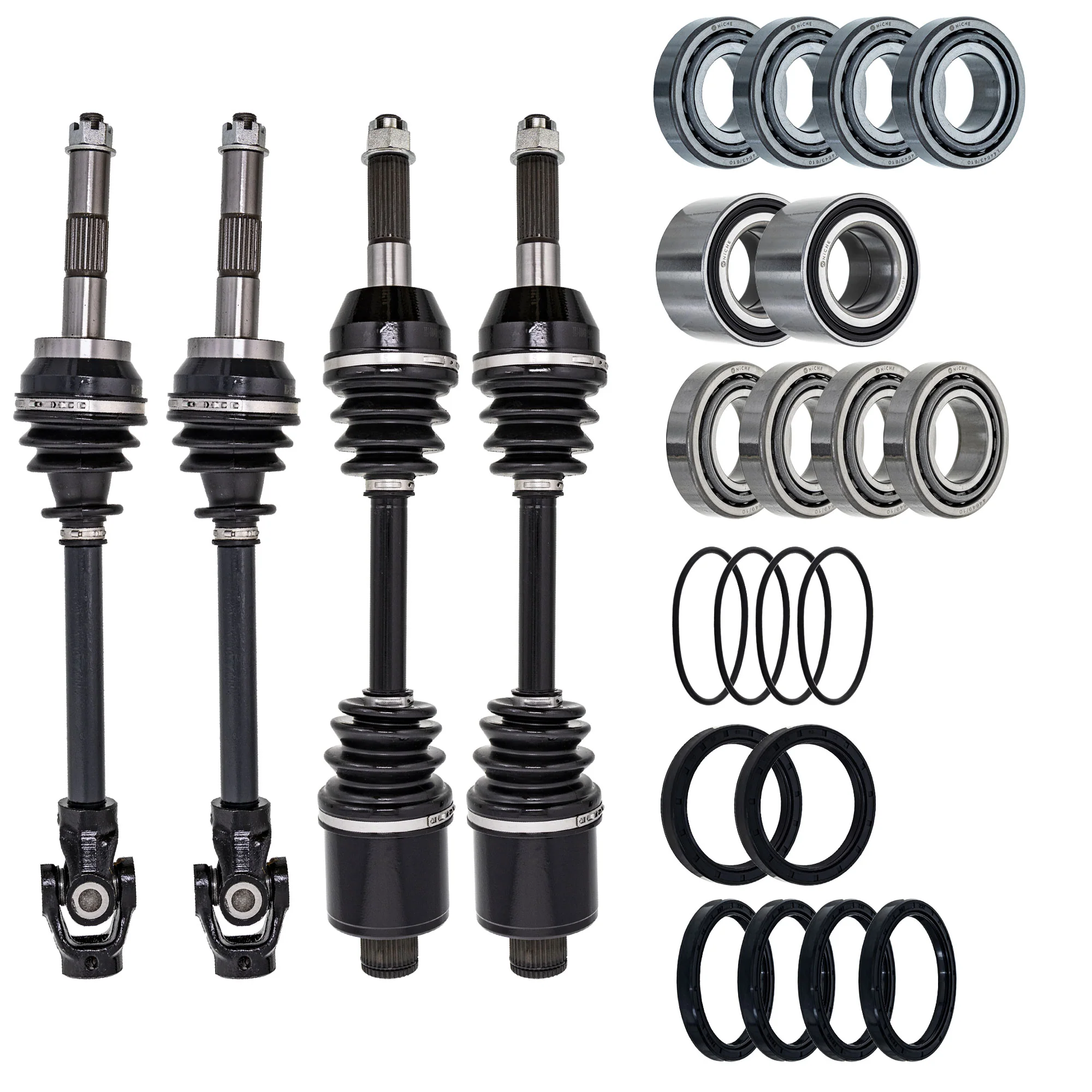

Included in This Kit:

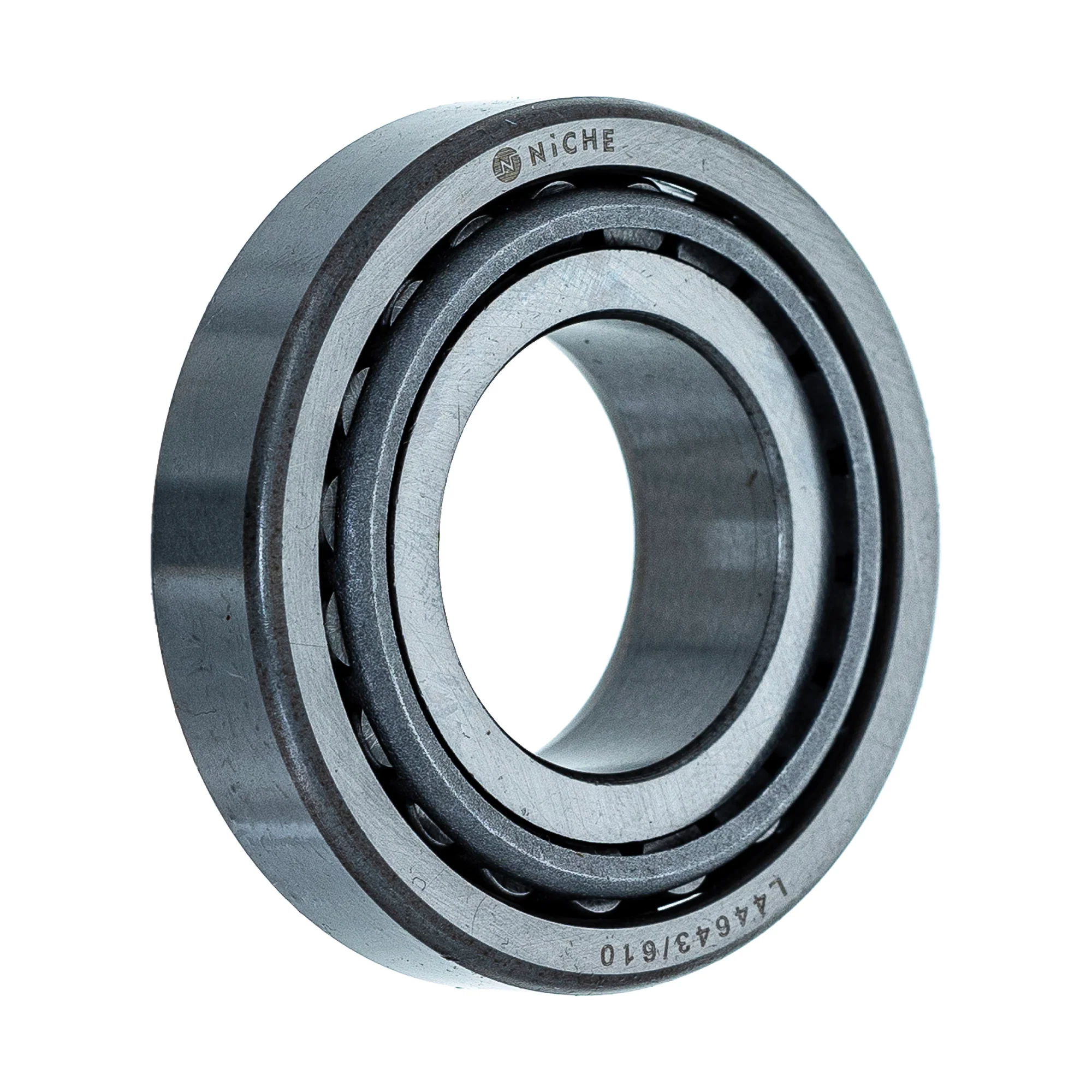

(QTY 4) NICHE 519-CBB2240R Tapered Roller Bearing

Substitute For OEM Part Numbers(s): N71319942, 3554507, 3554506, 3515501, 3514634, 3514342, 3514001, 3513523, 3233019

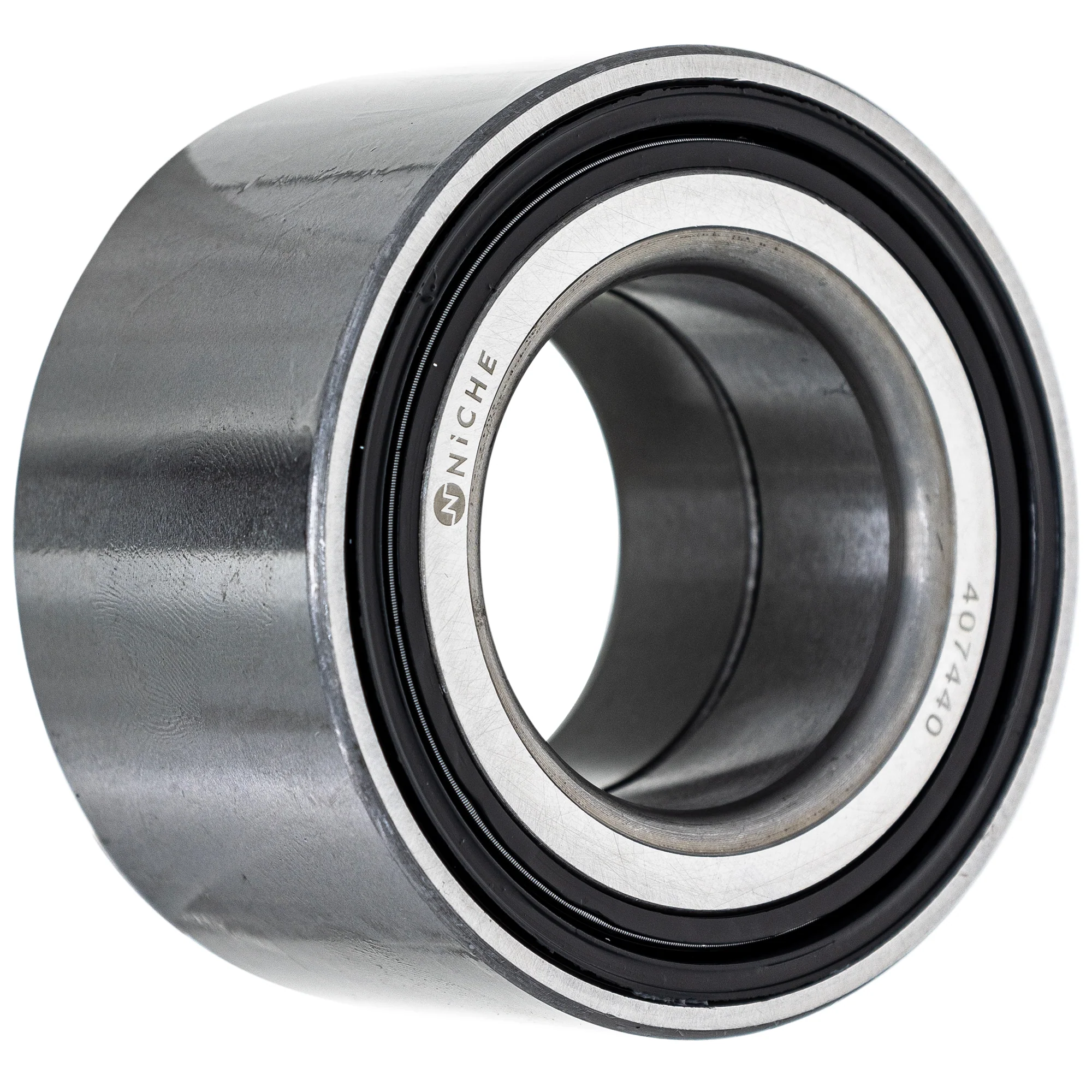

(QTY 2) NICHE 519-CBB2259R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3585502, 3514635

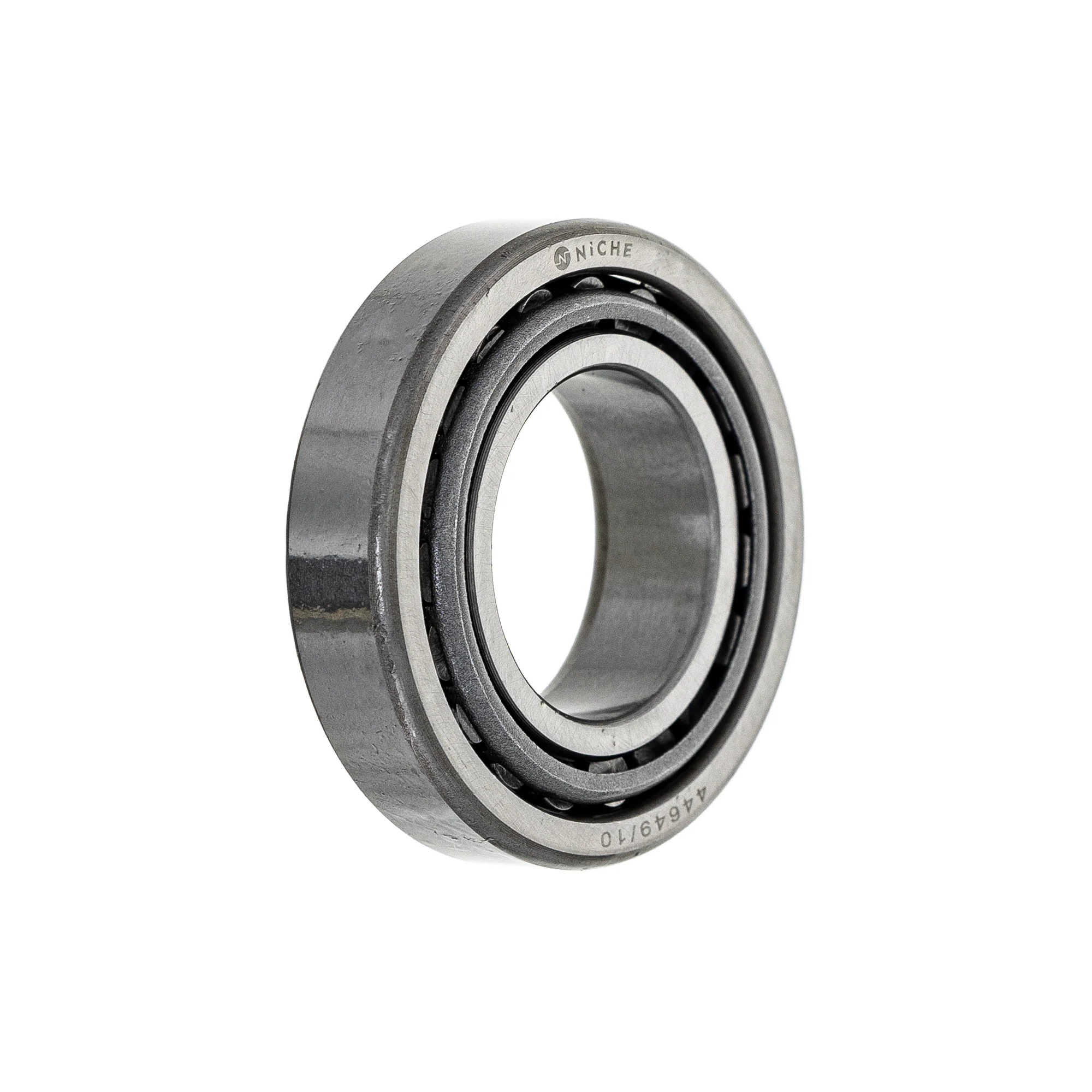

(QTY 4) NICHE 519-CBB2268R Tapered Roller Bearing

Substitute For OEM Part Numbers(s): N71319942, 3554507

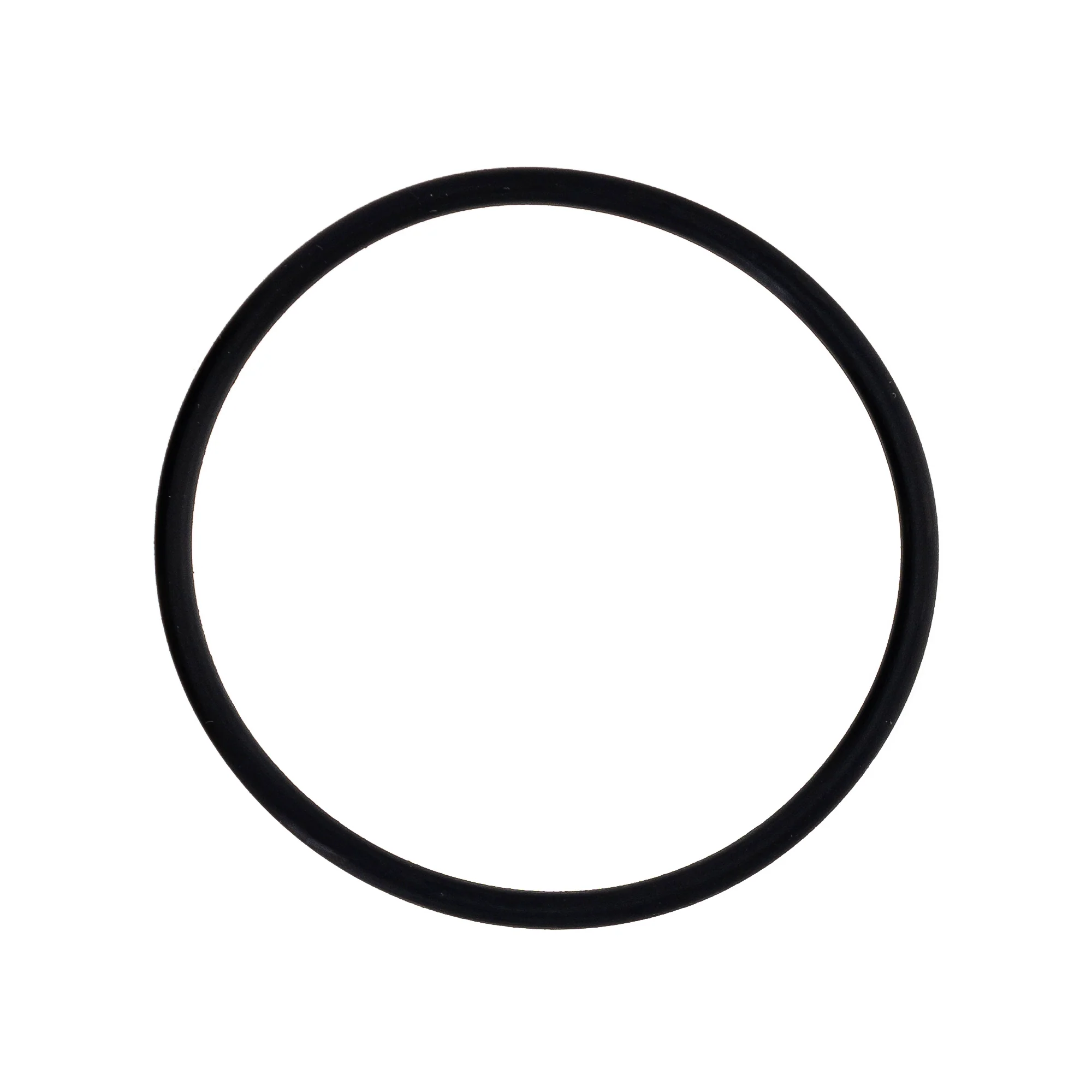

(QTY 4) NICHE 519-COR2246N O-Ring

Substitute For OEM Part Numbers(s):

(QTY 2) NICHE 519-CSE2242A Seal Type TC 65x83x12

Substitute For OEM Part Numbers(s):

(QTY 4) NICHE 519-CSE2246A Seal Type TC 59x73x8

Substitute For OEM Part Numbers(s): 3610061, 3610028

(QTY 2) NICHE 519-KCA2267X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1380215

(QTY 2) NICHE 519-KCA2260X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1380240

Compatible with the Following Vehicles:

Yamaha Grizzly 700 Special Edition FI 4X4: 2007
Yamaha Grizzly 700 Outdoorsman Edition FI 4X4: 2007
Yamaha Grizzly 700 Hunter Edition FI 4X4: 2007-2008
Yamaha Grizzly 700 FI EPS 4X4: 2008
Yamaha Grizzly 700 FI 4X4: 2007-2008
Yamaha Grizzly 700 Ducks Unlimited Edition FI 4X4: 2007-2008
