MK1009404 Axle and Wheel Bearing Kit Product Info:

• NICHE Bearing 30x55x32; Diameters Inner (ID) 30mm; Outer (OD) 55mm; Height 32mm
• Front Left Compressed Length 21 11/16, Inboard Splines 21T, Outboard Splines 27T, Shaft Diameter 7/8; Front Right Axle Compressed Length 21 5/8, Inboard Splines 21T, Outboard Splines 27T, Shaft Diameter 7/8
• Rear Axle Compressed Length 21 1/2, Inboard Splines 27T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 9/16, Shaft Diameter 13/16, Thread Measurement M22x1.5

Included in This Kit:

(QTY 4) NICHE 519-CBB2246R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 93305-00602-00, 93305-00601-00, 92045-0800, 92045-0123, 3323-119, 21259-31G00, 1402-809, 1402-027, 109-2064, 103-3303

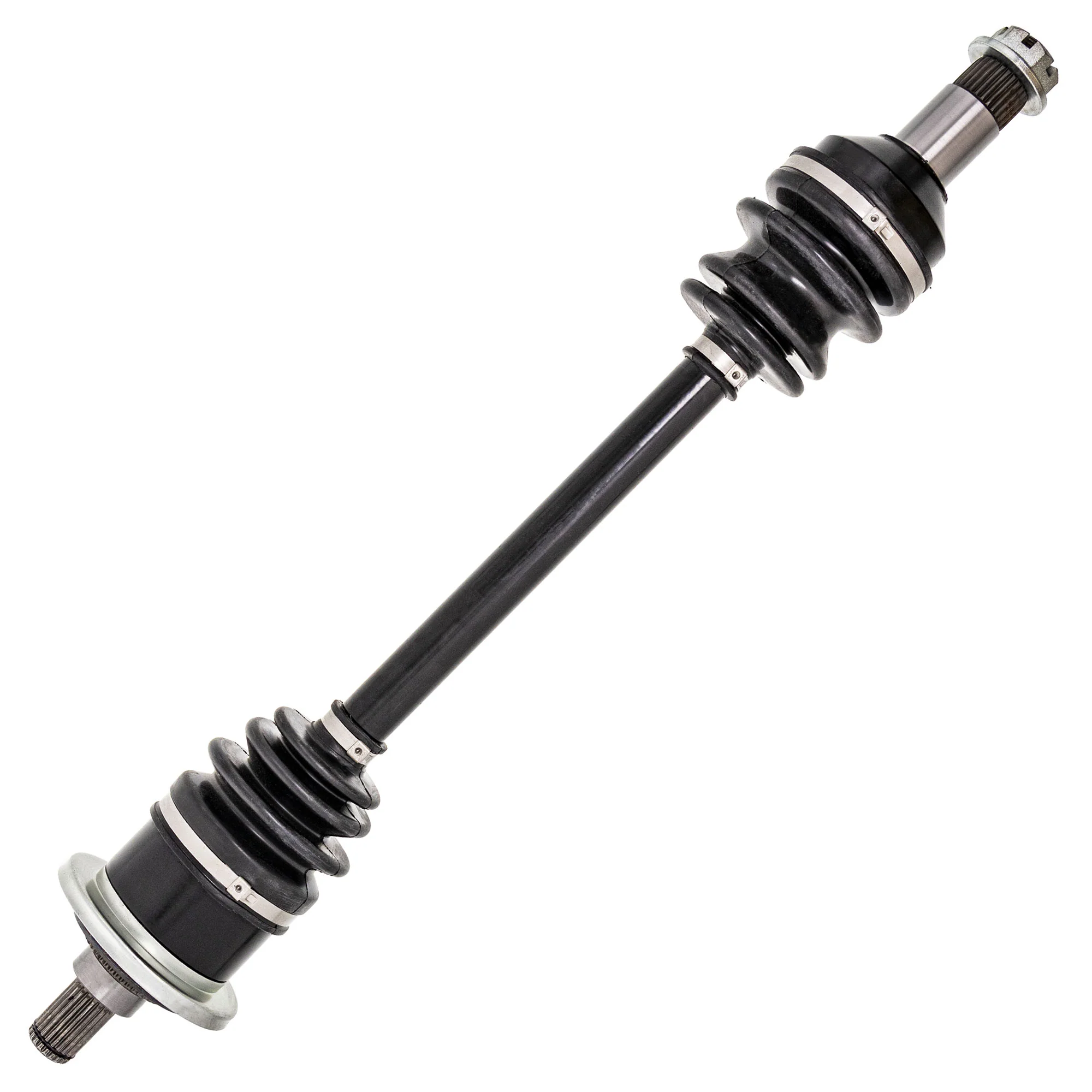

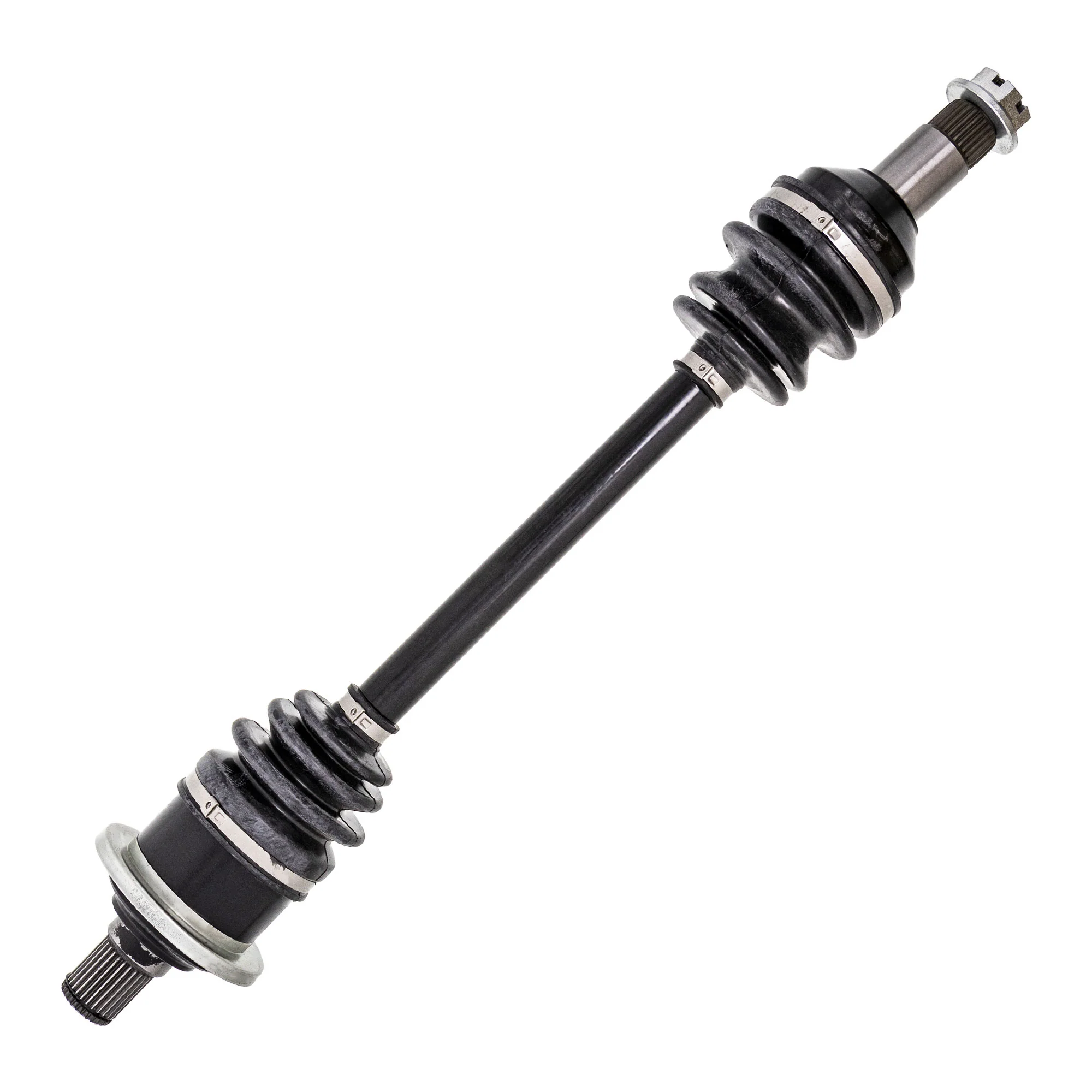

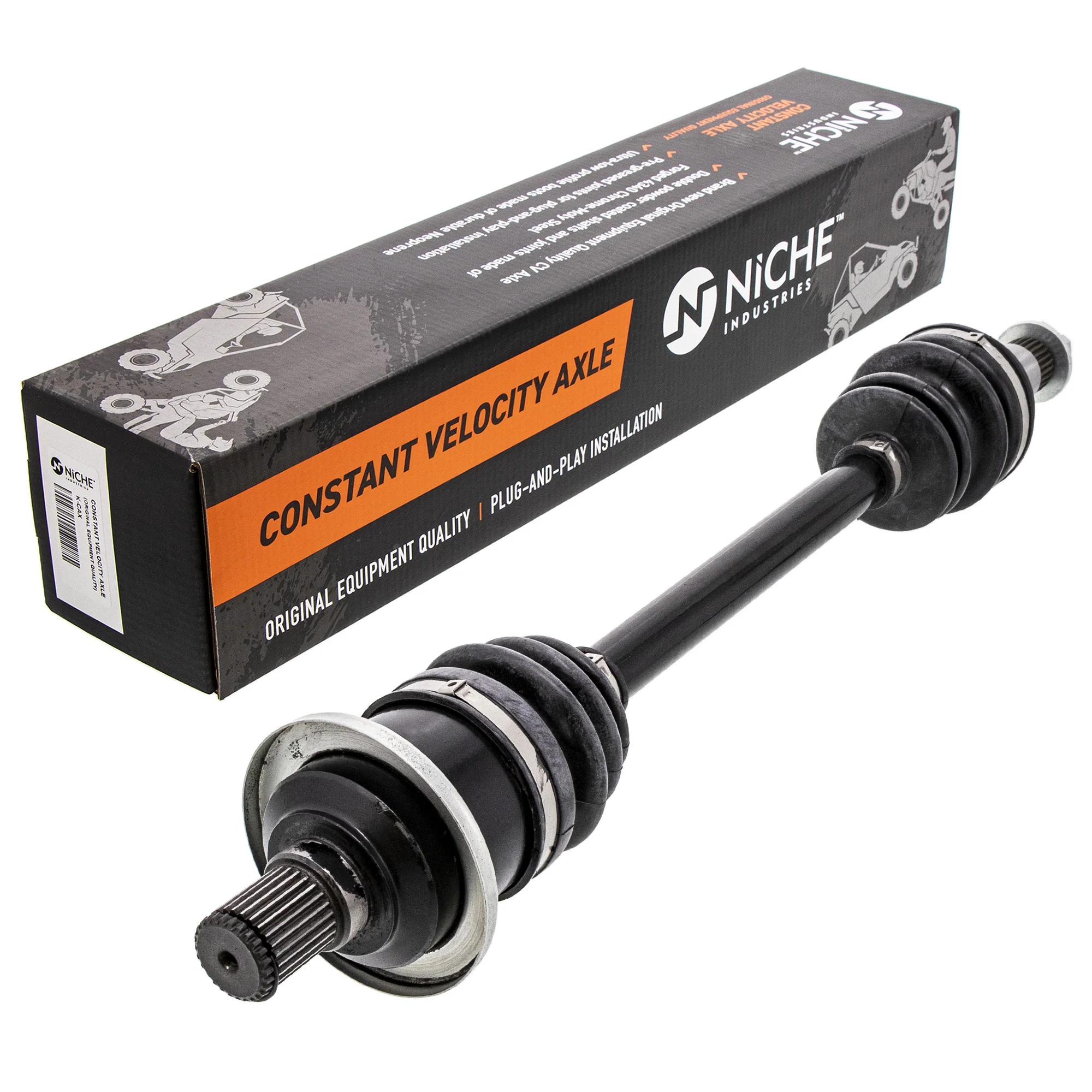

(QTY 1) NICHE 519-KCA2326X Front Right Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-539, 1502-533, 0502-542

(QTY 2) NICHE 519-KCA2331X Rear Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-941, 1502-866, 1502-804, 1502-723, 1502-330, 0502-596

(QTY 1) NICHE 519-KCA2379X Front Left Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 0502-547

Compatible with the Following Vehicles:

Polaris Sportsman 400: 2004
Polaris Magnum 330: 2004
Polaris ATP 500 HO: 2004
Polaris ATP 330: 2004
Arctic Cat 650 V2 Limited: 2005
Arctic Cat 650 V2: 2005
Arctic Cat 650 H1 Limited: 2005
Arctic Cat 500 TBX Automatic: 2005
Arctic Cat 500 Automatic Limited: 2005
Arctic Cat 500 Automatic: 2005
Arctic Cat 500: 2005
Arctic Cat 400 Limited Automatic: 2005
Arctic Cat 400 Automatic: 2005
Arctic Cat 400: 2005
