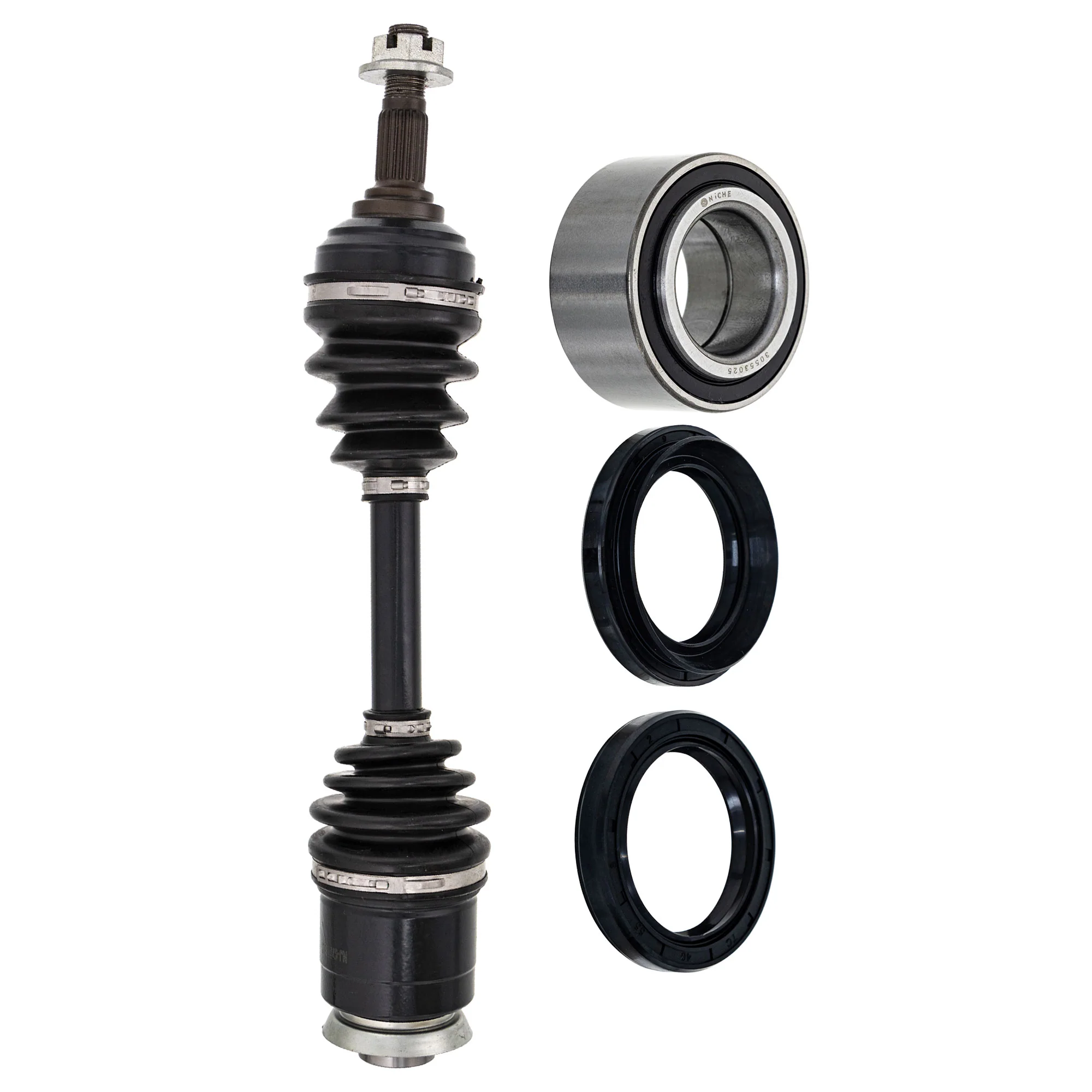

MK1009409 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing Diameters Inner (ID) 30mm; Outer (OD) 55mm; Height 30mm
• Axle Compressed Length 18 1/8, Inboard Splines 22T, Inboard Spline Diameter 2 11/16, Outboard Splines 21T, Outboard Spline Diameter 2 3/4, Shaft Diameter 7/8, Thread Measurement M18x1.5

Included in This Kit:

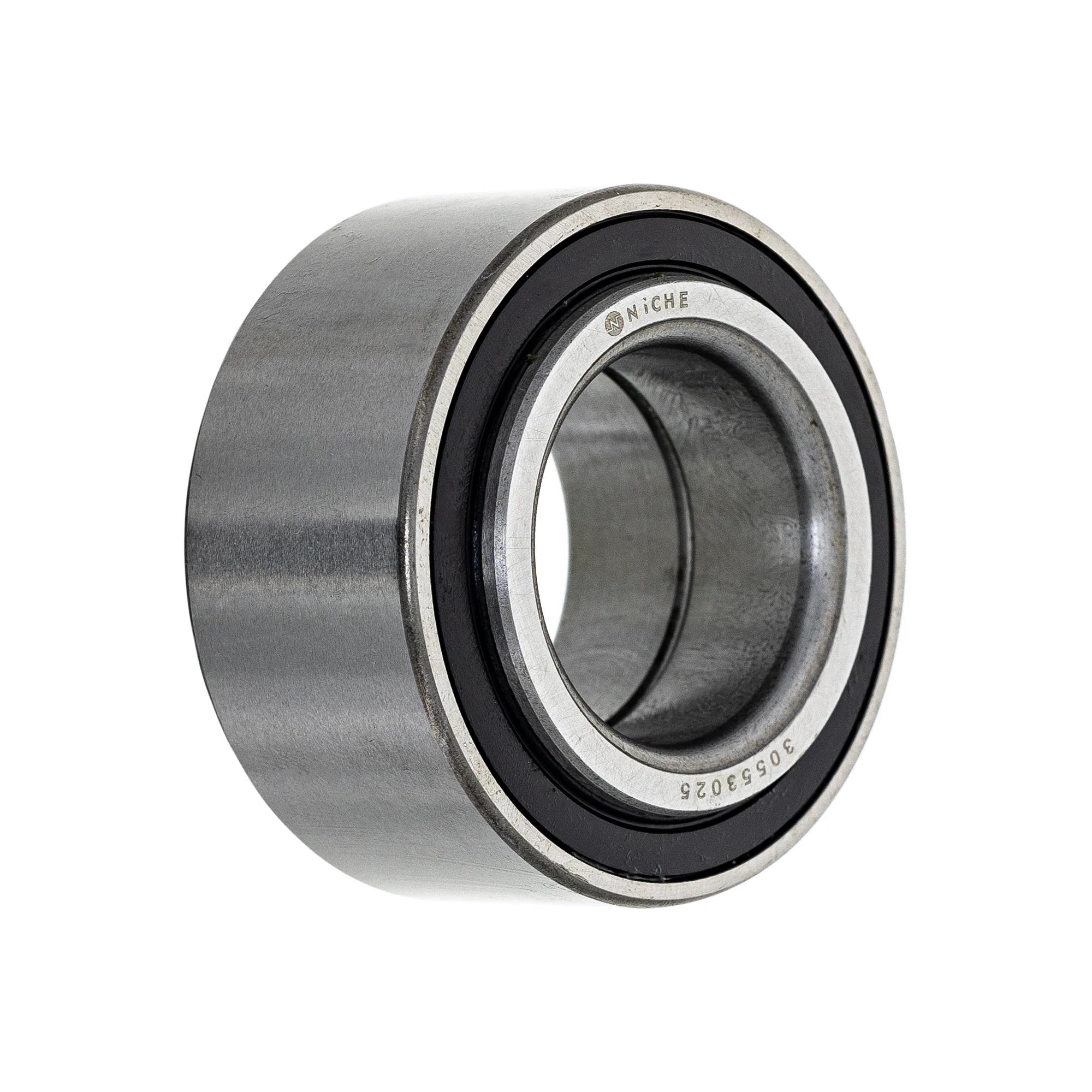

(QTY 1) NICHE 519-CBB2263R Ball Bearing

Substitute For OEM Part Numbers(s): 0402-275, 0402-085

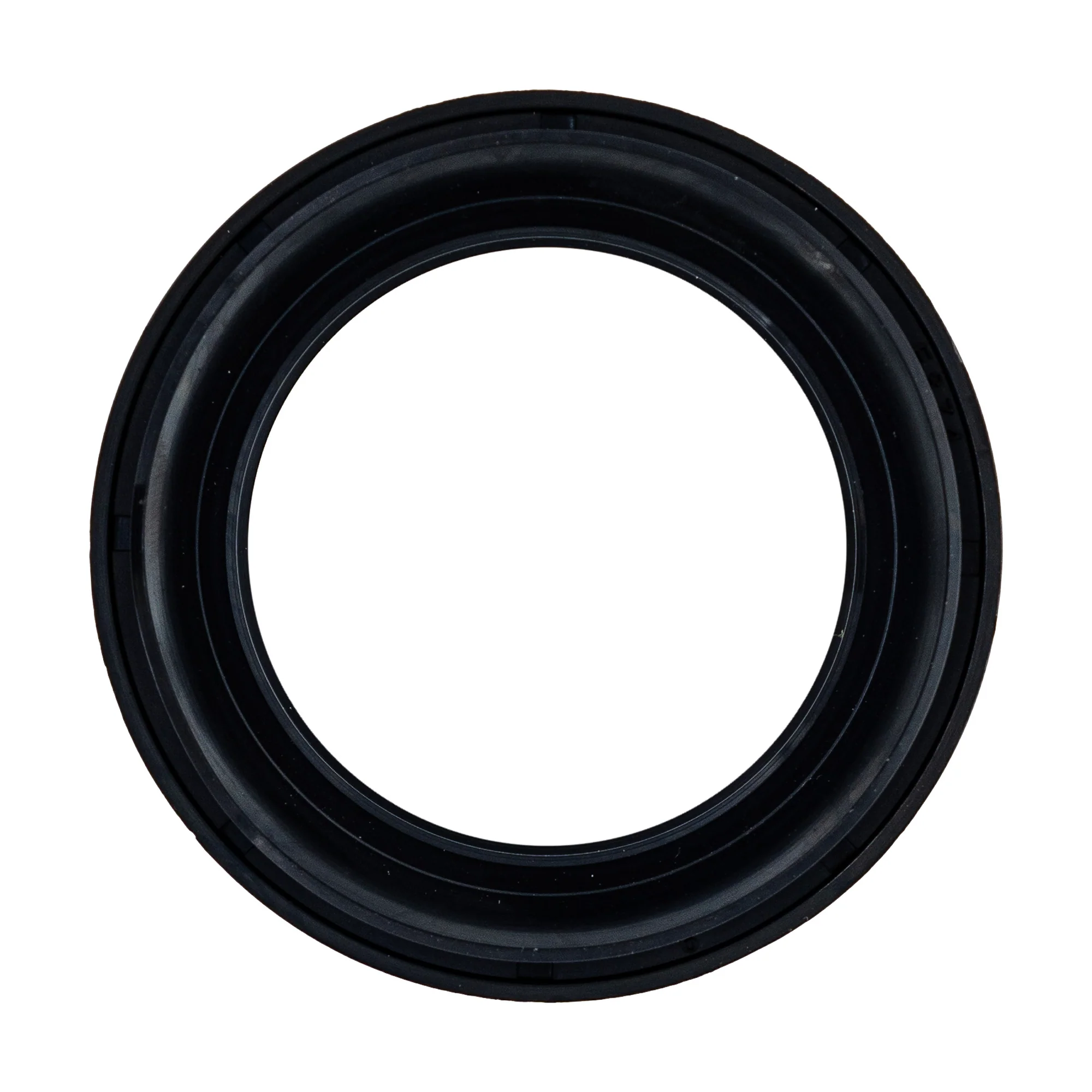

(QTY 1) NICHE 519-CSE2227A Seal Type TCY 40x58x7/12

Substitute For OEM Part Numbers(s): 91209-HN2-003, 91209-HA7-773, 91209-HA7-772, 91209-HA7-771, 2402-610, 09283-40018, 0402-069

(QTY 1) NICHE 519-CSE2276A Seal Type TC 40x55x8

Substitute For OEM Part Numbers(s): 93110-33022-00, 92049-1376

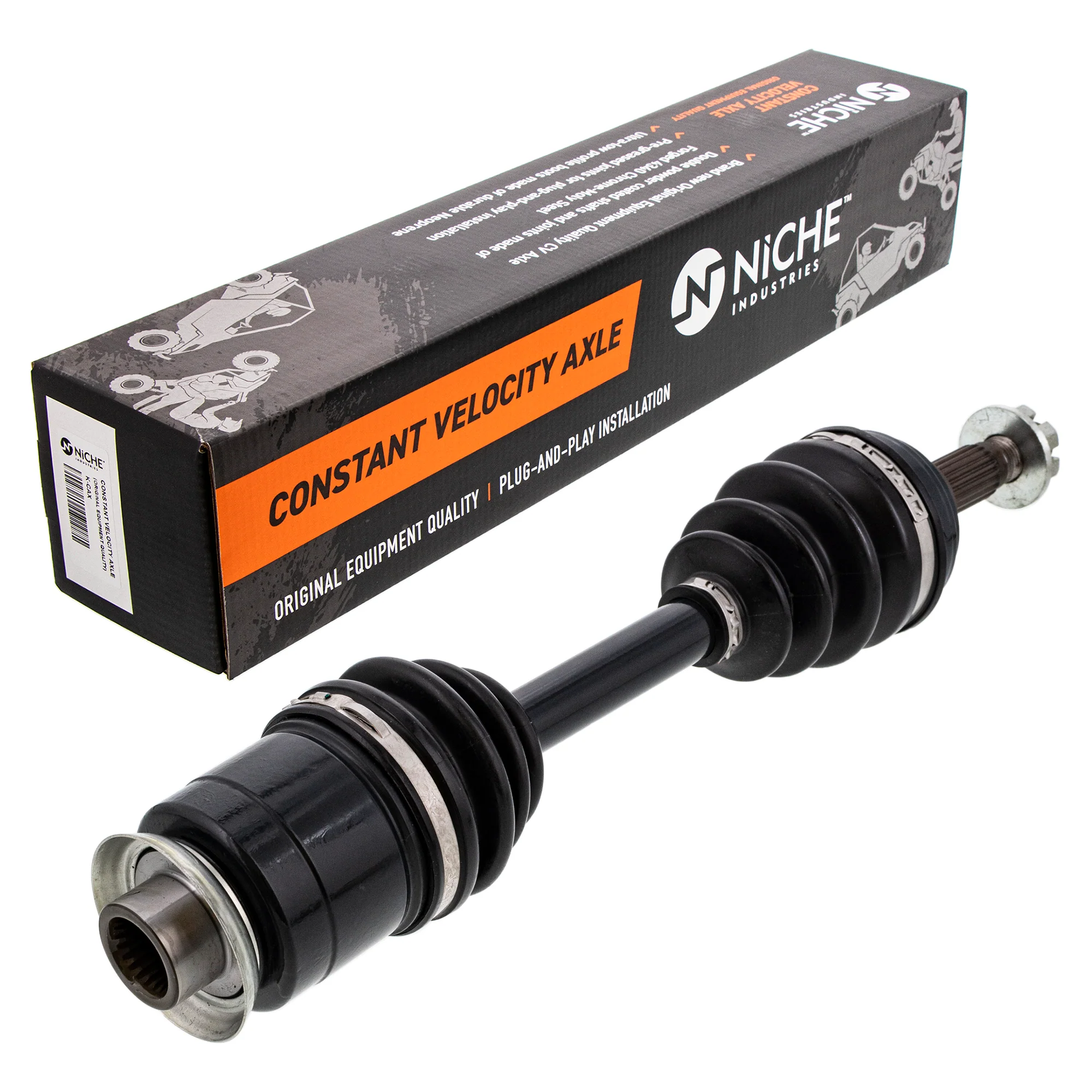

(QTY 1) NICHE 519-KCA2210X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-531, 1402-002

Compatible with the Following Vehicles:

Arctic Cat Alterra 1000 TRV XT EPS: 2017
Arctic Cat 700 MudPro Limited EPS: 2012-2016
Arctic Cat 700 MudPro: 2011-2016
Arctic Cat 650 V2 MRP: 2004
Arctic Cat 650 V2 Limited: 2005
Arctic Cat 650 V2: 2004-2005
Arctic Cat 650 H1 MudPro: 2010-2011
Arctic Cat 650 H1 Limited: 2005
Arctic Cat 650 H1: 2005-2011
Arctic Cat 500 TRV Automatic: 2005
Arctic Cat 500 TBX Automatic: 2005
Arctic Cat 500 Automatic Limited: 2005
Arctic Cat 500 Automatic: 2005
Arctic Cat 500: 2005
Arctic Cat 400 TBX Automatic: 2005
Arctic Cat 400 Limited Automatic: 2005
Arctic Cat 400 Automatic: 2005
Arctic Cat 400: 2005
Arctic Cat 1000 XT EPS: 2013-2017
Arctic Cat 1000 TRV XT EPS: 2015
Arctic Cat 1000 TRV Limited EPS: 2013-2015
Arctic Cat 1000 TRV GT EPS: 2012
Arctic Cat 1000 TRV Cruiser EPS: 2011-2012
Arctic Cat 1000 MudPro Limited EPS: 2012-2015
Arctic Cat 1000 MudPro: 2011-2015
Arctic Cat 1000 GT EPS: 2012
