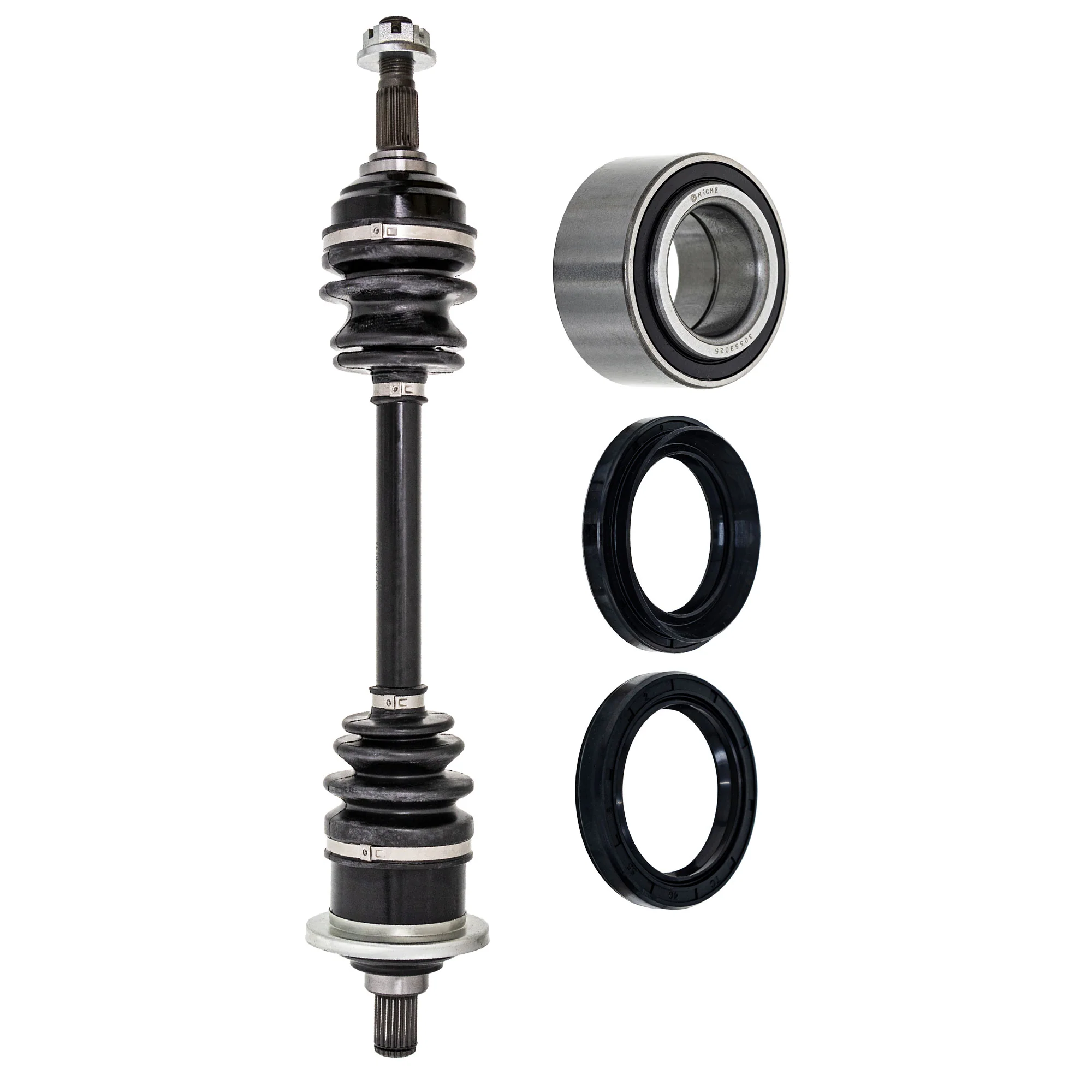

MK1009413 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing 30x55x30; Diameters Inner (ID) 30mm; Outer (OD) 55mm; Height 30mm
• Axle Compressed Length 19 9/16, Inboard Splines 21T, Inboard Spline Diameter 2 11/16, Outboard Splines 21T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M18x1.5

Included in This Kit:

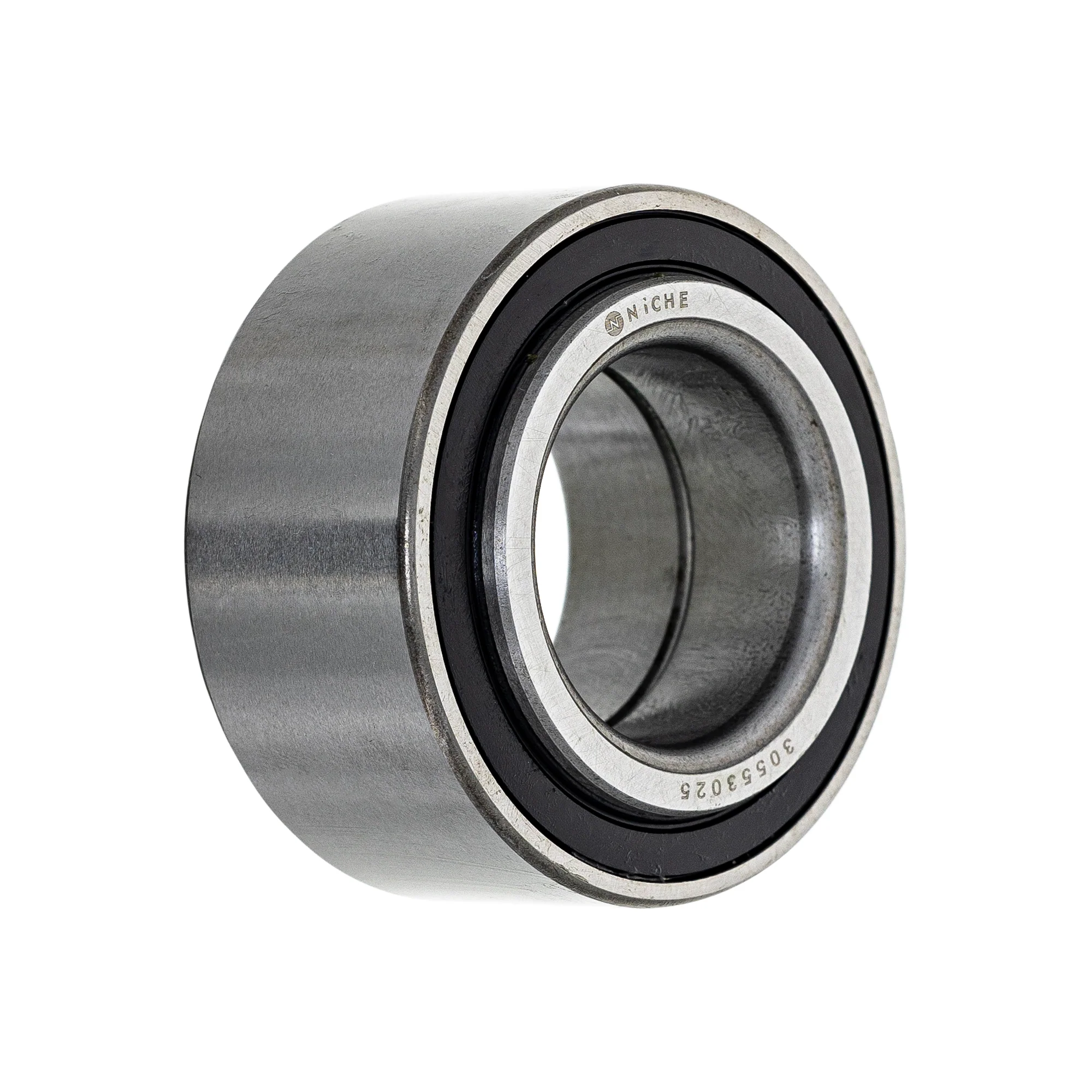

(QTY 1) NICHE 519-CBB2263R Ball Bearing

Substitute For OEM Part Numbers(s): 0402-275, 0402-085

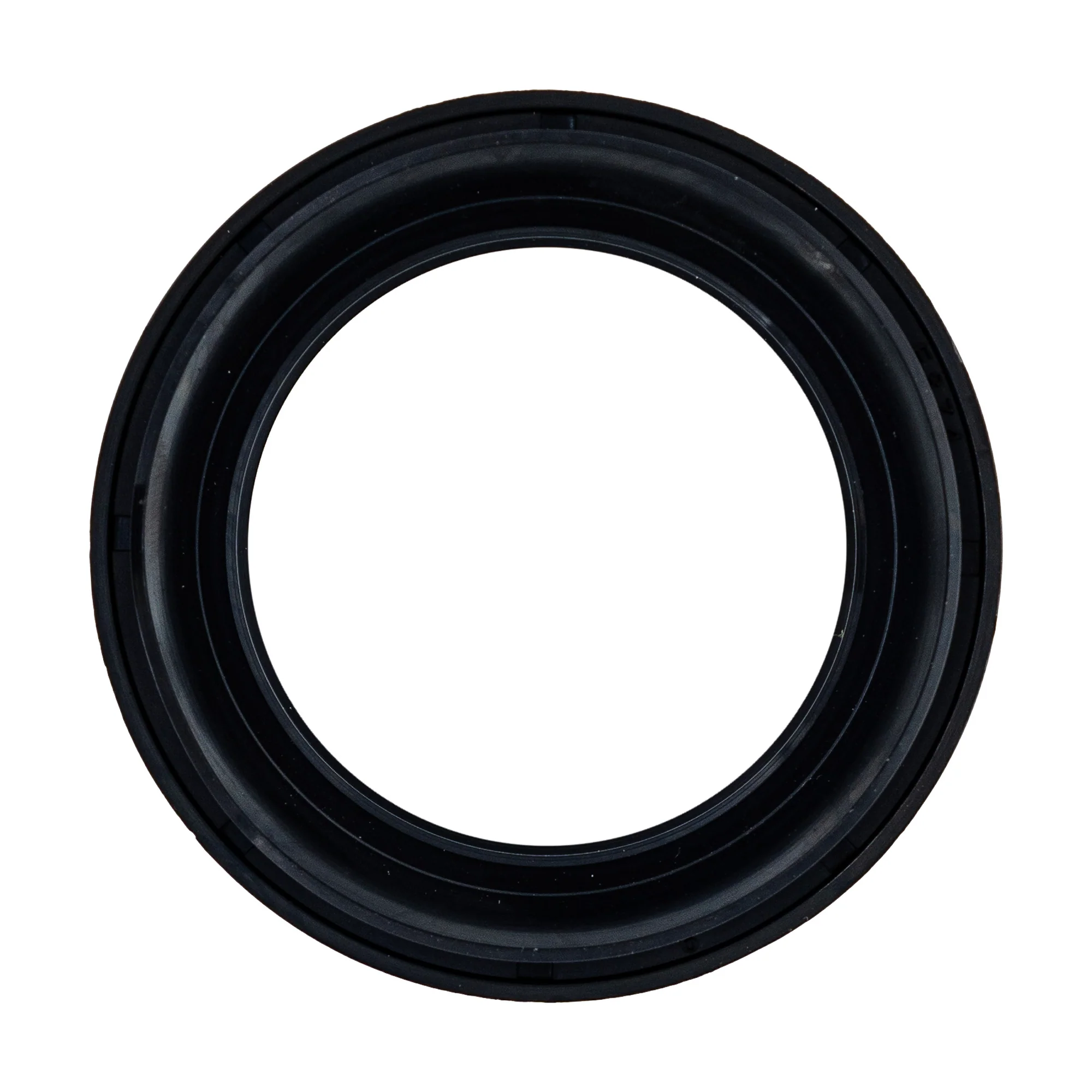

(QTY 1) NICHE 519-CSE2227A Seal Type TCY 40x58x7/12

Substitute For OEM Part Numbers(s): 91209-HN2-003, 91209-HA7-773, 91209-HA7-772, 91209-HA7-771, 2402-610, 09283-40018, 0402-069

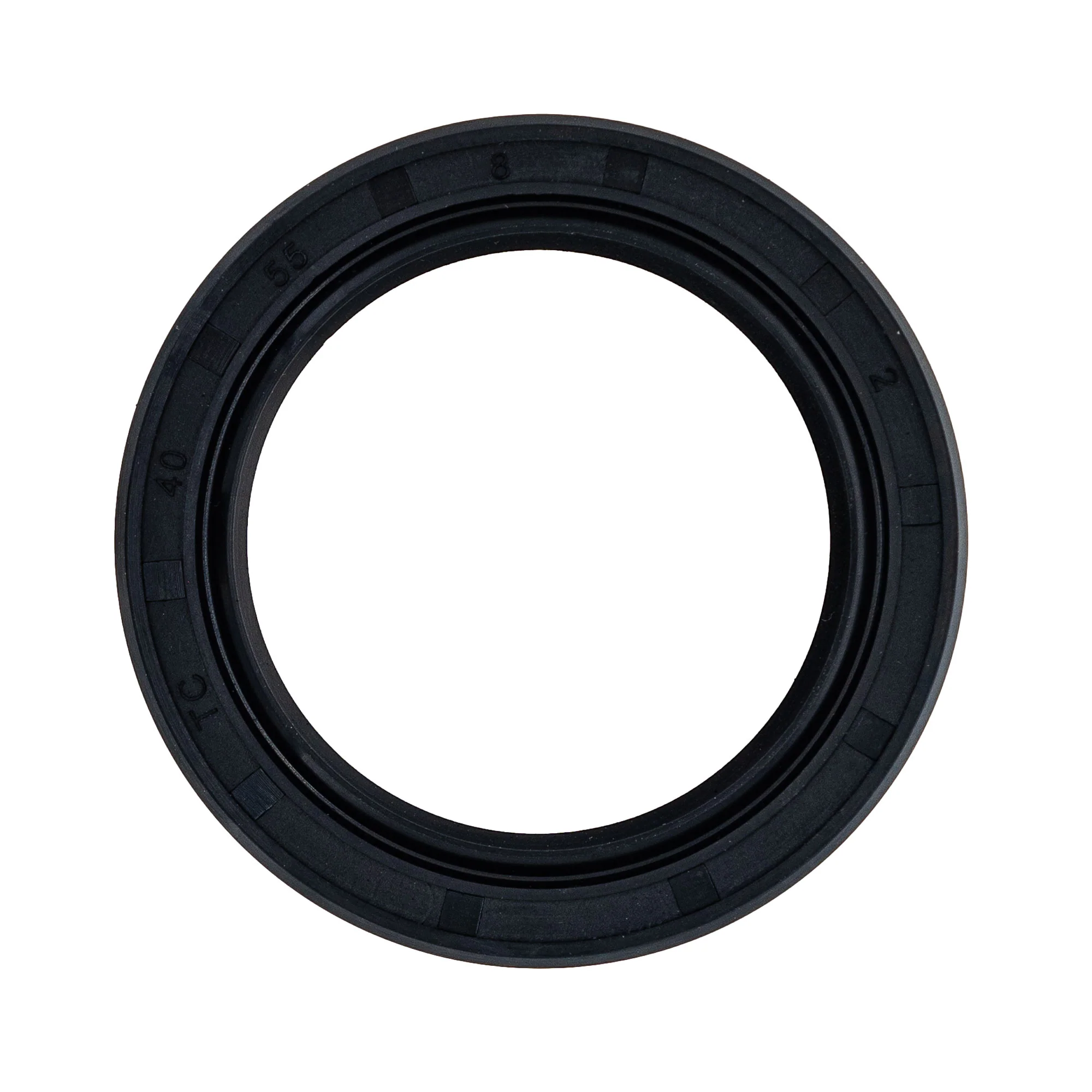

(QTY 1) NICHE 519-CSE2276A Seal Type TC 40x55x8

Substitute For OEM Part Numbers(s): 93110-33022-00, 92049-1376

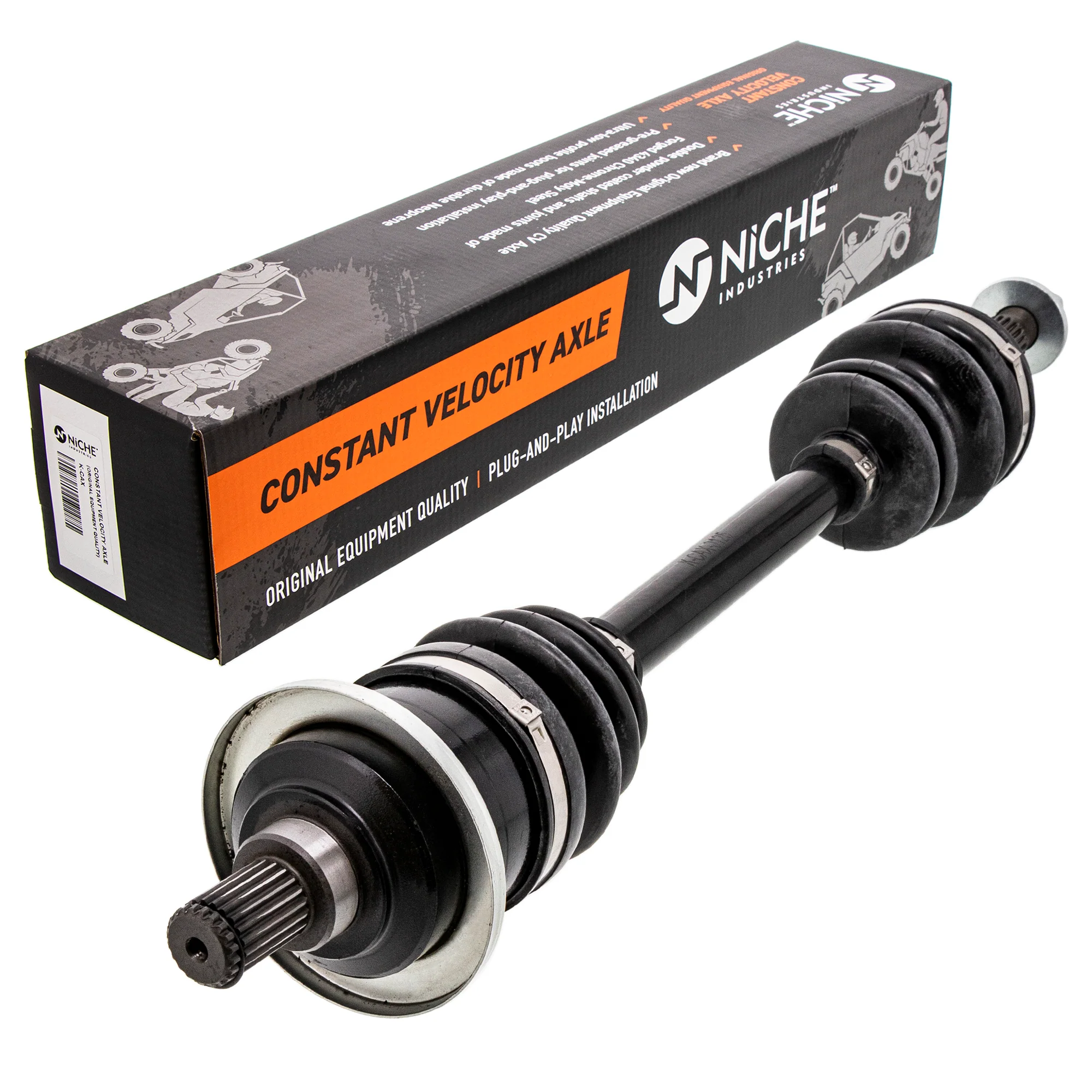

(QTY 1) NICHE 519-KCA2347X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1502-530, 1502-528, 0402-987, 0402-365

Compatible with the Following Vehicles:

Can-Am Maverick Max 1000R X RS DPS: 2014-2015
Can-Am Maverick Max 1000R X DS DPS: 2015
Can-Am Maverick Max 1000R Turbo X DS: 2015
Can-Am Maverick Max 1000R: 2014-2015
Can-Am Maverick 1000R X RS DPS: 2014-2015
Can-Am Maverick 1000R X RS: 2013-2015
Can-Am Maverick 1000R X DS DPS: 2015
Can-Am Maverick 1000R: 2013-2015
