MK1009425 Axle and Wheel Bearing Kit Product Info:

• NICHE Bearing 35x64x37 Dimensions
• NICHE Bearing Outer Diameter (OD) 64mm; Height 37mm
• Axle Compressed Length 21, Inboard Splines 22T, Inboard Spline Diameter 2 11/16, Outboard Splines 20T, Outboard Spline Diameter 3, Shaft Diameter 13/16, Thread Measurement 5/8x16

Included in This Kit:

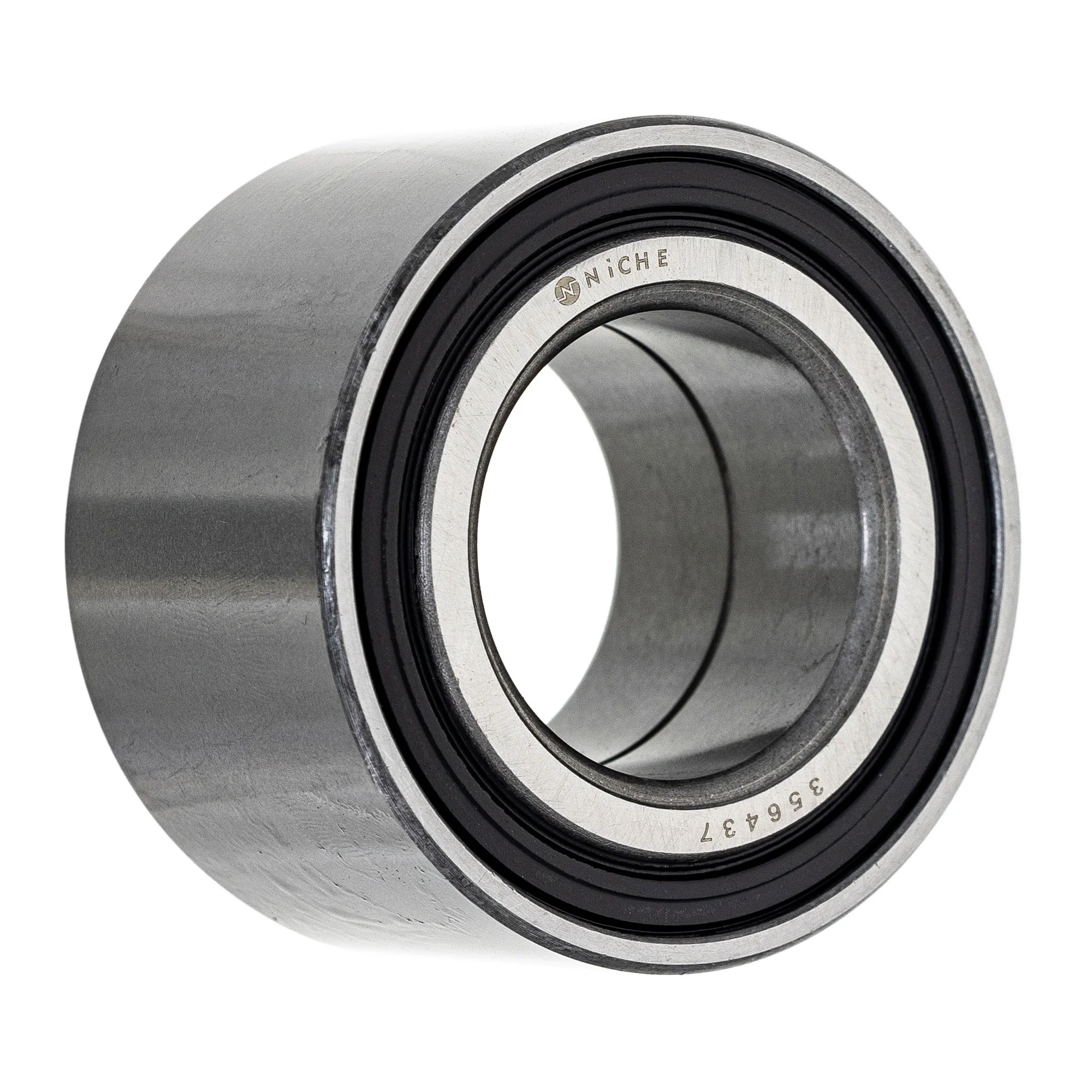

(QTY 2) NICHE 519-CBB2283R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3514634, 3514342

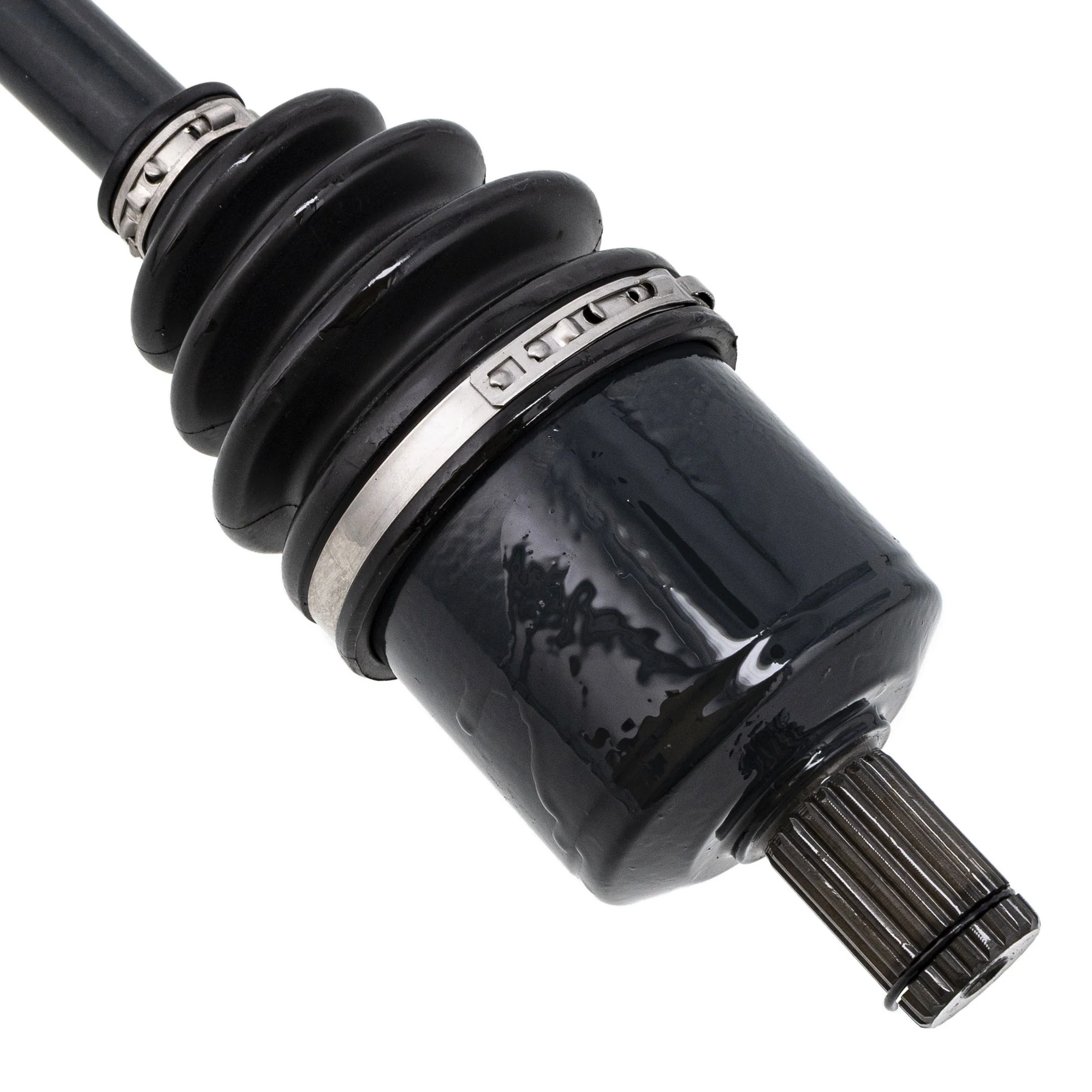

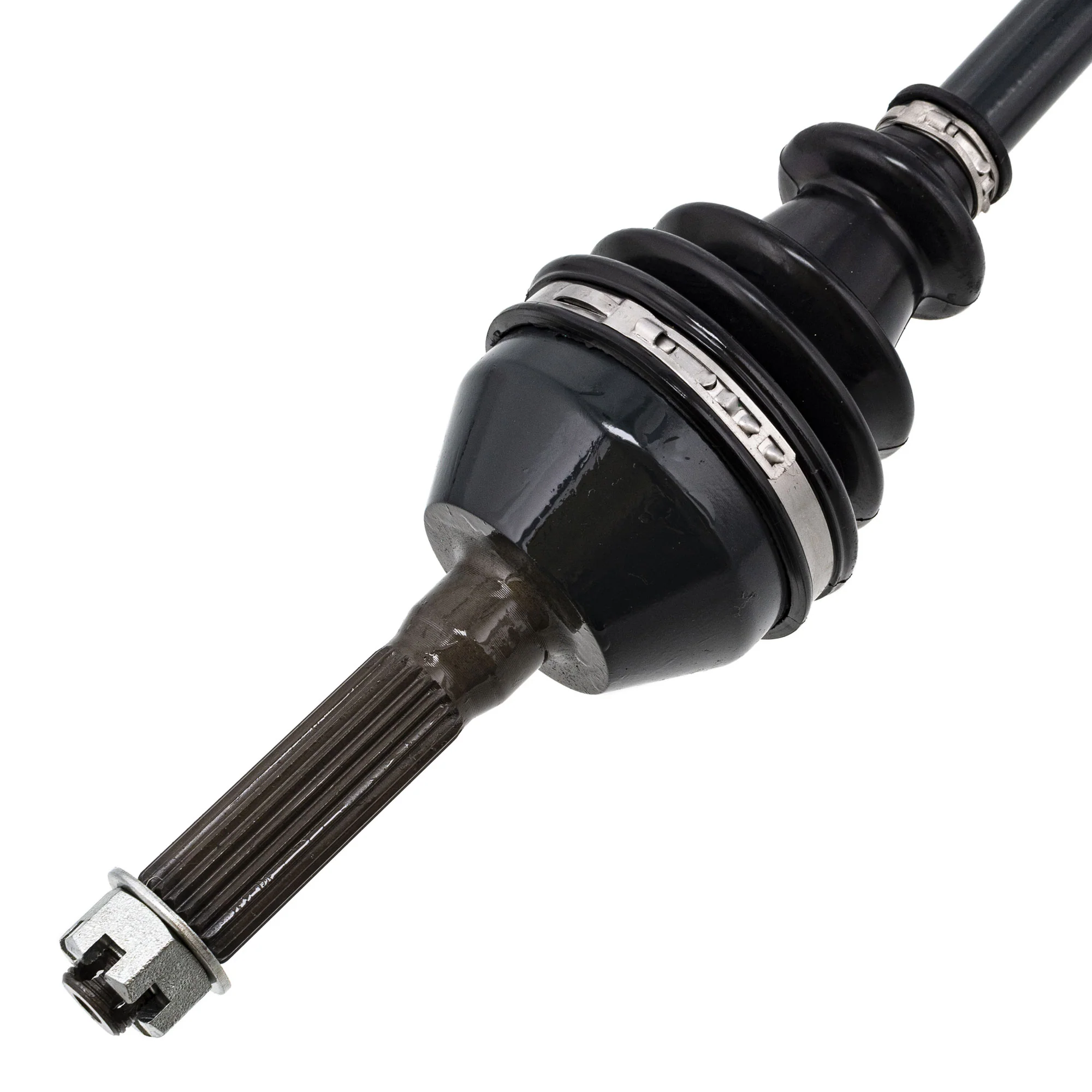

(QTY 2) NICHE 519-KCA2255X Front Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332881, 1332656, 1332501, 1332471

Compatible with the Following Vehicles:

Polaris Sportsman X2 800: 2007-2009
Polaris Sportsman X2 700: 2008
Polaris Sportsman X2 500 Deluxe: 2007
Polaris Sportsman X2 500: 2007-2009
Polaris Sportsman Touring 800: 2008-2009
Polaris Sportsman Touring 500 HO: 2008-2012
Polaris Sportsman 800 Twin: 2005-2006
Polaris Sportsman 800 Military: 2012
Polaris Sportsman 800 HO: 2008-2009
Polaris Sportsman 800 6X6 Forest: 2012
Polaris Sportsman 800 6X6 Big Boss: 2012
Polaris Sportsman 800 6X6: 2009-2012
Polaris Sportsman 800: 2005-2012
Polaris Sportsman 700 EFI Twin: 2007
Polaris Sportsman 500 HO Military: 2009
Polaris Sportsman 500 HO: 2007-2012
Polaris Sportsman 450: 2007
Polaris Sportsman 400 HO: 2011-2012
