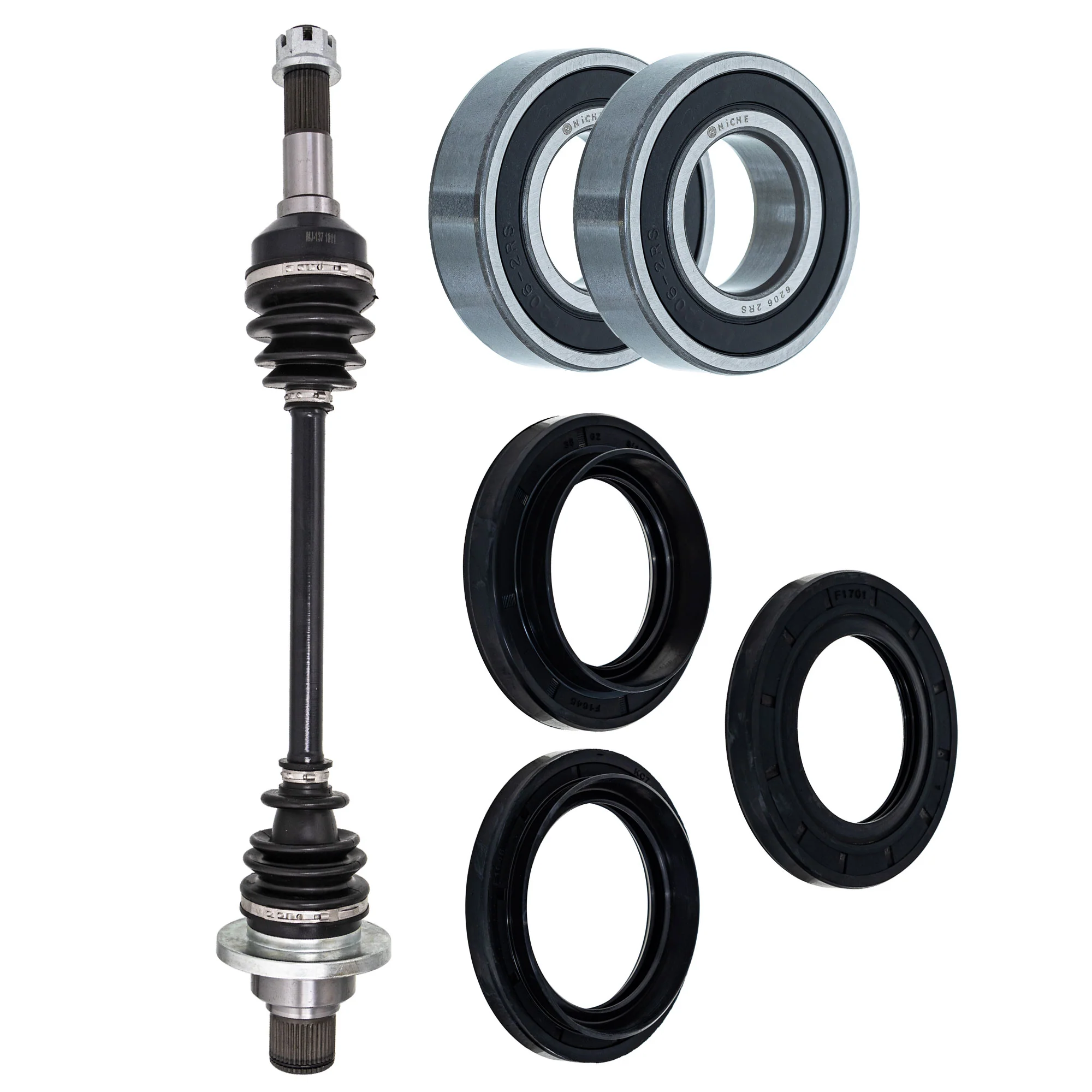

MK1009428 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing Diameters Inner (ID) 30mm; Outer (OD) 62mm; Height 16mm; Self-locking nuts that match the grooves on the threads and lock when tightened to the specified position. The locking effect is the same as using a pin
• Axle Compressed Length 23 1/8, Inboard Splines 39T, Inboard Spline Diameter 2 11/16, Outboard Splines 27T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M24X1.5

Included in This Kit:

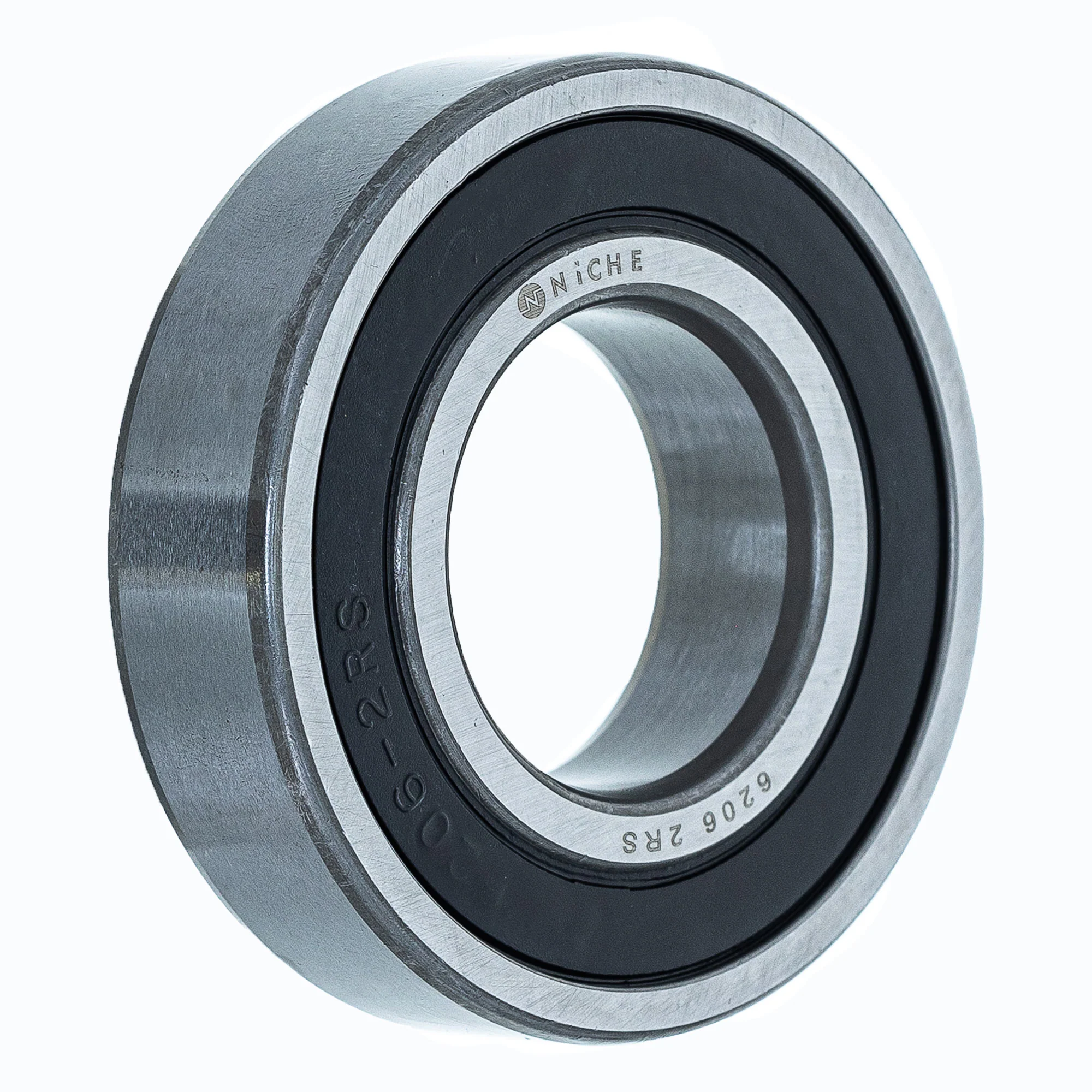

(QTY 2) NICHE 519-CBB2221R Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): 93306-206Y2-00, 93306-20659-00, 93306-20644-00, 93306-20640-00, 92045-0045, 880006254208, 80210043, 705500251, 625062065, 601B6206UU, 504152010, 453803, 3514807, 3514330, 3513523, 339583X1, 27405-05GF0, 27405-05GA0, 210043

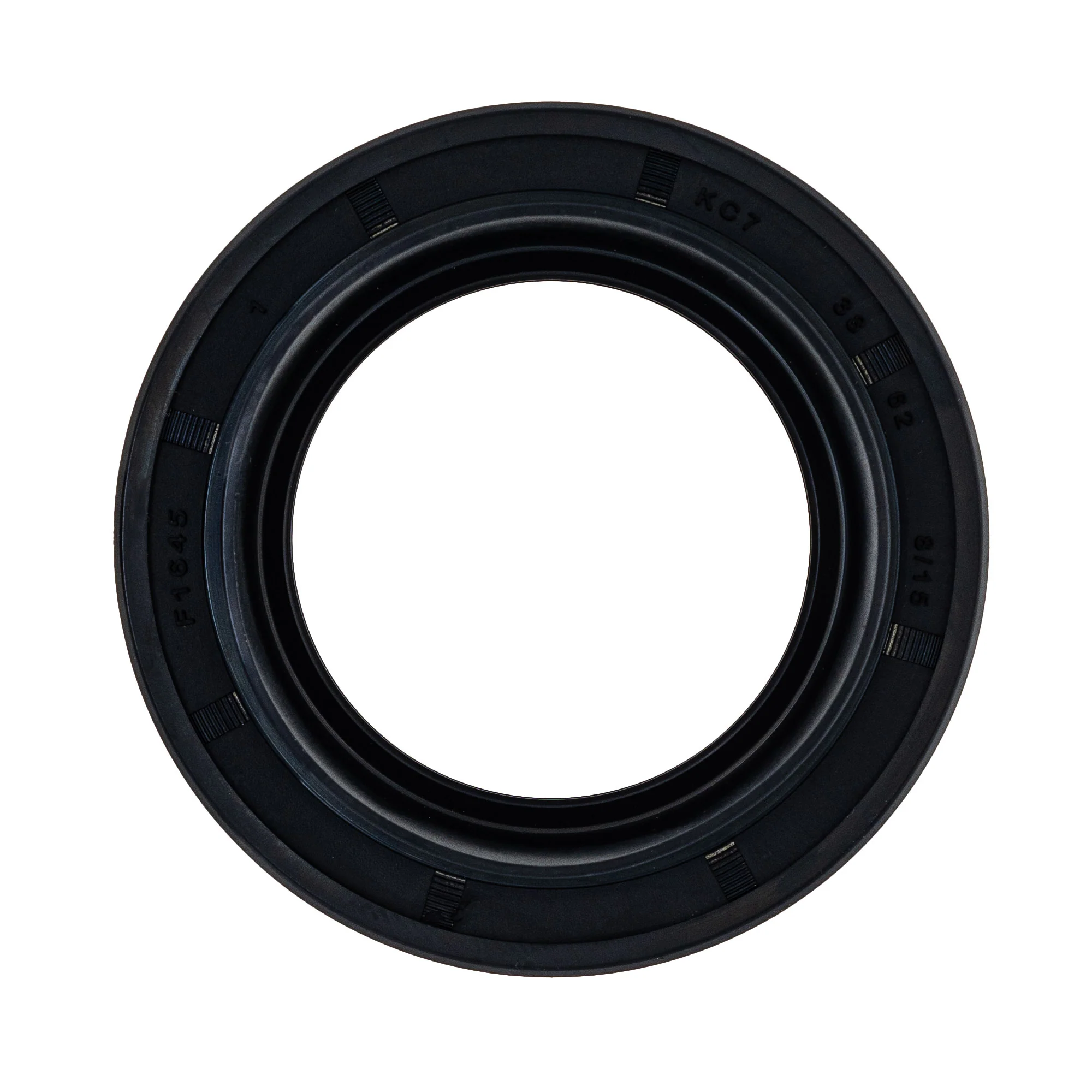

(QTY 1) NICHE 519-CSE2278A Seal Type TCY 38x62x8/15

Substitute For OEM Part Numbers(s): 93106-38801-00

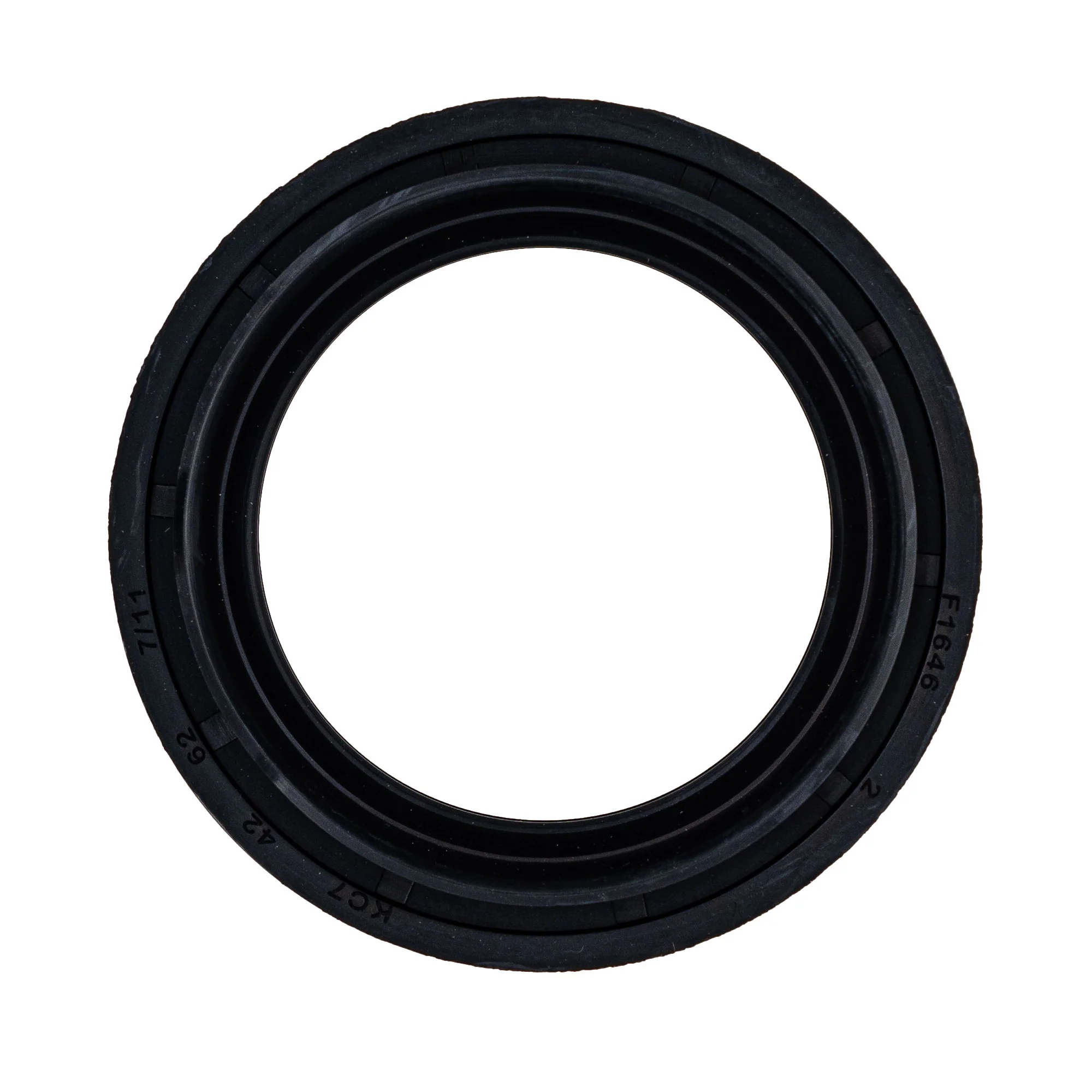

(QTY 1) NICHE 519-CSE2285A Seal Type TCY 42x62x7/11

Substitute For OEM Part Numbers(s): 93106-42026-00, 93102-42260-00, 92093-4008, 92049-4001, 91252-958-014, 91252-958-013, 91252-958-004, 91252-958-003, 91203-943-003, 09283-42013, 09283-42011, 09283-42010

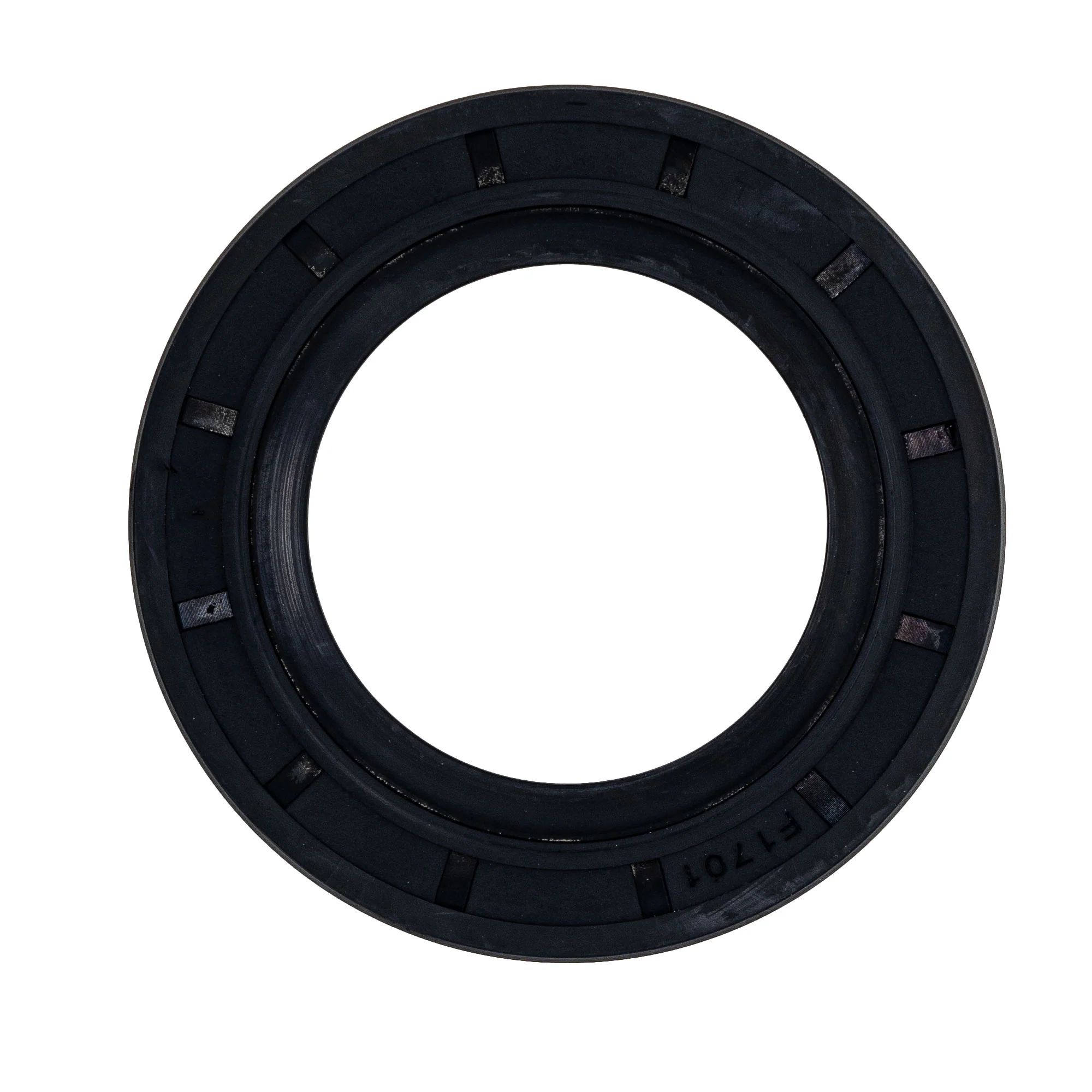

(QTY 1) NICHE 519-CSE2287A Seal Type TC 37x62x7

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-KCA2229X Rear Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 5UG-F531H-21-00, 5UG-F531H-20-00, 5UG-F531H-11-00, 5UG-F531H-01-00, 5UG-F531H-00-00

Compatible with the Following Vehicles:

Yamaha Rhino 660 Sport Edition 4X4: 2007
Yamaha Rhino 660 Special Edition 4X4: 2006-2007
Yamaha Rhino 660 Hunter Edition 4X4: 2004-2007
Yamaha Rhino 660 Exploring Edition 4X4: 2006-2007
Yamaha Rhino 660 Ducks Unlimited Edition 4X4: 2007
Yamaha Rhino 660 4X4: 2004-2007
Yamaha Rhino 450 Special Edition 4X4: 2007-2008
Yamaha Rhino 450 Hunter Edition 4X4: 2006-2009
Yamaha Rhino 450 4X4: 2006-2009
