MK1009429 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Seal Compatible with Honda 91257-KA3-711, 91257-KA3-712, 91257-MAY-003, 91257-VM0-004
• NICHE Bearing Diameter Inner Diameter (ID) 20mm; Bearing Outer Diameter(OD) 42mm; Height 12mm
• Axle Compressed Length 17 3/16, Inboard Splines 20T, Inboard Spline Diameter 2 9/16, Outboard Splines 21T, Outboard Spline Diameter 2 7/16, Shaft Diameter 3/4, Thread Measurement M16x1.5

Included in This Kit:

(QTY 2) NICHE 519-CBB2230R Electric Grade, Single Row, Deep Groove, Ball Bearing

Substitute For OEM Part Numbers(s): T3800702, 96150-60040-10, 93306-00444-00, 93306-00441-00, 93306-00430-00, 93306-00418-00, 93306-00416-00

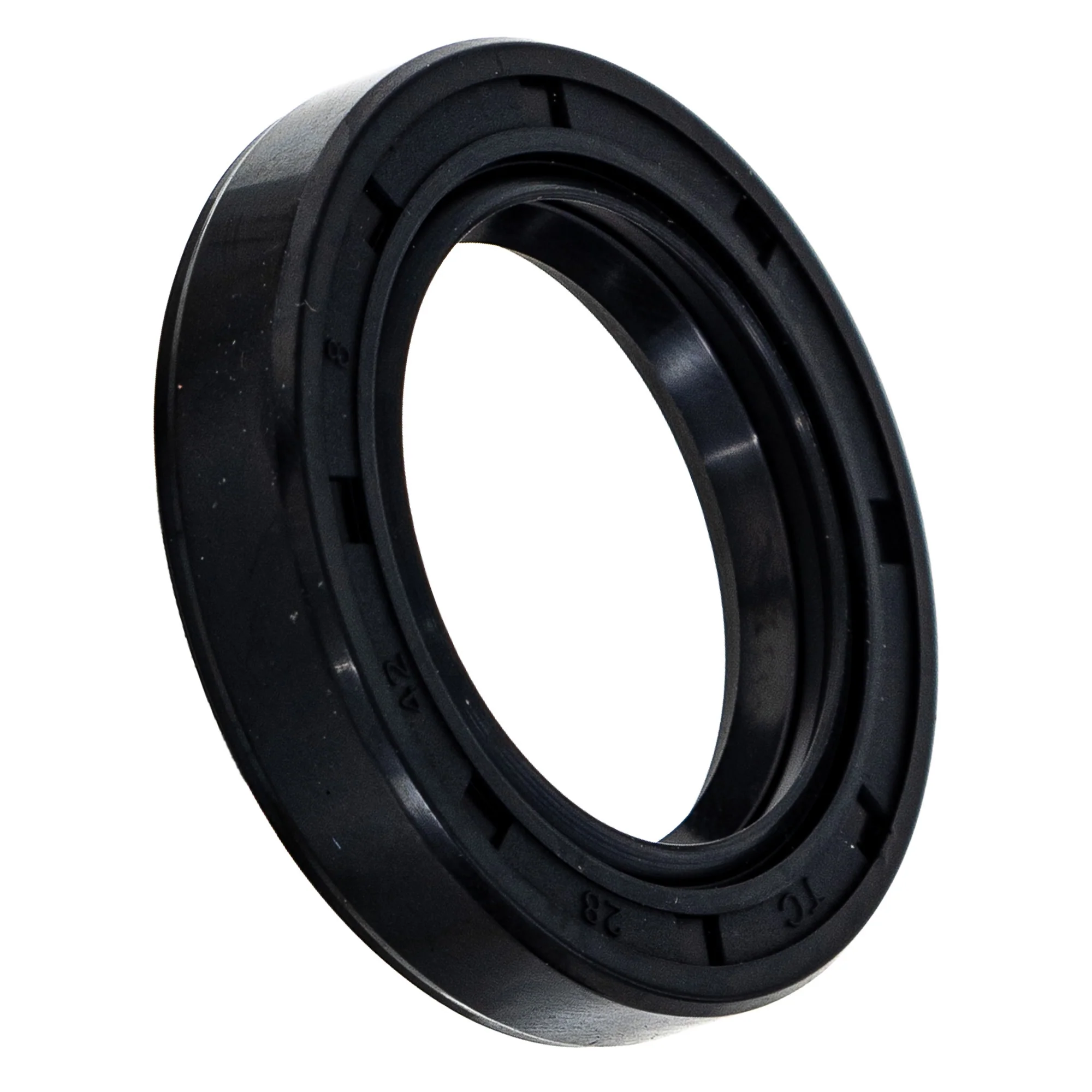

(QTY 1) NICHE 519-CSE2234A Seal Type TC 28x42x8

Substitute For OEM Part Numbers(s):

(QTY 1) NICHE 519-CSE2249A Seal Type TC 28x42x6

Substitute For OEM Part Numbers(s):

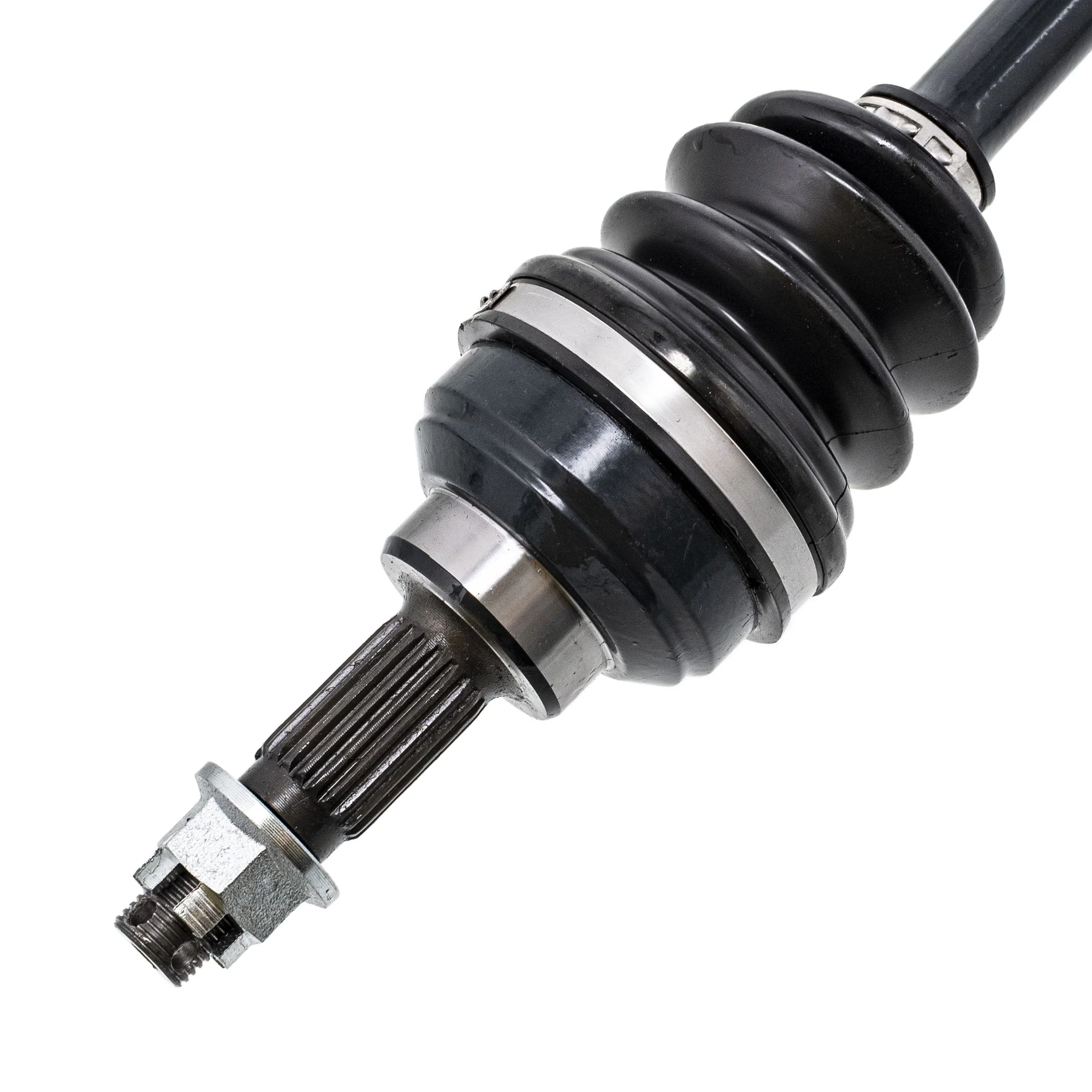

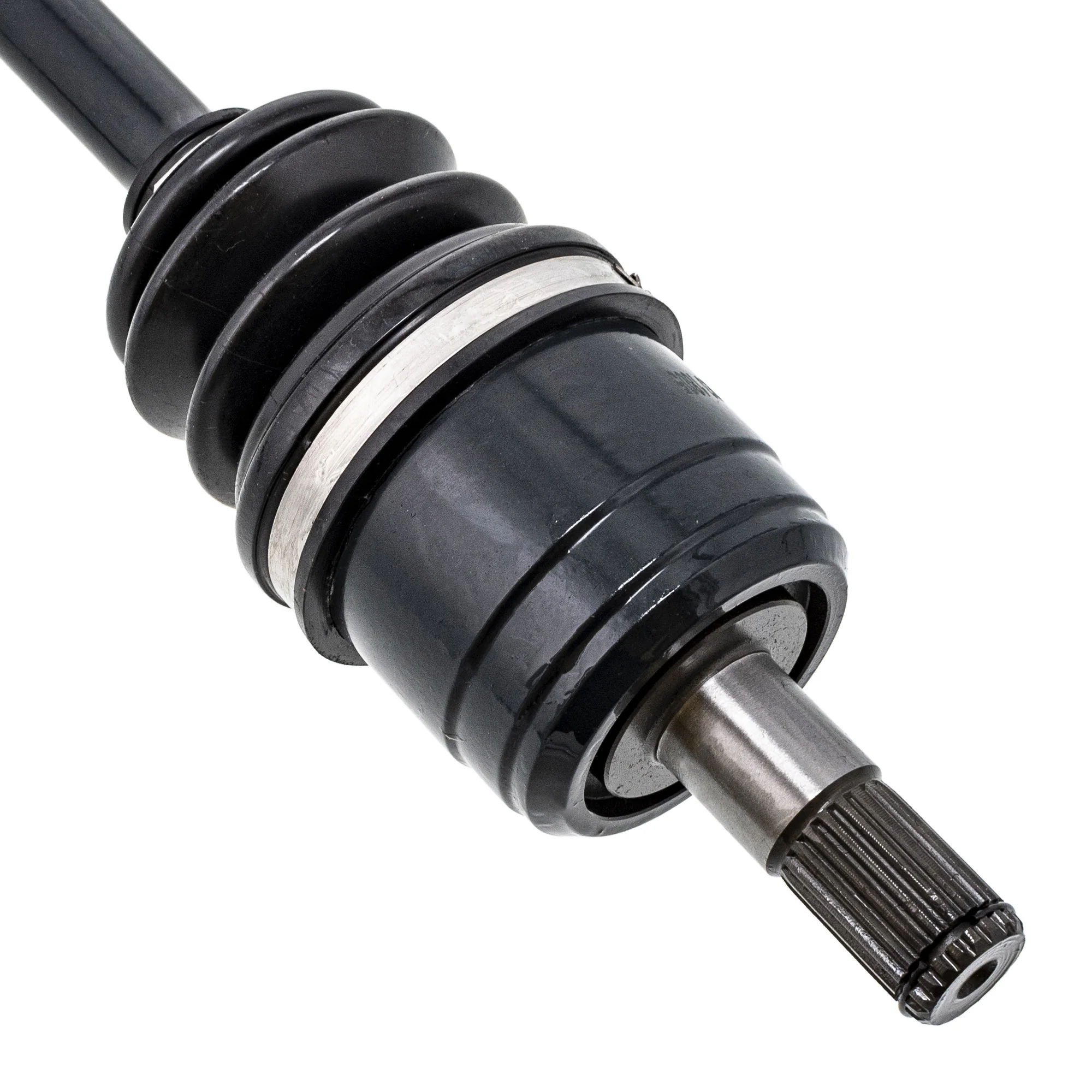

(QTY 1) NICHE 519-KCA2338X Front Left Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 42220-HM7-830, 42220-HM7-003

Compatible with the Following Vehicles:

Honda FourTrax 300: 1996
