MK1009448 Axle and Wheel Bearing Kit Product Info:

• Includes NICHE Bearings with Dimensions 40x74x40; 35x64x37
• Rear Left Axle Compressed Length 21 9/16, Inboard Splines 36T, Outboard Splines 26T, Shaft Diameter 13/16; Rear Right Compressed Length 20 15/16, Inboard Splines 22T, Outboard Splines 20T, Shaft Diameter 7/8

Included in This Kit:

(QTY 2) NICHE 519-CBB2259R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3585502, 3514635

(QTY 2) NICHE 519-CBB2283R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3514634, 3514342

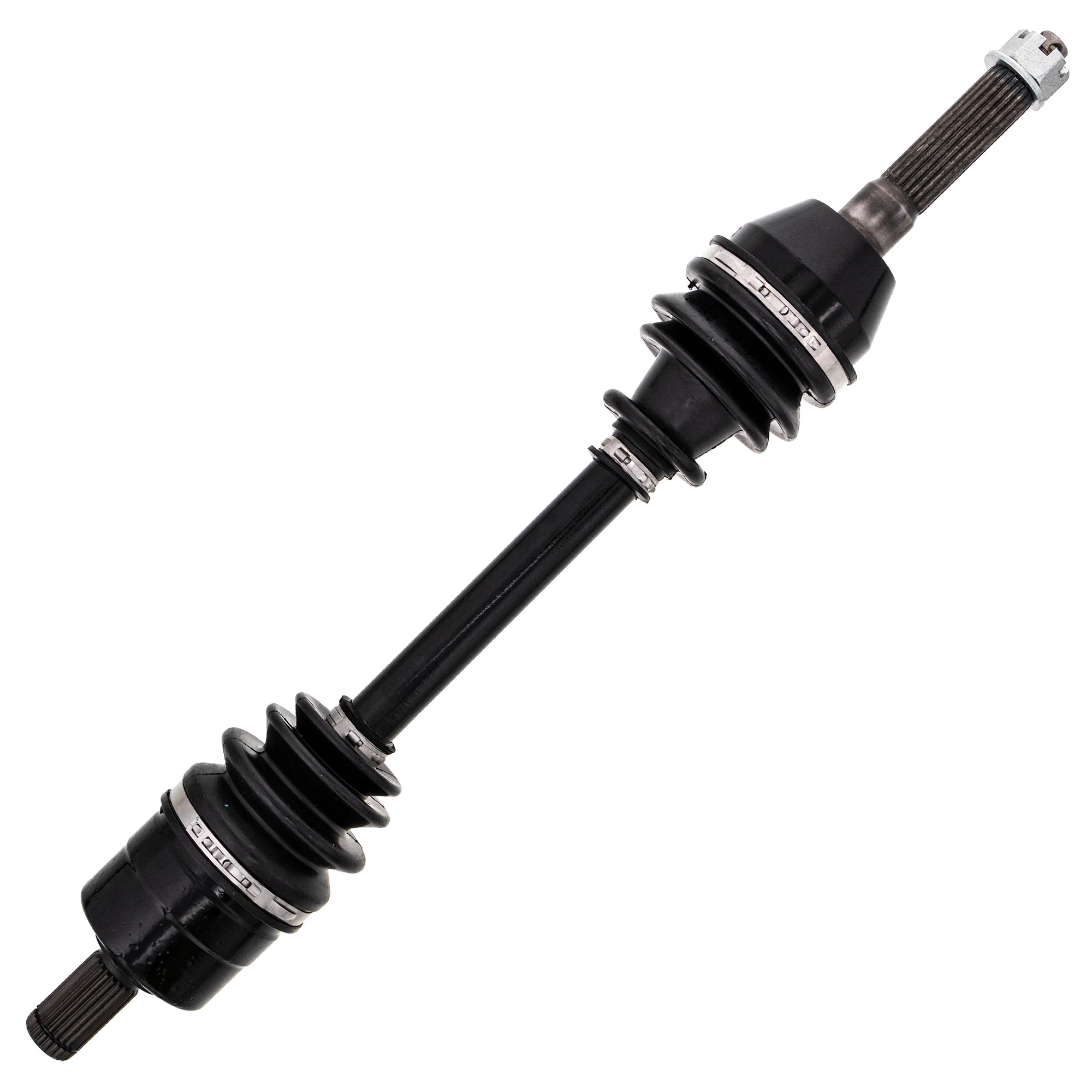

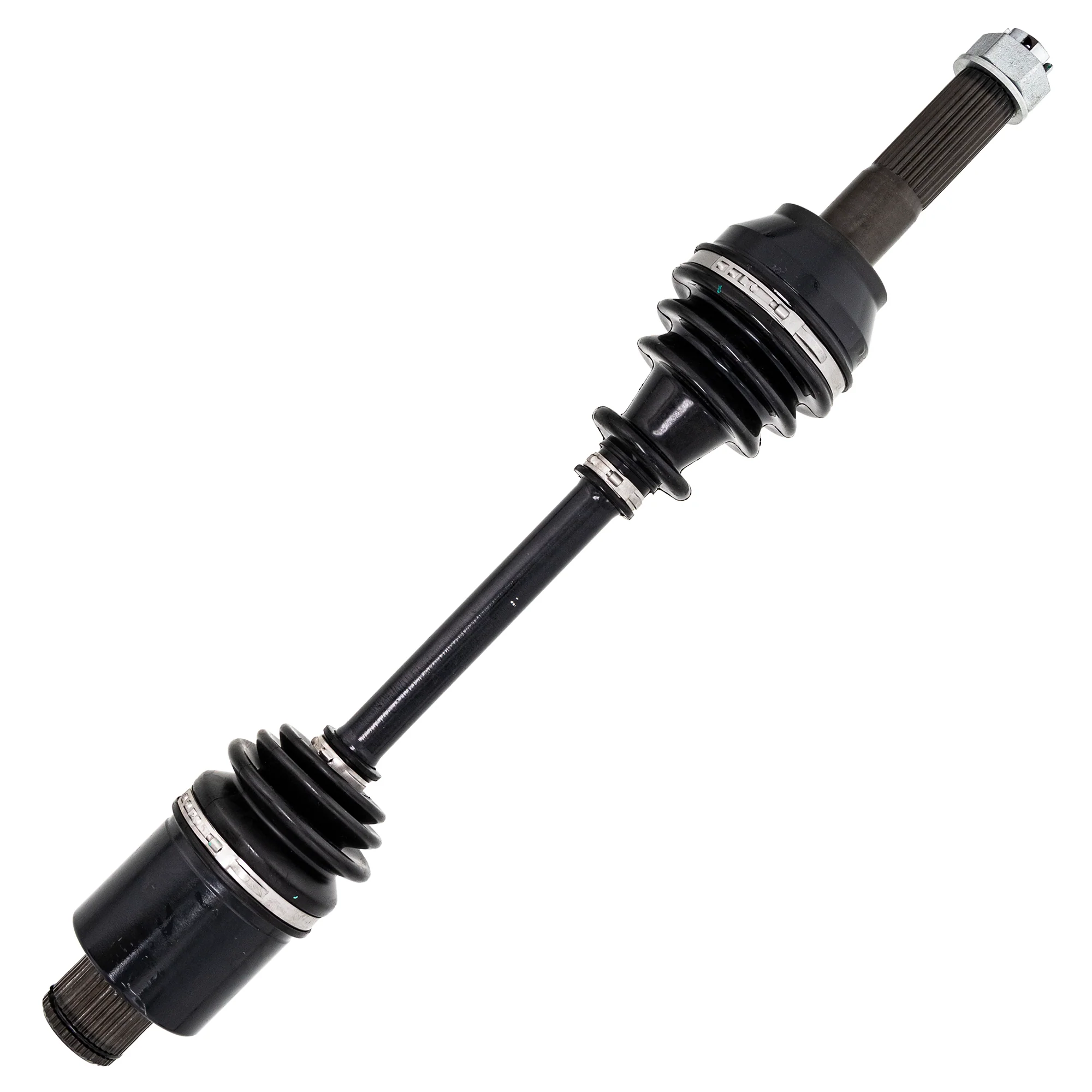

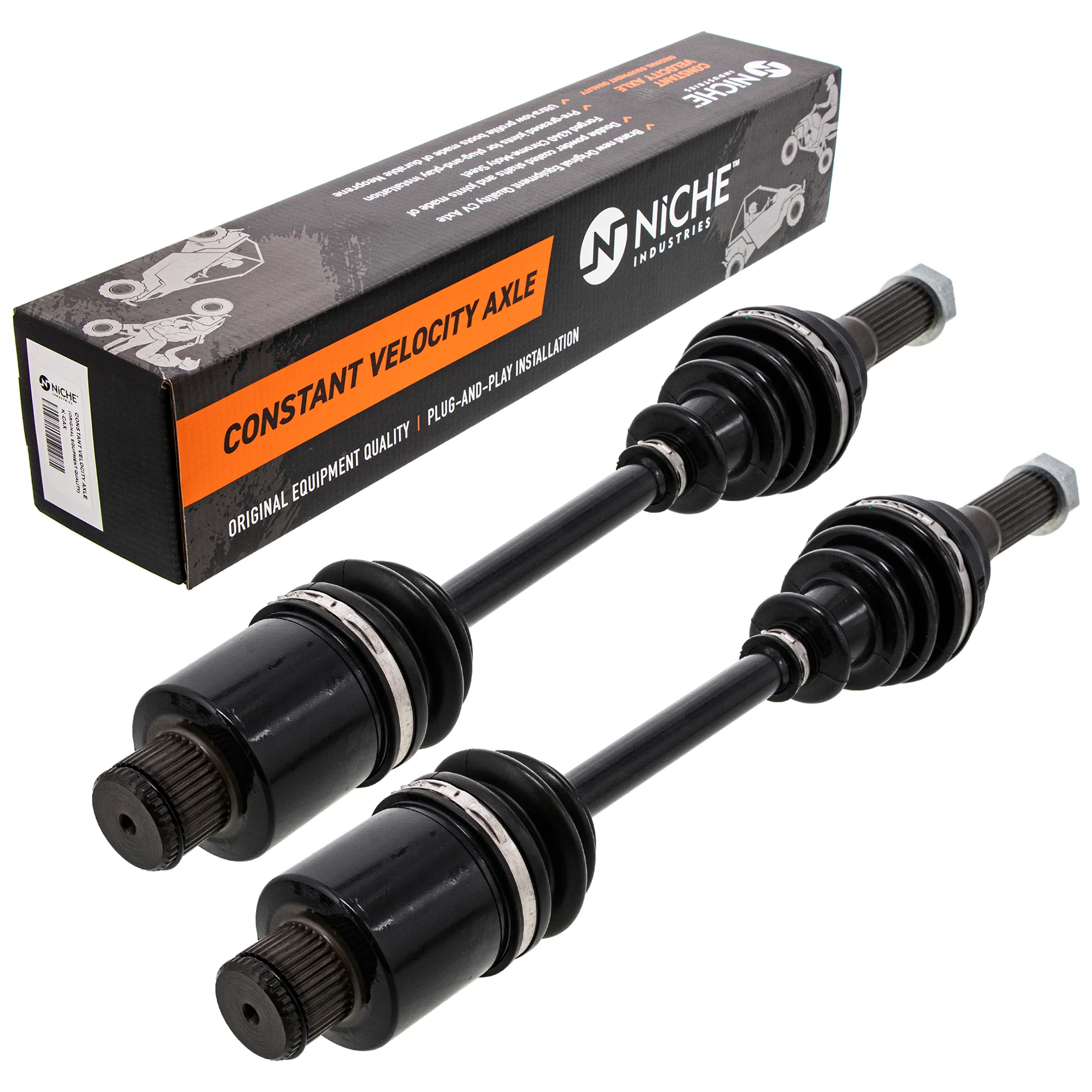

(QTY 2) NICHE 519-KCA2258X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332935, 1332654, 1332511, 1332421

(QTY 2) NICHE 519-KCA2275X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332422

Compatible with the Following Vehicles:

Polaris Sportsman 800 Twin: 2006
Polaris Sportsman 700 Twin: 2006
Polaris Sportsman 700 EFI Twin: 2006
Polaris Sportsman 500 HO: 2006
Polaris Sportsman 450: 2006
Arctic Cat 300 MRP: 2004
Arctic Cat 300 2X4: 2003
Arctic Cat 300: 2003-2004
Arctic Cat 250 2X4: 2003
Arctic Cat 250: 2003-2004
