MK1009450 Axle and Wheel Bearing Kit Product Info:

• NICHE Bearing 1 Dimensions 30x55x32; Bearing 2 Dimensions 25x52x42
• Front Compressed Length 25 3/8, Inboard Splines 24T, Inboard Spline Diameter 2 1/2, Outboard Splines 22T, Outboard Spline Diameter 2 13/16, Shaft Diameter 13/16, Thread Measurement M18x1.5
• Rear Axle Compressed Length 25 5/8, Inboard Splines 24T, Inboard Spline Diameter 2 3/4, Outboard Splines 24T, Outboard Spline Diameter 2 7/8, Shaft Diameter 7/8, Thread Measurement M20x1.5

Included in This Kit:

(QTY 2) NICHE 519-CBB2246R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 93305-00602-00, 93305-00601-00, 92045-0800, 92045-0123, 3323-119, 21259-31G00, 1402-809, 1402-027, 109-2064, 103-3303

(QTY 2) NICHE 519-CBB2206R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 92045-1411, 92045-0107, 92045-0102, 92045-0094, 92045-0028, 92045-0021

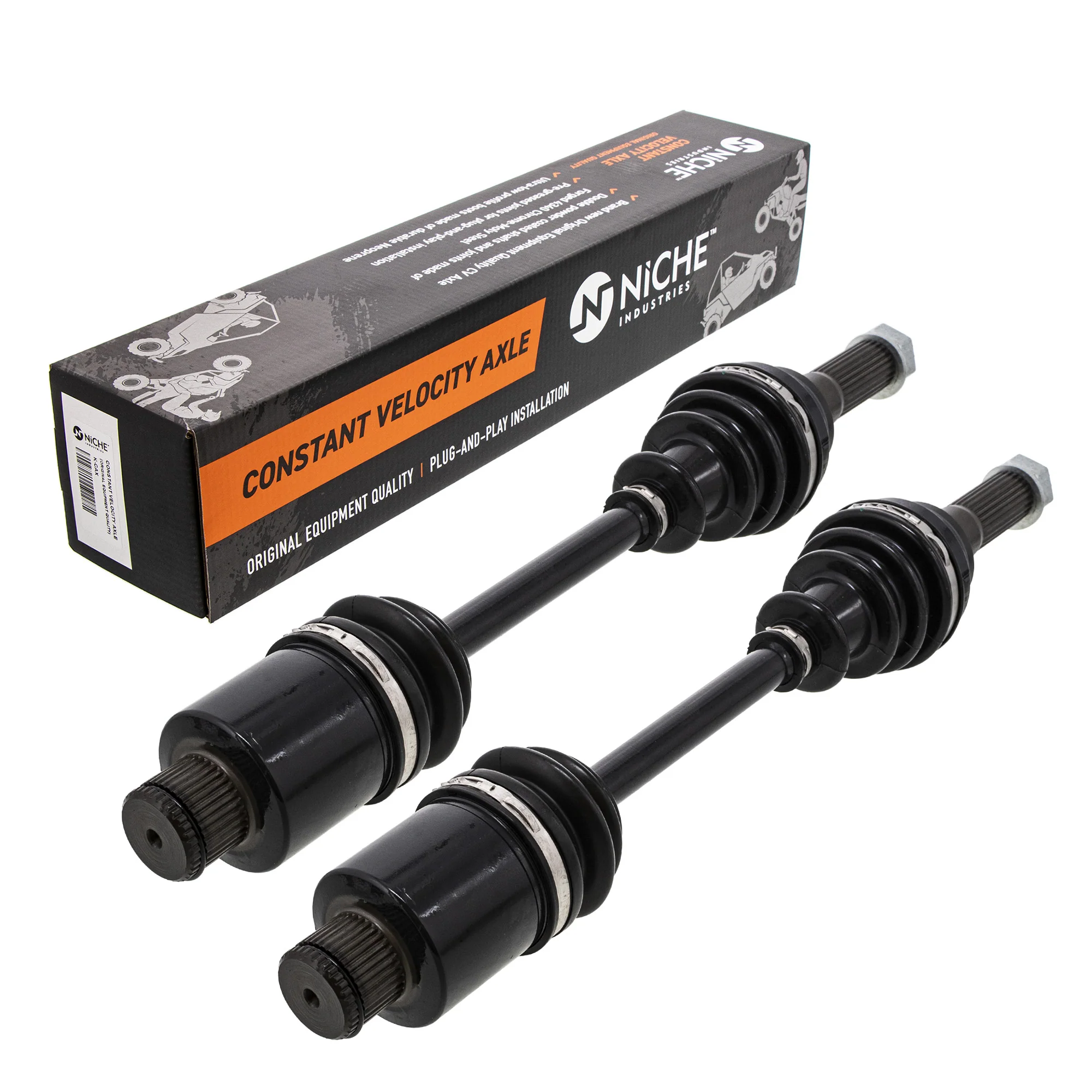

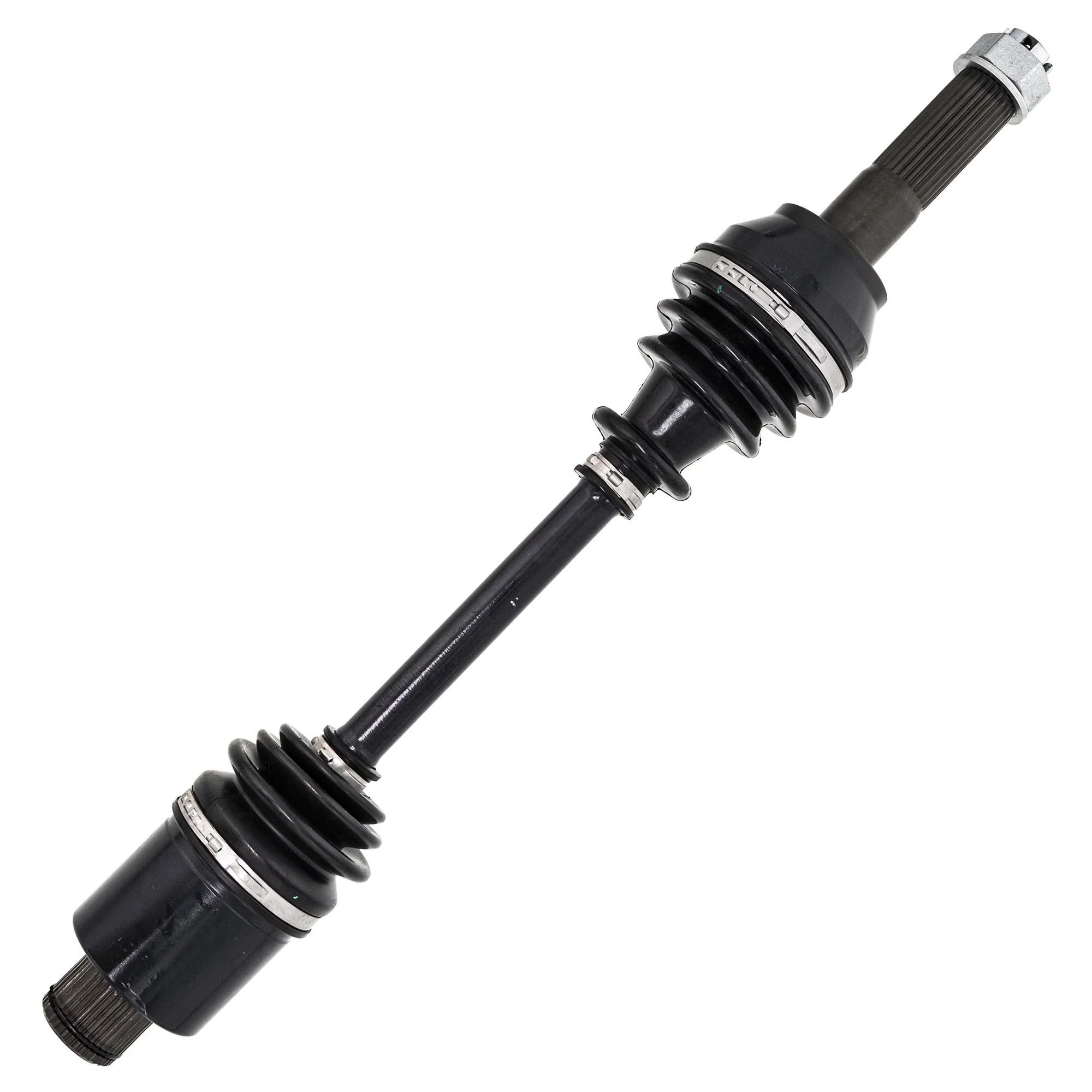

(QTY 2) NICHE 519-KCA2328X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0702

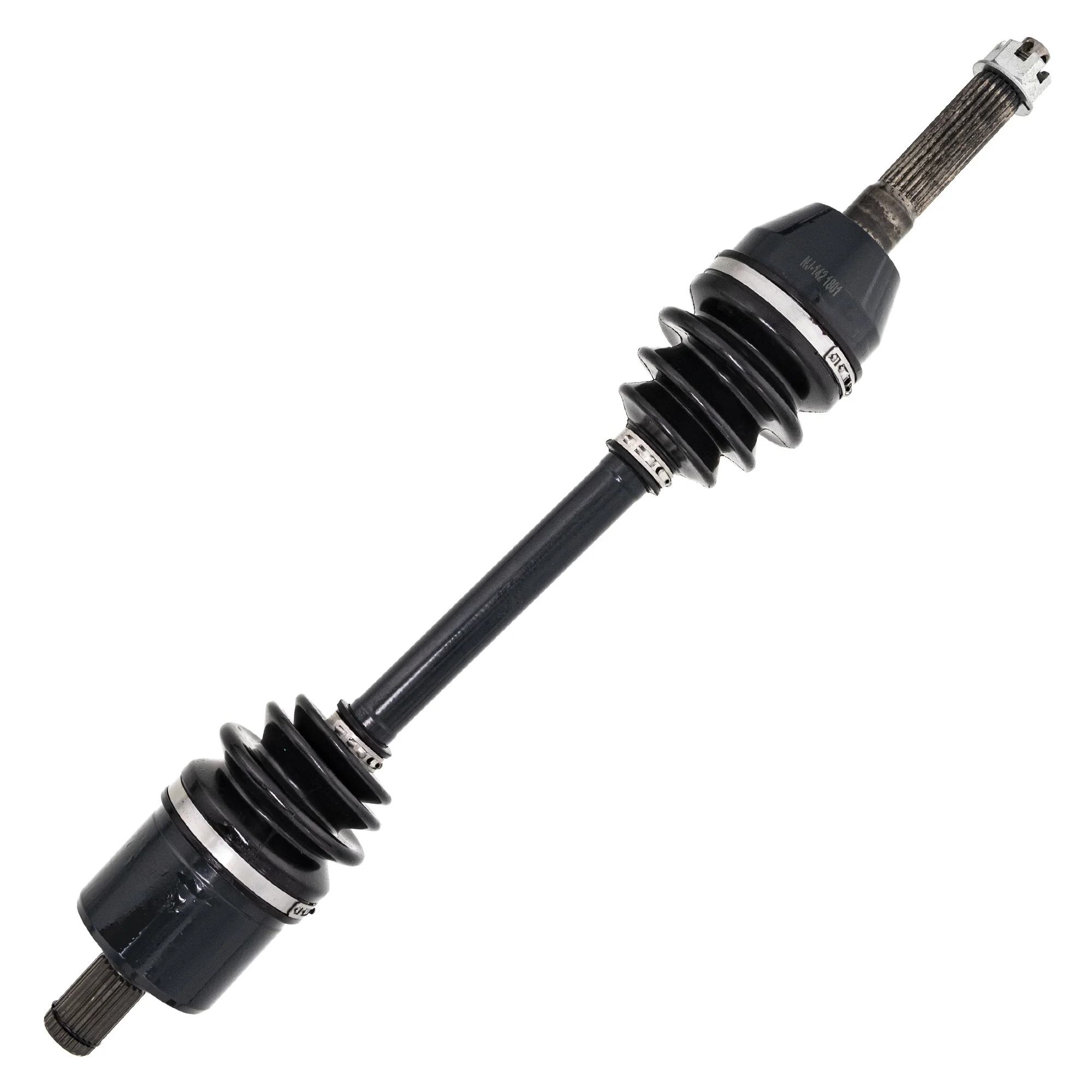

(QTY 2) NICHE 519-KCA2329X Front Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 59266-0037, 59266-0028

Compatible with the Following Vehicles:

Polaris Sportsman 450: 2007
Kawasaki Teryx 750 FI: 2012-2013
