MK1009453 Axle with Wheel Bearing and Seal Kit Product Info:

• NICHE Bearing 30x60x37; Diameters Inner (ID) 30mm; Outer (OD) 60mm; Height 37mm
• Front Left Axle Compressed Length 20 1/2, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 26T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M18x1.5
• Front Right Compressed Length 22, Inboard Splines 21T, Inboard Spline Diameter 2 1/2, Outboard Splines 26T, Outboard Spline Diameter 2 3/4, Shaft Diameter 13/16, Thread Measurement M18x1.5

Included in This Kit:

(QTY 4) NICHE 519-CBB2261R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 92045-0905, 92045-0762, 706000635, 706000320, 705400088, 293370019, 293350150, 293350126, 293350118, 293350040

(QTY 4) NICHE 519-CSE2245A Seal Type TC 40x58x6

Substitute For OEM Part Numbers(s): 09283-40018

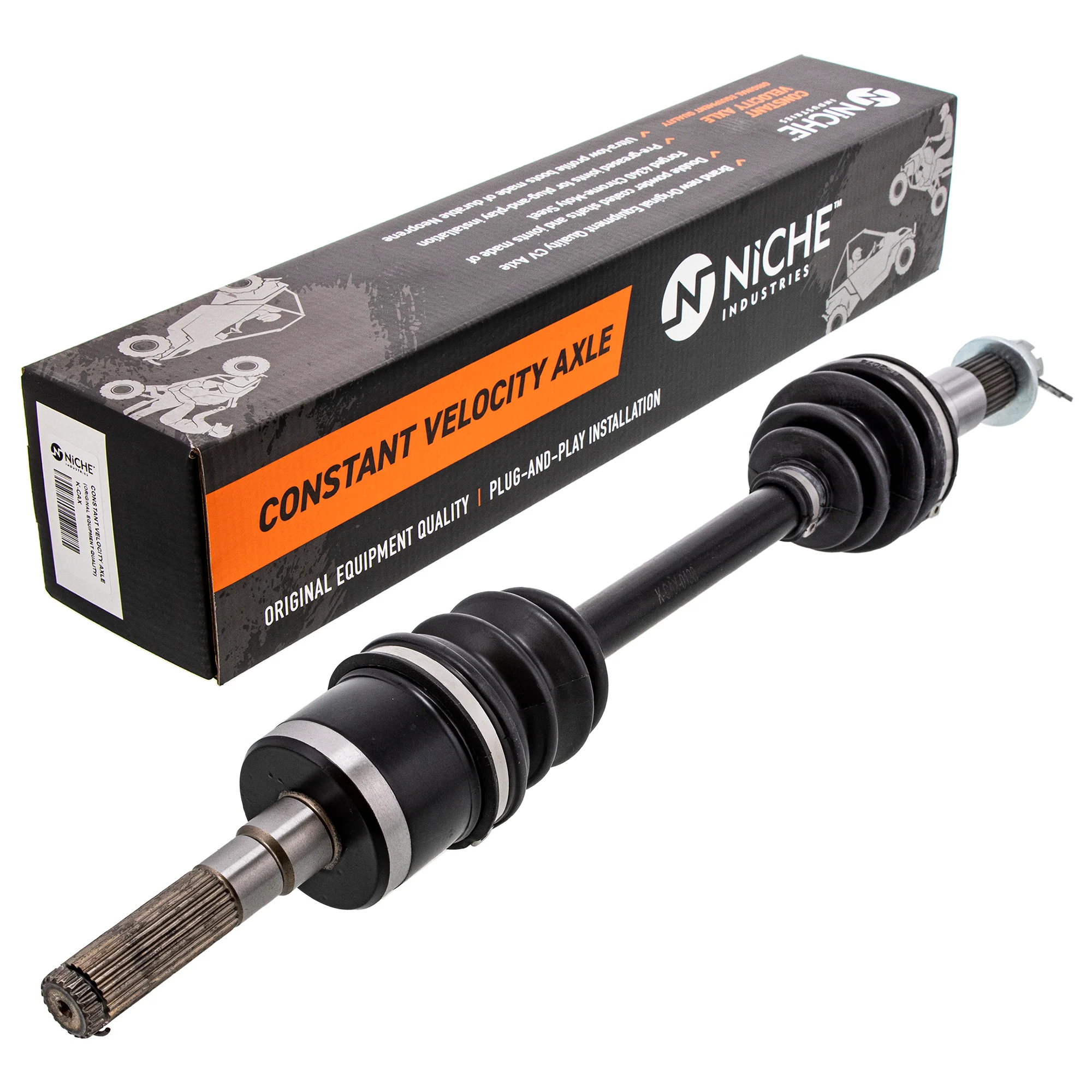

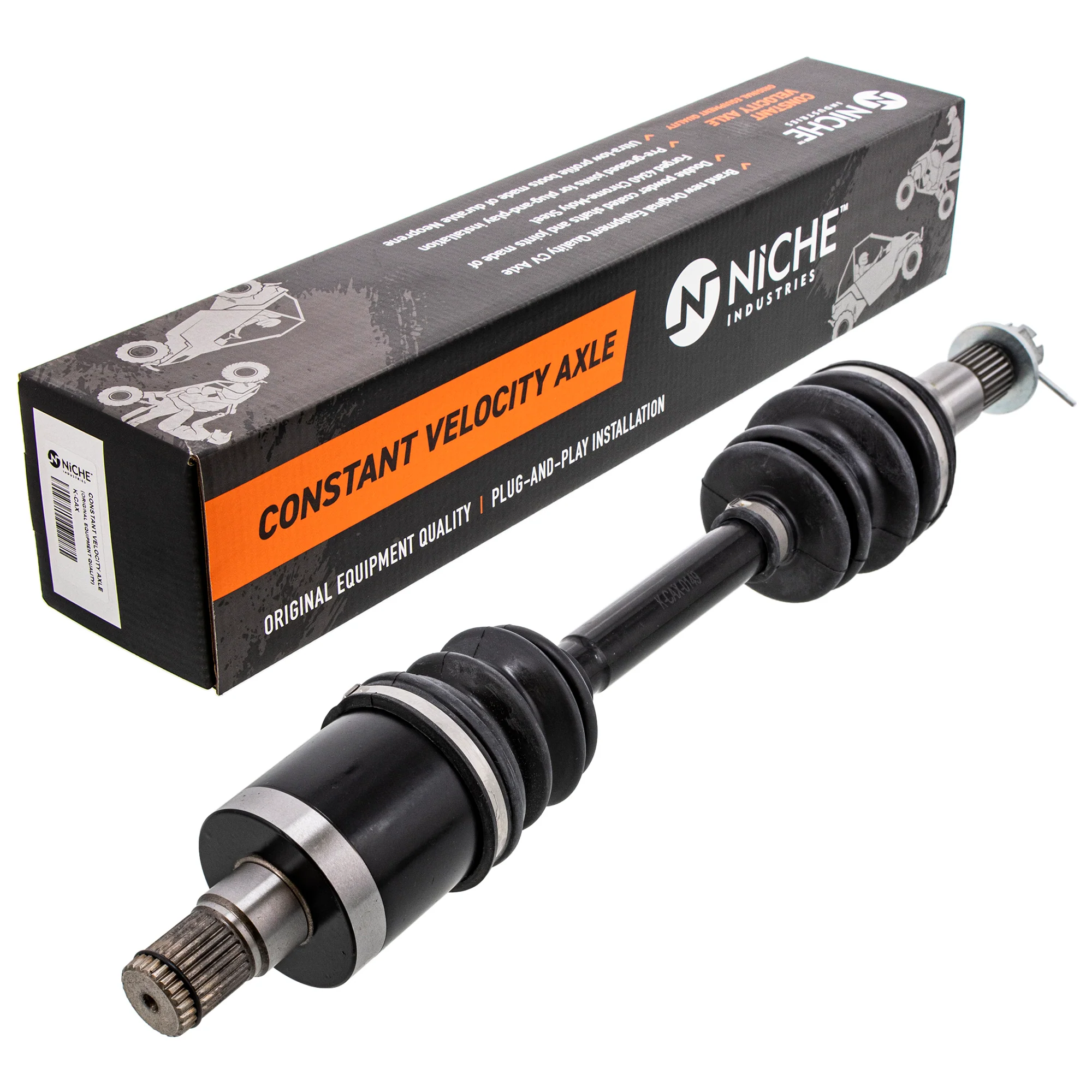

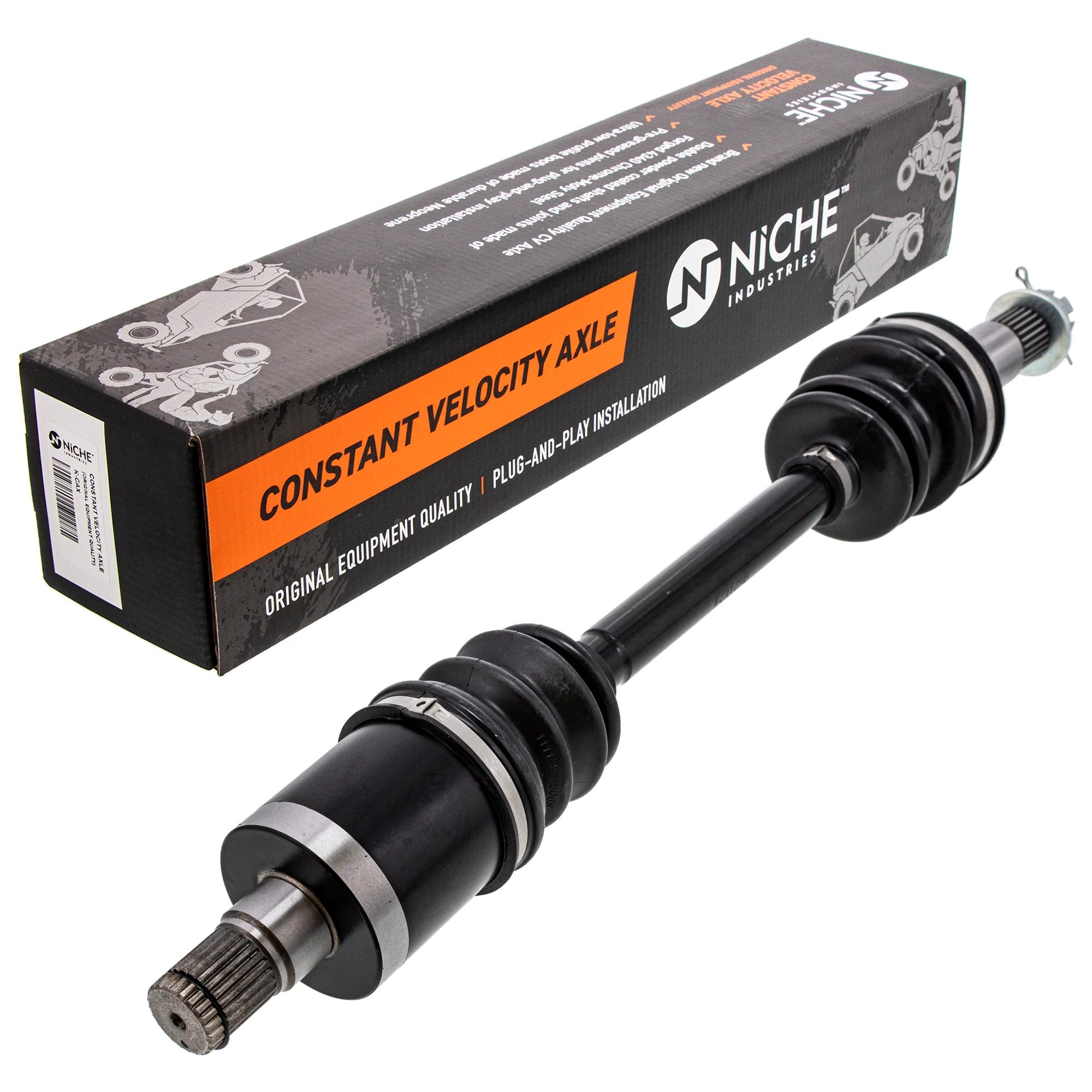

(QTY 1) NICHE 519-KCA2359X Front Left Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705401945, 705401429

(QTY 1) NICHE 519-KCA2350X Front Right Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705401946, 705401428

(QTY 1) NICHE 519-KCA2360X Rear Left Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705502476, 705501898

(QTY 1) NICHE 519-KCA2361X Rear Right Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 705502477, 705501897

Compatible with the Following Vehicles:

Polaris Sportsman 400 HO: 2013-2014
