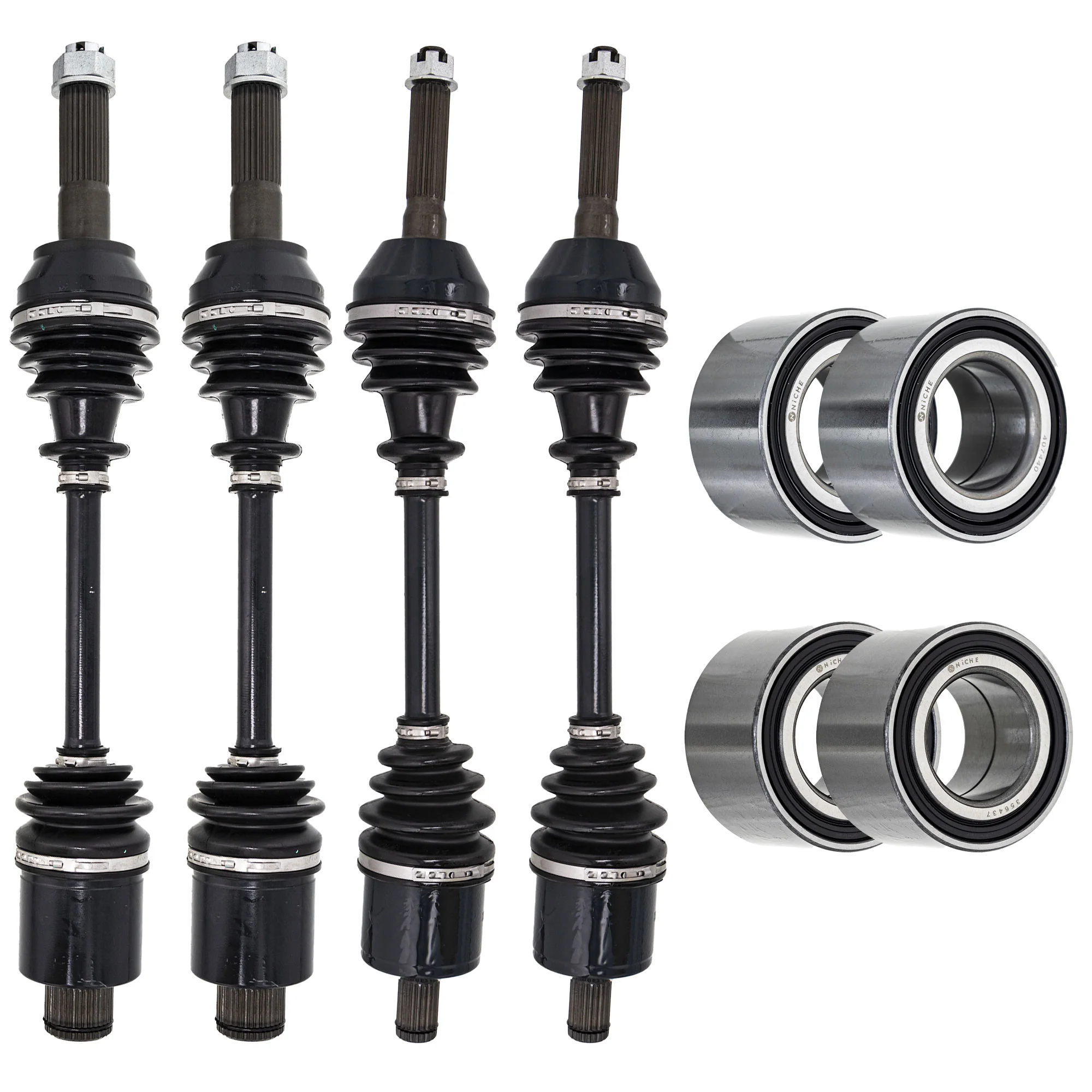

MK1009473 Axle and Wheel Bearing Kit Product Info:

• Includes NICHE Bearings with Dimensions 40x74x40; 35x64x37
• Front Axle Compressed Length 21, Inboard Splines 22T, Inboard Spline Diameter 2 11/16, Outboard Splines 20T, Outboard Spline Diameter 3, Shaft Diameter 13/16, Thread Measurement 5/8x16
• Rear Axle Compressed Length 21 9/16, Inboard Splines 36T, Inboard Spline Diameter 2 3/4, Outboard Splines 26T, Outboard Spline Diameter 3, Shaft Diameter 13/16, Thread Measurement M18X1.5

Included in This Kit:

(QTY 2) NICHE 519-CBB2259R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3585502, 3514635

(QTY 2) NICHE 519-CBB2283R Double Row, Angular Contact, Ball Bearing

Substitute For OEM Part Numbers(s): 3514634, 3514342

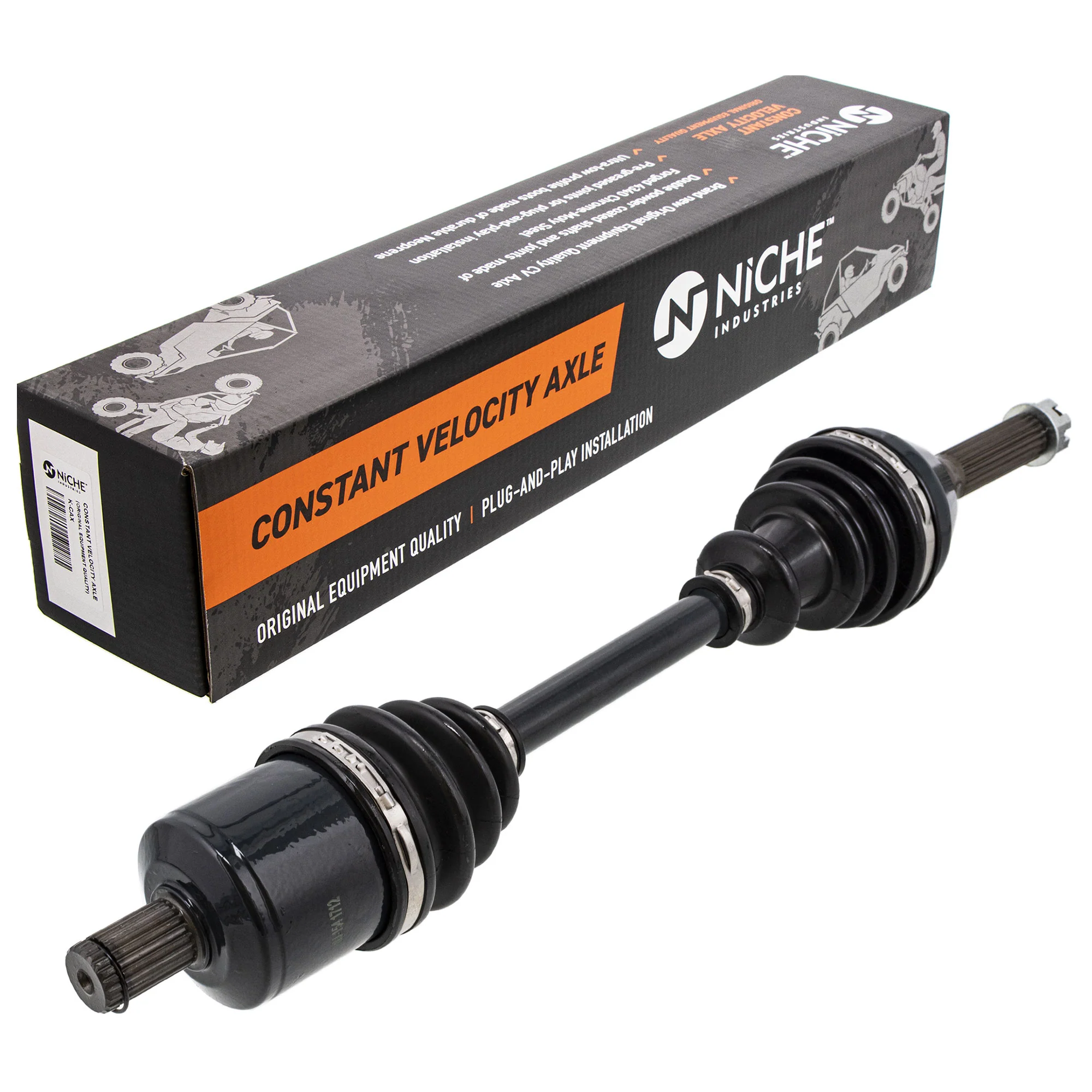

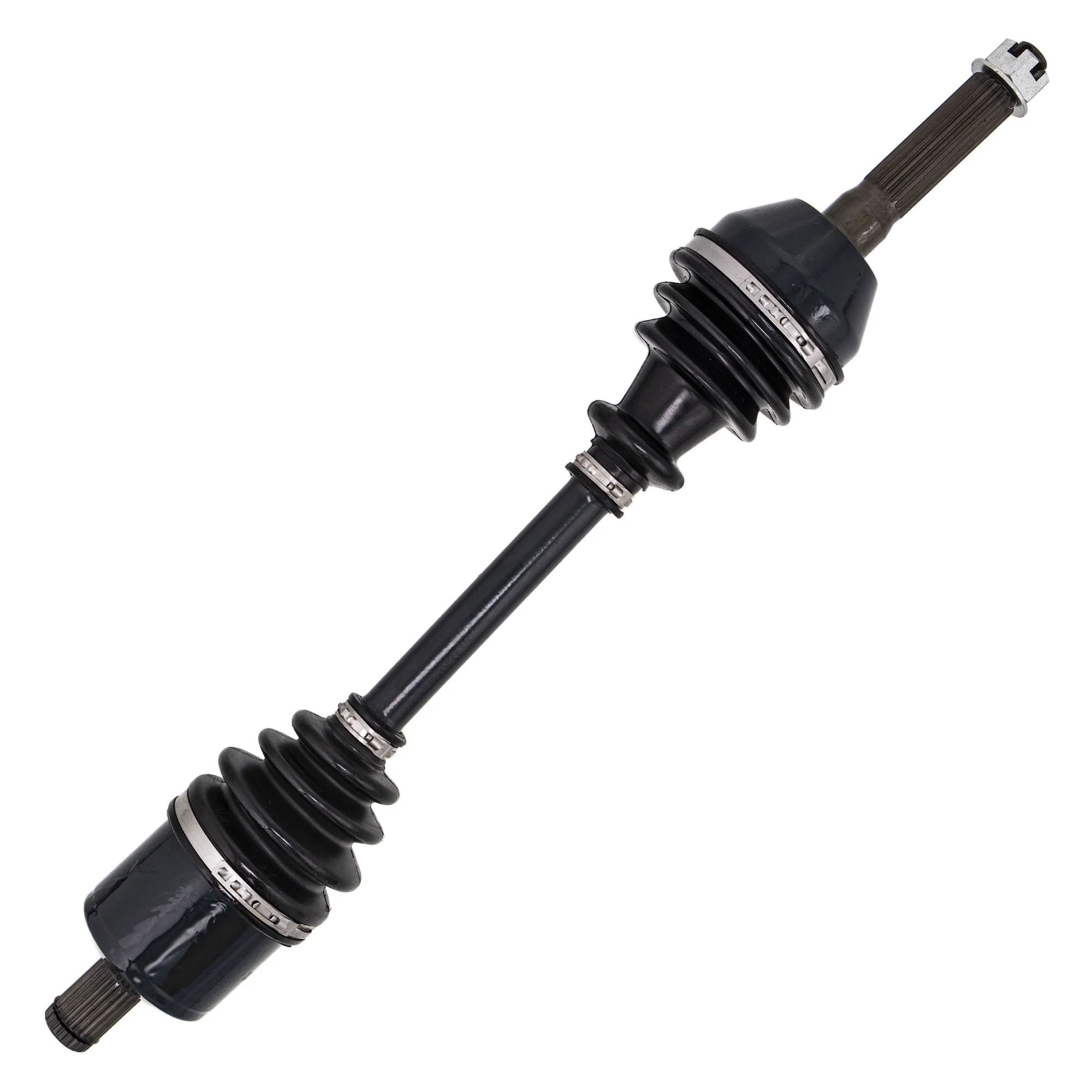

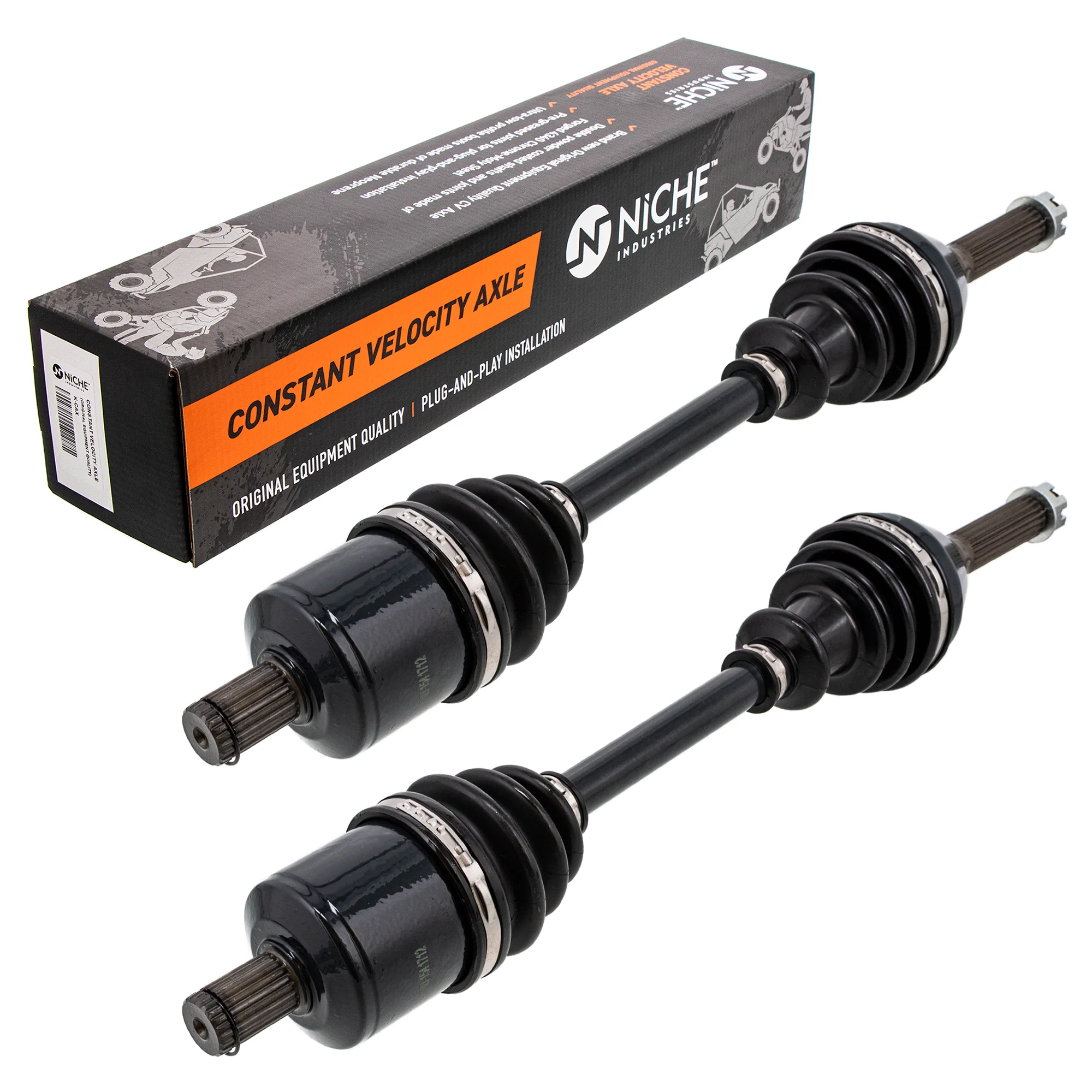

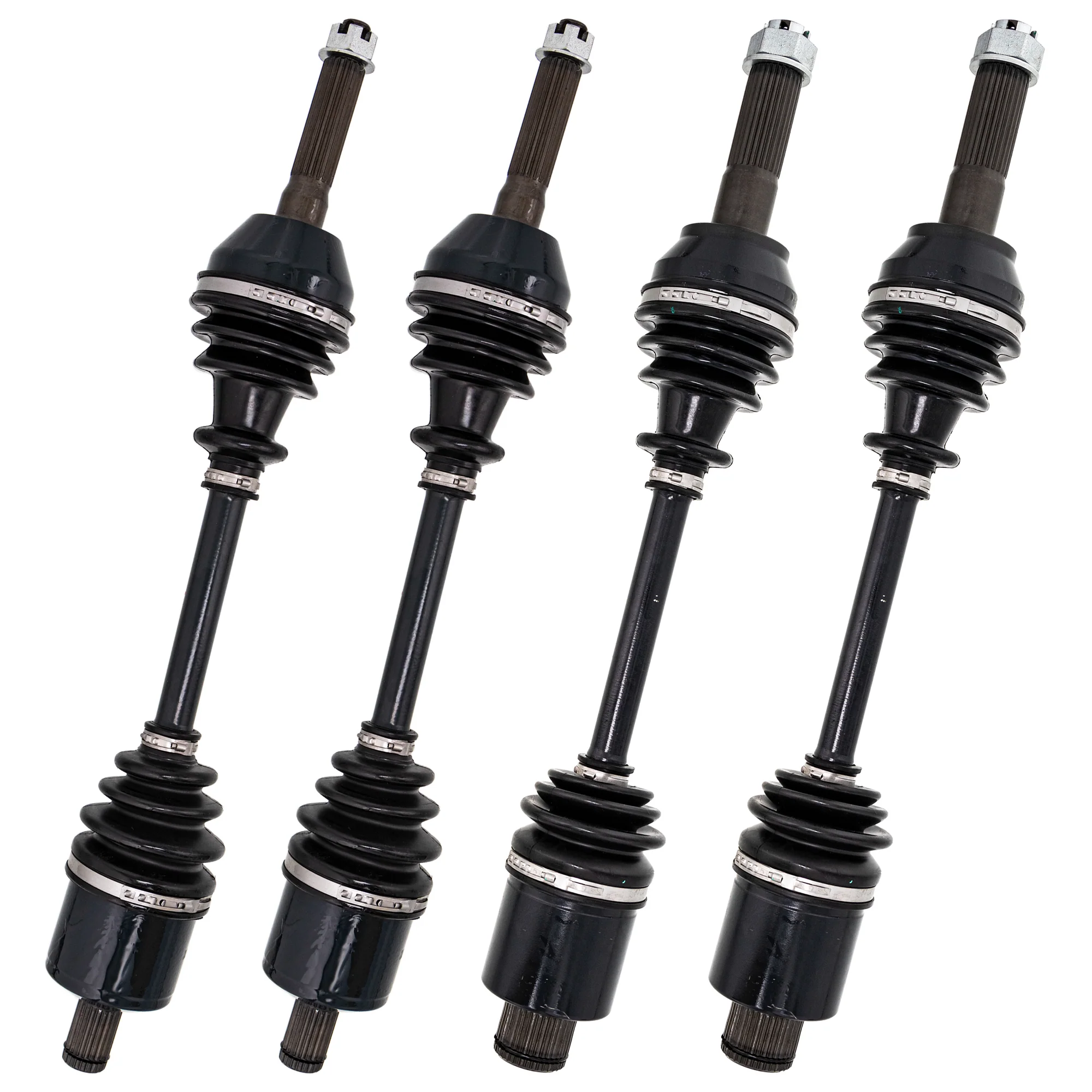

(QTY 2) NICHE 519-KCA2255X Front Half Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332881, 1332656, 1332501, 1332471

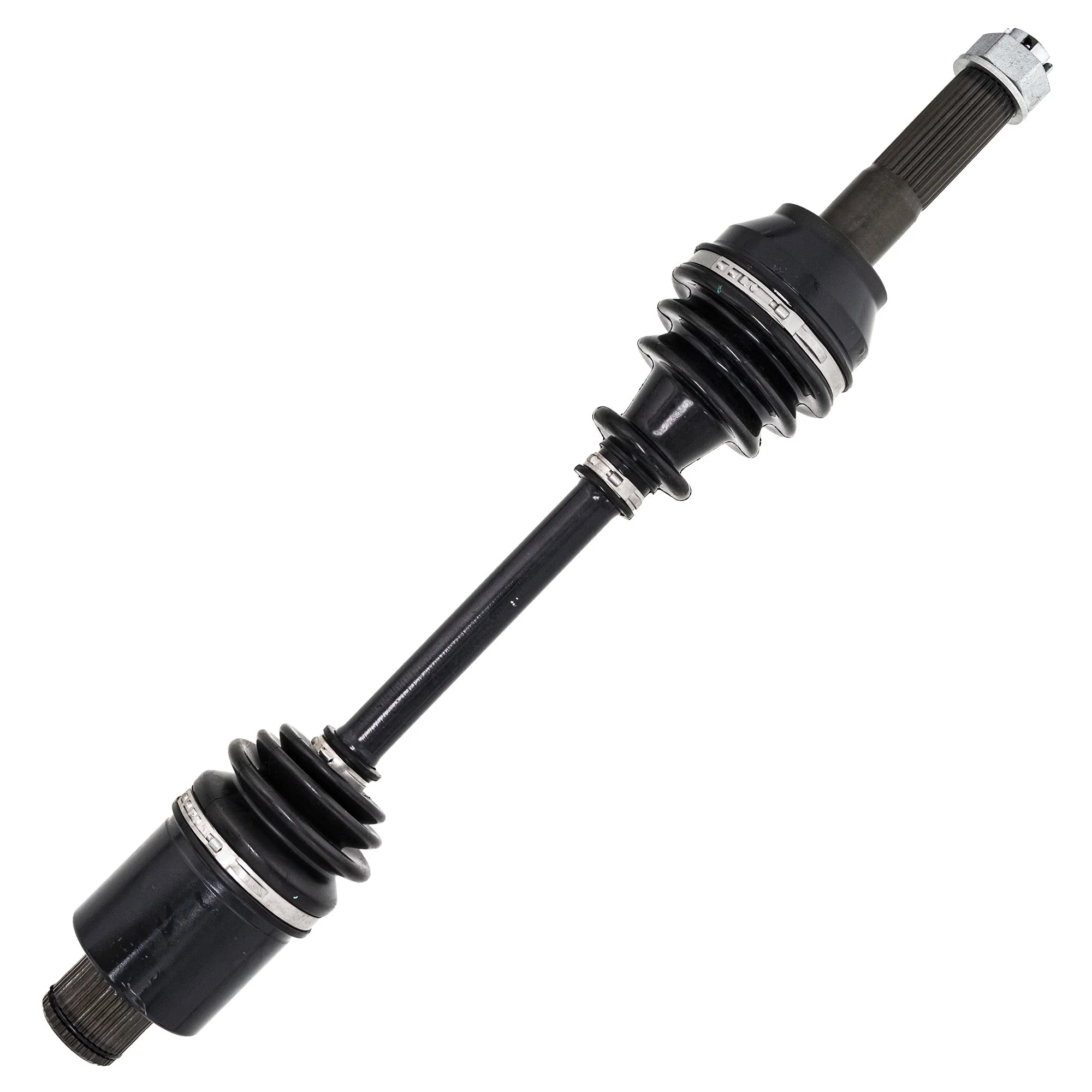

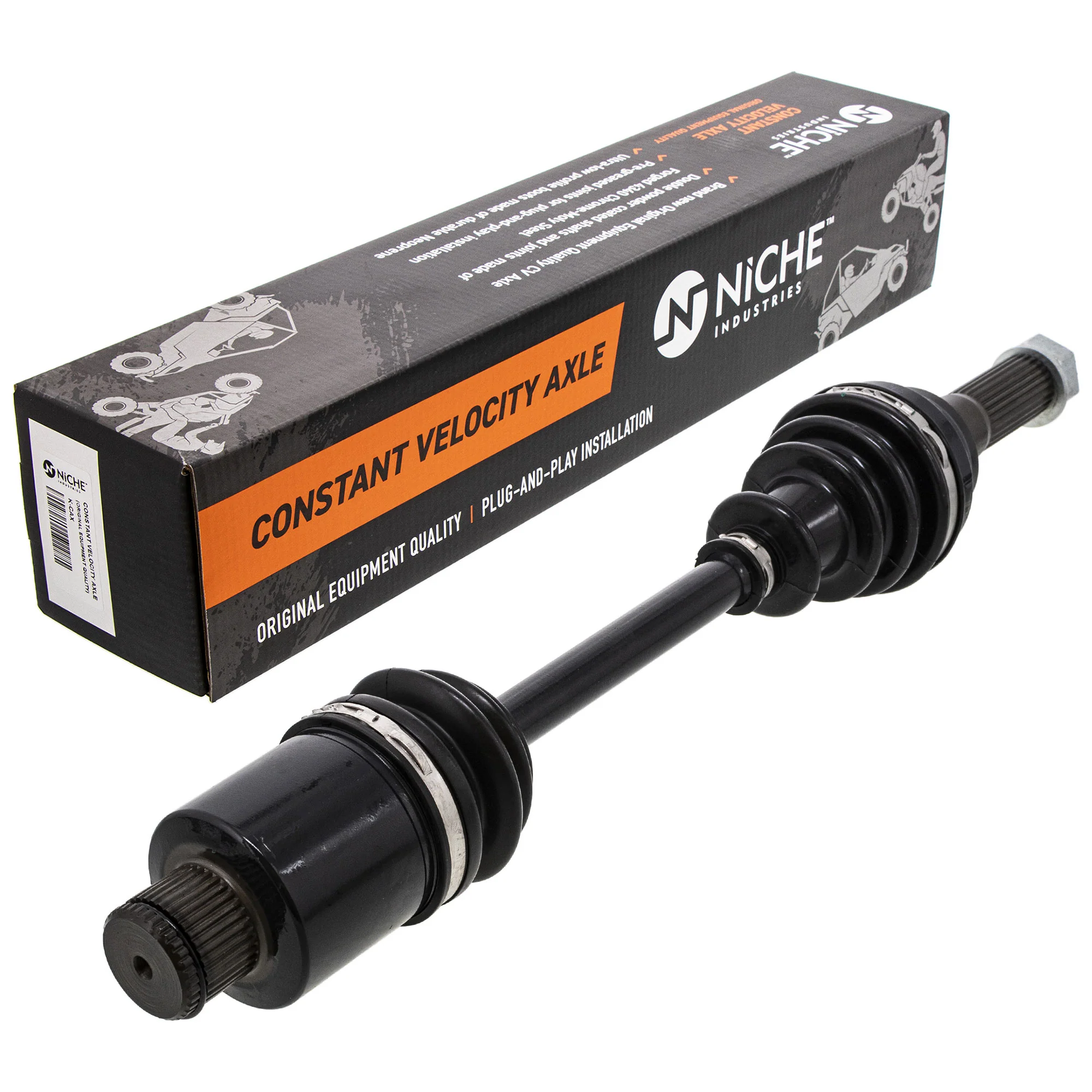

(QTY 2) NICHE 519-KCA2258X Rear Drive Shaft CV Axle Assembly

Substitute For OEM Part Numbers(s): 1332935, 1332654, 1332511, 1332421

Compatible with the Following Vehicles:

Polaris Sportsman 800 Twin: 2006
Polaris Sportsman 800 Military: 2012
Polaris Sportsman 800 HO: 2008-2009
Polaris Sportsman 800 6X6: 2009-2010
Polaris Sportsman 800: 2006-2012
Polaris Sportsman 700 EFI Twin: 2007
Polaris Sportsman 500 HO Military: 2009
Polaris Sportsman 500 HO: 2007-2012
Polaris Sportsman 450: 2007
Polaris Sportsman 400 HO: 2011-2012
